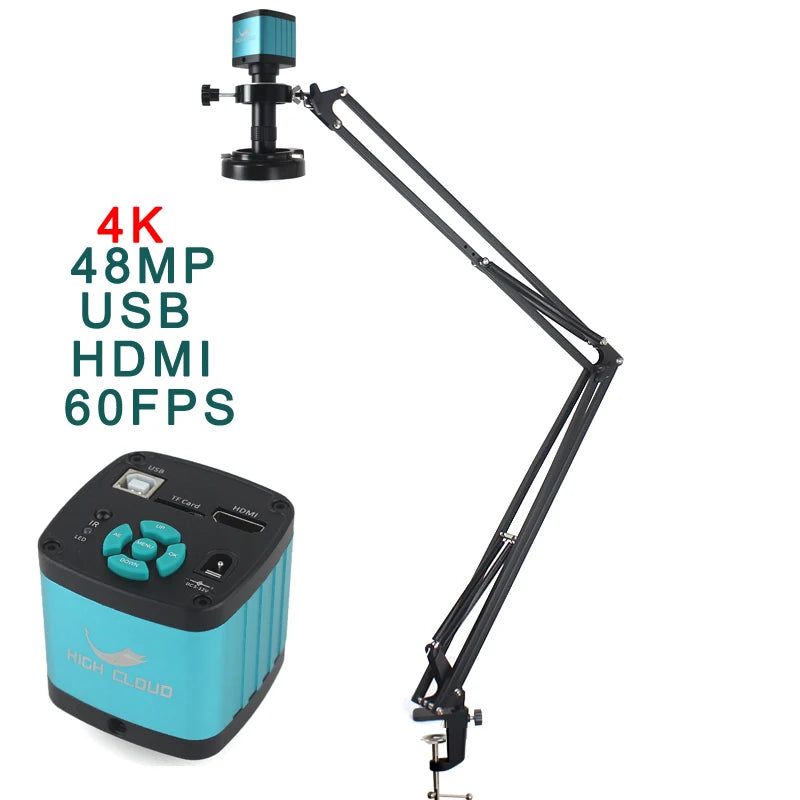

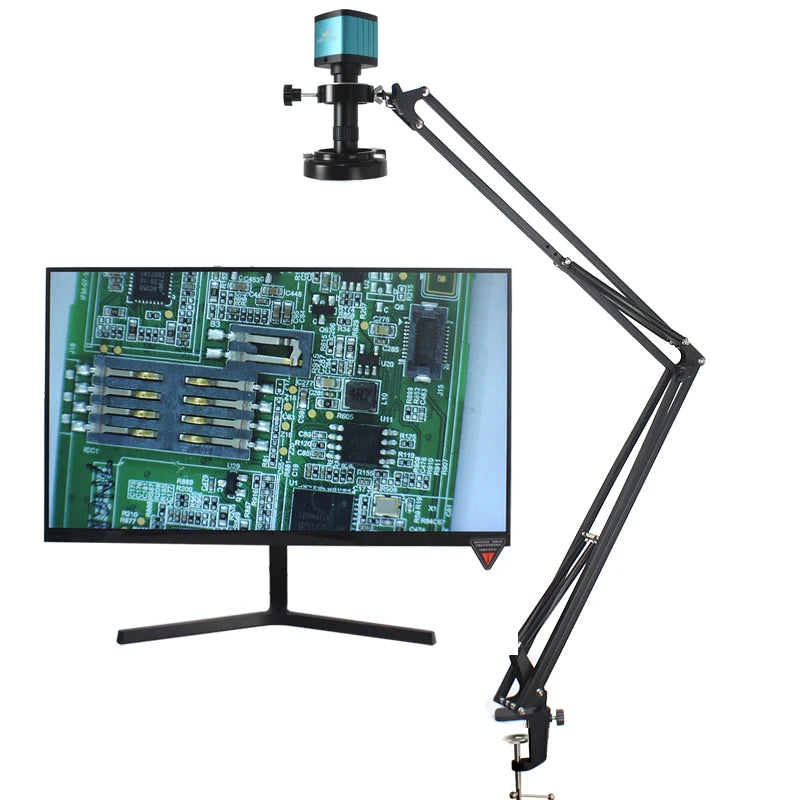

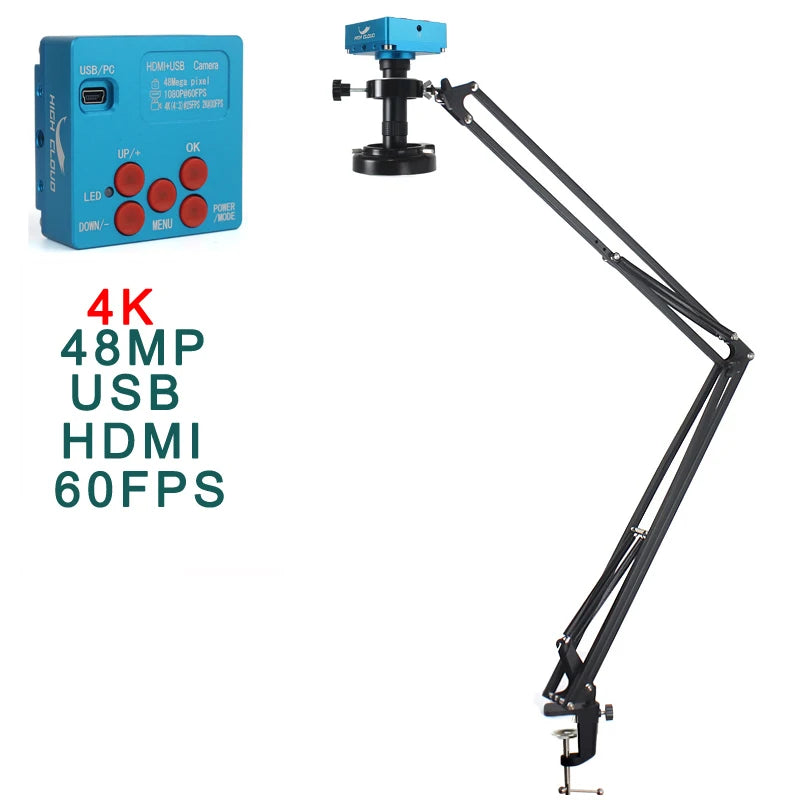

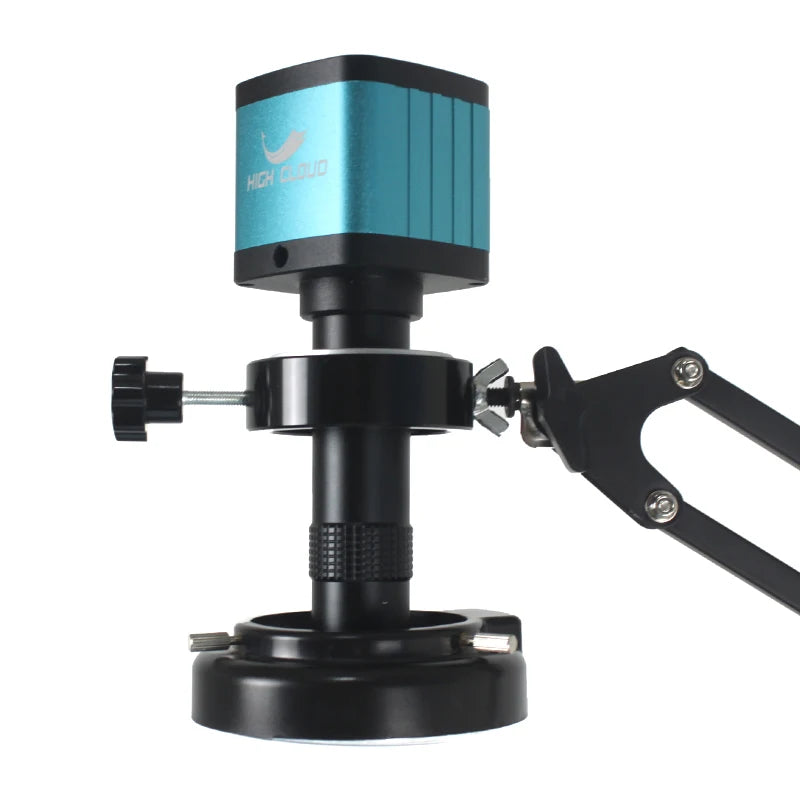

48MP 4K 1080P HDMI USB Industrial Digital Microscope Camera with C-Mount Lens 130X Zoom Cantilever Stand for Repair Soldering
48MP 4K 1080P HDMI USB Industrial Digital Microscope Camera with C-Mount Lens 130X Zoom Cantilever Stand for Repair Soldering
Couldn't load pickup availability
SPECIFICATIONS
Battery Included: No
Brand Name: HIGH CLOUD
Certification: CE
Choice: yes
Drawtube: Monocular
Features: Digital
Hign-concerned Chemical: None
Magnification Ratio: 500X & Under
Material: Metal
Model Number: 4K HDMI Microscope Camera
Origin: Mainland China
Theory: Video Microscope
semi_Choice: yes
Note: Please select the product you need according to the SKU picture, you can choose to buy a package or a combination
Note: The SKU image shall prevail

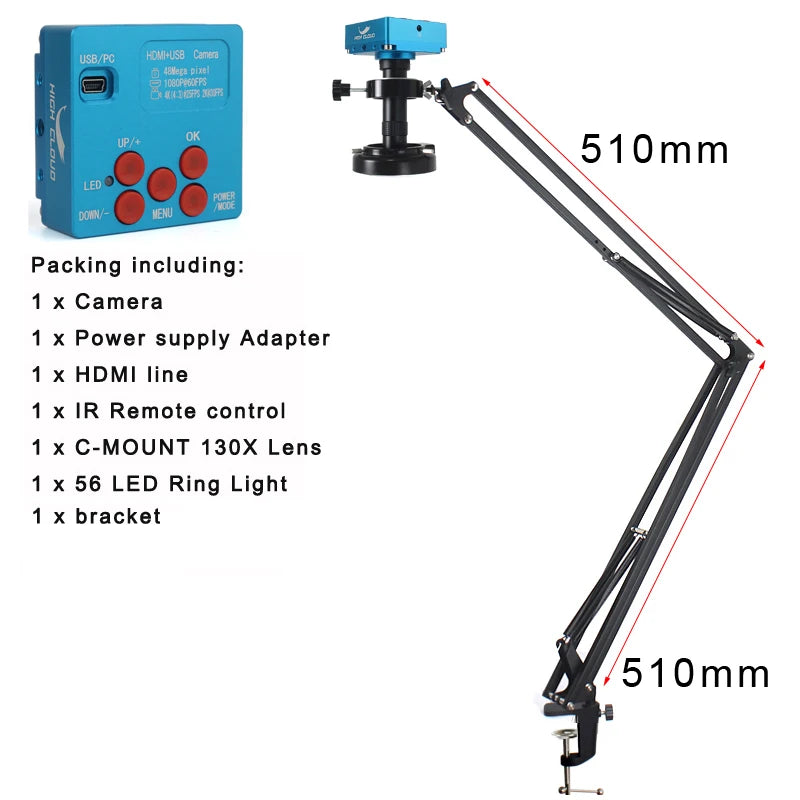

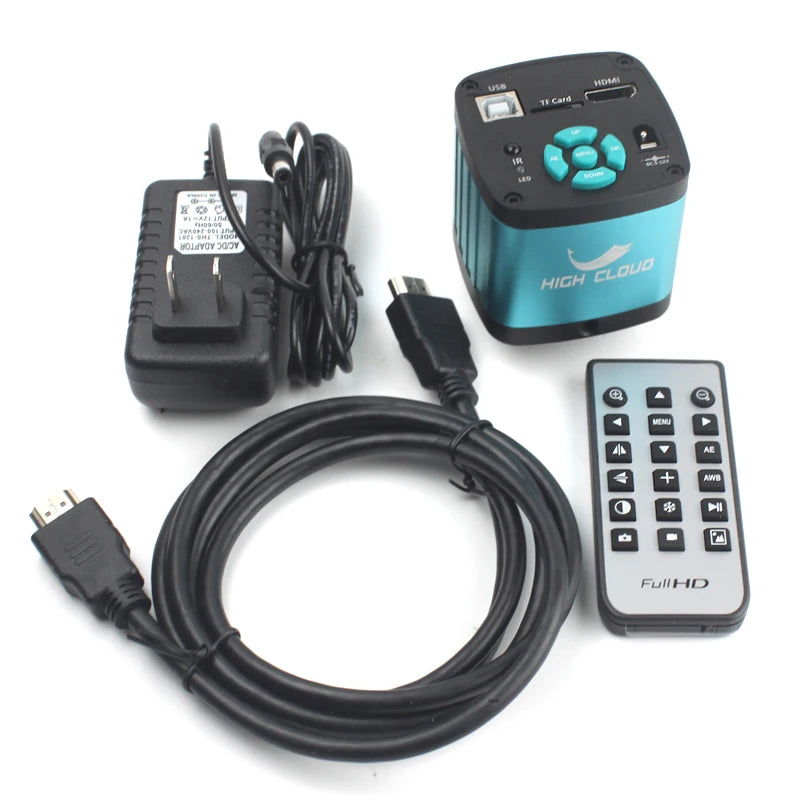

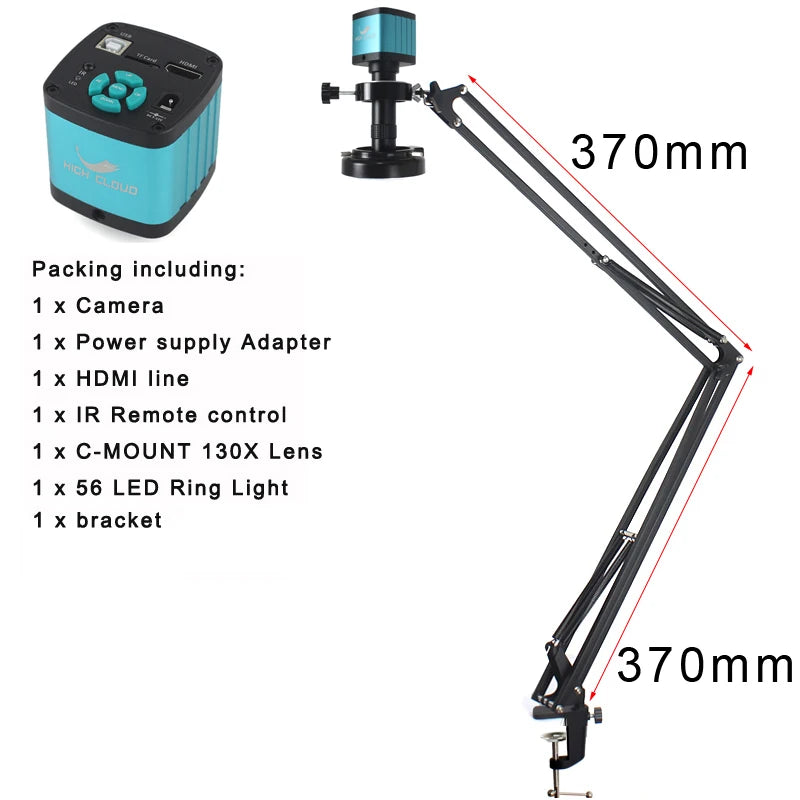

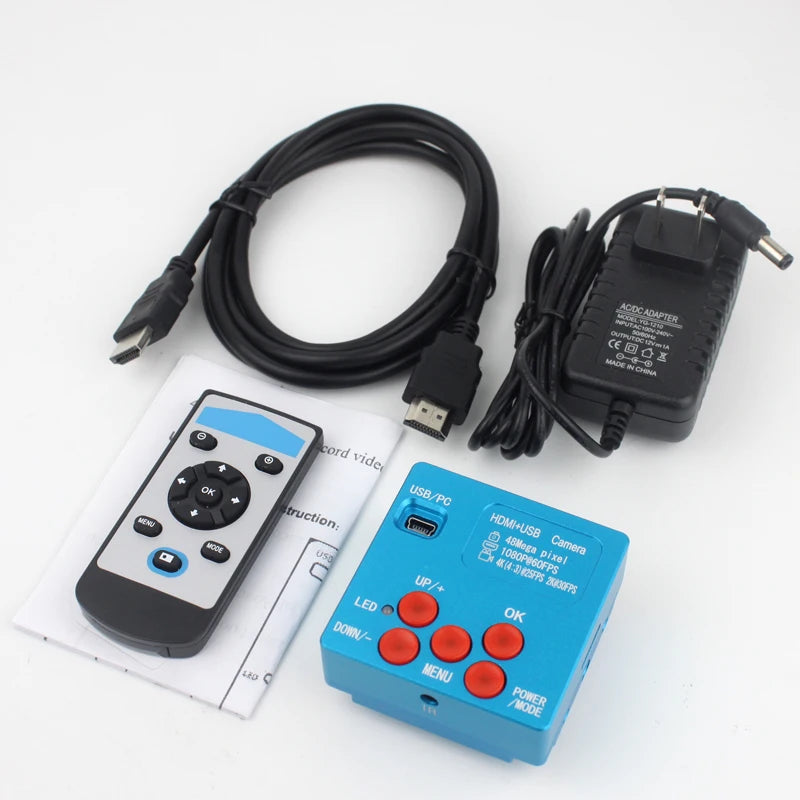

Package incluede:

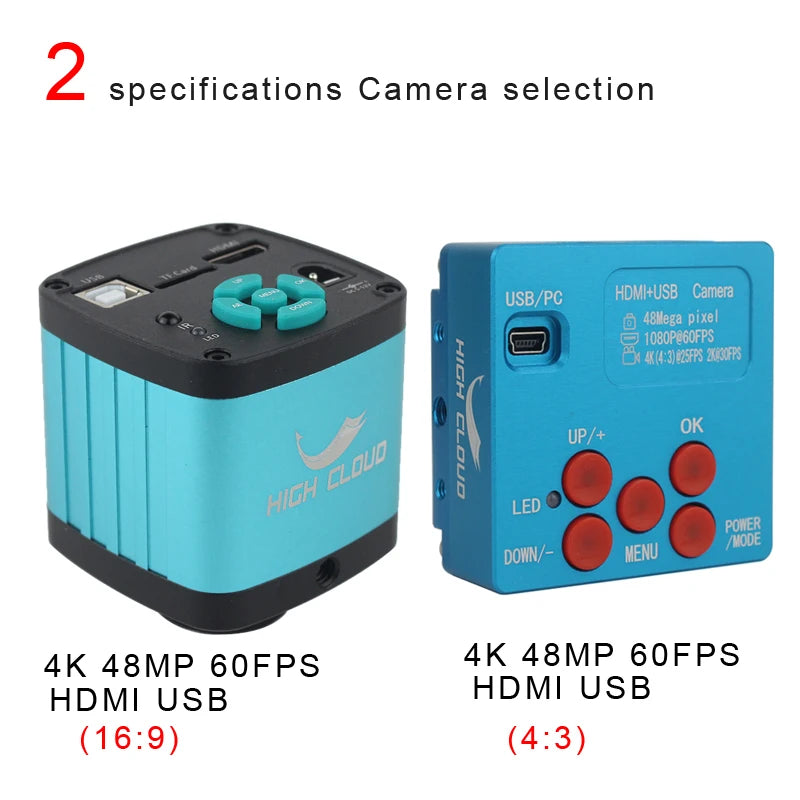

1 x Microscope Camera (2 specifications)
1 x Power Adapter (AU/EU)
1 x IR remoter
1 x HDMI Lines

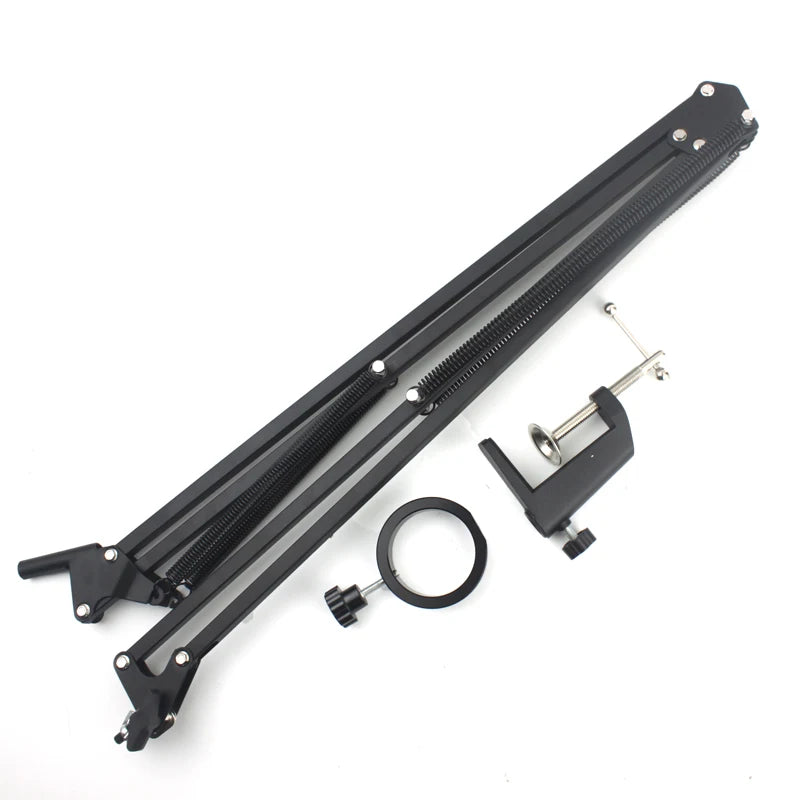

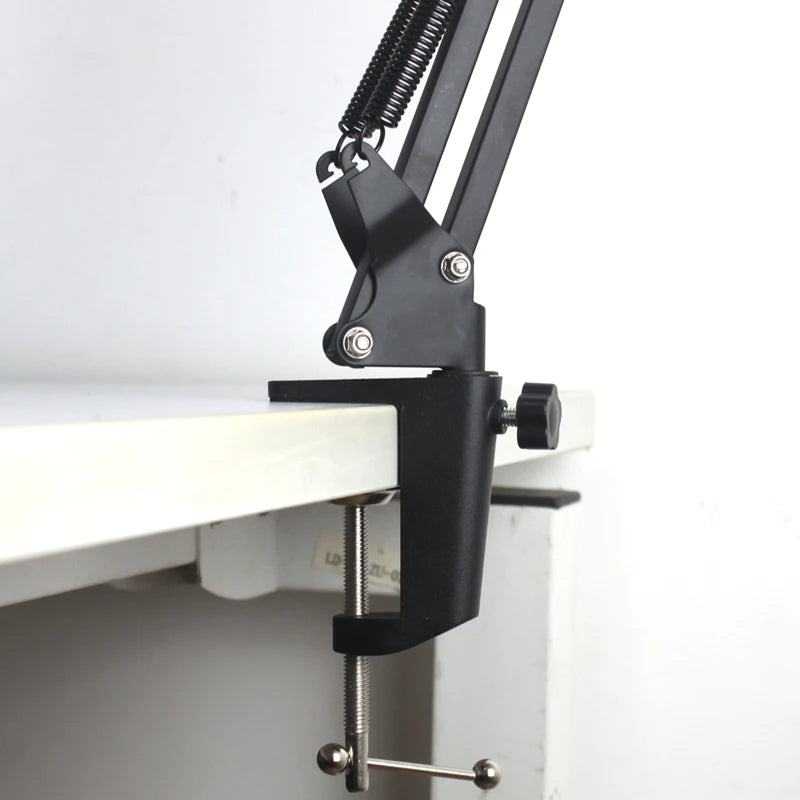

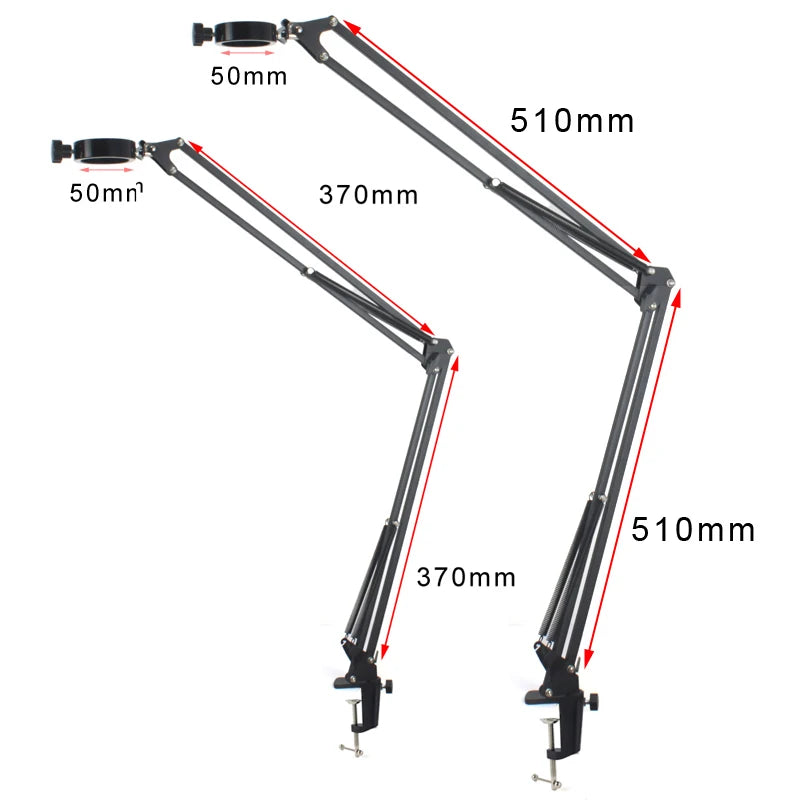

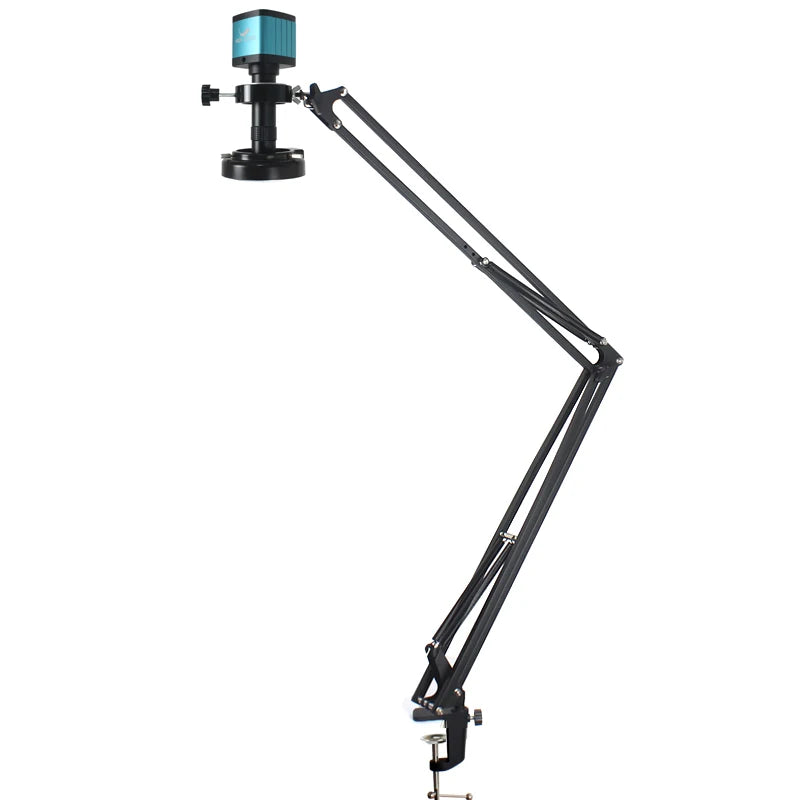

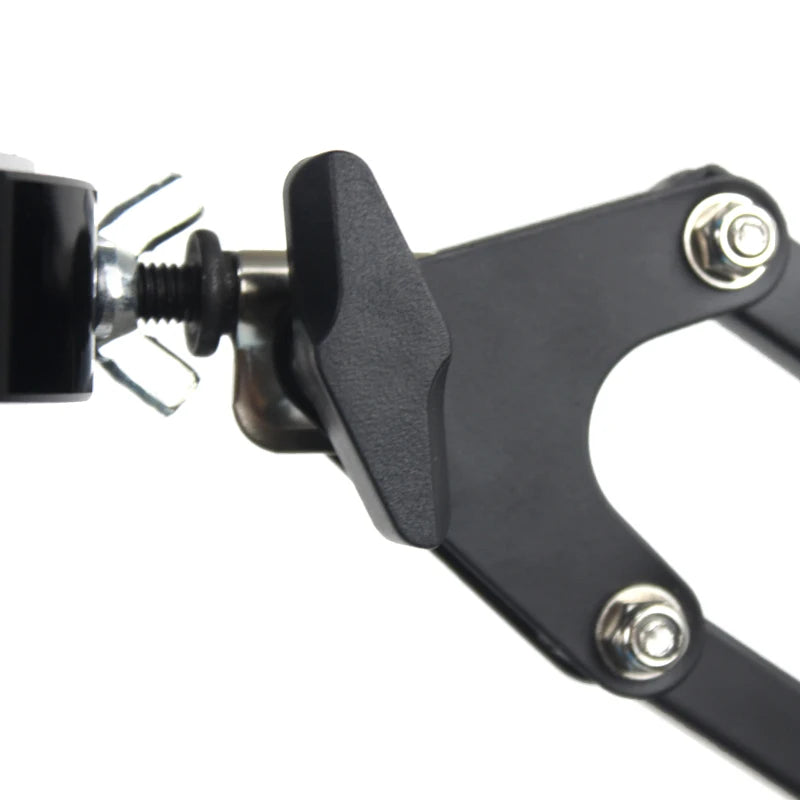

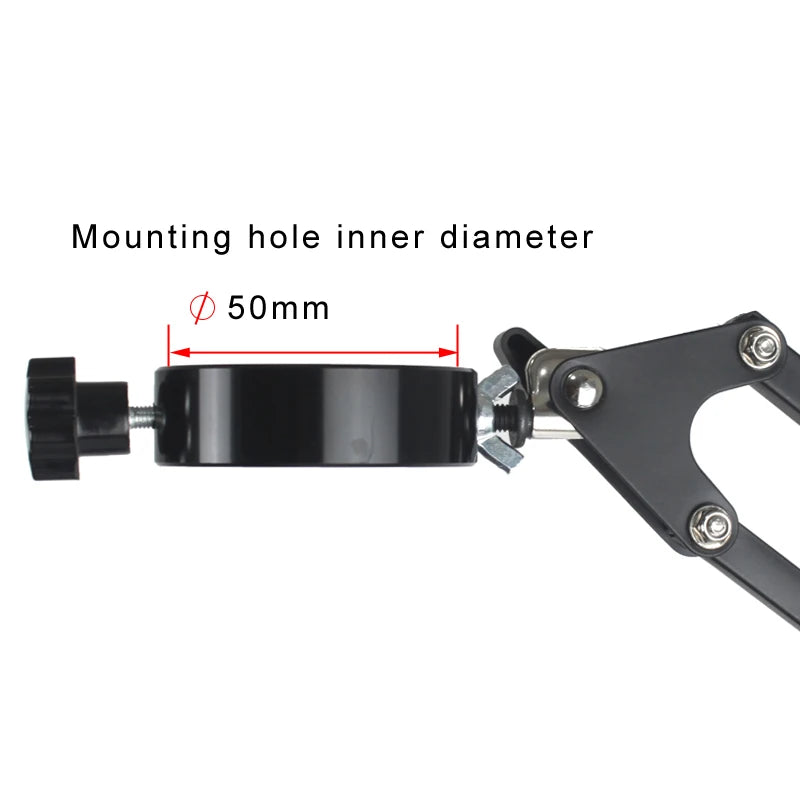

1 x Stand (51cm/37cm)
1 x 130X lens
1 x 56 led ring light
It is recommended that the working distance exceeds 40cm, and a work desk lamp should be used to fill in the light.

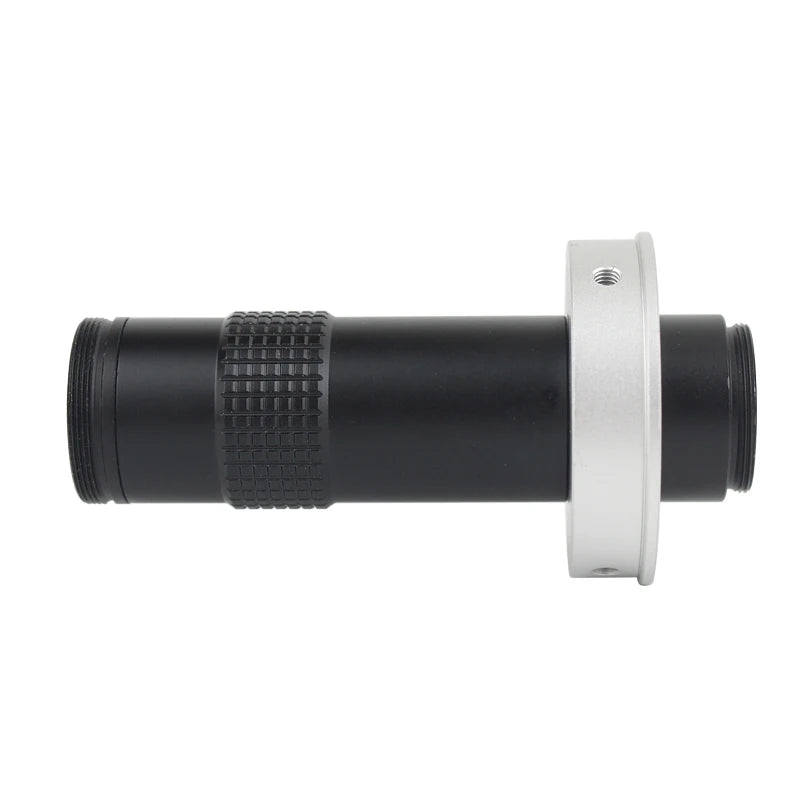

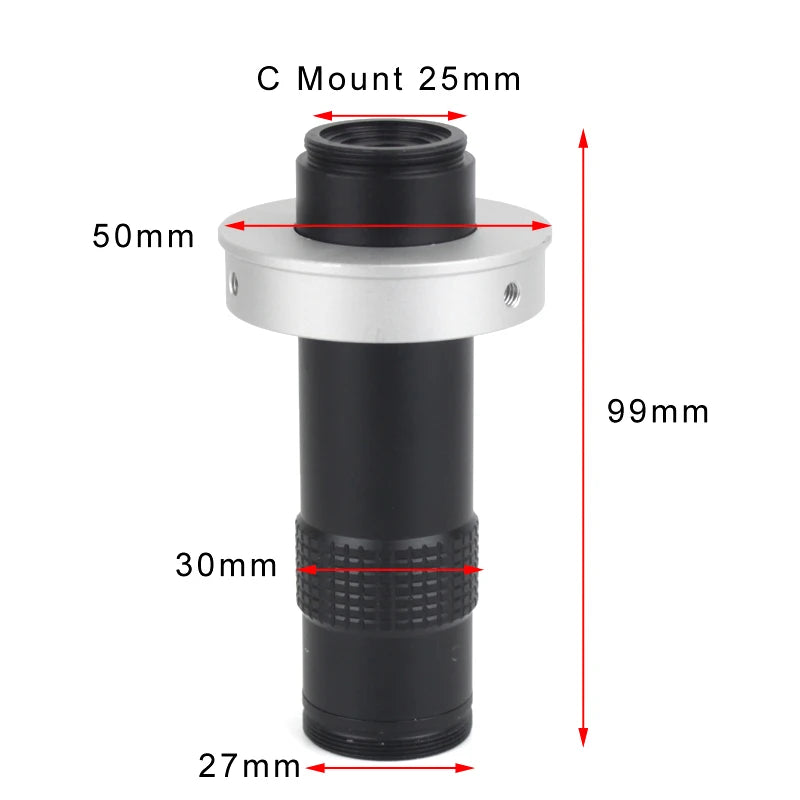

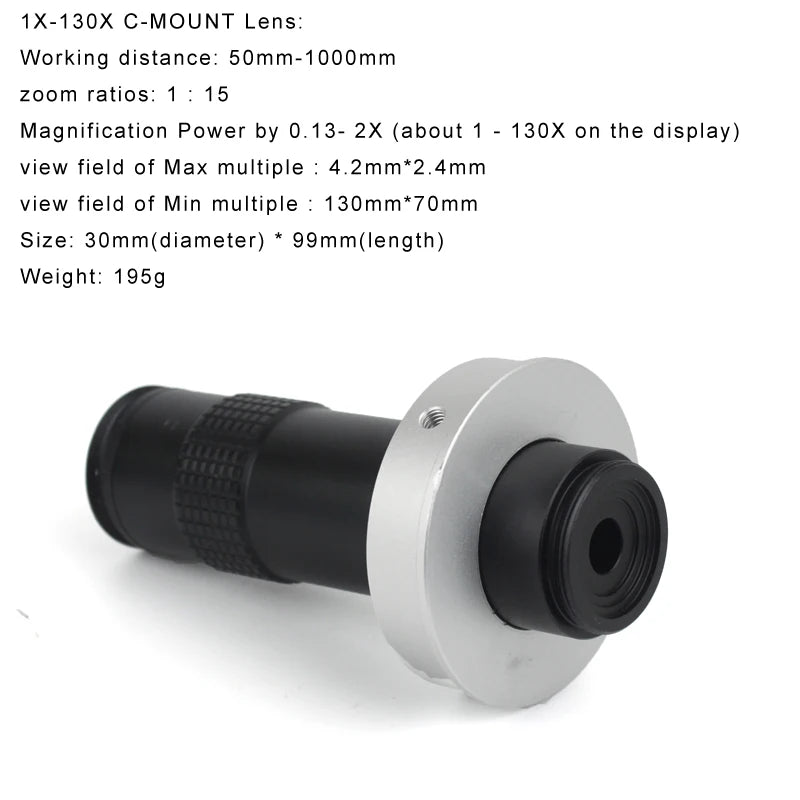

1X-130X C-MOUNT Lens:
Working distance: 50mm-1000mm
zoom ratios: 1 : 15
Magnification Power by 0.13- 2X (about 1 - 130X on the display)
view field of Max multiple : 4.2mm*2.4mm
view field of Min multiple : 130mm*70mm
Size: 30mm(diameter) * 99mm(length)
Weight: 195g
56 bright white LED bulbs
100,000 hours of life
Intense and focused shadow-free illumination
The brightness of 0-100%Adjustable,high brightness
Variable intensity control
Power input: 90-260V, 50-60HZ
Suit for the dia of the lens: 30mm-63mm
Working distance:100mm

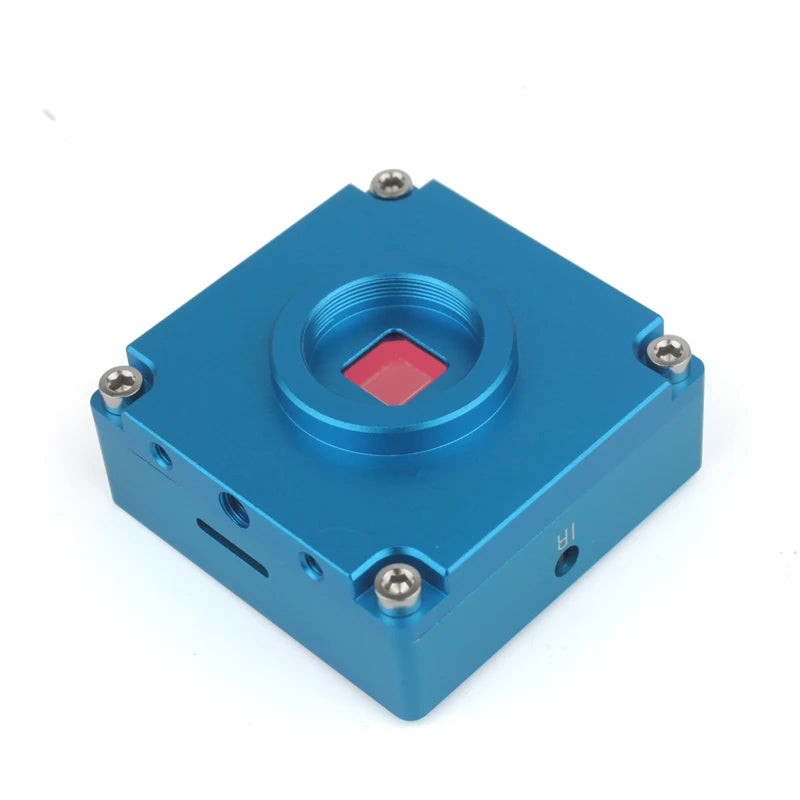

Specification:

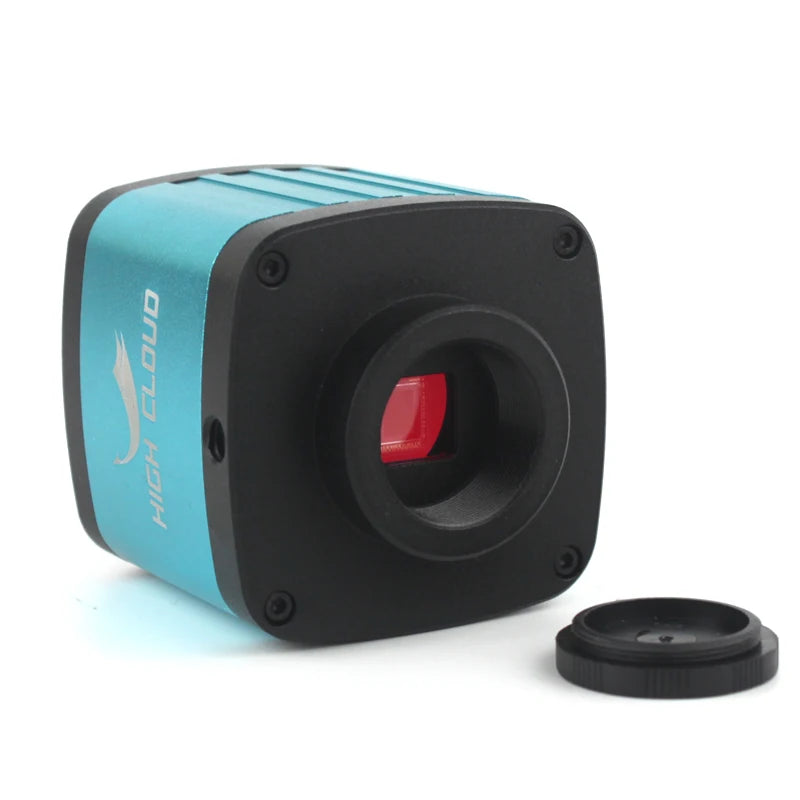

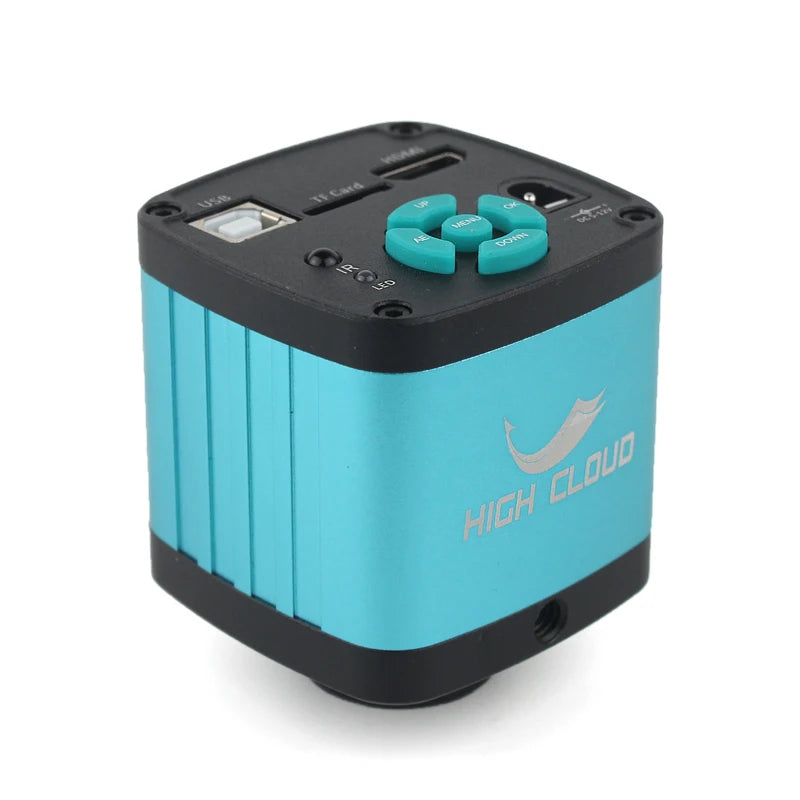

Model: Camera with HDMI USB2.0 two output
Image sensor: 48 megapixel Panasonic sensor
Frame rate: 1920*1080 60F/S @ HDMI output
Video save Movie size:4K(25fps) 2K(30fps) 1080P(60fps) 720P(60fps)(Note: If you need to record 4K or 2K video, you need to use the SDHC class10 TF card.)
Housing: All metal
Support:C-Mount lens
Digital magnification: 5 times digital zoom
White balance: Auto/manual
Cross cursor: Support multi-color, size adjustable
TF card interface: Max 32G
video format:MOV

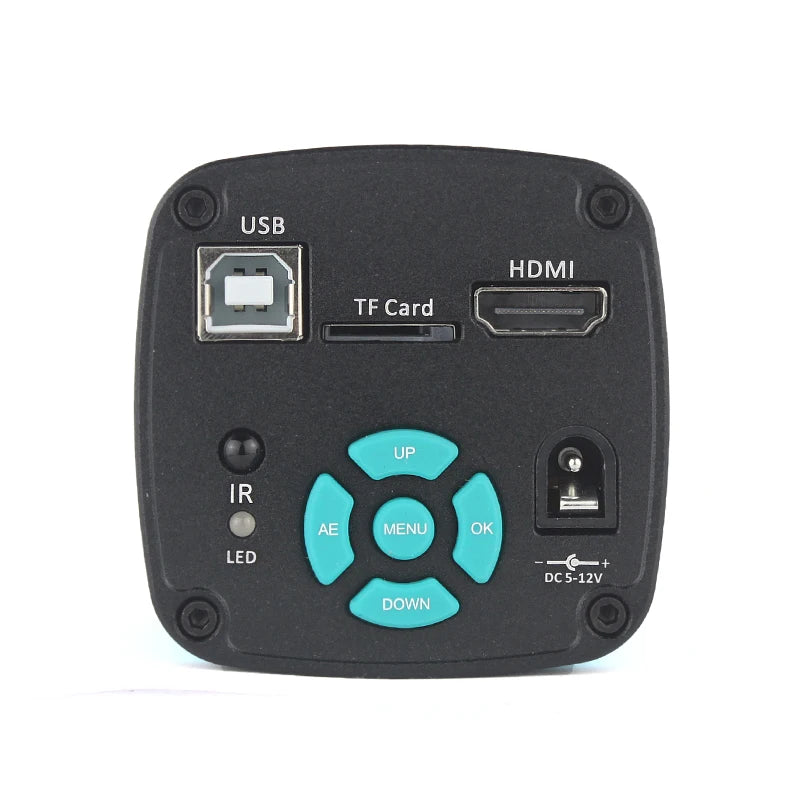

HDMI interface: HDMI/USB output
Image : 48M 8000X6000/38M 7168X5376/26M 5888X4416/20M 5120X3840/16M 4608X3456
Language:Chinese/English
Mirroring: Support
Frequency:50Hz/60Hz
Monitor:16:9/16:10/4:3
Grid line: 15 Horizontal line, 15 Vertical line, Central scale line,Custom colors,Size
Power supply:5-12V 1A

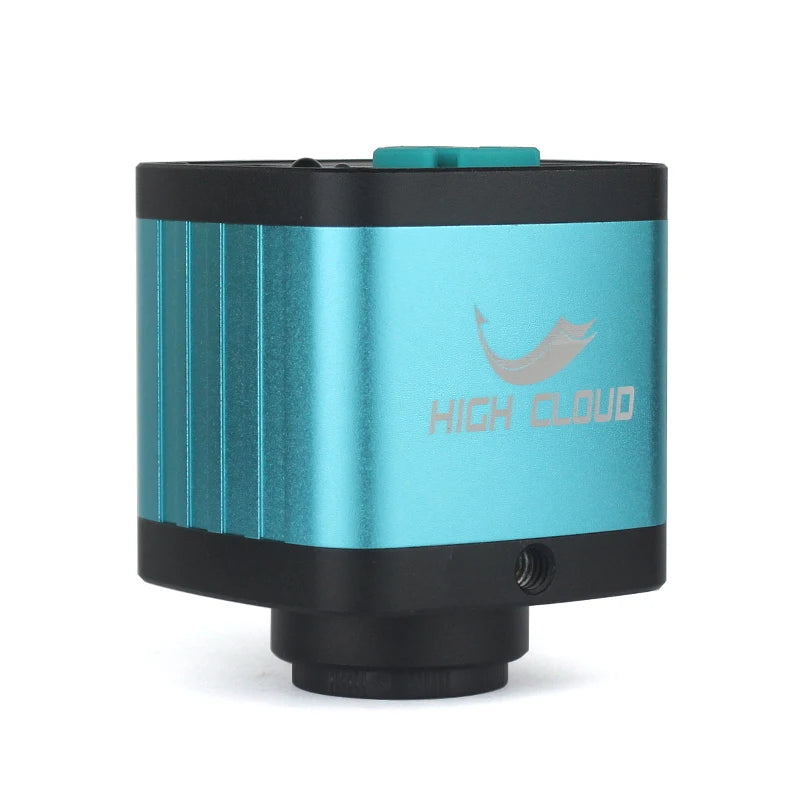

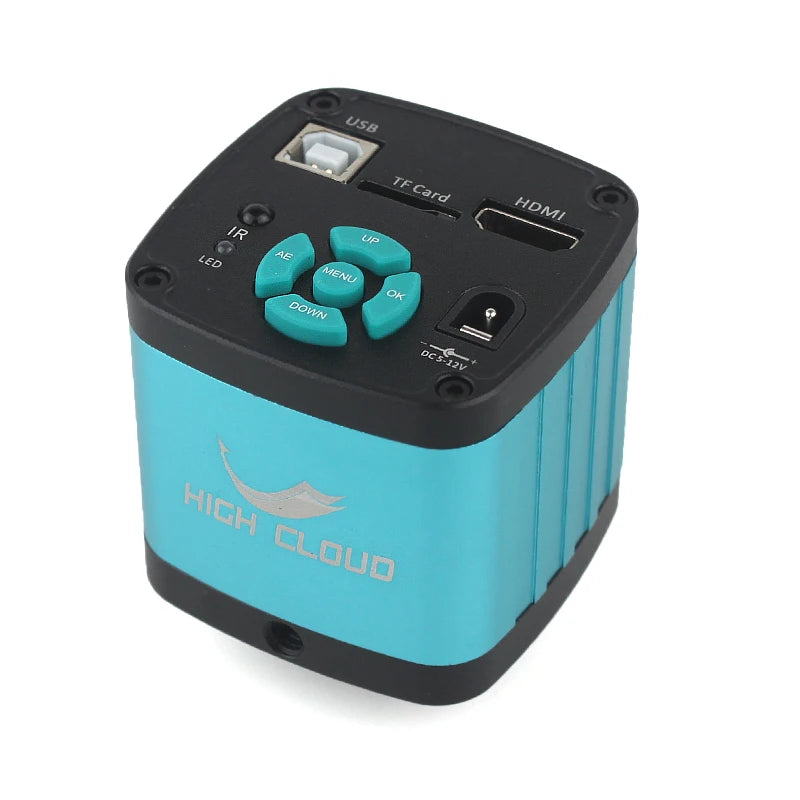

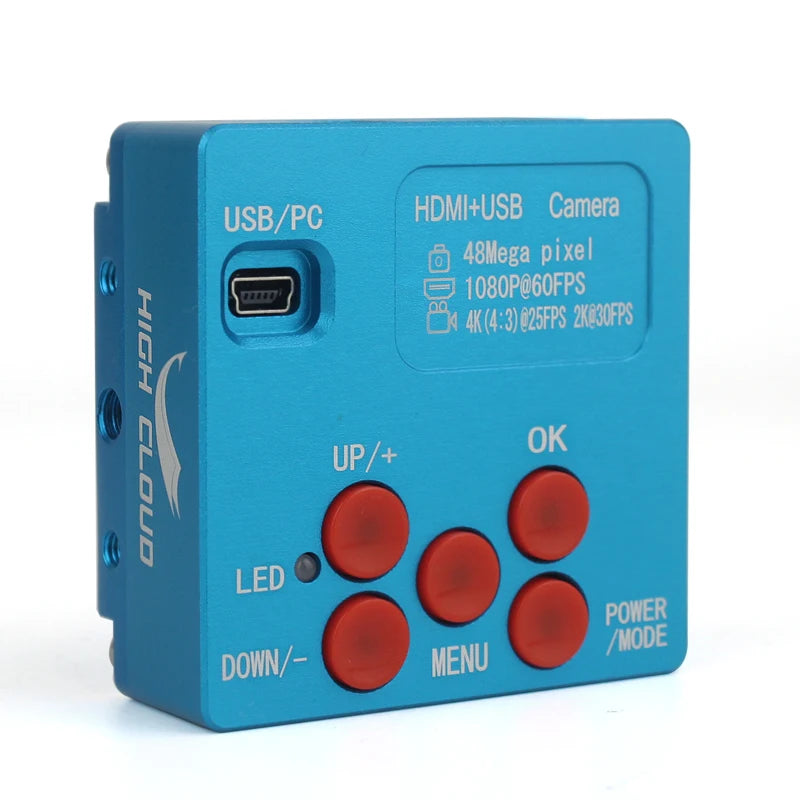

Specification:
High Quality, High Resolution, Clear Images
Picture Pixel:48M
Sensor: SONO 2.33 inch 48MP
Image resolution: 1920×1080 (for HDMI), 1920×1080 (for USB)
Video resolution: 4K(4:3) 2880×2160 @25 FPS
1920×1080@60F/S Video Camera

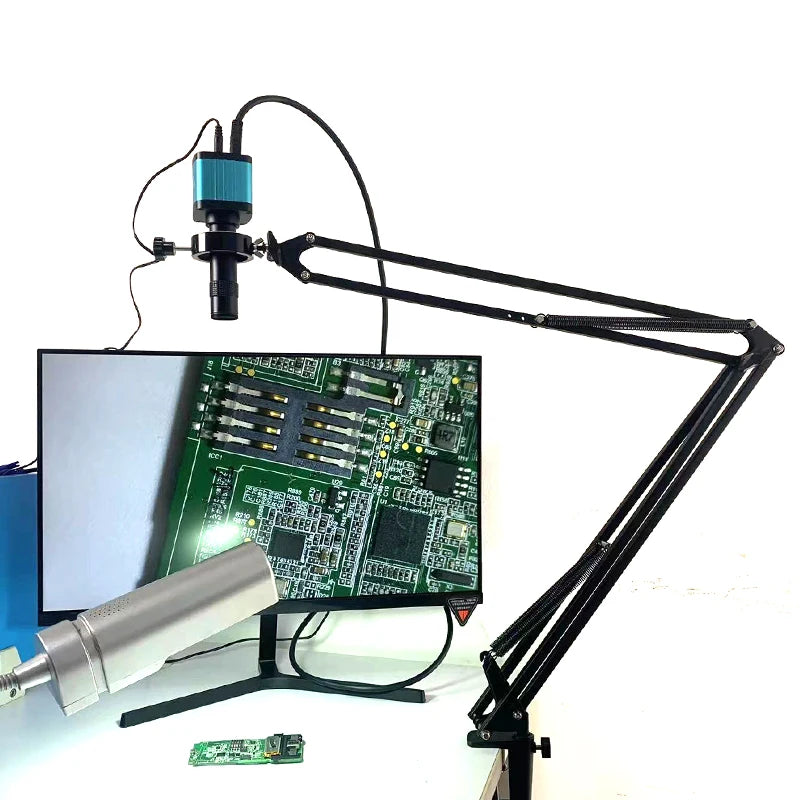

Industry Cmos Camera. It can Show the live image directly on any HDMI monitor , Projector or TV.
TF Card: Video Recorder
Grid line:8 horizontal lines, 8 vertical lines
Video Frame Rate:60FPS@1920x1080 24FPS@2K 60FPS@720P
25FPS@4K

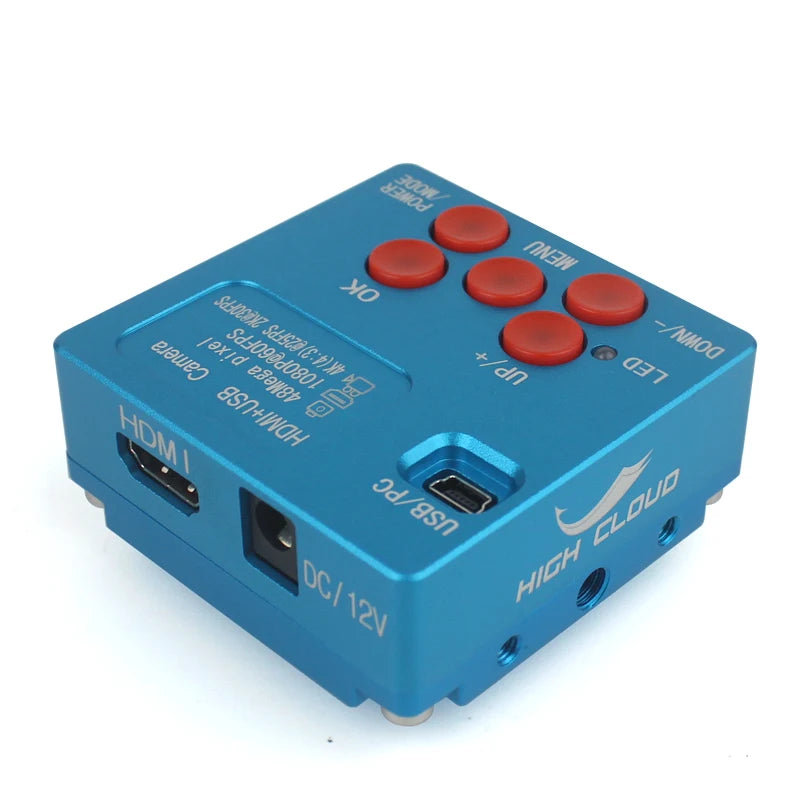

Model: Camera with HDMI USB two output
TF card:4GB (Up to 32GB max）
Cross line:Overlap or Cancel
CMOS pixel:1.33um x 1.33um
Lens jack:C-mount
Color setting:Auto
Power:12V/1A
White balance:Auto/one button calibration/Manual
Size:64x64x35mm
EV:Auto/Manual
Weight:180g
Language:Chinese, English
Camera mode:HDMI output 1080P @60 FPS
Working temperature:0-70℃
