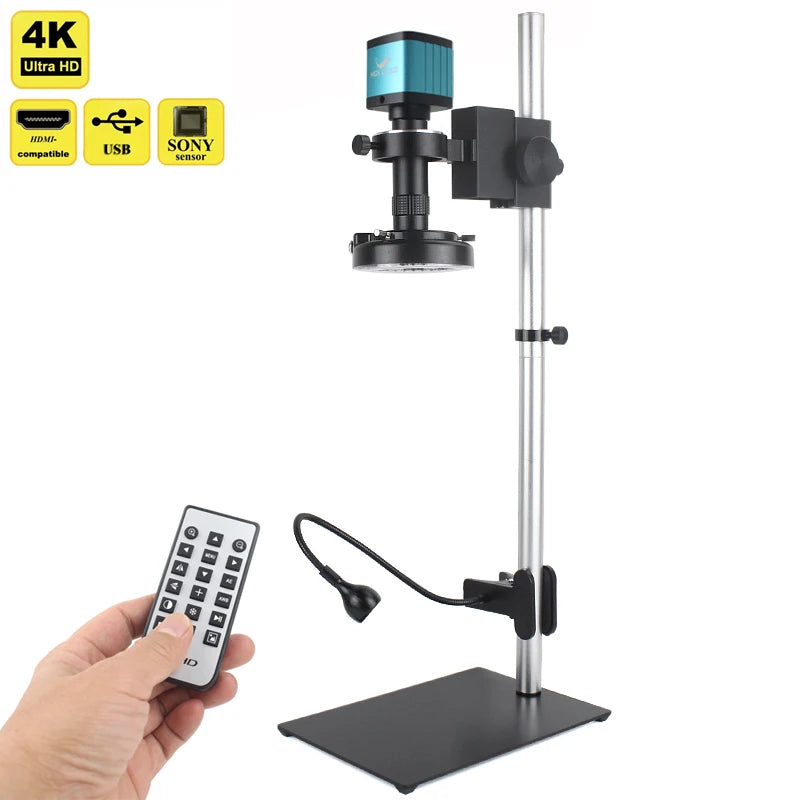

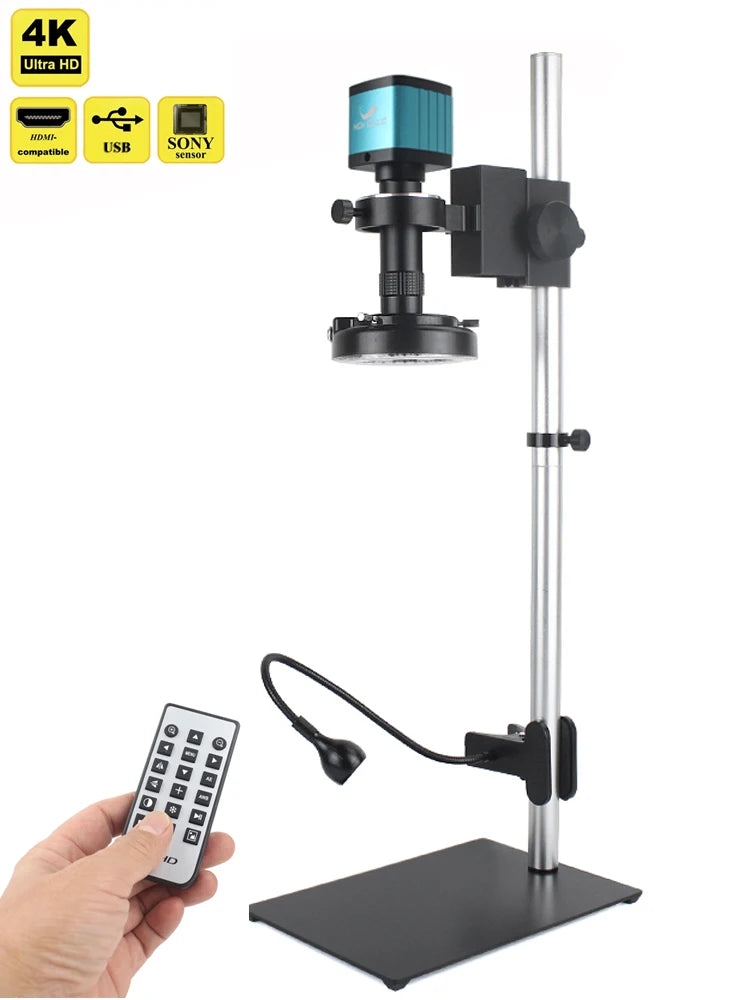

48MP 4K 1080P HDMI USB Video Microscope Camera 130X Zoom C Mount Lens Ultra High Working Distance For Digital Image Acquisition
48MP 4K 1080P HDMI USB Video Microscope Camera 130X Zoom C Mount Lens Ultra High Working Distance For Digital Image Acquisition
Couldn't load pickup availability
SPECIFICATIONS

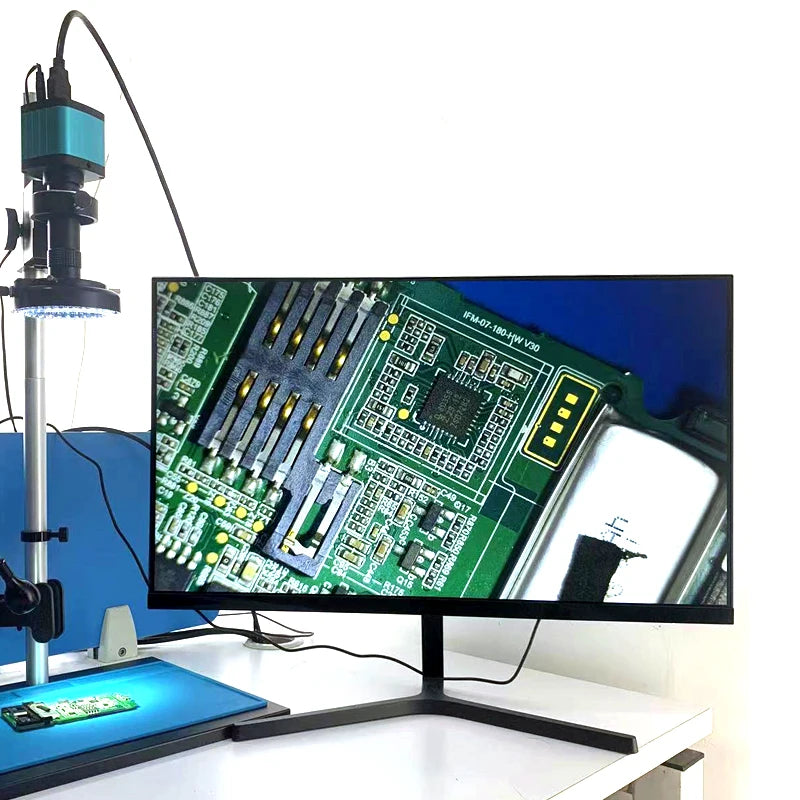

Apply 1: Phone PCB Soldering Laboratory Video Microscope Camera
Apply 2: Stereo Microscope
Apply 3: Biological Microscope
Battery Included: No
Brand Name: HIGH CLOUD
Certification: CE
Drawtube: Monocular
Features: High Definition,Digital
For: For: Phone PCB Soldering Repair inspection
Hign-concerned Chemical: None
Lens: 130X Zoom C Mount Lens
Magnification Ratio: 500X & Under
Material: Metal
Model Number: 48MP 4K 1080P HDMI USB Microscope Camera
Origin: Mainland China
Theory: Video Microscope
48MP 4K 60Fps HDMI USB
48 million pixel imported Panasonic CMOS image sensor;
Using 1/2.33 inch image sensor, Angle of view is wider than 1/3 inch;
HDMI 1080P 60 frame image output;
USB2.0 driver free output 1080P 30 frame image output;
4K video recording;
48 million photos, JPG format, photo size 4608x3456;
One-click freezing/thawing function;
48 megapixel photography and 1080P video recording;
Electronic zoom function;
Support manual/automatic exposure, exposure compensation value adjustment;
Support manual/automatic white balance, red, green, blue adjustable;
Provide 8 line drawing functions, line color, thickness, position adjustable;
Display/close center cross;
Support TF card storage, up to 64GB;
Support remote control operation, take photos without jitter image more clear;
Support Chinese and English menu language (default English);
Support shutdown setting parameters save;
Strong metal shell;

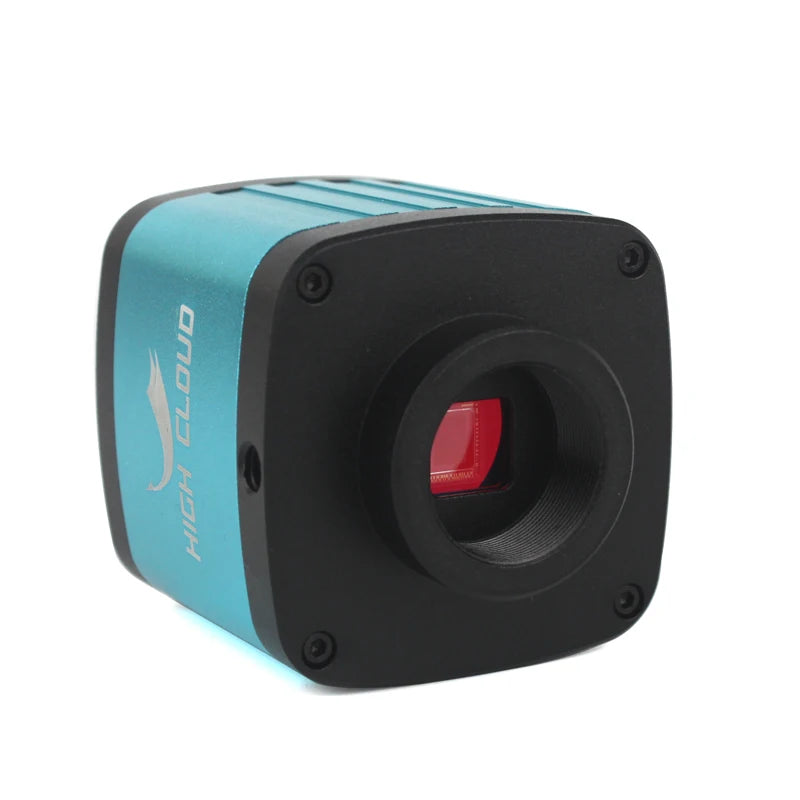

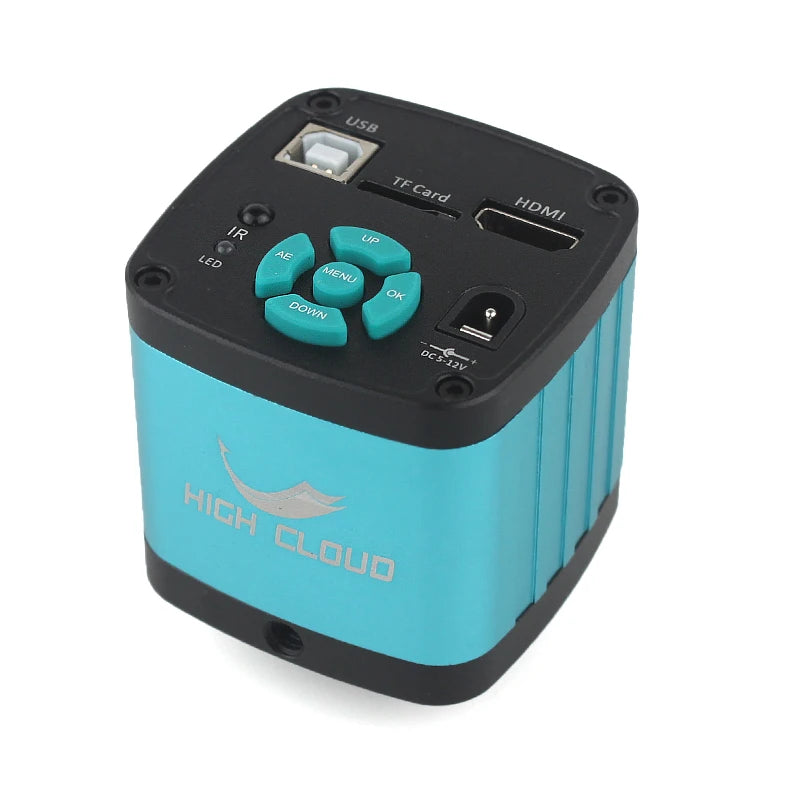

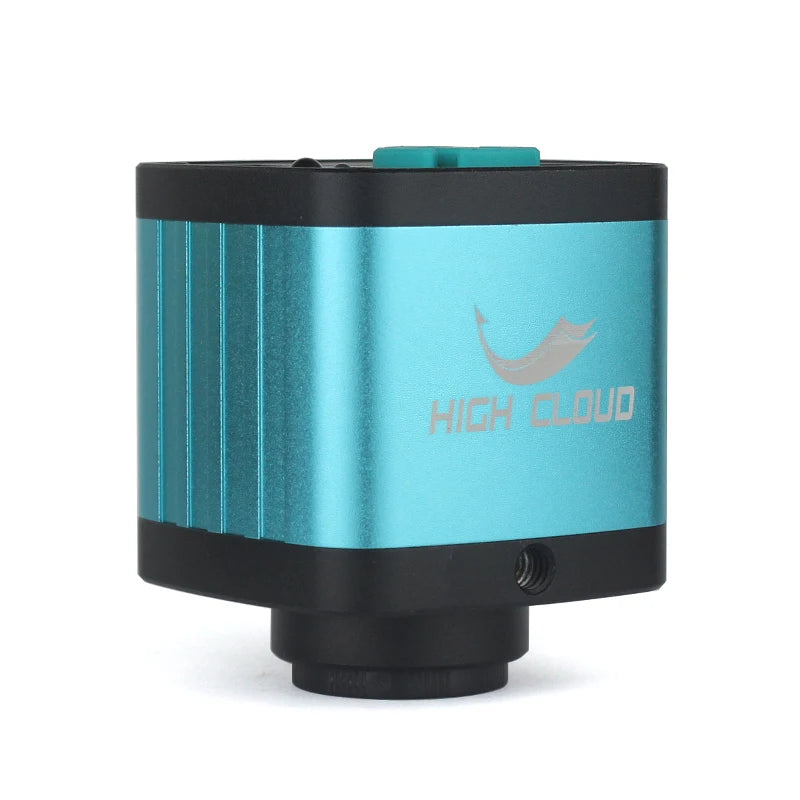

Camera specifications:
The sensor : 1/2.33 inch Panasonic 48 megapixel CMOS sensor
Pixel size : 1.335µm × 1.335µm
HDMI output : 1920*1080 60PFS
USB output : 1920*1080/30 1280*720/30 640*480/30 320*240/30 (MJPG)
Camera interface : C/CS
Exposure : Automatic/manual
Exposure compensation : Support
White balance : Automatic/manual, RGB adjustable
Storage : Supports a maximum of 64GB
Input voltage : Dc 5v-12v
line : Supports 8 straight lines with adjustable color, thickness and position
Center line : Support
Menu language : English/Chinese
Remote control : Support remote control operation
Net weight : 250g
Rough weight : 450g
Product size : 66*66*49mm
Packing size : 145*130*70mm

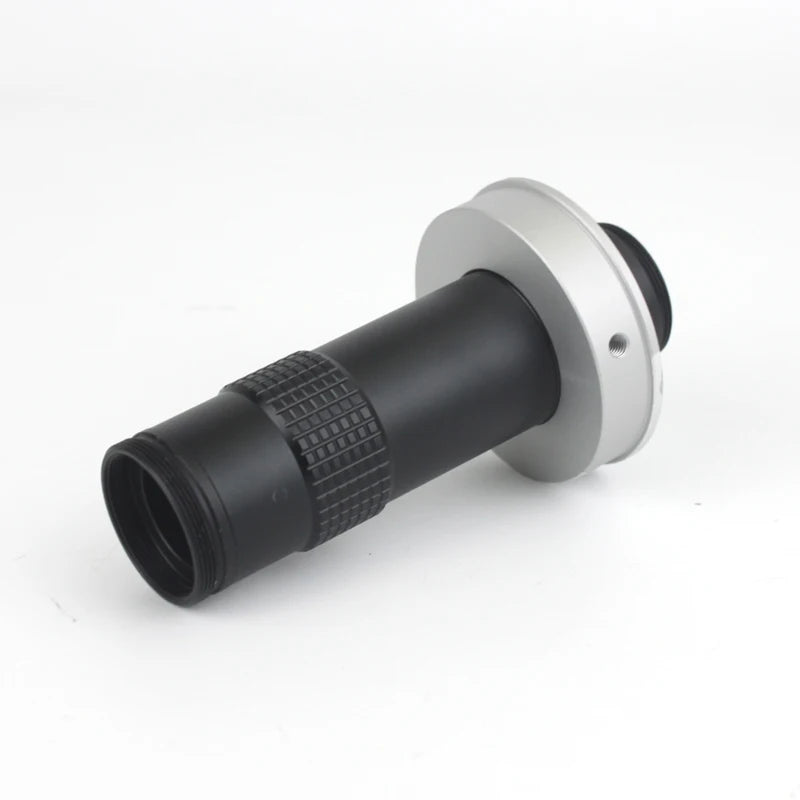

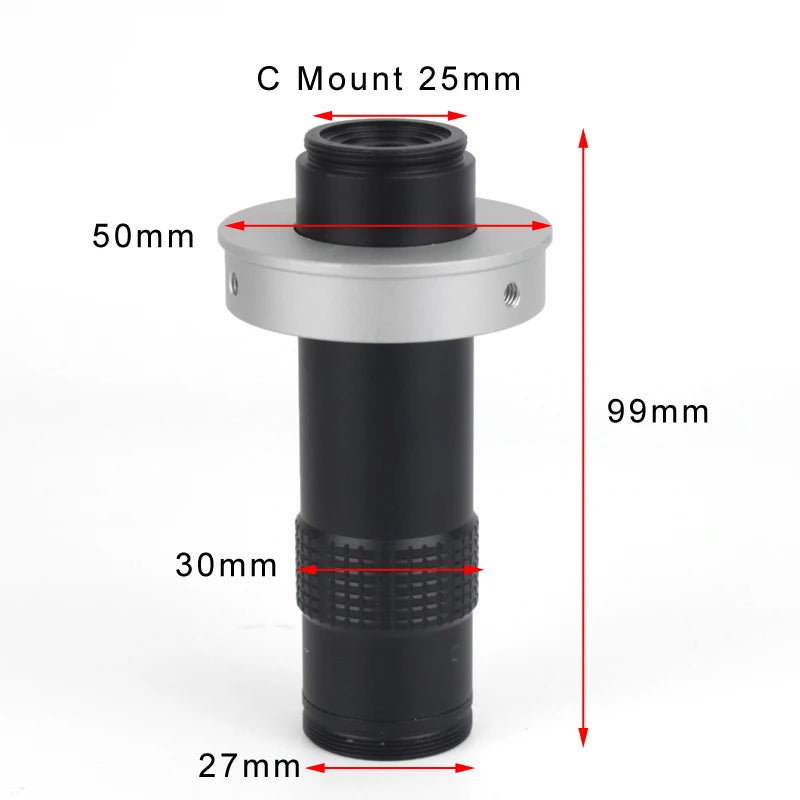

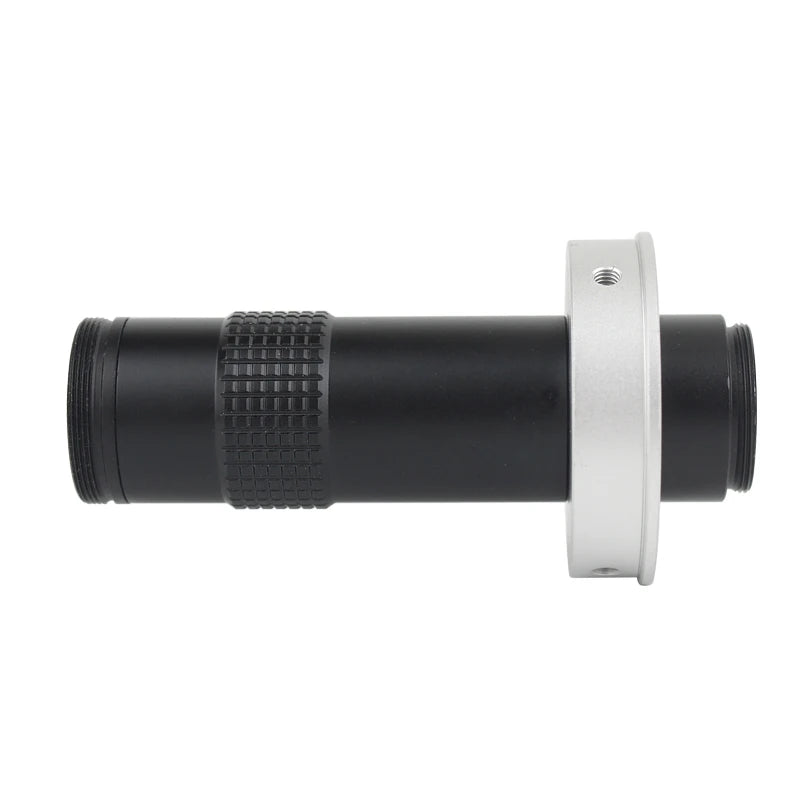

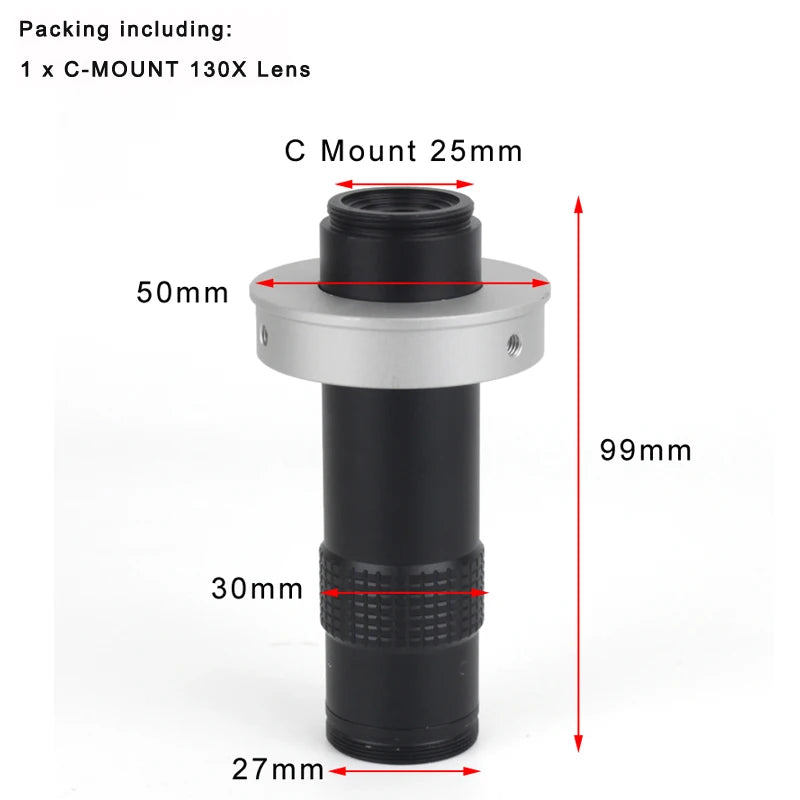

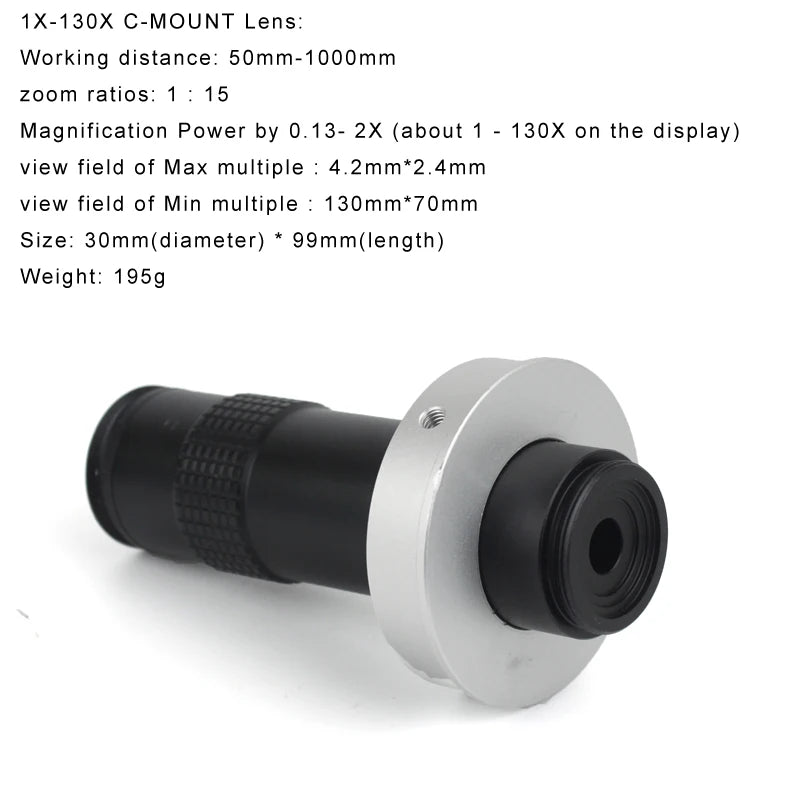

1X-130X C-MOUNT Lens:
Working distance: 50mm-1000mm
zoom ratios: 1 : 15
Magnification Power by 0.13- 2X (about 1 - 130X on the display)
view field of Max multiple : 4.2mm*2.4mm
view field of Min multiple : 130mm*70mm
Size: 30mm(diameter) * 99mm(length)
Weight: 195g

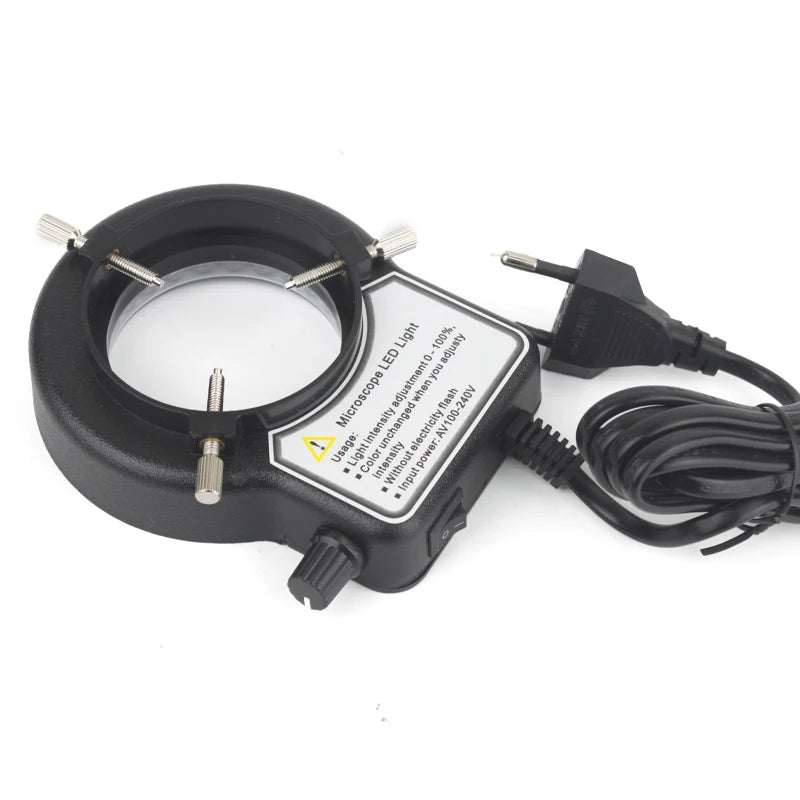

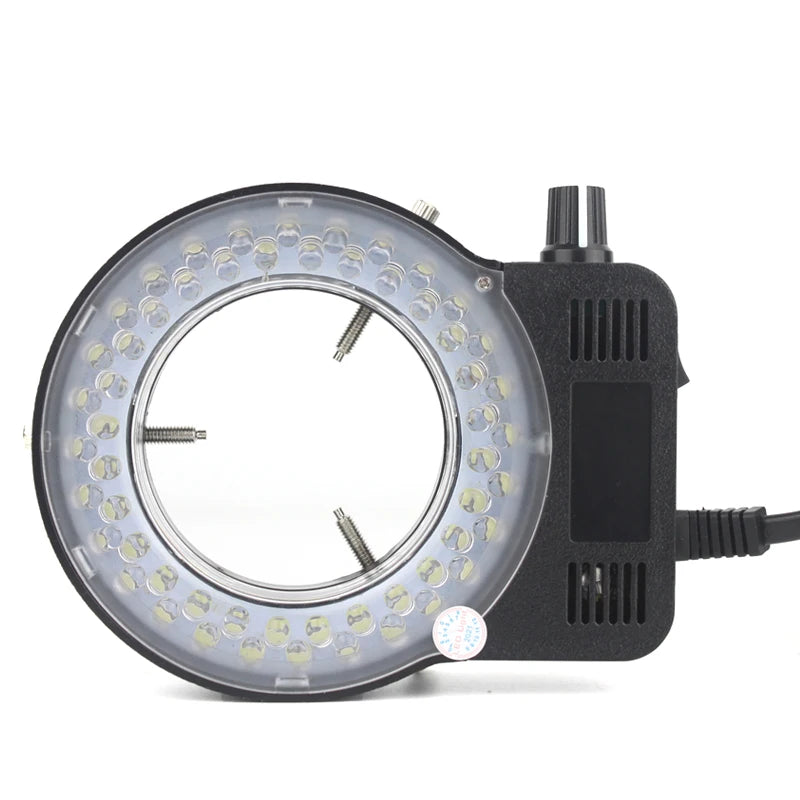

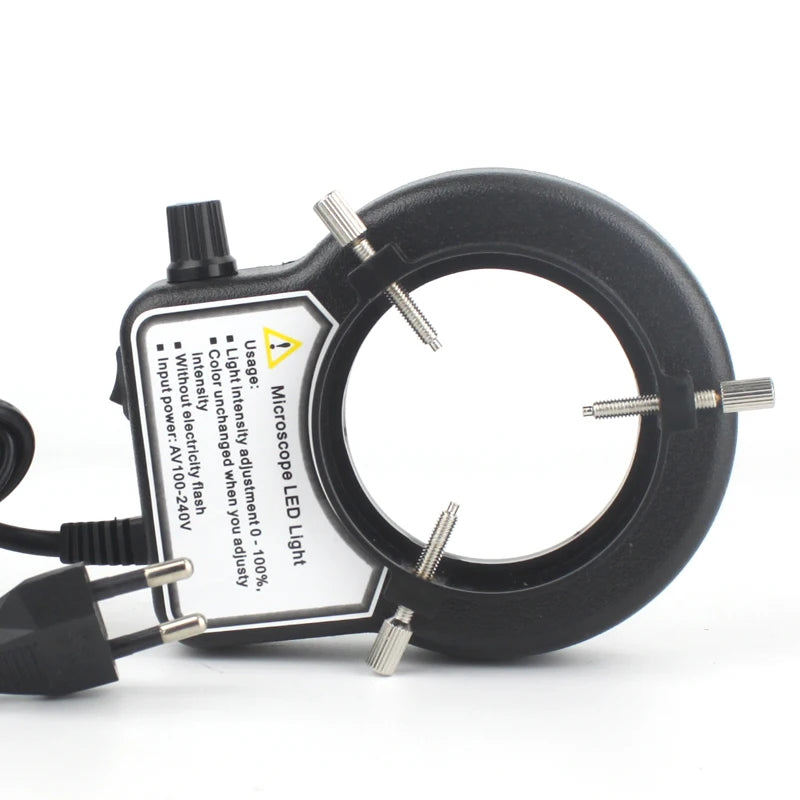

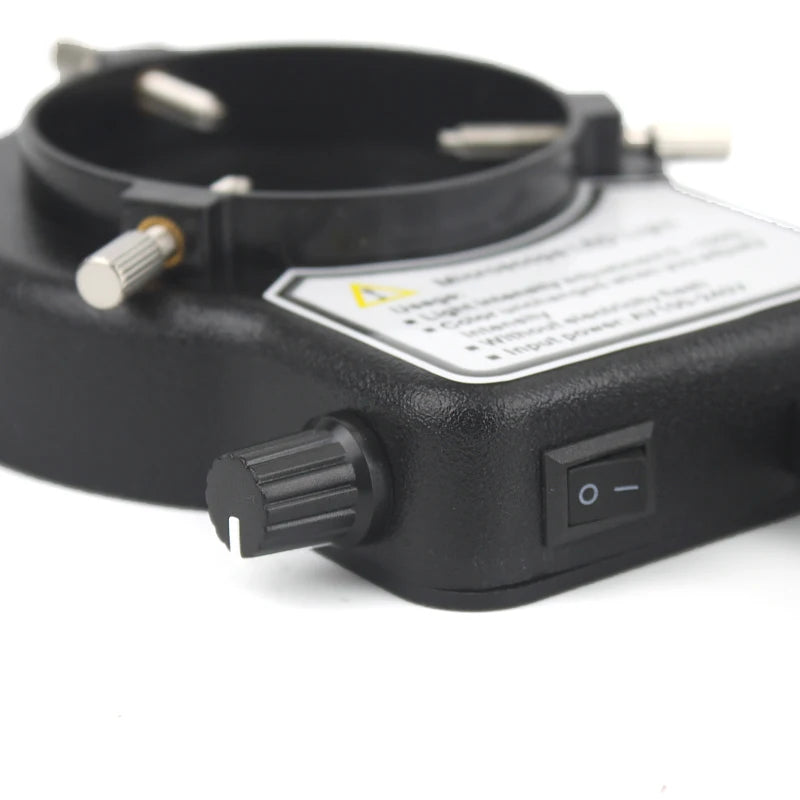

56 bright white LED bulbs
100,000 hours of life
Intense and focused shadow-free illumination
The brightness of 0-100%Adjustable,high brightness
Variable intensity control
Power input: 90-260V, 50-60HZ
Suit for the dia of the lens: 30mm-63mm
Working distance:100mm

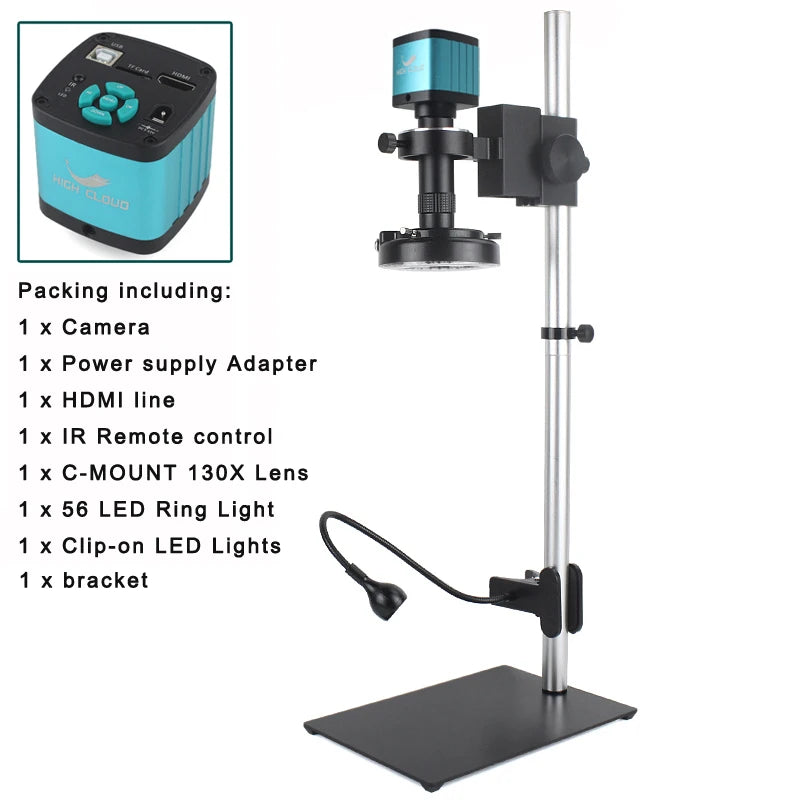

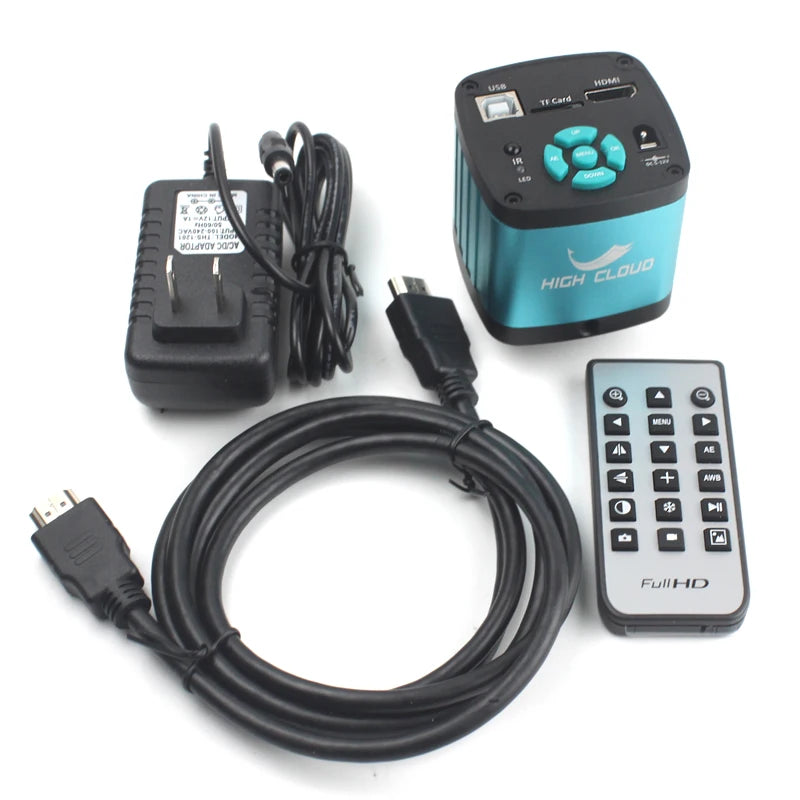

Packing List:
A set
1x Camera
1 x Power Adapter (AU/EU)
1 x IR remoter
1 x HDMI Lines
1 x LED ring light
1 x 130X zoom lens

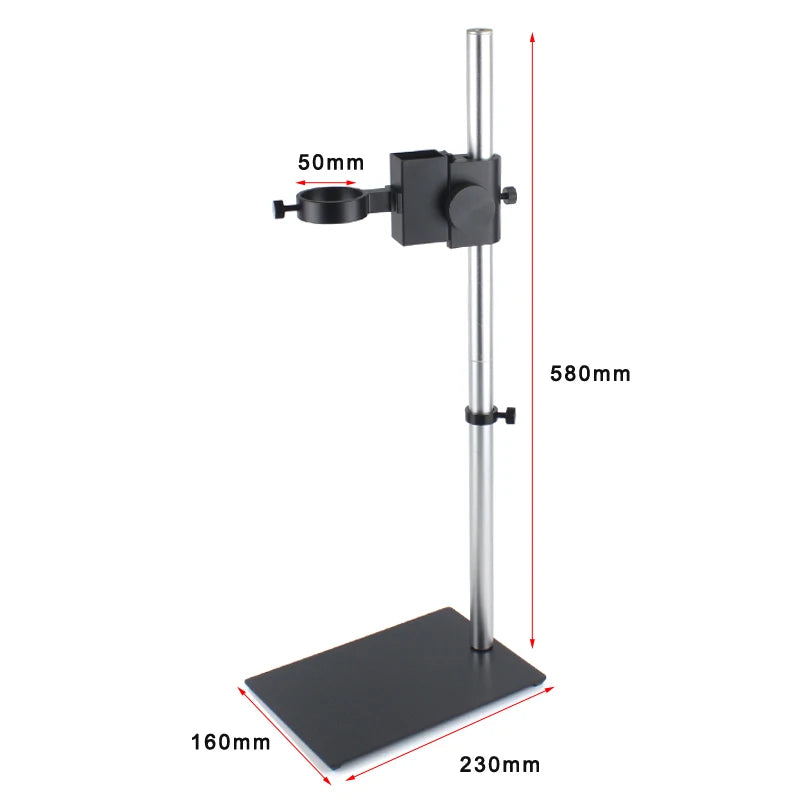

1 x Microscope bracket
1 x work mat

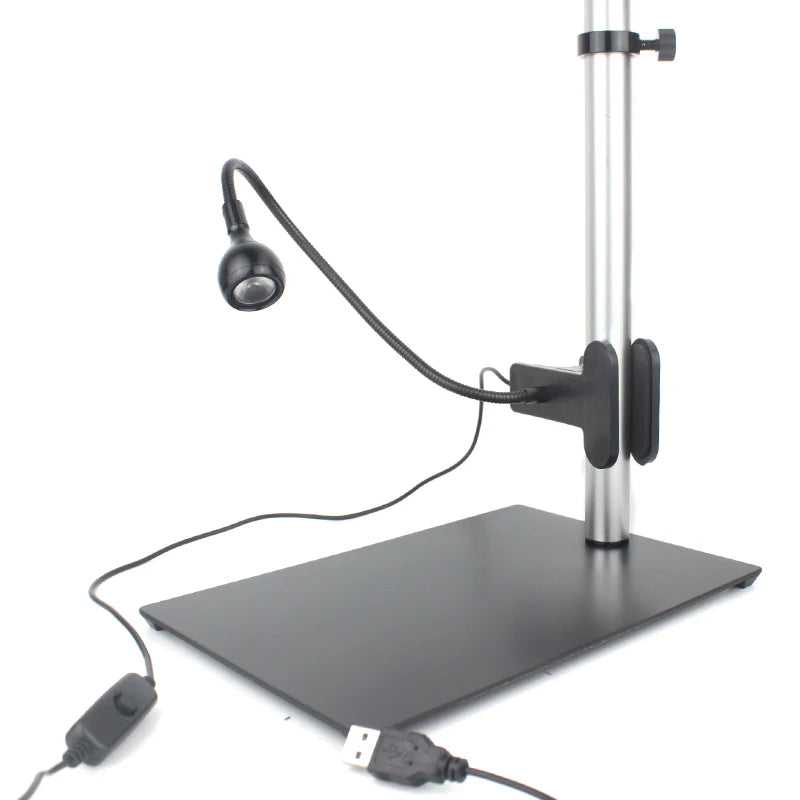

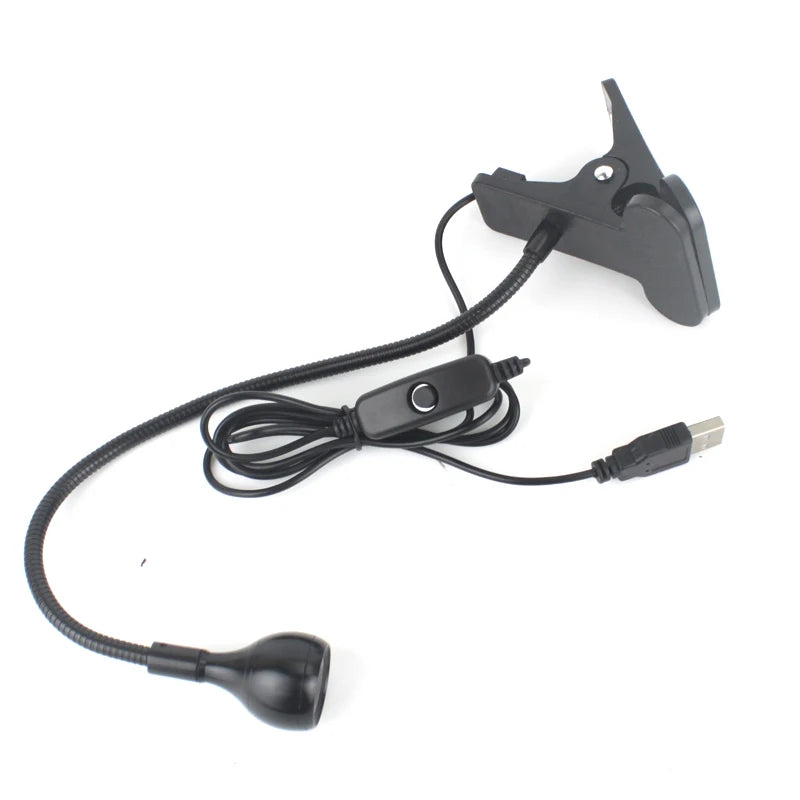

1 x clip-on led light

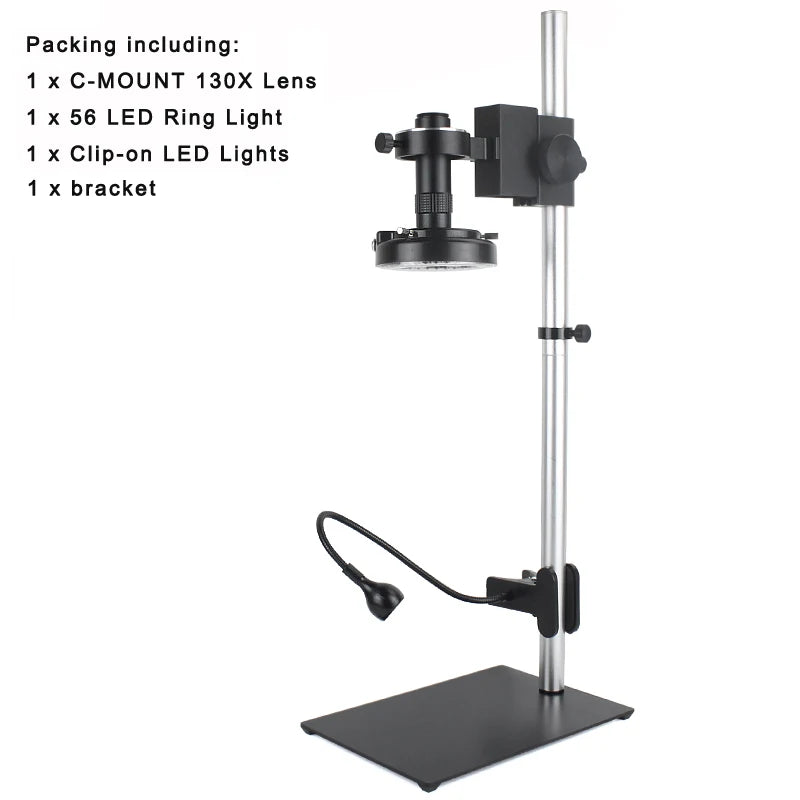

B set
1 x LED ring light
1 x 130X zoom lens
1 x Microscope bracket
1 x work mat
1 x clip-on led light

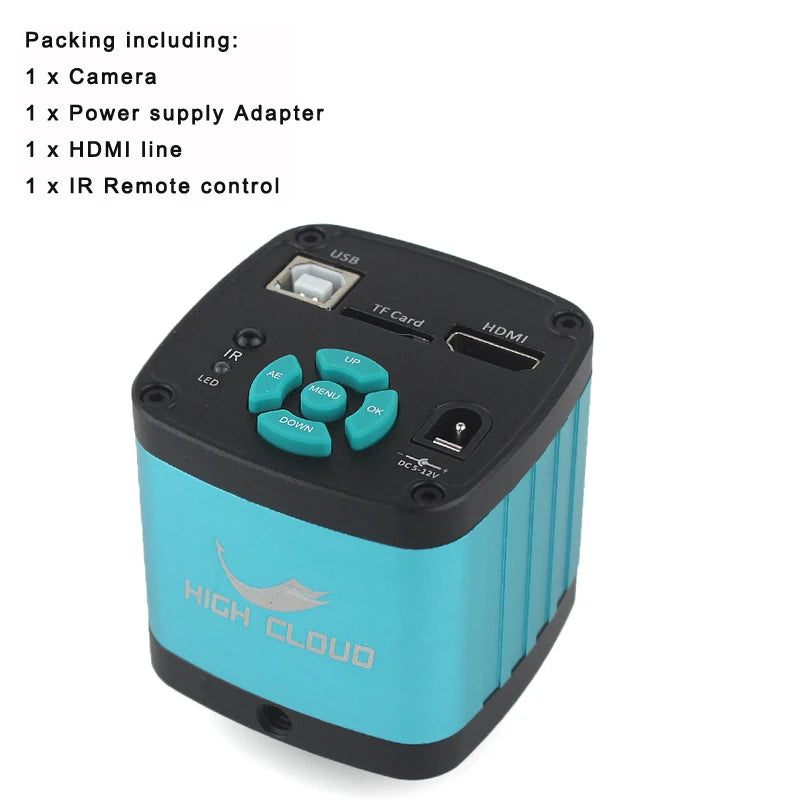

C set
1x Camera
1 x Power Adapter (AU/EU)
1 x IR remoter
1 x HDMI Lines
D set

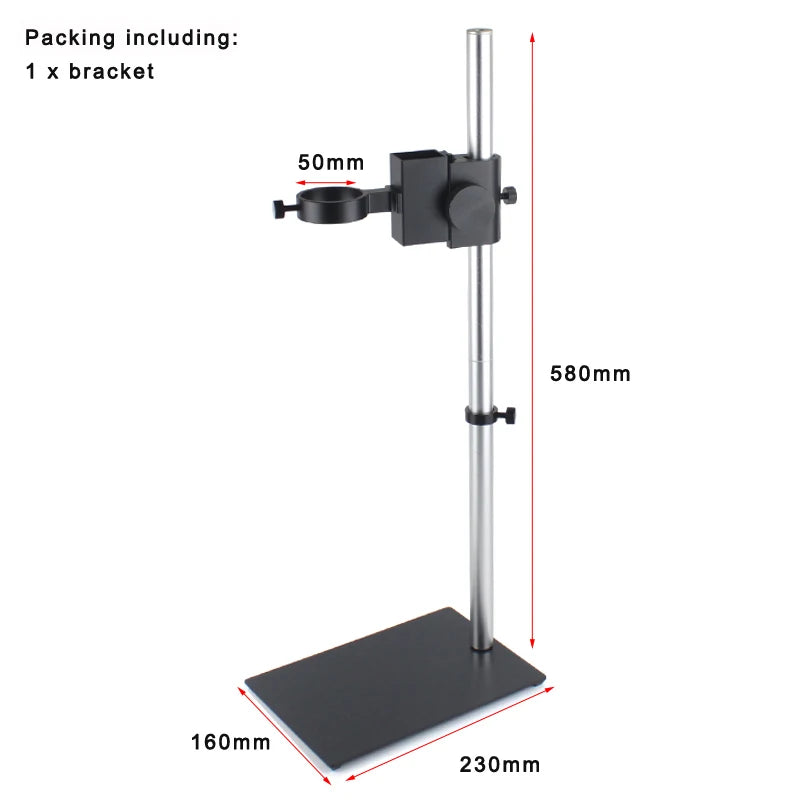

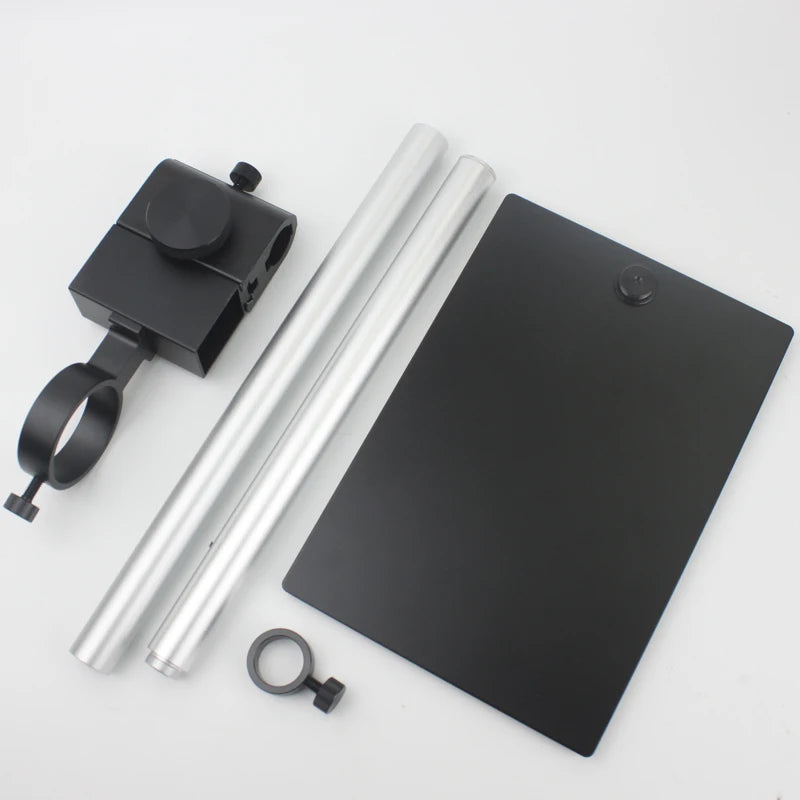

1 x Microscope bracket
E set
1 x 130X zoom lens
