4K Digital Microscope 48MP Microscope For Electronics USB-C Industrial Cameras HDMI 1-150X Zoom C-Mount Lens Phone Pcb Soldering
4K Digital Microscope 48MP Microscope For Electronics USB-C Industrial Cameras HDMI 1-150X Zoom C-Mount Lens Phone Pcb Soldering
Couldn't load pickup availability
SPECIFICATIONS
Battery Included: No
Brand Name: KUAIQU
Certification: CE,FCC,RoHS
Drawtube: Monocular
Features: High Definition,Digital
Hign-concerned Chemical: None
Magnification Ratio: 500X & Under
Material: Metal
Origin: Mainland China
Theory: Video Microscope

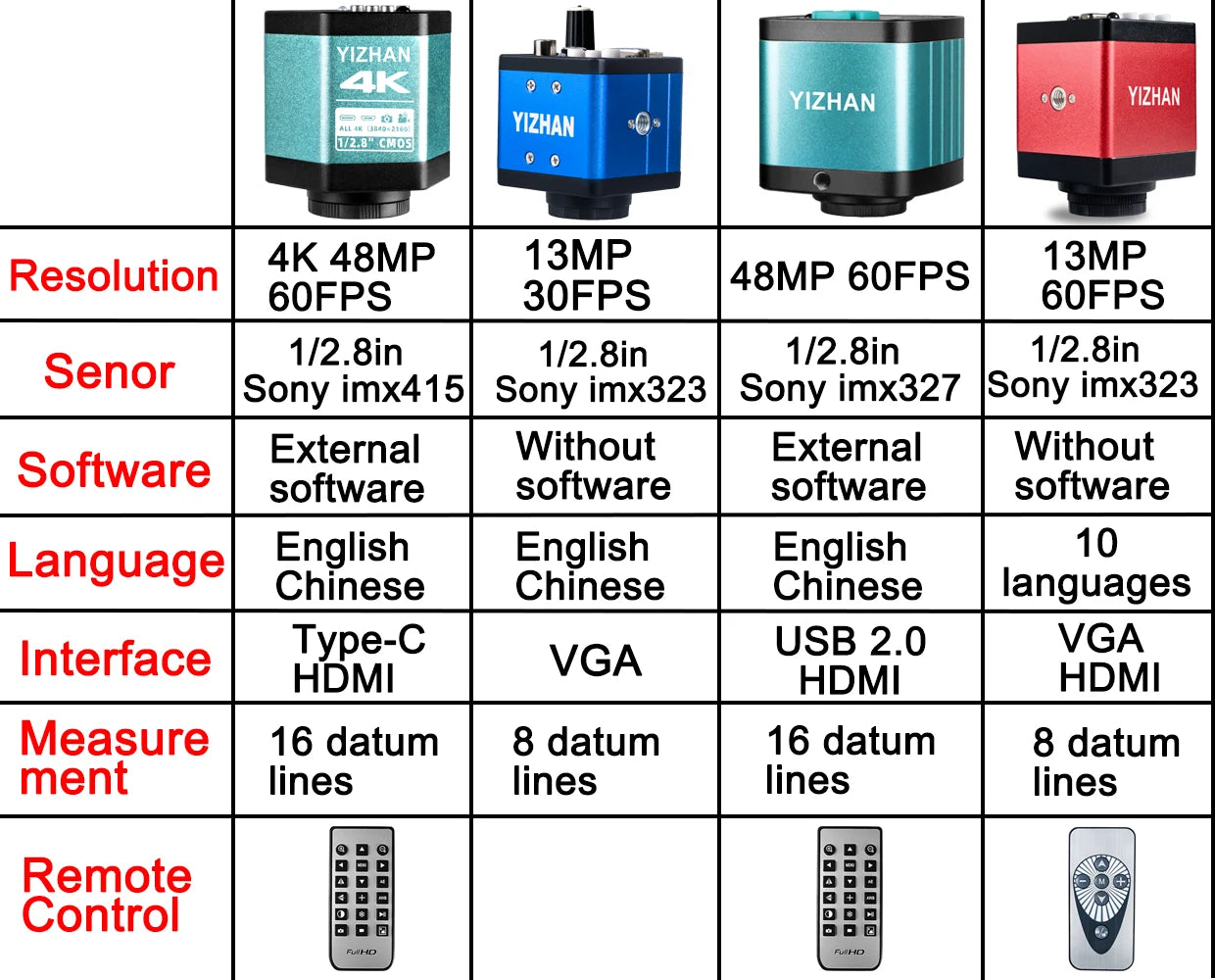

🔥The difference between four microscope cameras

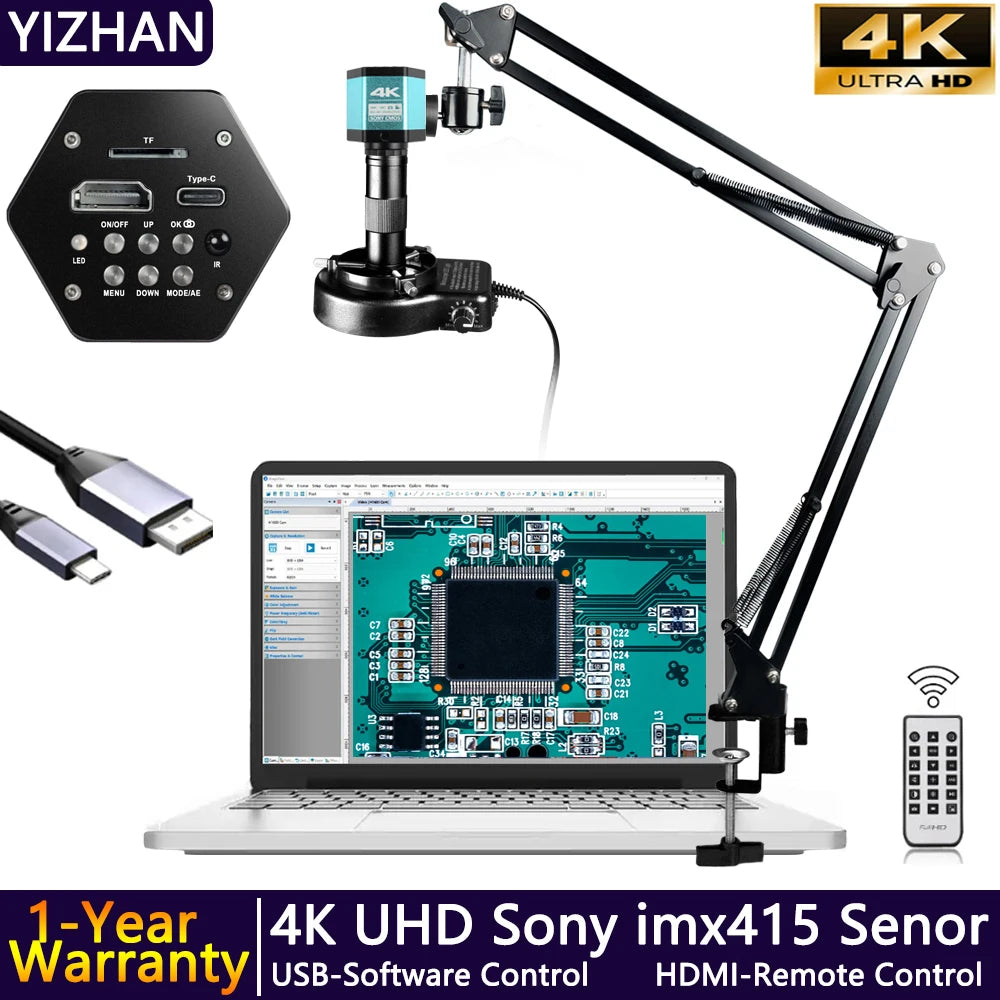

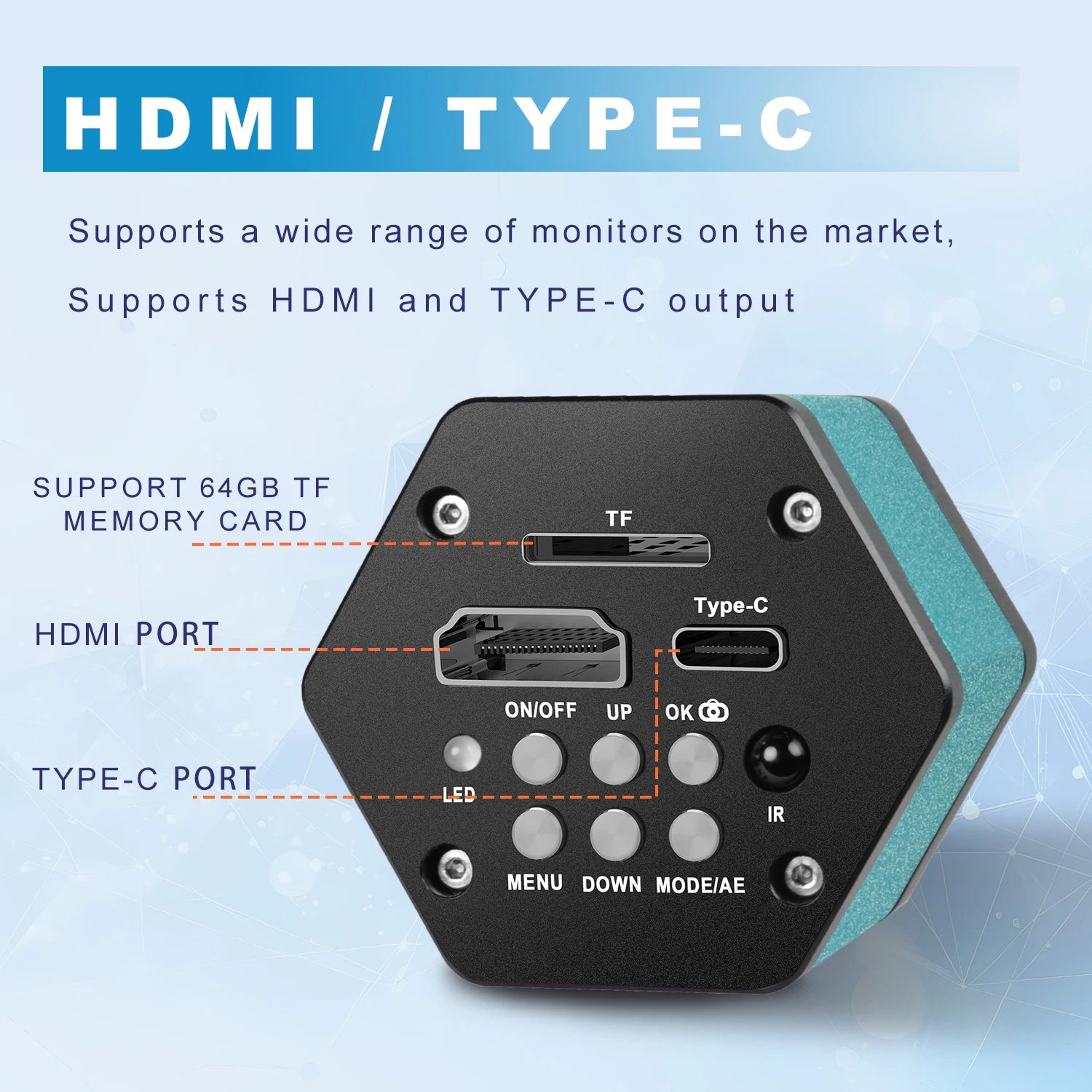

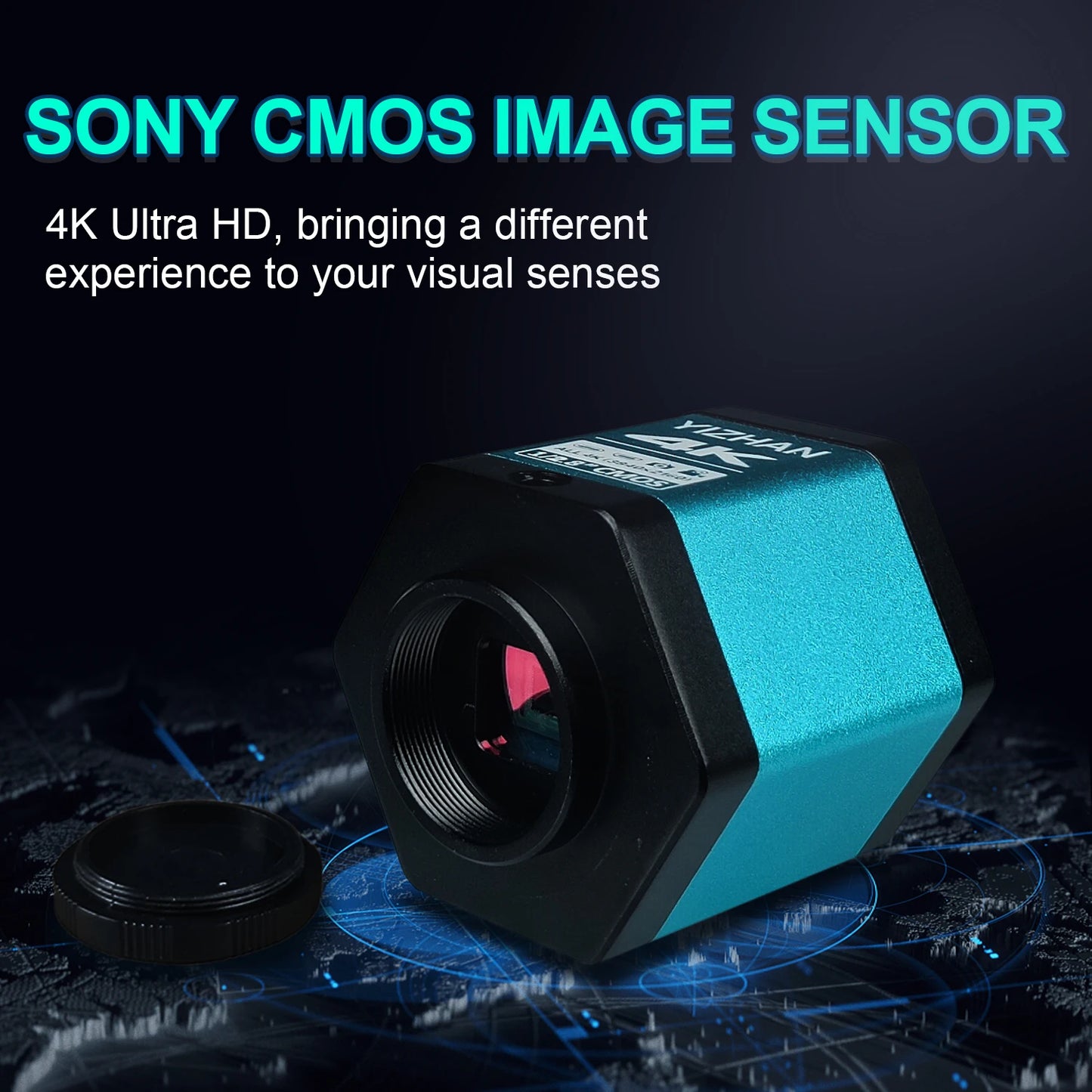

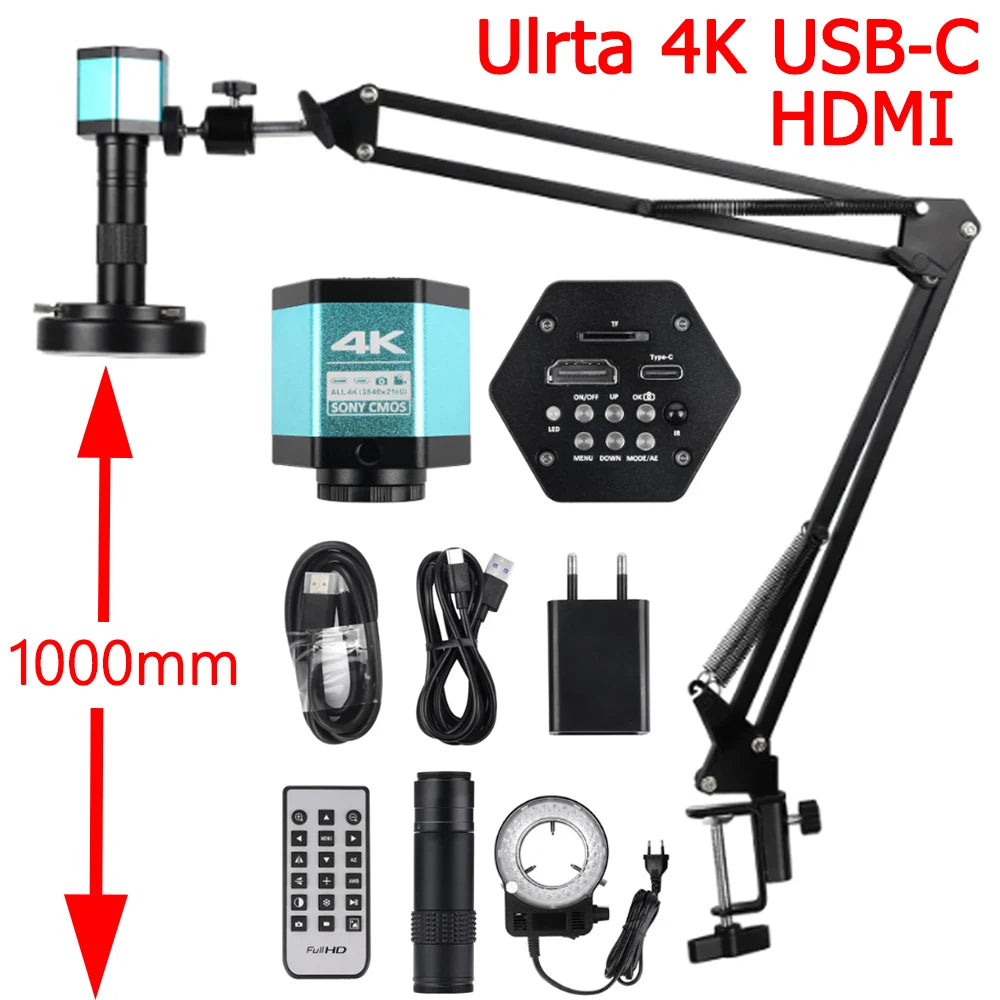

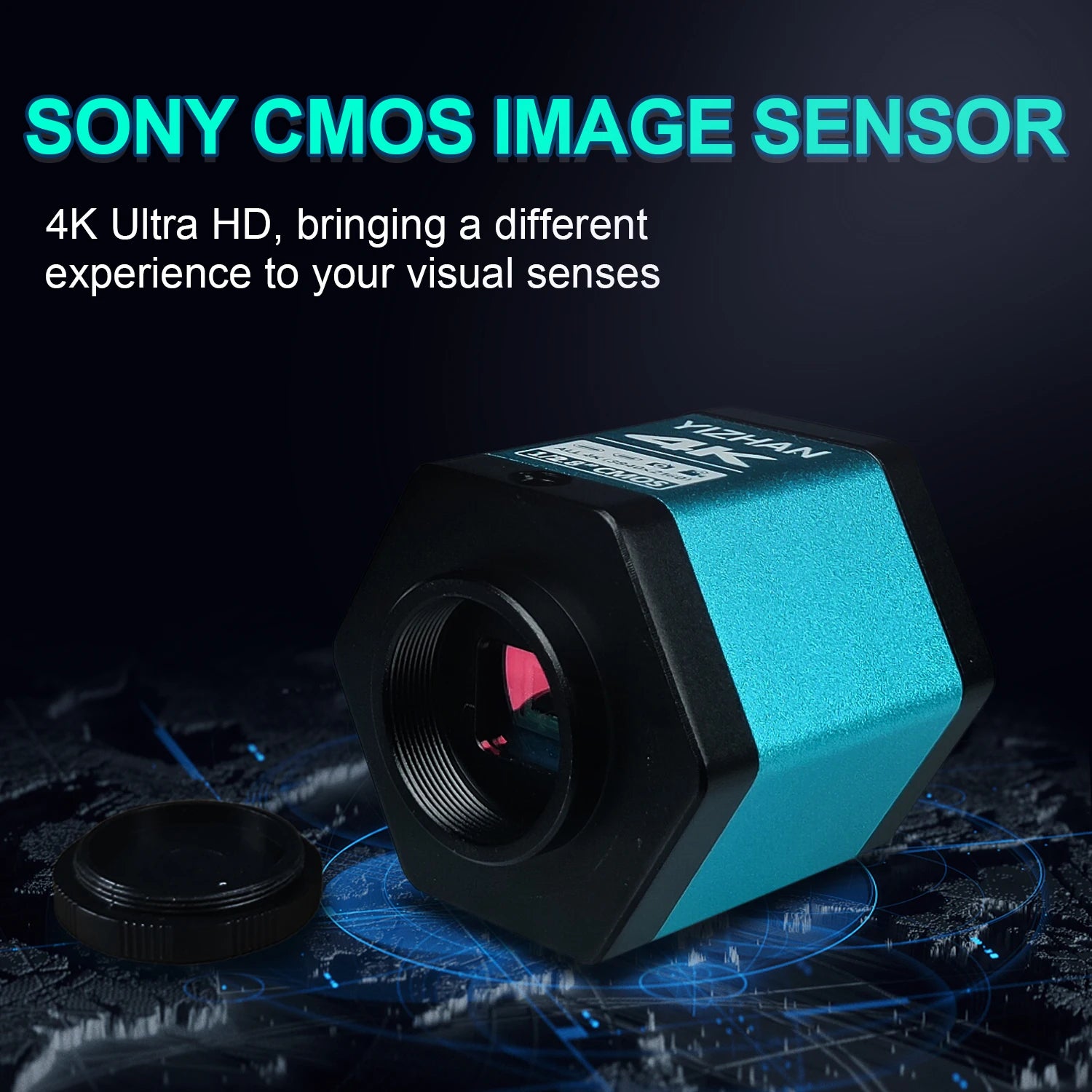

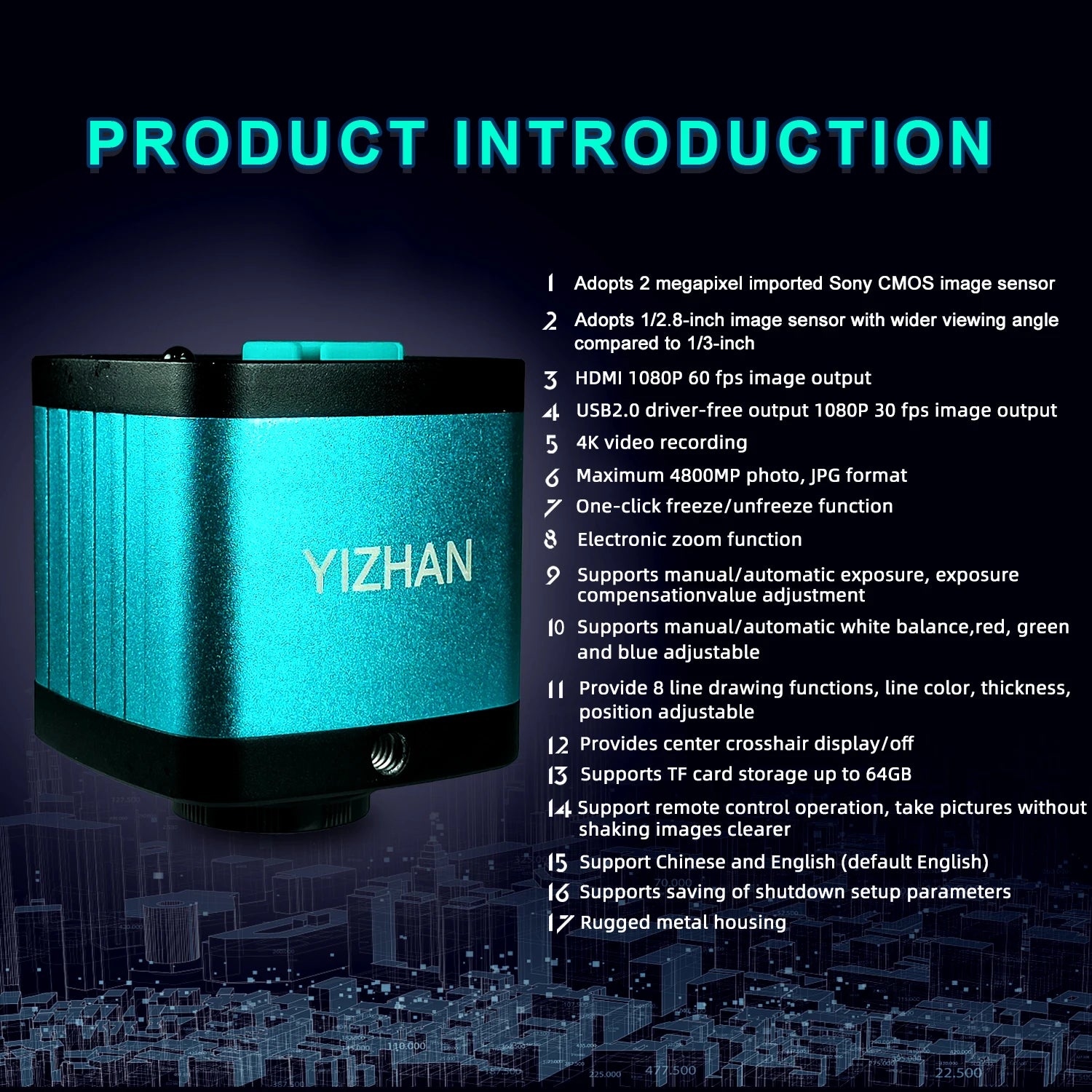

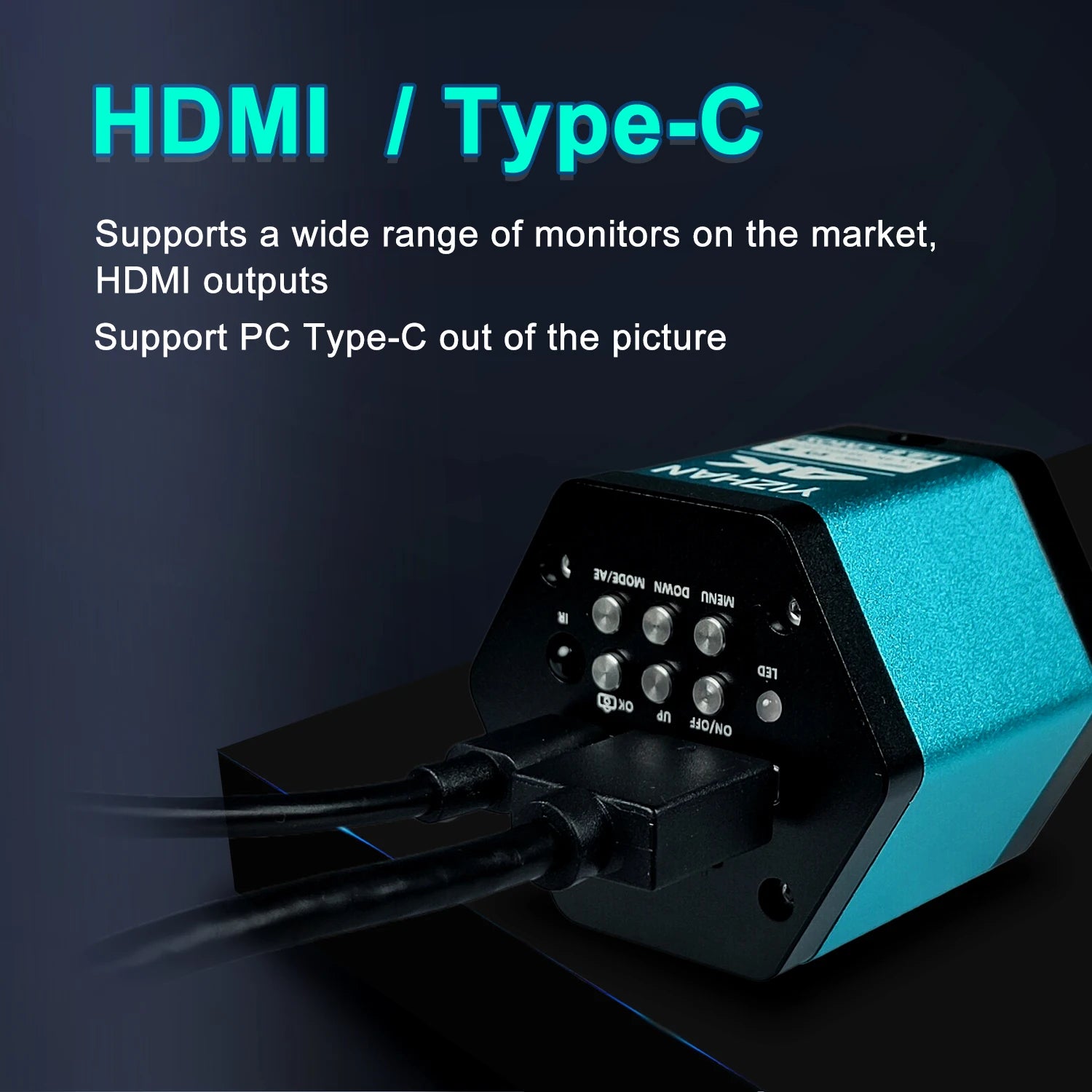

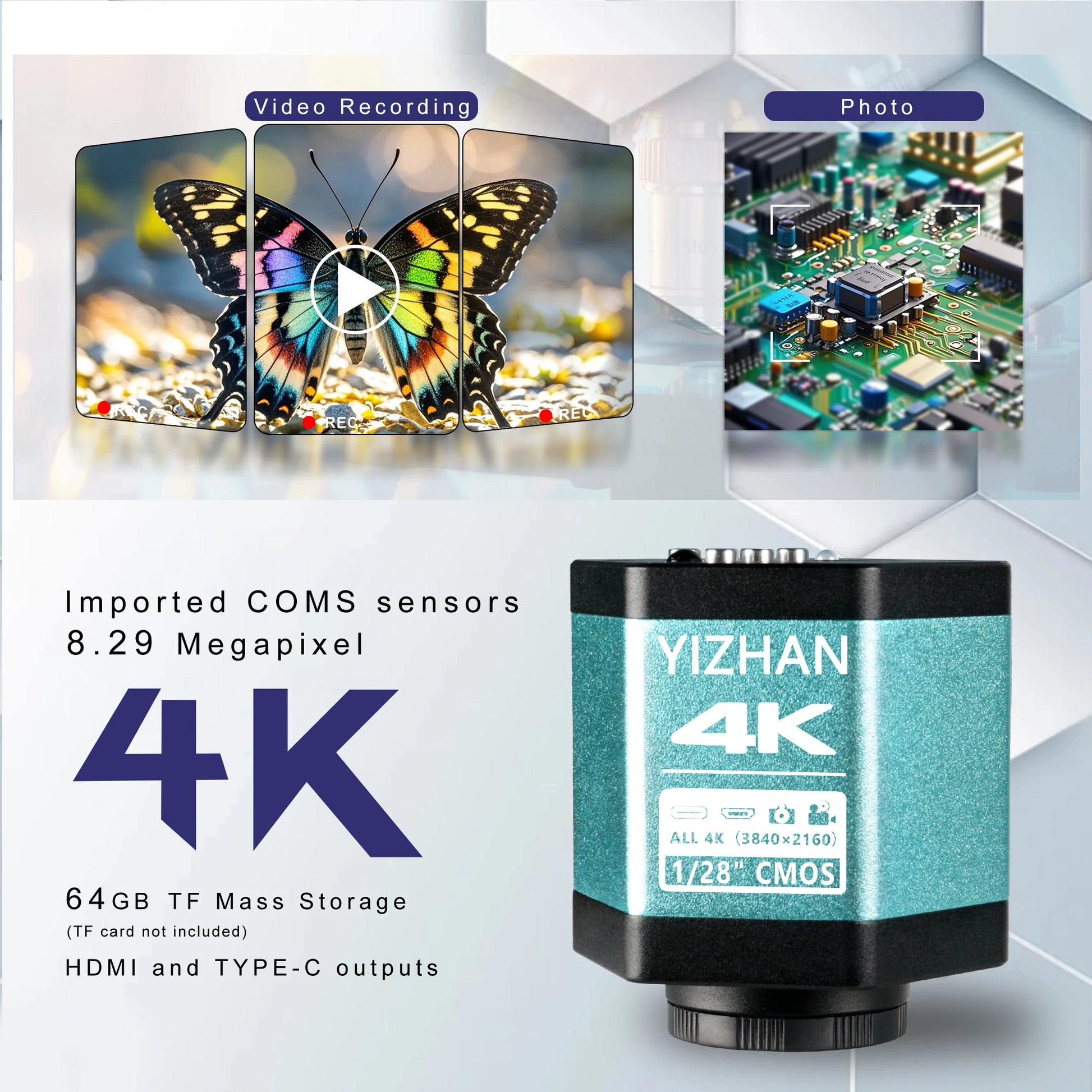

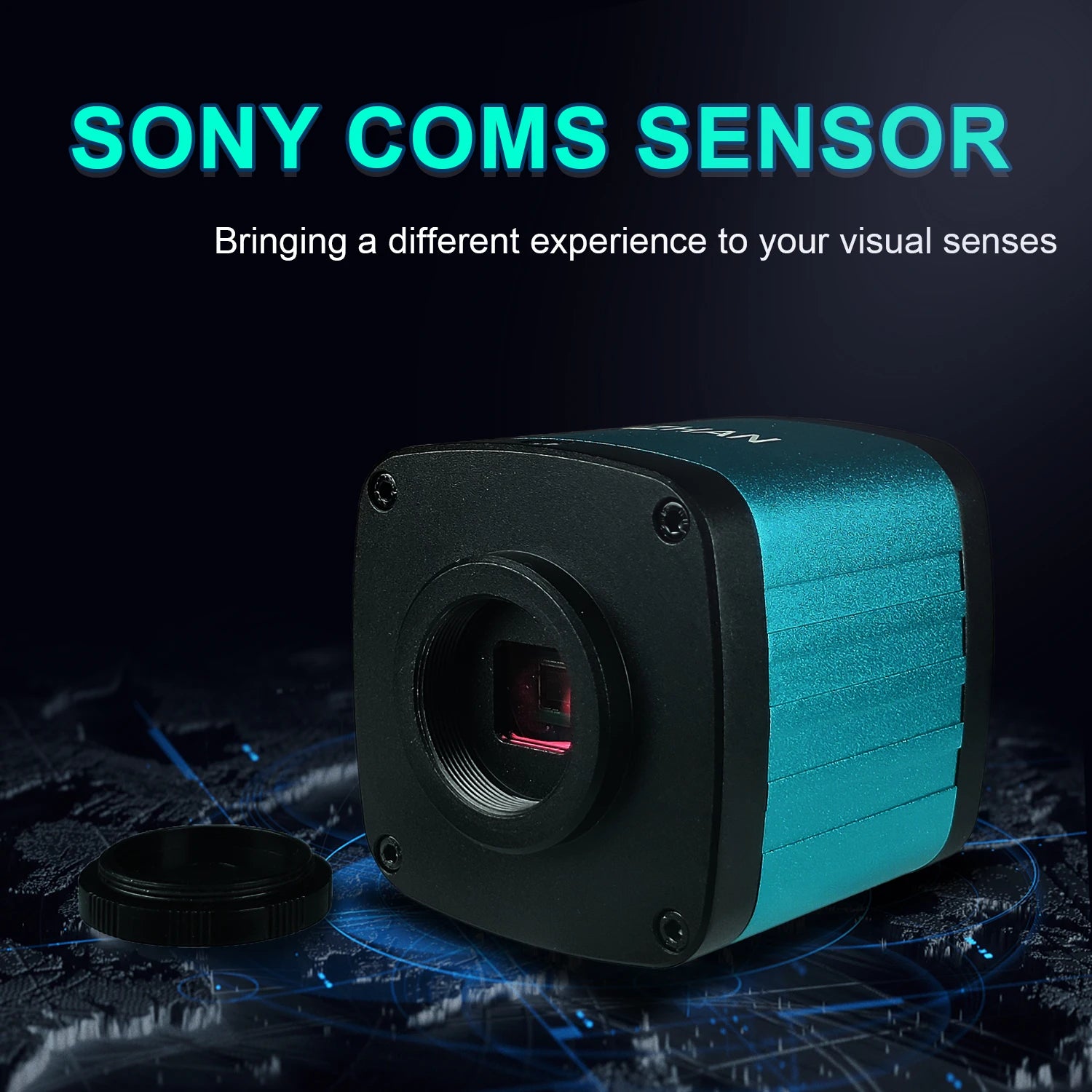

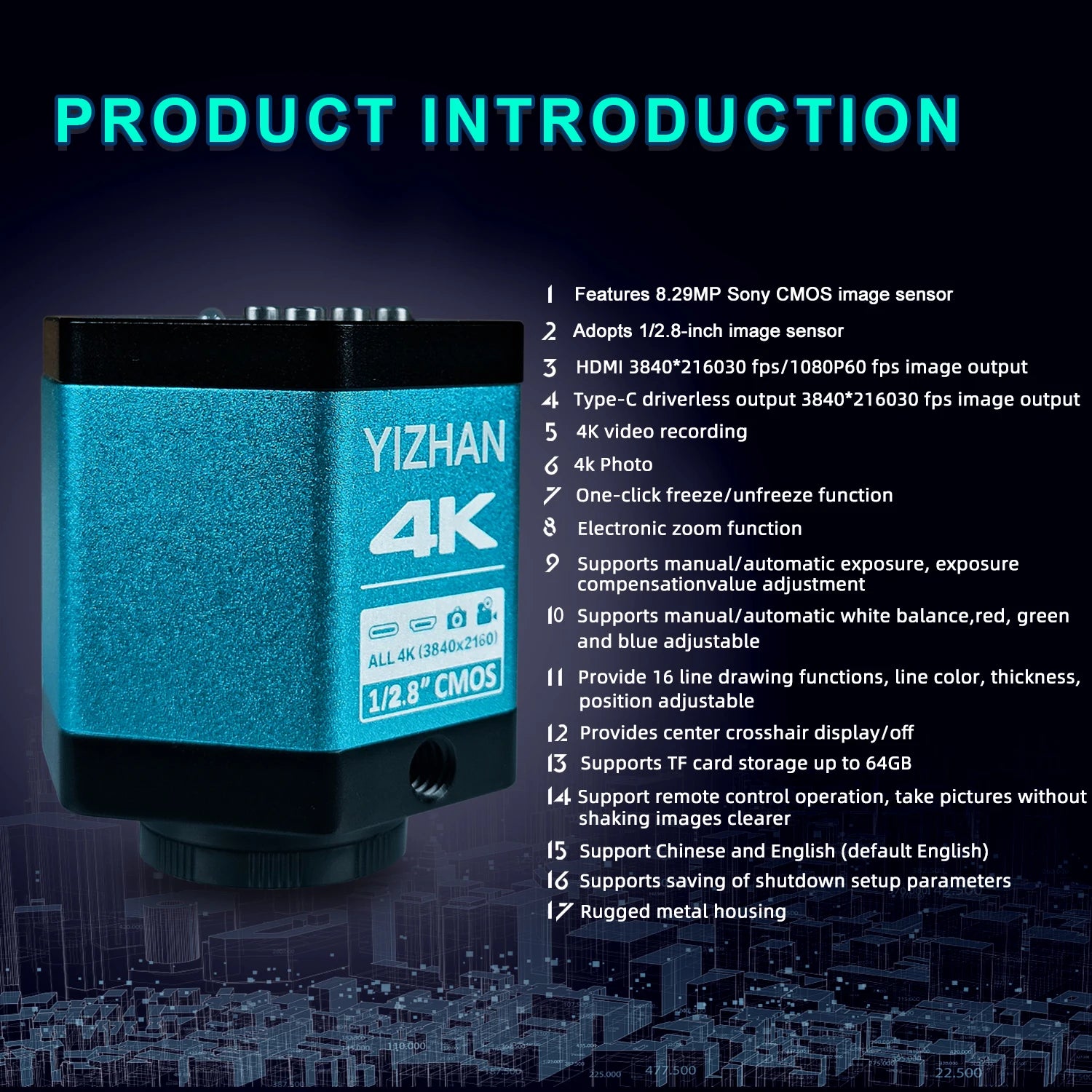

4K UHD 1/2.8in Sony imx415 Senor Camera Parameter(Type-C HDMI)
â—†Using Sony sensor;
â—†Using a 1/2.8-inch image sensor, the viewing angle is wider than that of 1/3-inch;
â—†HDMI 1080P 60 frames image output;
â—†TYPE-C driver-free output 1080P 30 frames image output;
â—†4K video recording;
â—†48 million photos, JPG format;
â—†One-click freeze/thaw function;
â—†1080P video recording;
â—†Electronic zoom function;
â—†Supports manual/automatic exposure/one-click exposure, exposure compensation value adjustment;
â—†Supports manual/automatic white balance/one-click white balance, red, green and blue are adjustable;
â—†Provides 16 line functions, with adjustable line color, thickness and position;
â—†Provide center crosshair display/off;
â—†Support TF card storage, up to 64GB;

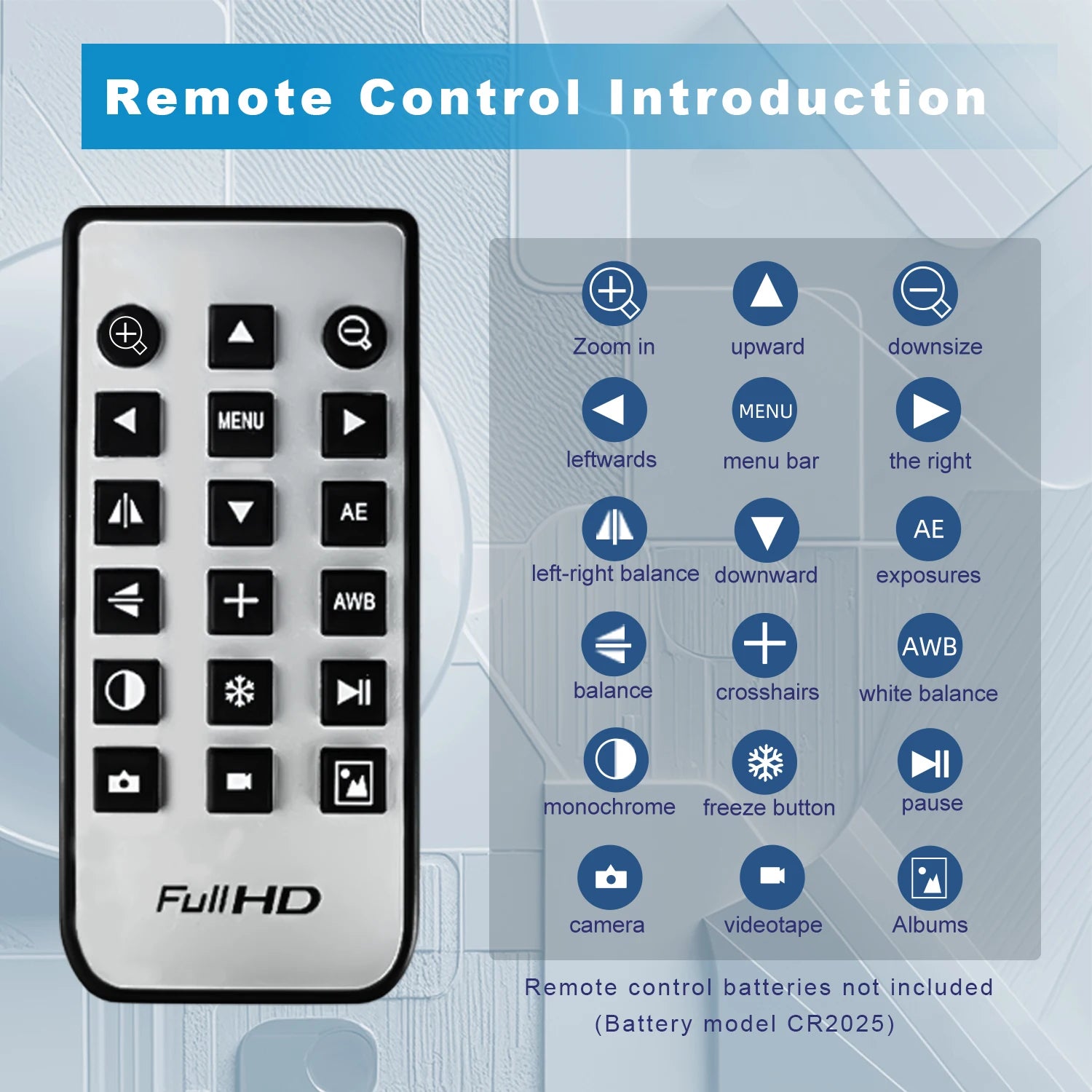

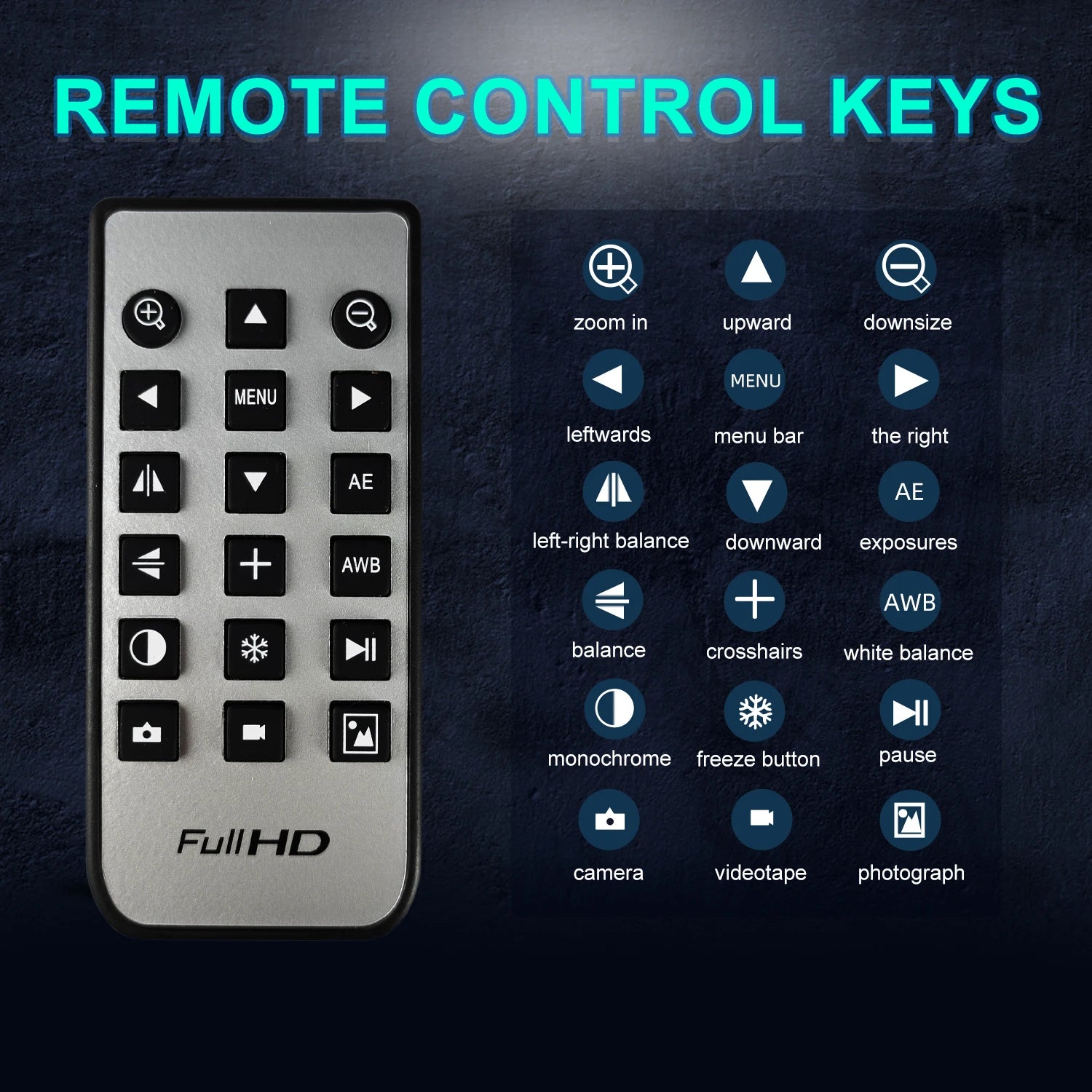

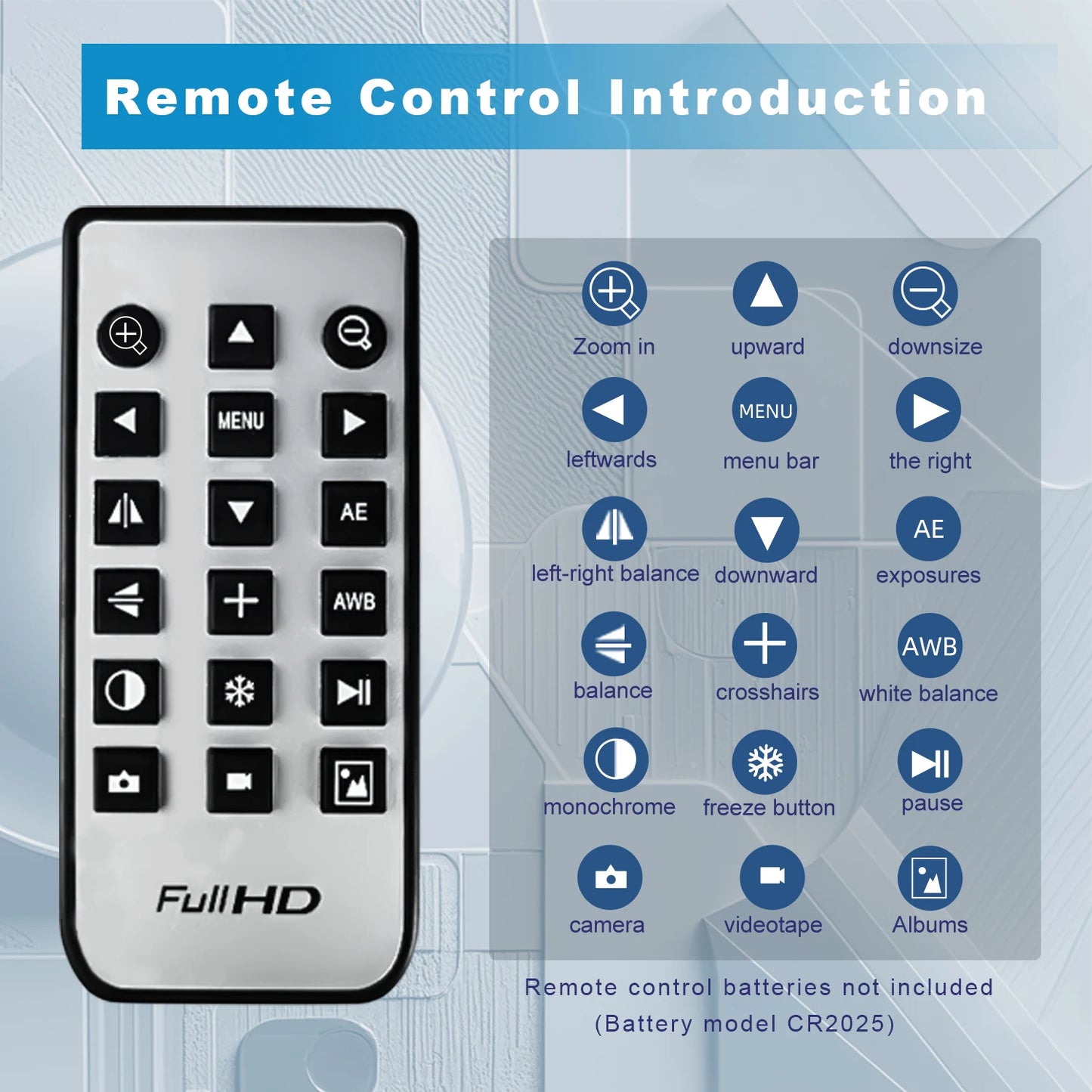

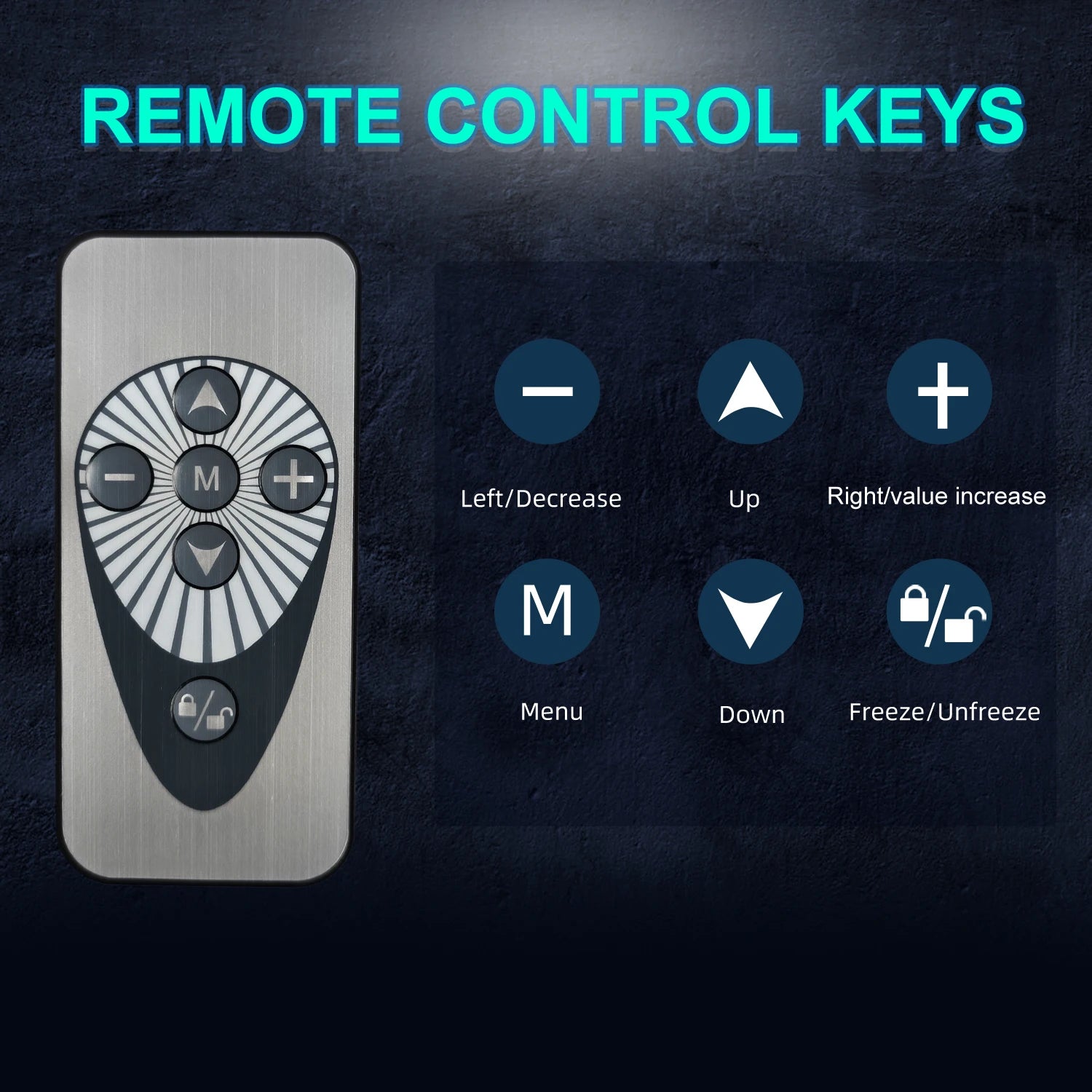

â—†Support remote control operation, take pictures without shaking and the image will be clearer;
â—†Support Chinese, Traditional Chinese, and English menu languages;
â—†Supports saving shutdown setting parameters;
â—†Aluminum alloy shell processed by CNC precision milling technology;

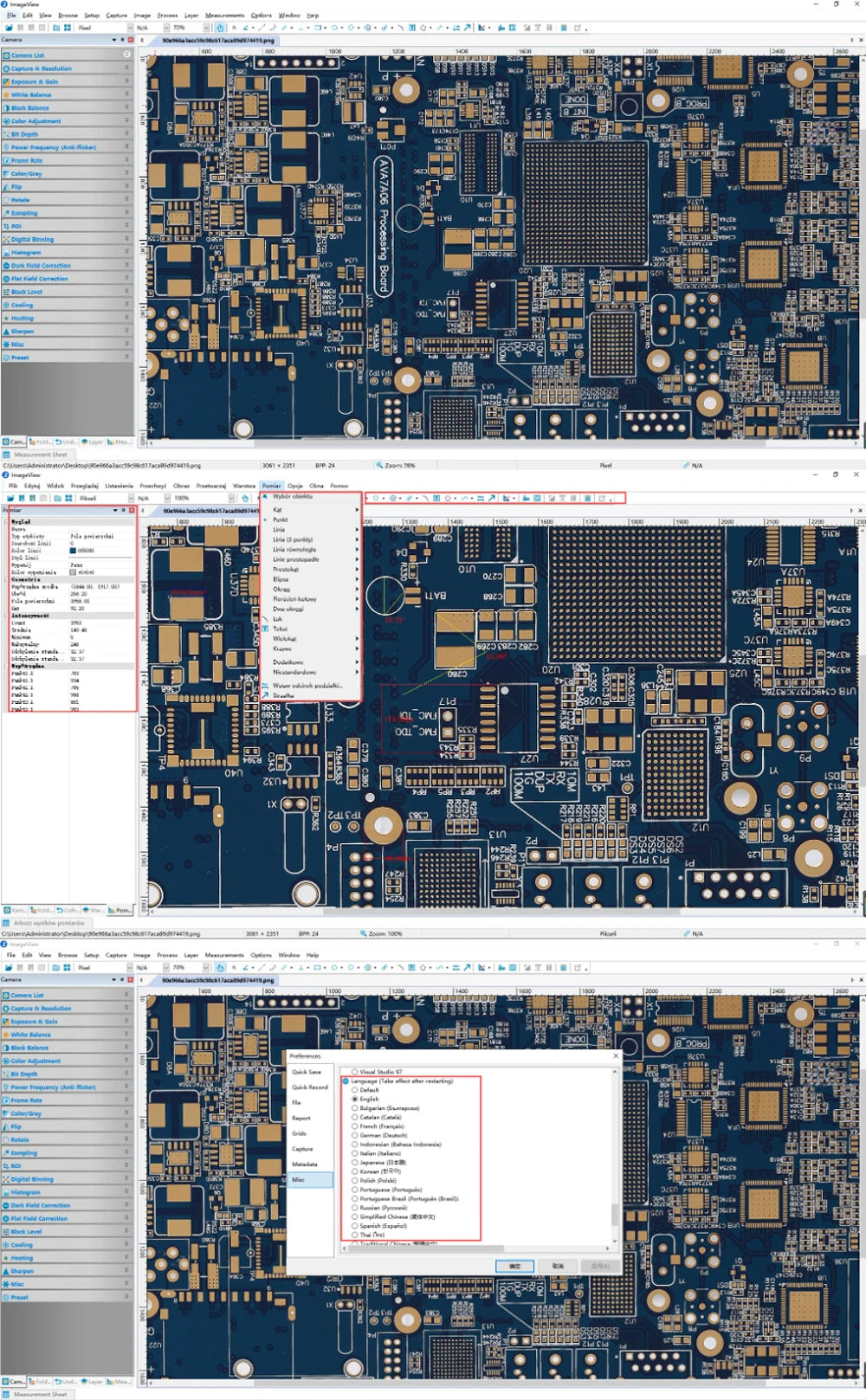

The Software of Ultra 4K USB-C HDMI camera

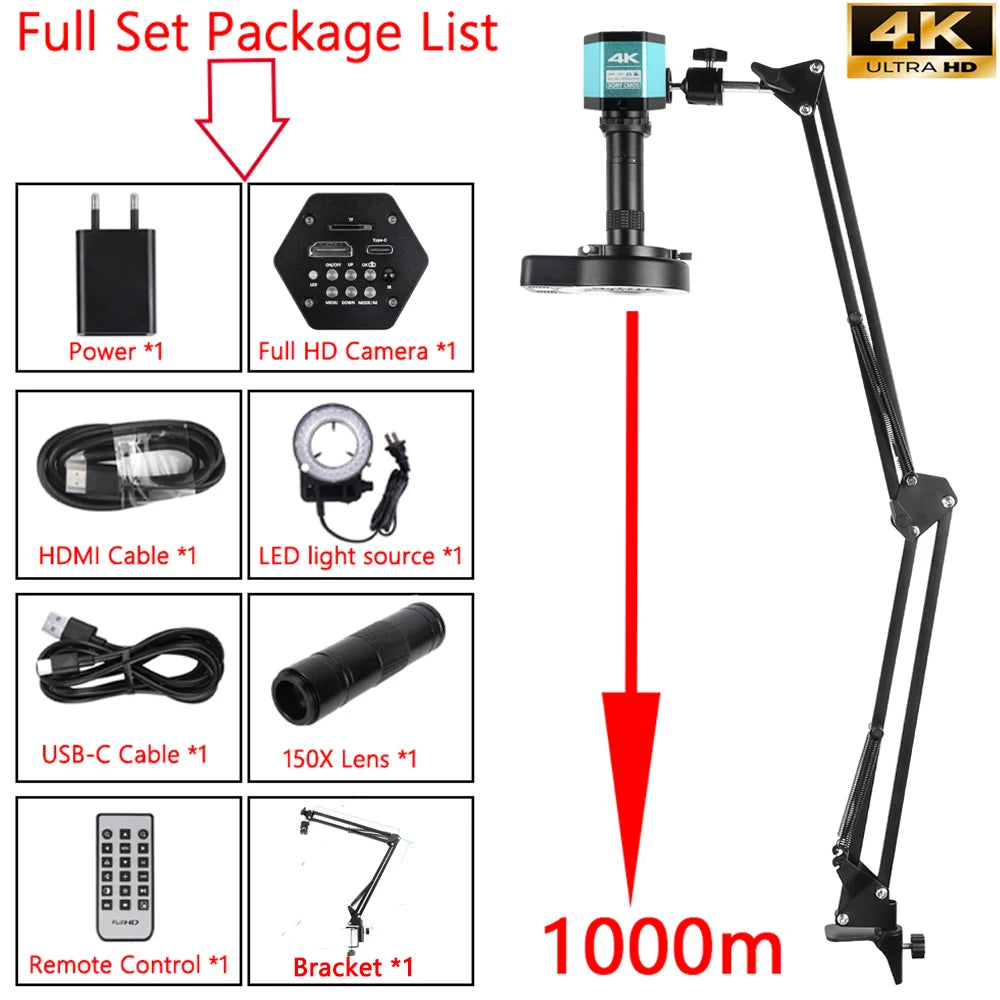

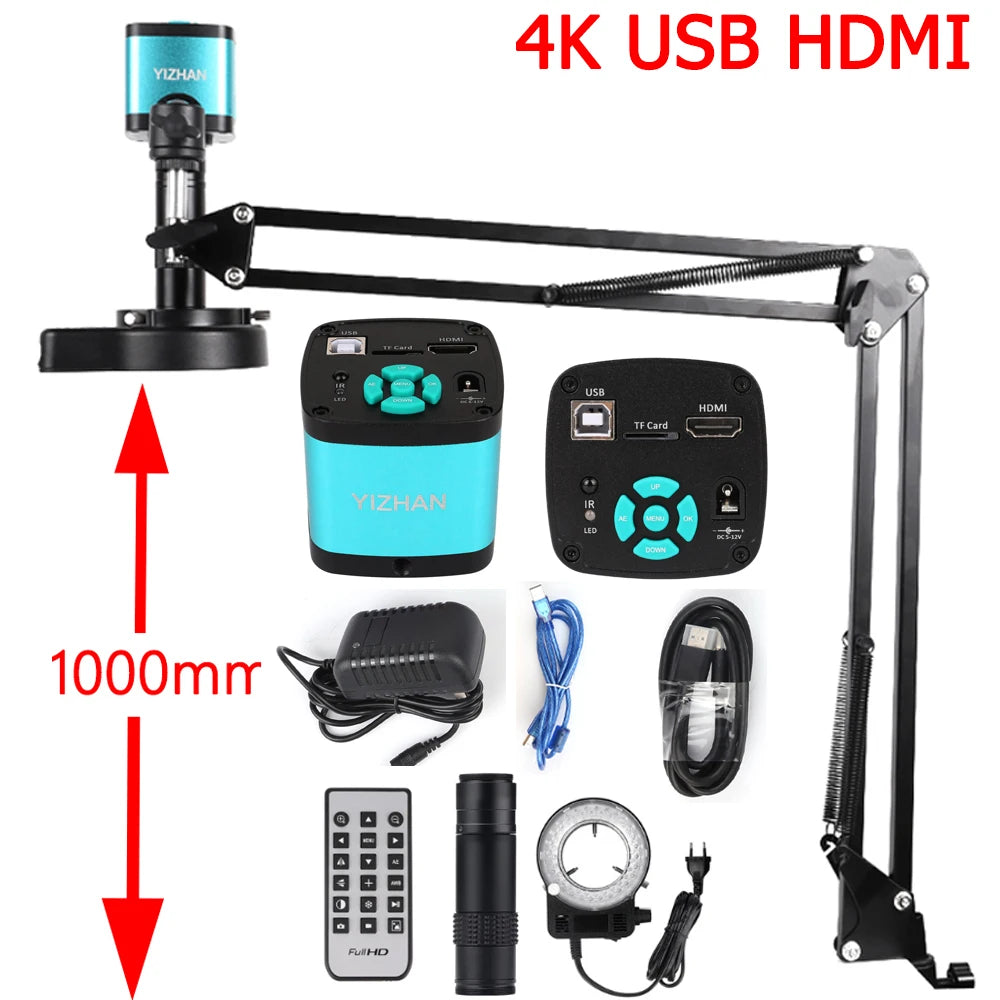

List of packing：
1 * Microscope camera
1 * Microscope lens
1 * LED light
1 * Folding bracket
1 * Remote control
1 * Instruction manual
1 * Type-C cable
1 * HDMI cable
1 * Power cord
1 * Software (not included in the package, please contact customer service for assistance)

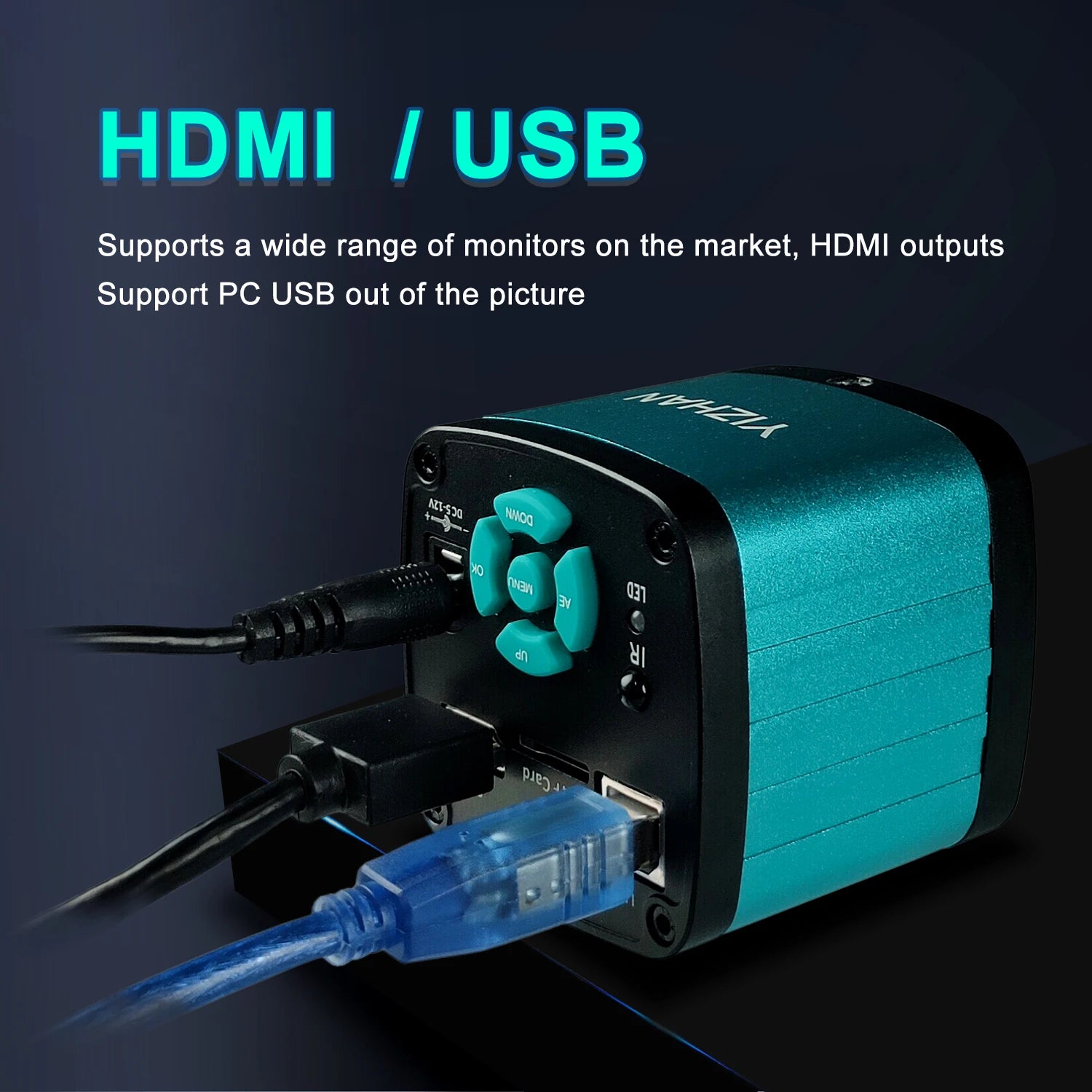

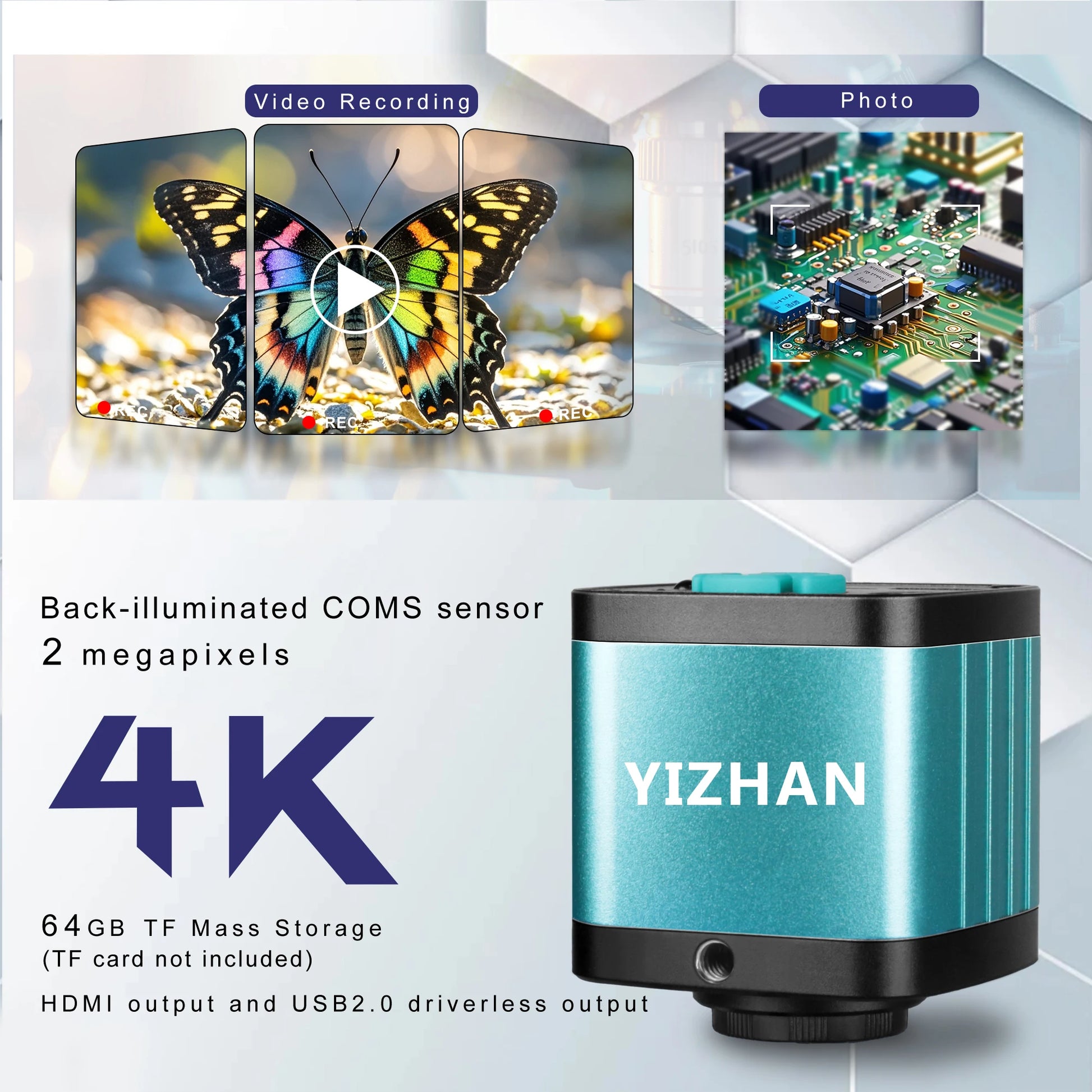

4K 1/2.8in Sony imx327 Senor Camera Parameter(USB-B HDMI)
Model: Camera with HDMI USB2.0 two output
Image sensor: 48 megapixel Sony sensor
Frame rate: 1920*1080 60F/S @ HDMI output
Video save Movie size:4K(25fps) 2K(30fps) 1080P(60fps) 720P(60fps)(Note: If you need to record 4K or 2K video, you need to use the SDHC class10 TF card.)
Housing: All metal
Support:C-Mount lens
Digital magnification: 5 times digital zoom
White balance: Auto/manual
Cross cursor: Support multi-color, size adjustable
TF card interface: Max 32G
video format:MOV
HDMI interface: HDMI/USB output
Image : 48M 8000X6000/38M 7168X5376/26M 5888X4416/20M 5120X3840/16M 4608X3456
Language:Chinese/English
Mirroring: Support
Frequency:50Hz/60Hz
Monitor:16:9/16:10/4:3
Grid line: 15 Horizontal line, 15 Vertical line, Central scale line,Custom colors,Size
Power supply:5-12V 1A

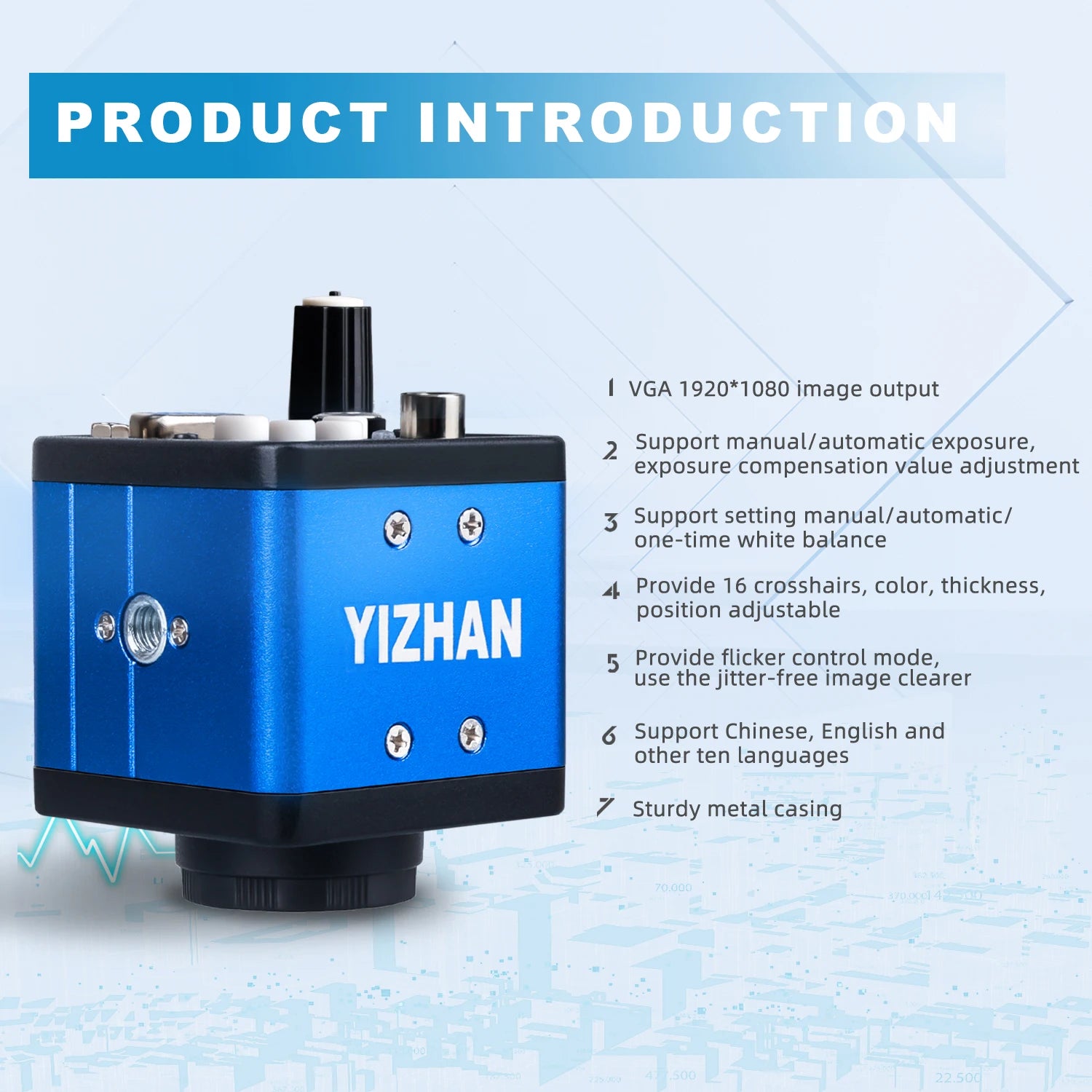

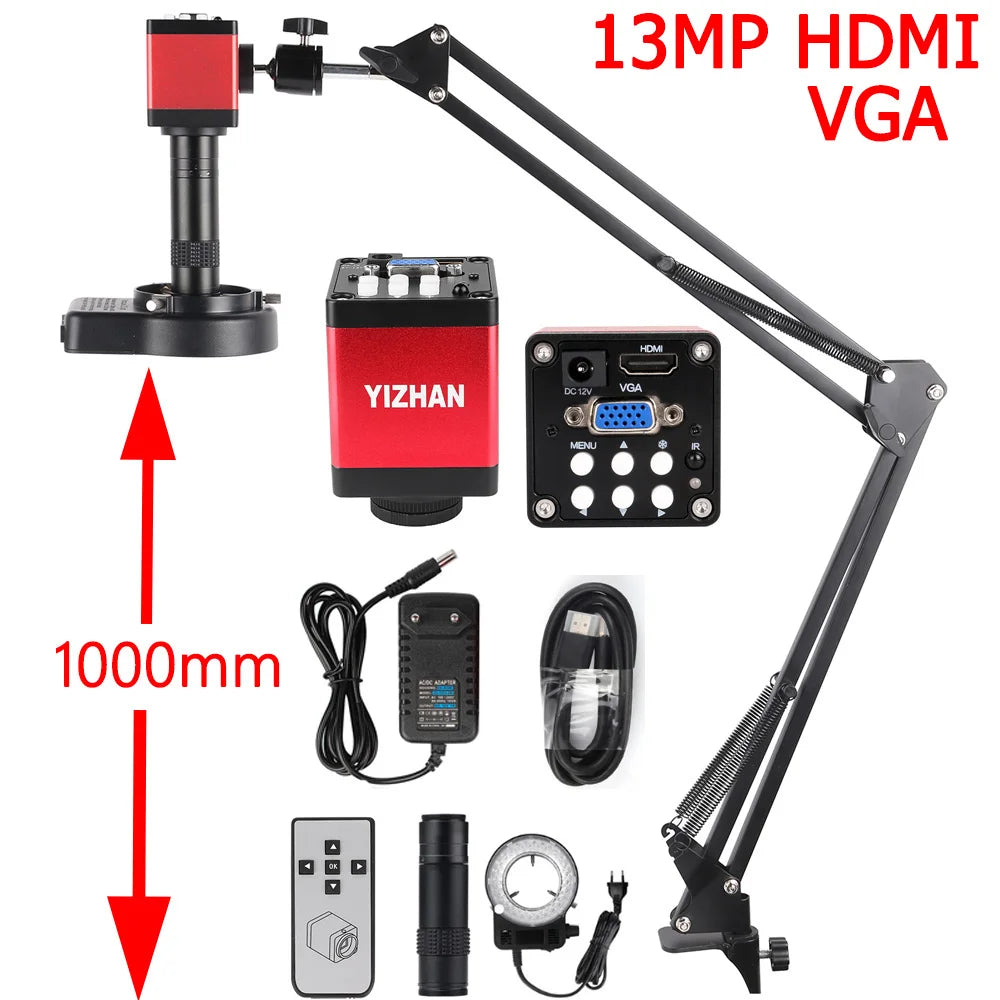

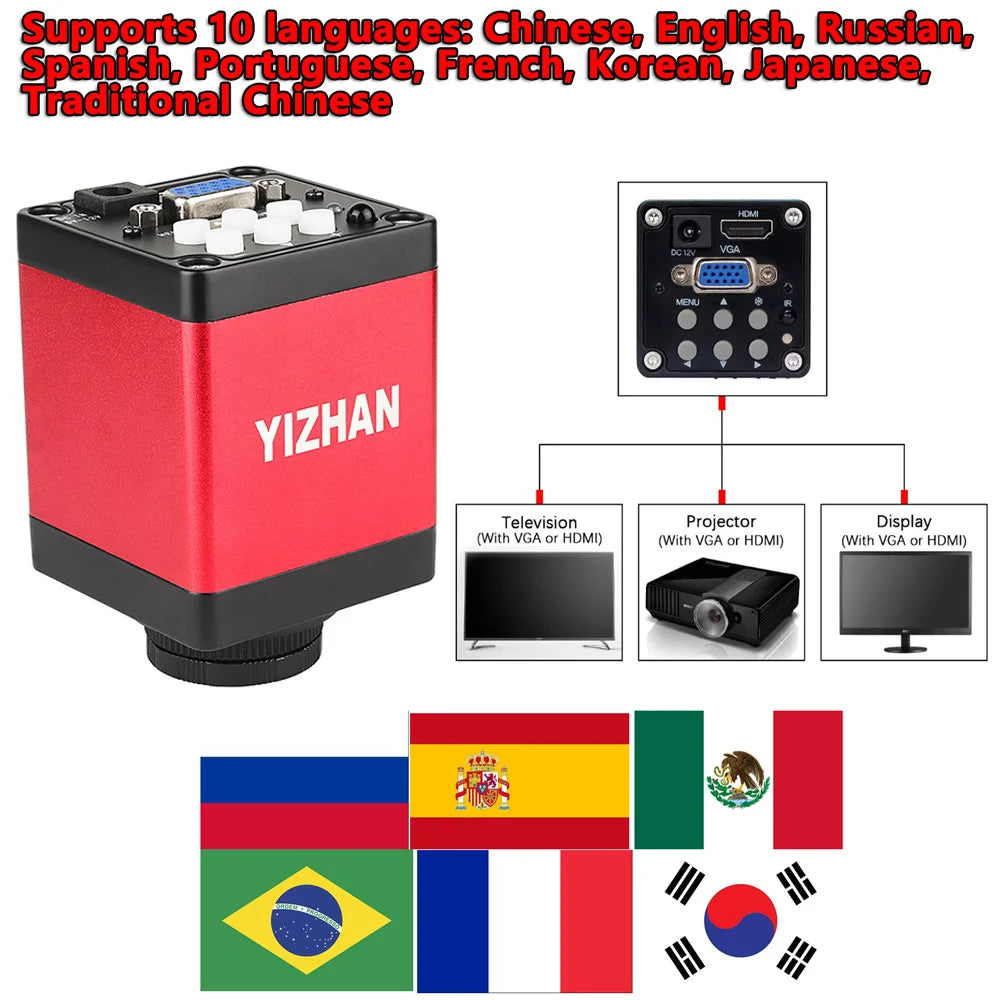

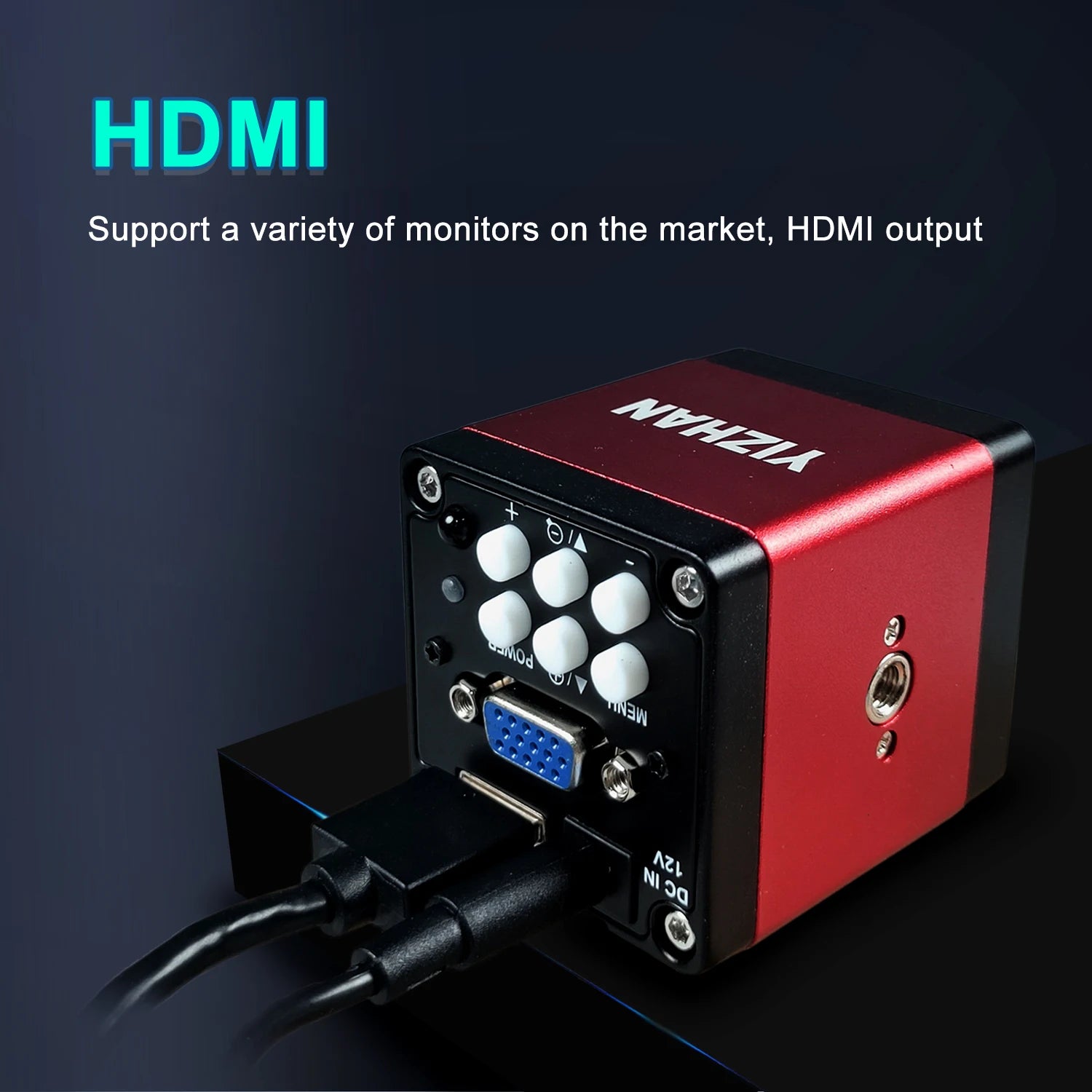

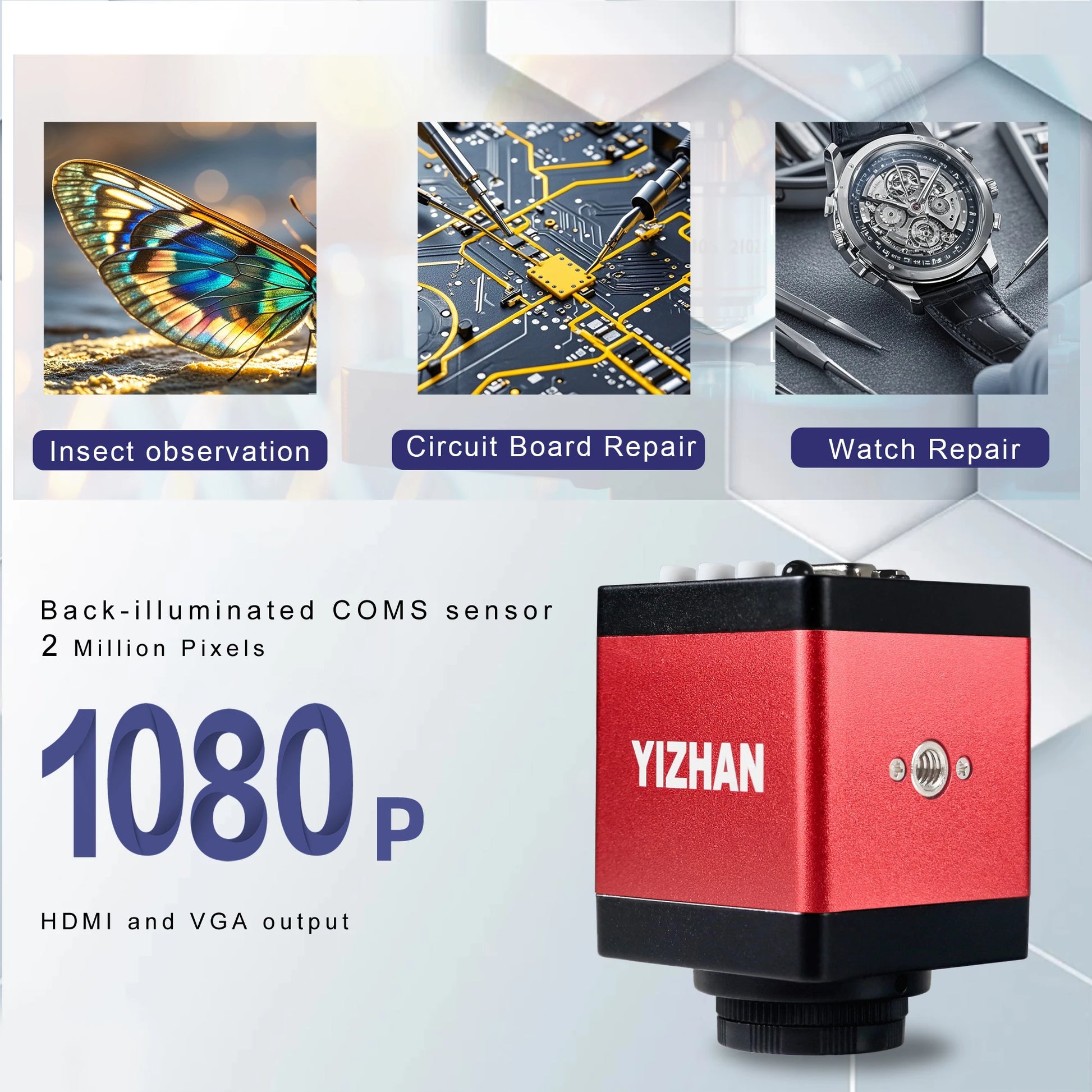

13MP 60FPS 1/2.8in Sony imx323 Senor Camera Parameter(VGA HDMI)
Overall dimension: 75*50*50mm
Video Interface:HDMI VGA
Lens:CS
Working voltage:12V
Working current:150mA
Optical format:1/3"
Pixel size:2.8um*2.8um
Pixel array:13MP
TV Lines:1200TVLine
FPS of max image:30FPS
Scanning mode:progressive
Shutter mode:electronic shutter
Dynamic range:65dB
S/N radio:45dB
AWB mode:One time white balance / manual / auto
HDR:Adjustable
Cross line:Support 8 colors / line width adjustable
B/W:allow
Negative:allow
Mirror flip:Support left / right / up / down
Freeze:allow
Compare:allow
Manual set bright,contrast,sharp,saturation:allow
Output of display resolution: HDMI：16:9, 4:3 VGA:Above 1920*1080P

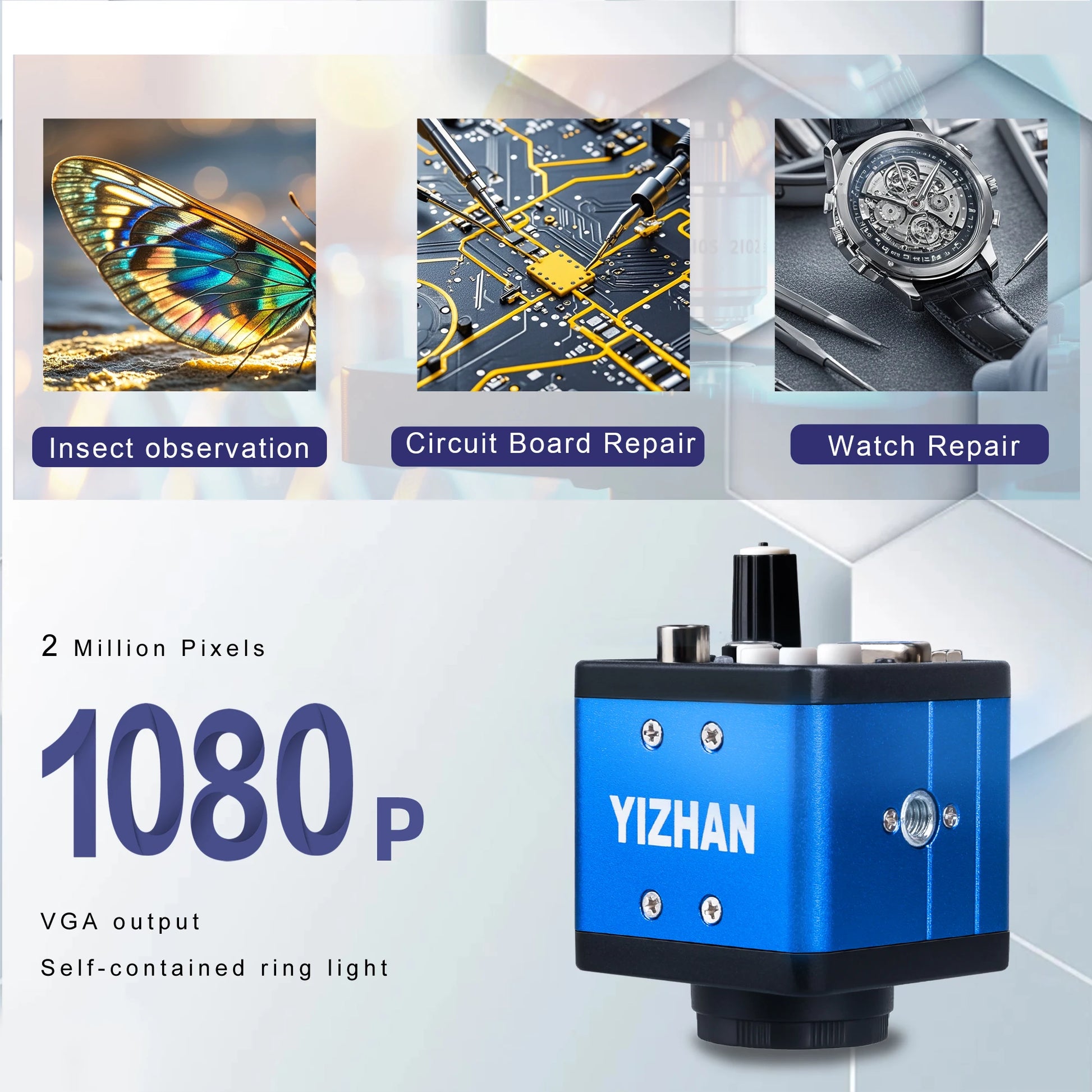

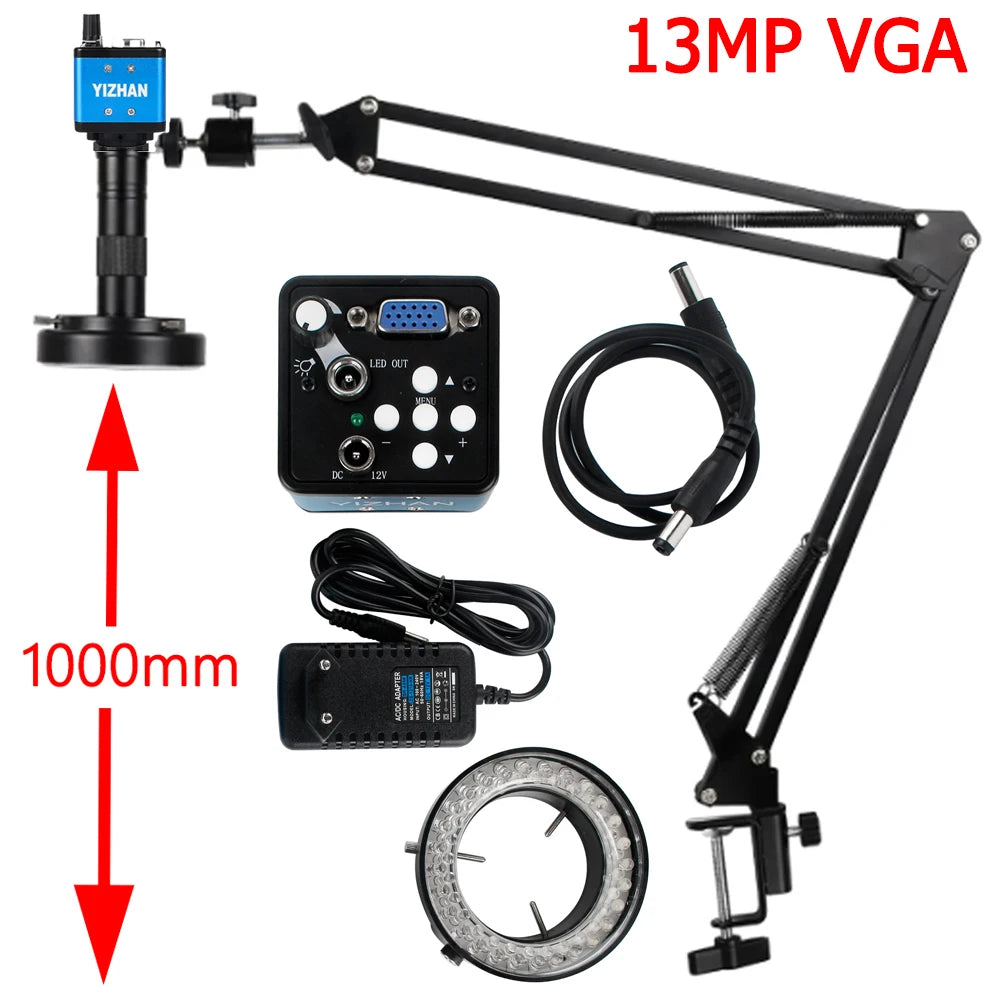

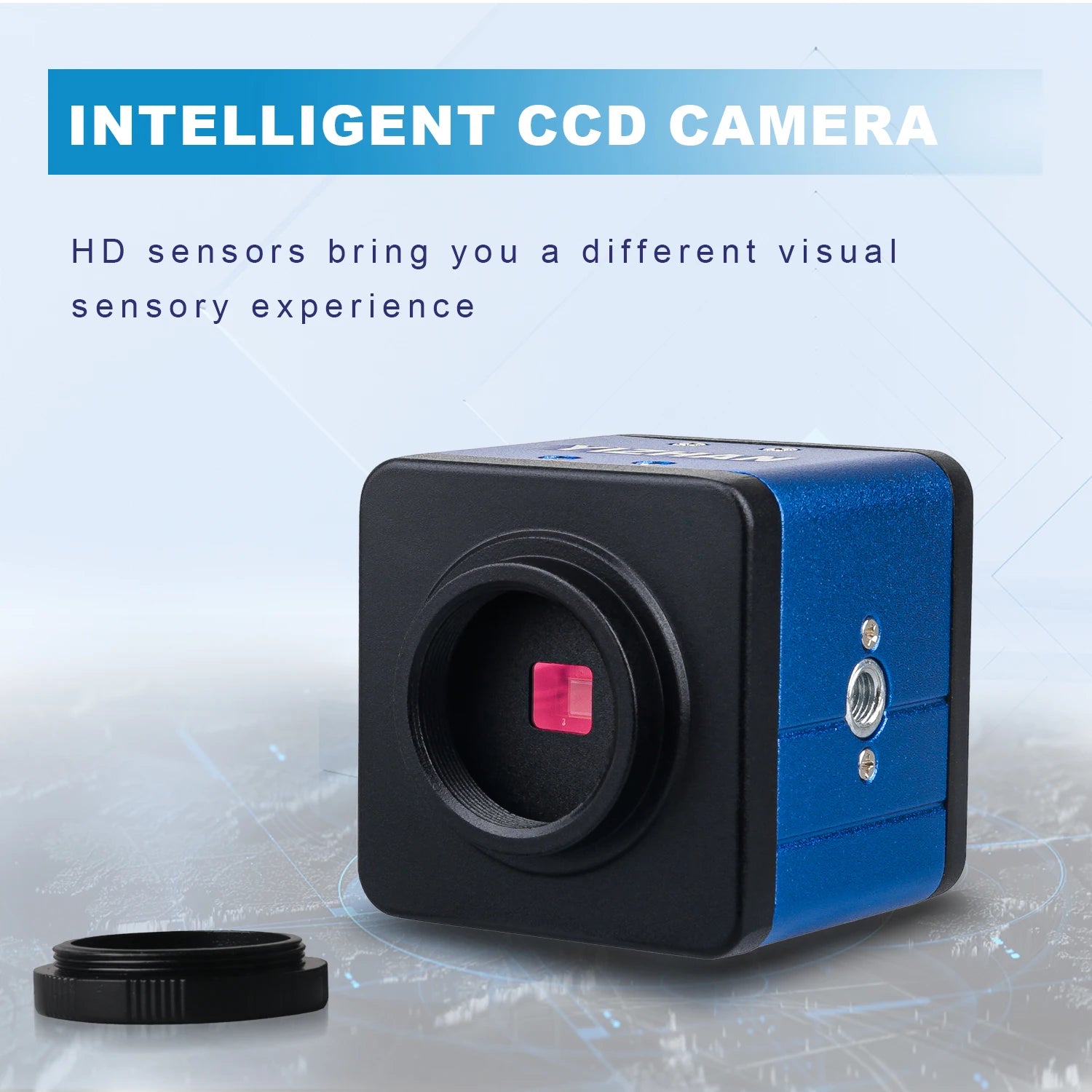

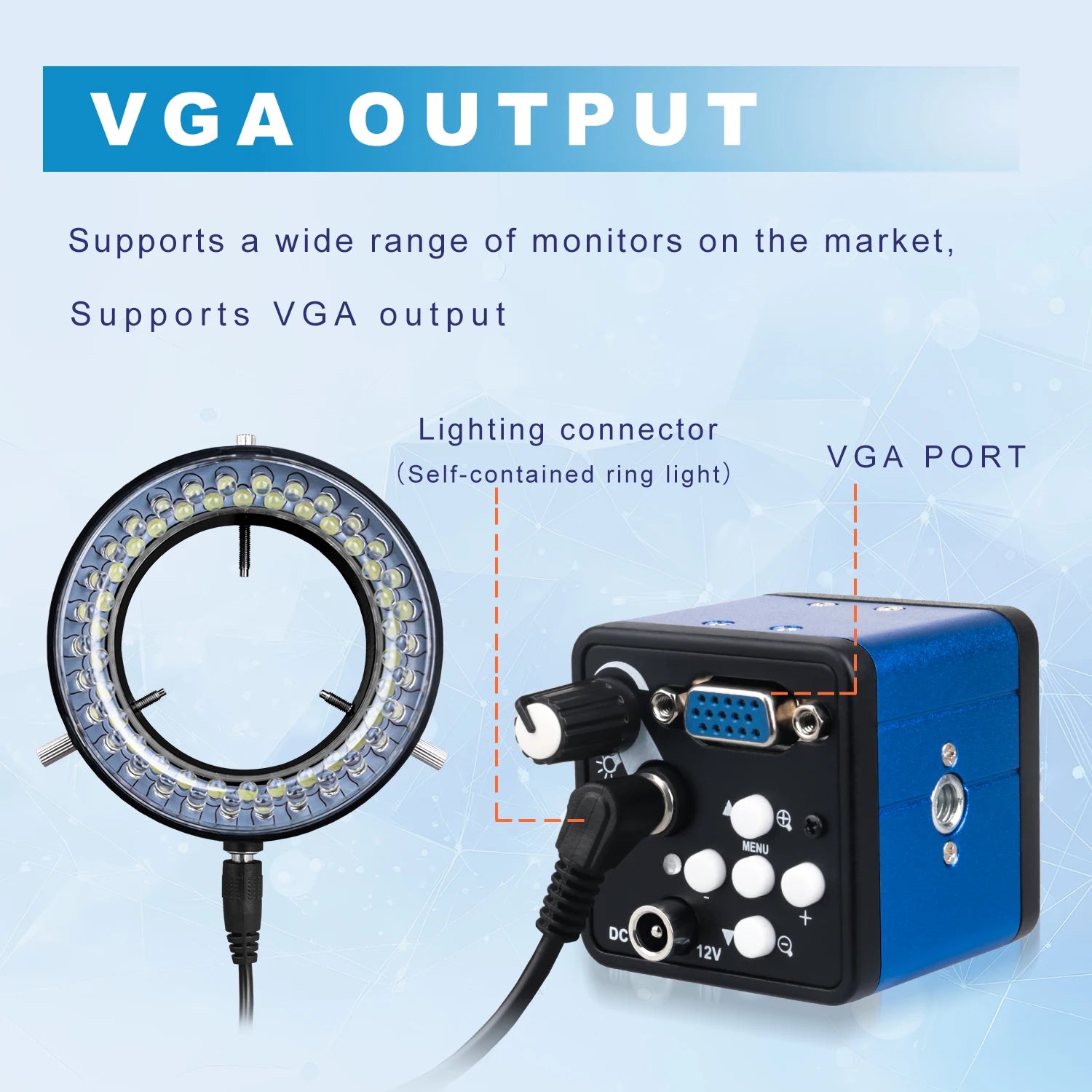

13MP 30FPS 1/2.8in Sony imx323 Senor Camera Parameter(VGA)
Overall dimensions: 70*50*50mm
Video interface: VGA
Lens: CS
Working voltage: 12V
Working current: 150mA
Optical format: 1/2.7""
Pixel size: 3.0um*3.0um
Pixel array: 1920*1080
TV line: 1200TV line
Maximum image frame rate: 30FPS
Scan mode: progressive scan
Shutter mode: electronic shutter
Dynamic range: 60dB
Wireless signal-to-noise ratio: 45dB
OSD language: English/Chinese
AWB mode: one-time white balance/manual/auto
HDR: Adjustable
Crosshair: supports 8 colors/adjustable line width
Black and white: allowed
Negative: allow
Mirror flip: supports left/right/up/down
Freeze: Allowed
Compare: Allow
Manually set brightness, contrast, sharpness, saturation: Allowed
Output display resolution: 1920*1080/1600*1200/1440*900/1366*768/1280*1024/1280*720/1024*768/800*600 (supports various displays on the market)

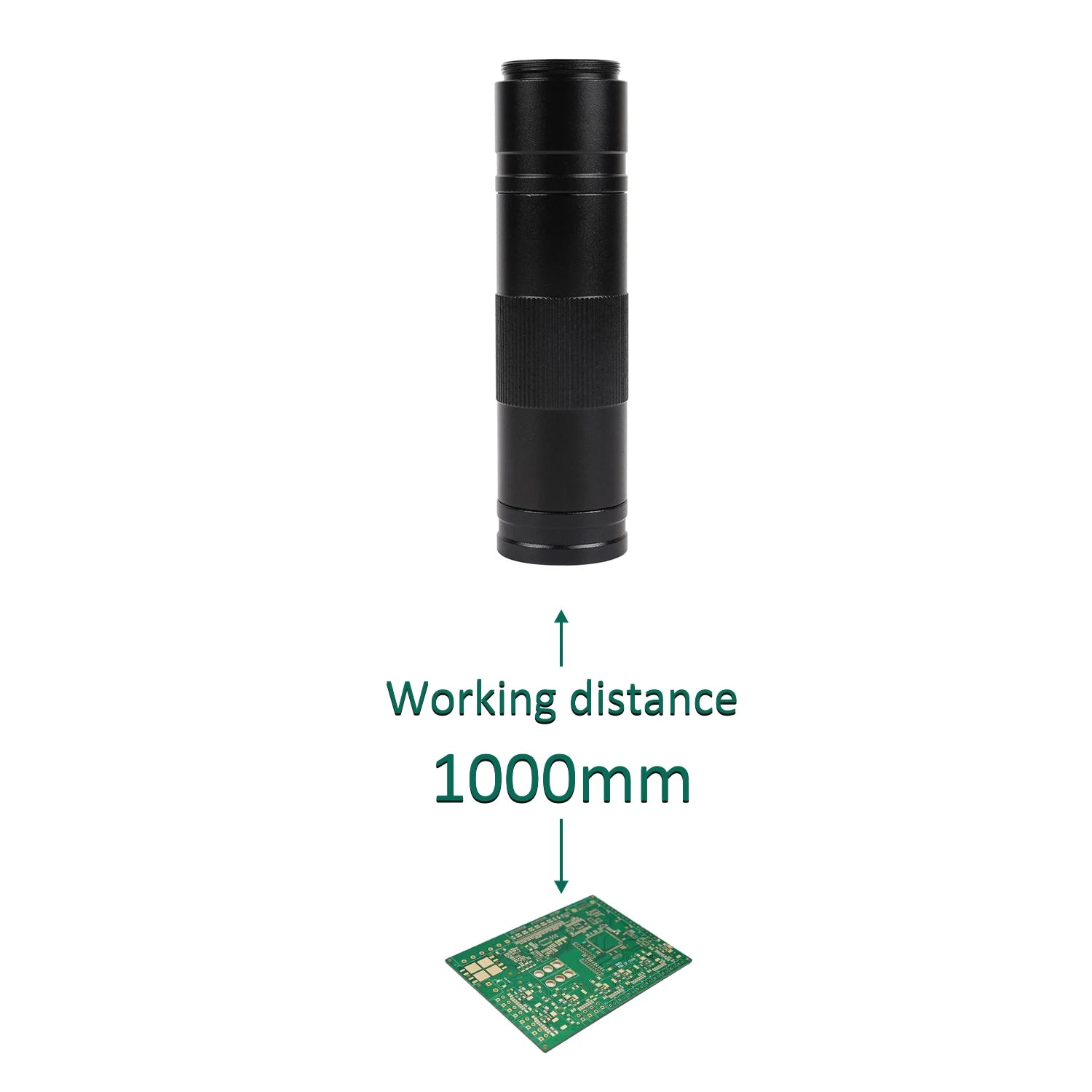

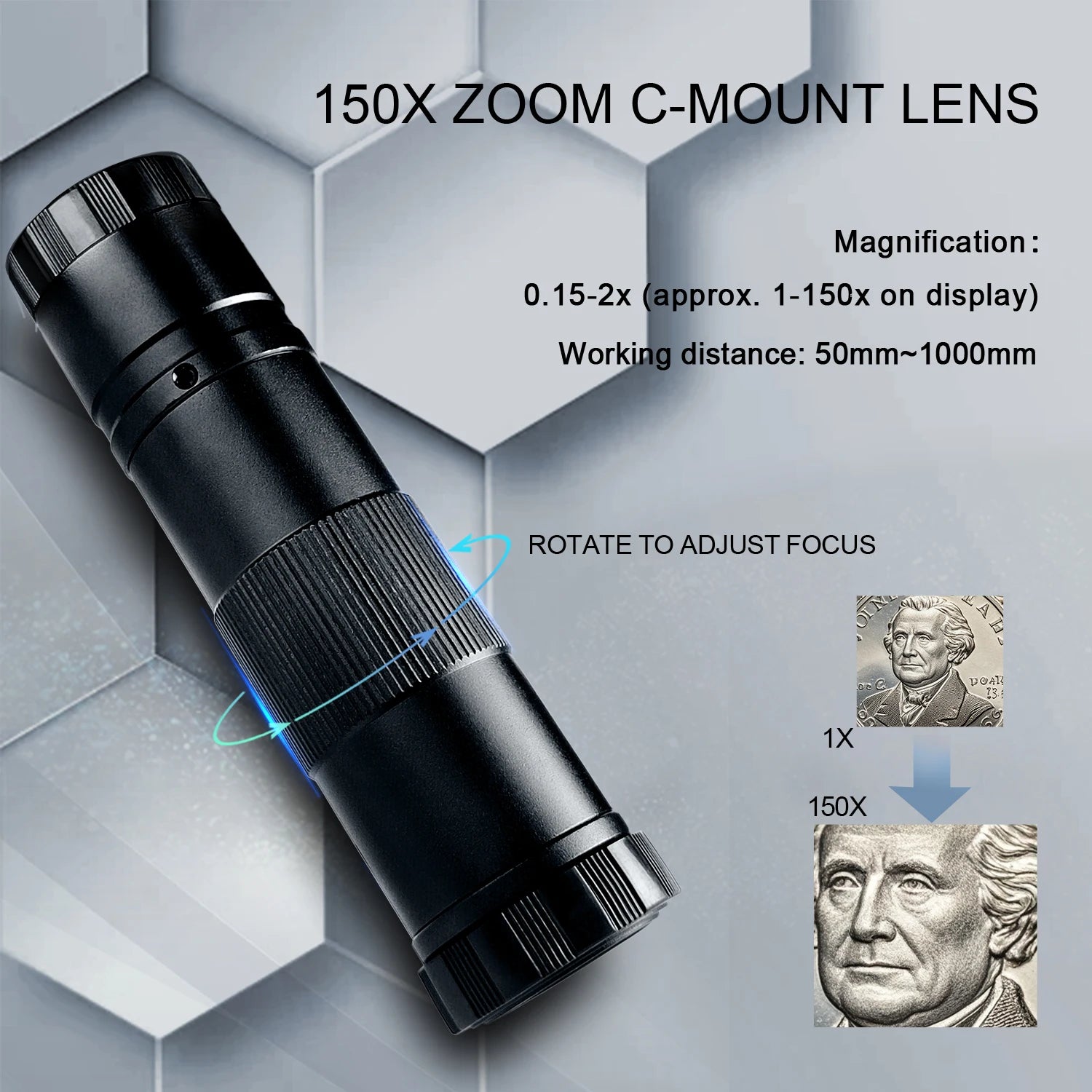

1X-150X Zoom C-mount Lens:
Working distance: 50mm-1000mm
zoom ratios: 1 : 15
Magnification Power by 0.15- 2X (about 1 - 150X on the display)
view field of Max multiple : 4.2mm*2.4mm
view field of Min multiple : 130mm*70mm
Size: 30mm(diameter) * 99mm(length)
Weight: 195g

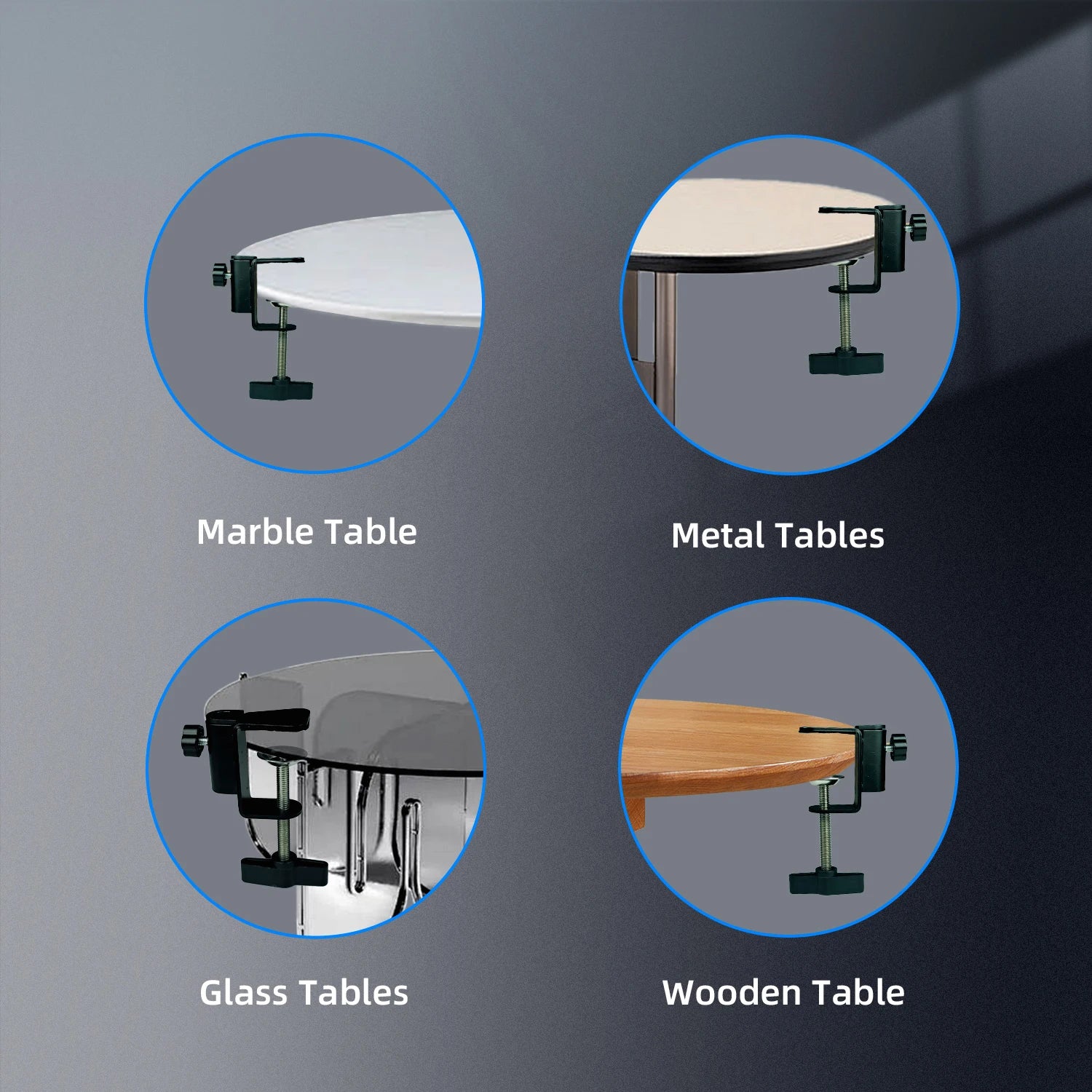

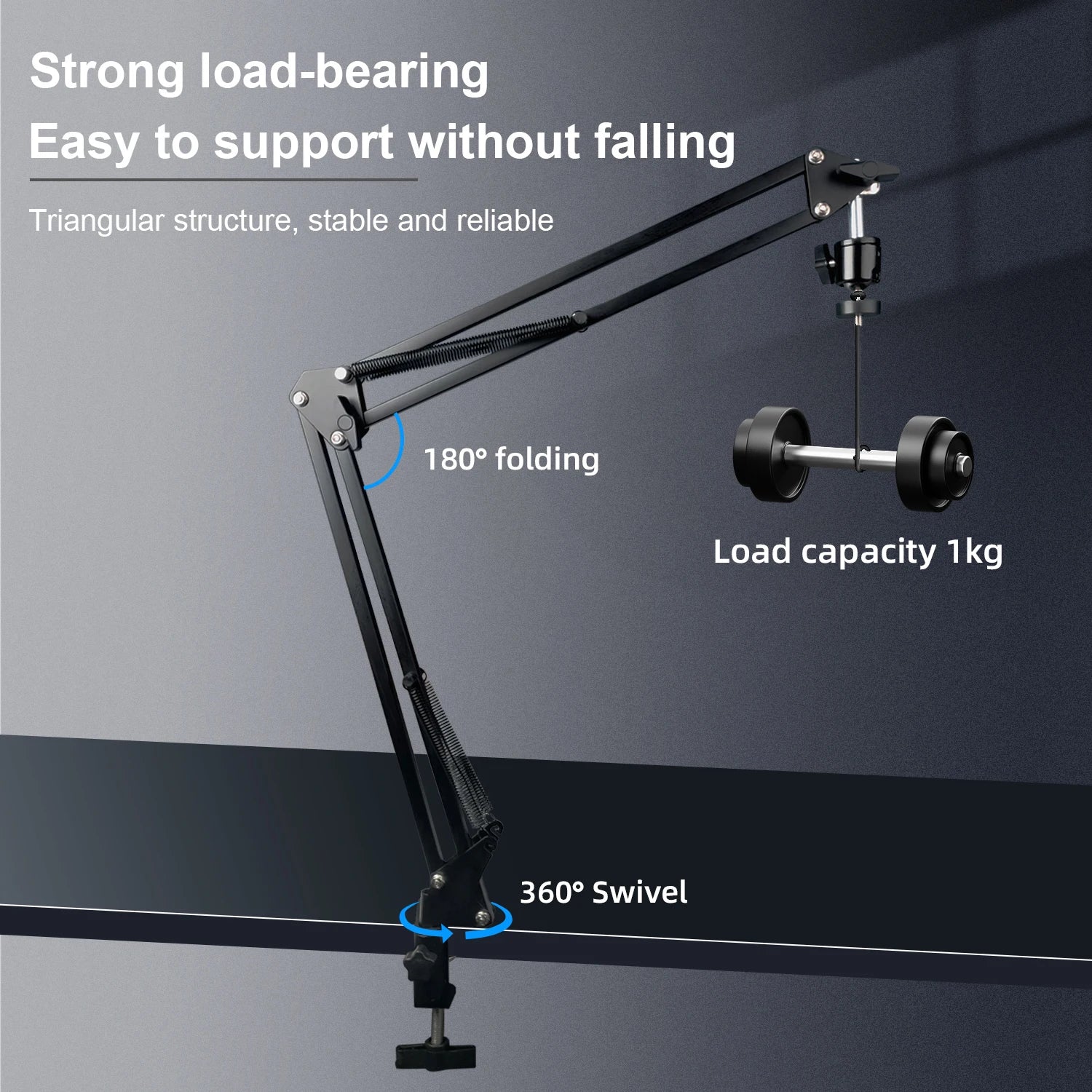

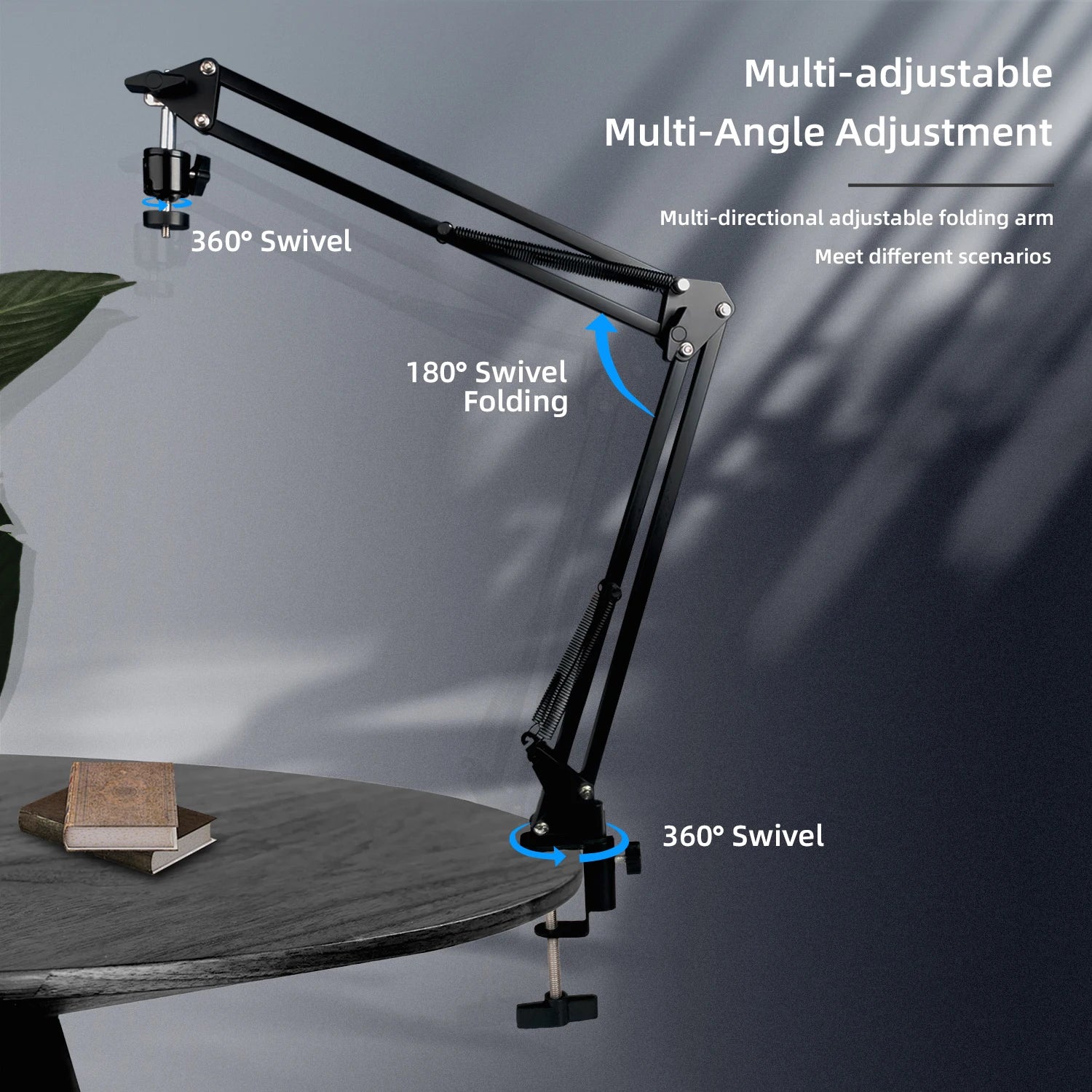

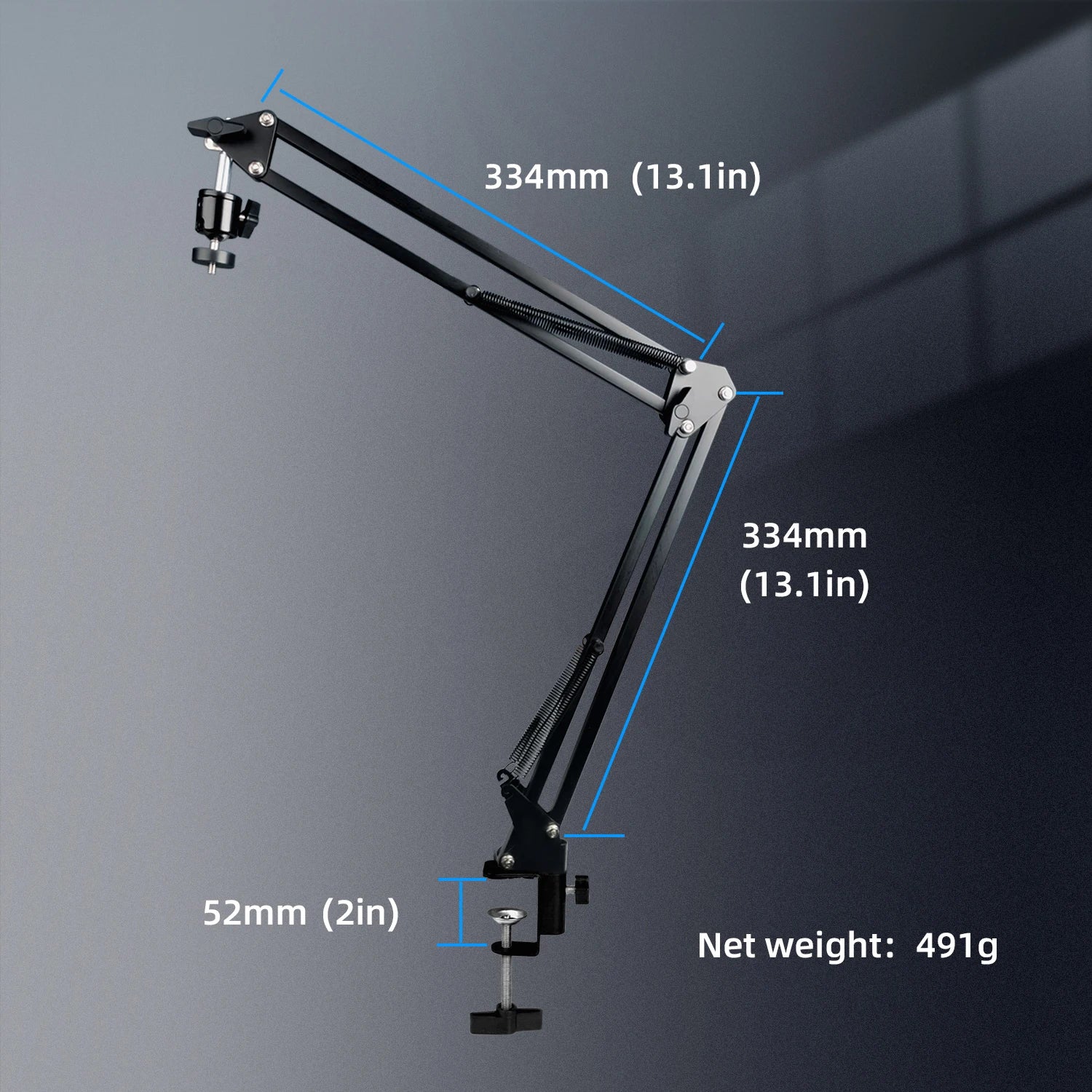

Standard Bracket
Size：34*32cm
1. Aluminum alloy material ,material has been enhanced.
2. The use of integrated design,good design is durable.
3. Sizes have been widened.
4. The maximum working distance is 70cm.
5. Can be used for microscope stand, microphone live stand, mobile phone stand.
