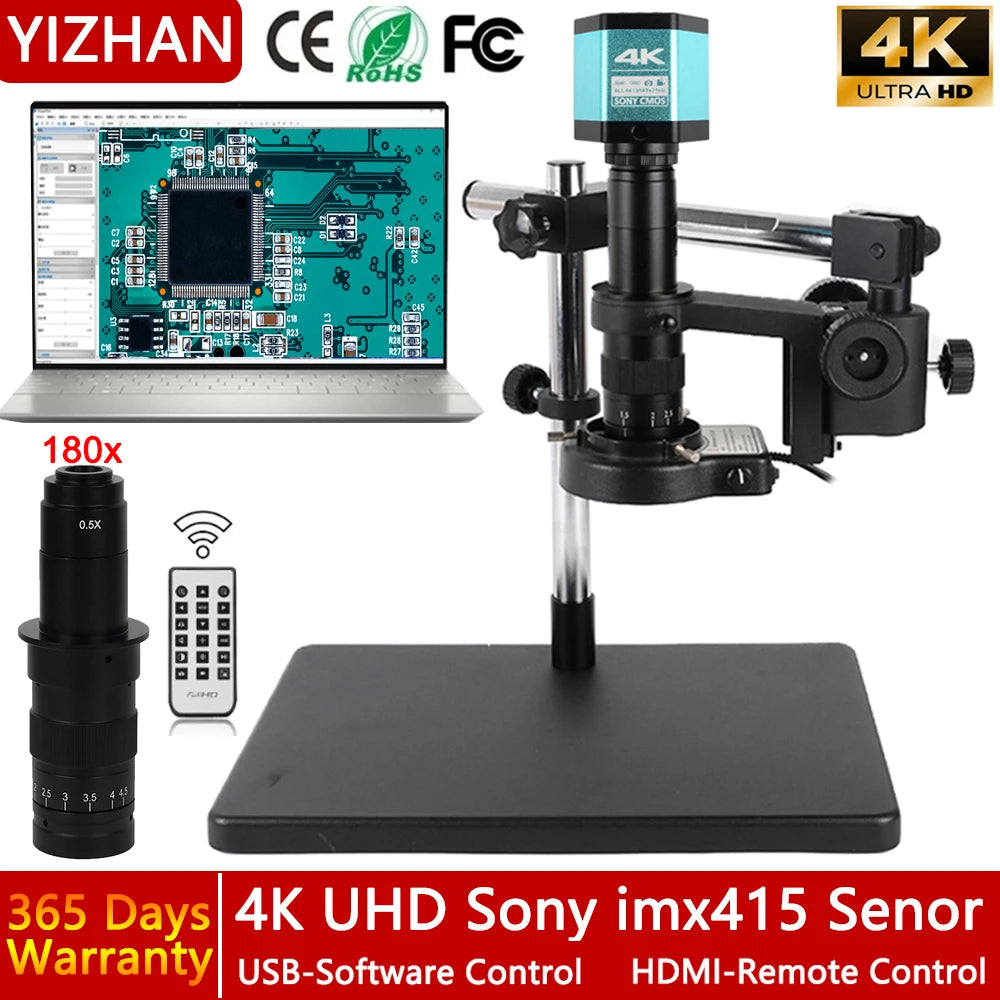

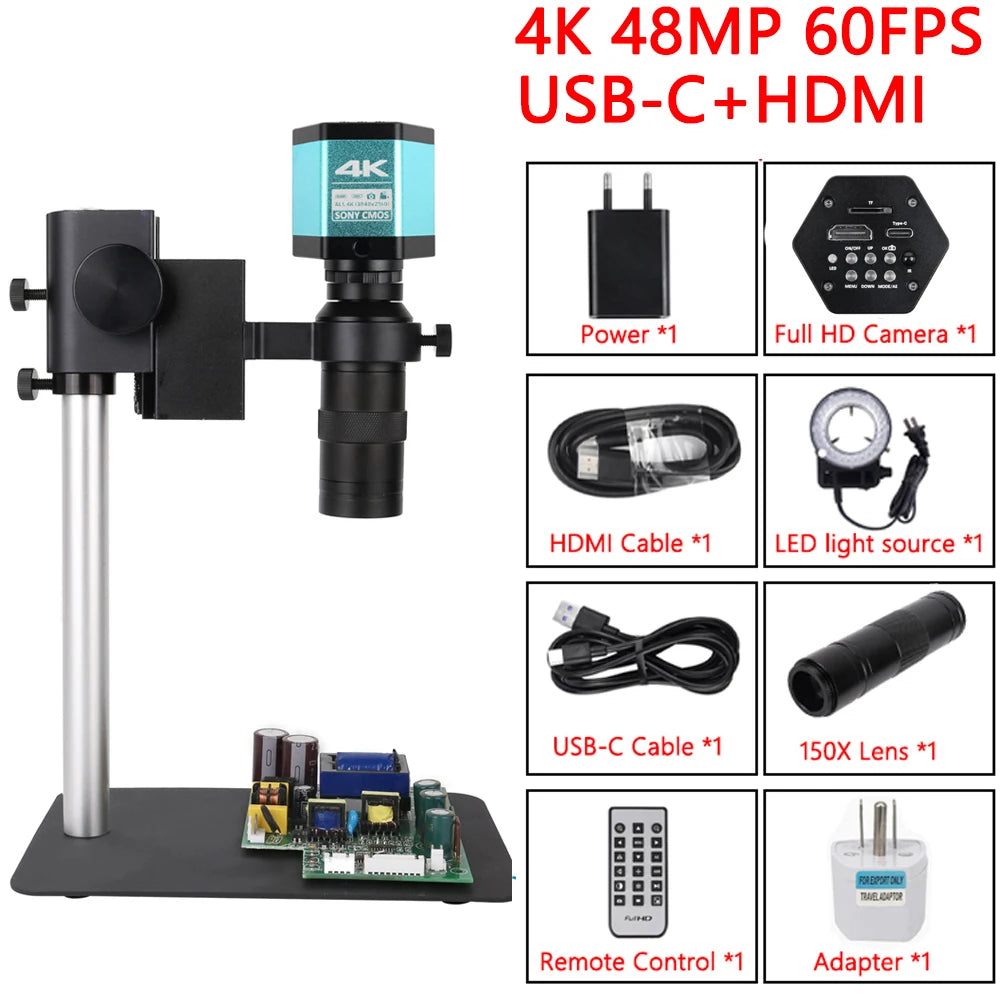

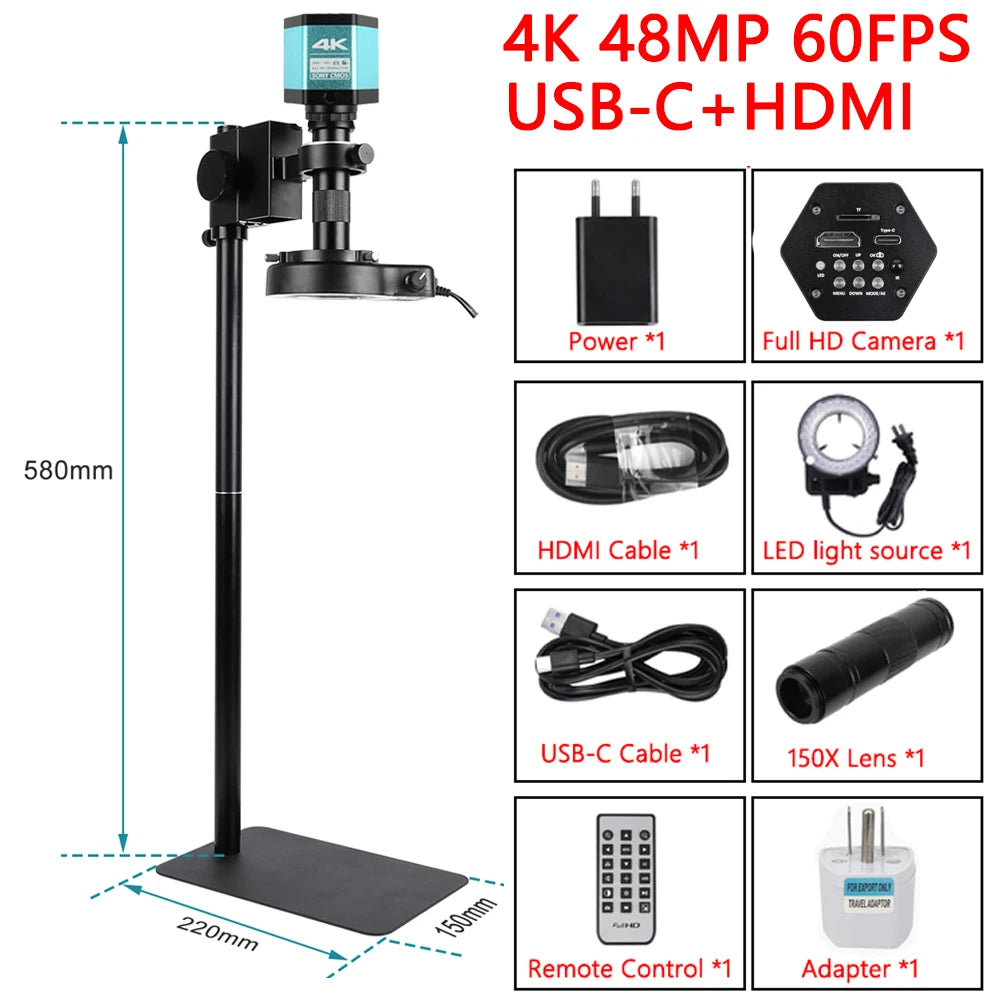

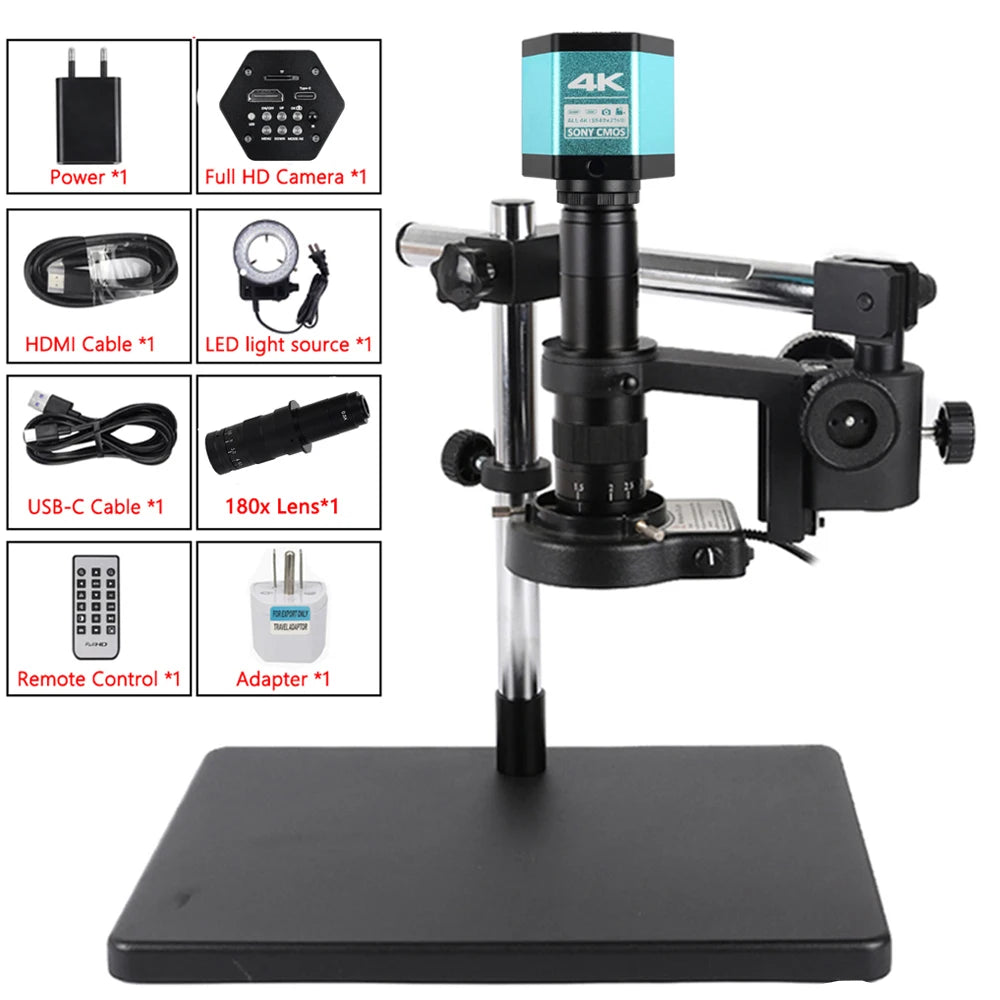

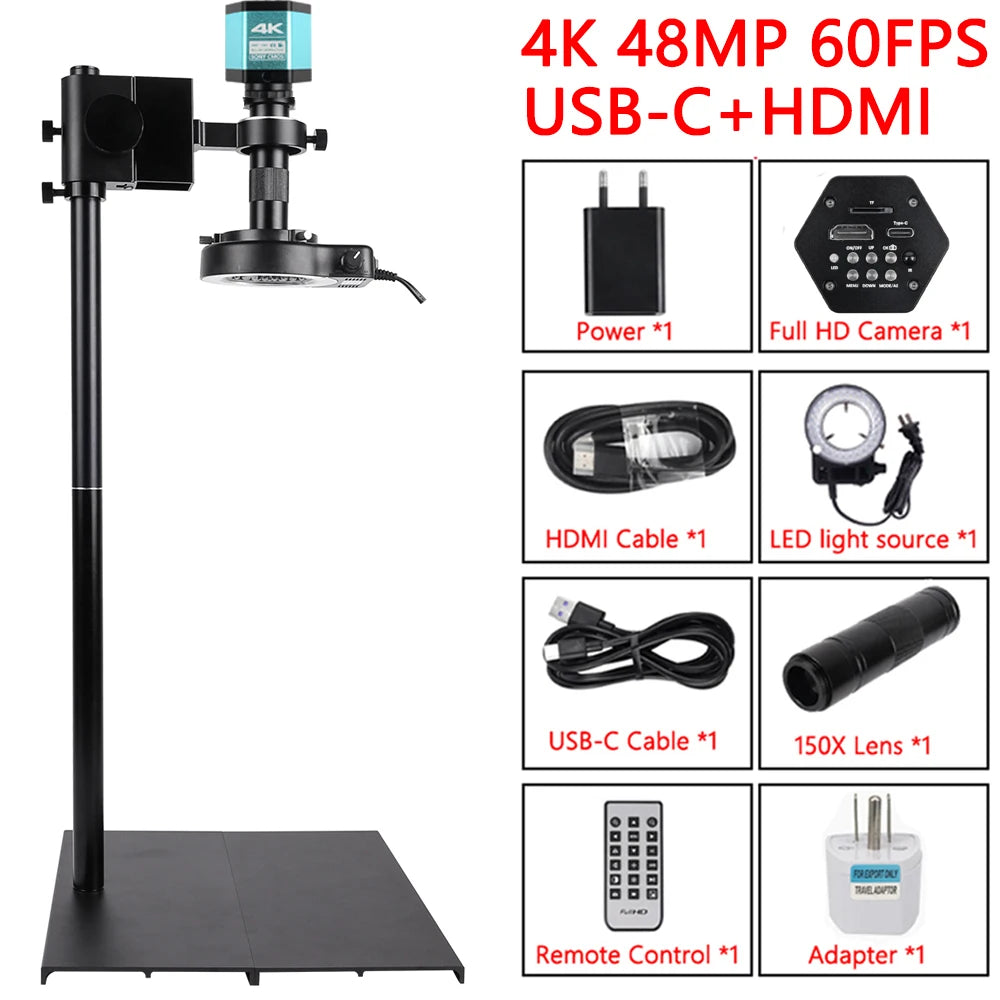

4K Microscope 48MP Digital Microscope For Electronics USB Industrial Cameras HDMI 1-180X Zoom C-Mount Lens Phone Pcb Soldering
4K Microscope 48MP Digital Microscope For Electronics USB Industrial Cameras HDMI 1-180X Zoom C-Mount Lens Phone Pcb Soldering
Couldn't load pickup availability
SPECIFICATIONS
Battery Included: No
Brand Name: Nice-power
Certification: CE,RoHS
Drawtube: Monocular
Features: High Definition,Digital
Hign-concerned Chemical: None
Magnification Ratio: 500X & Under
Material: Metal
Origin: Mainland China
Theory: Video Microscope

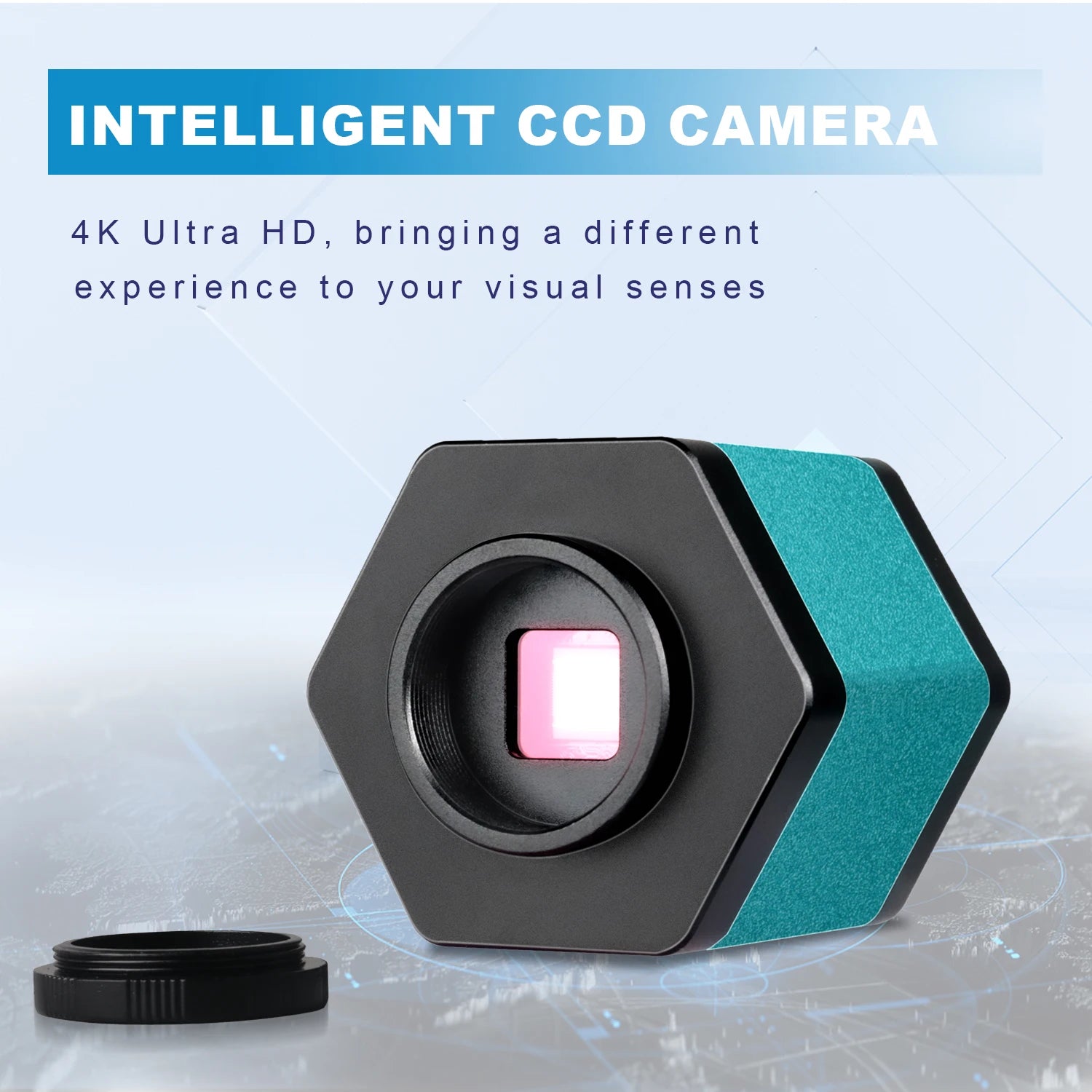

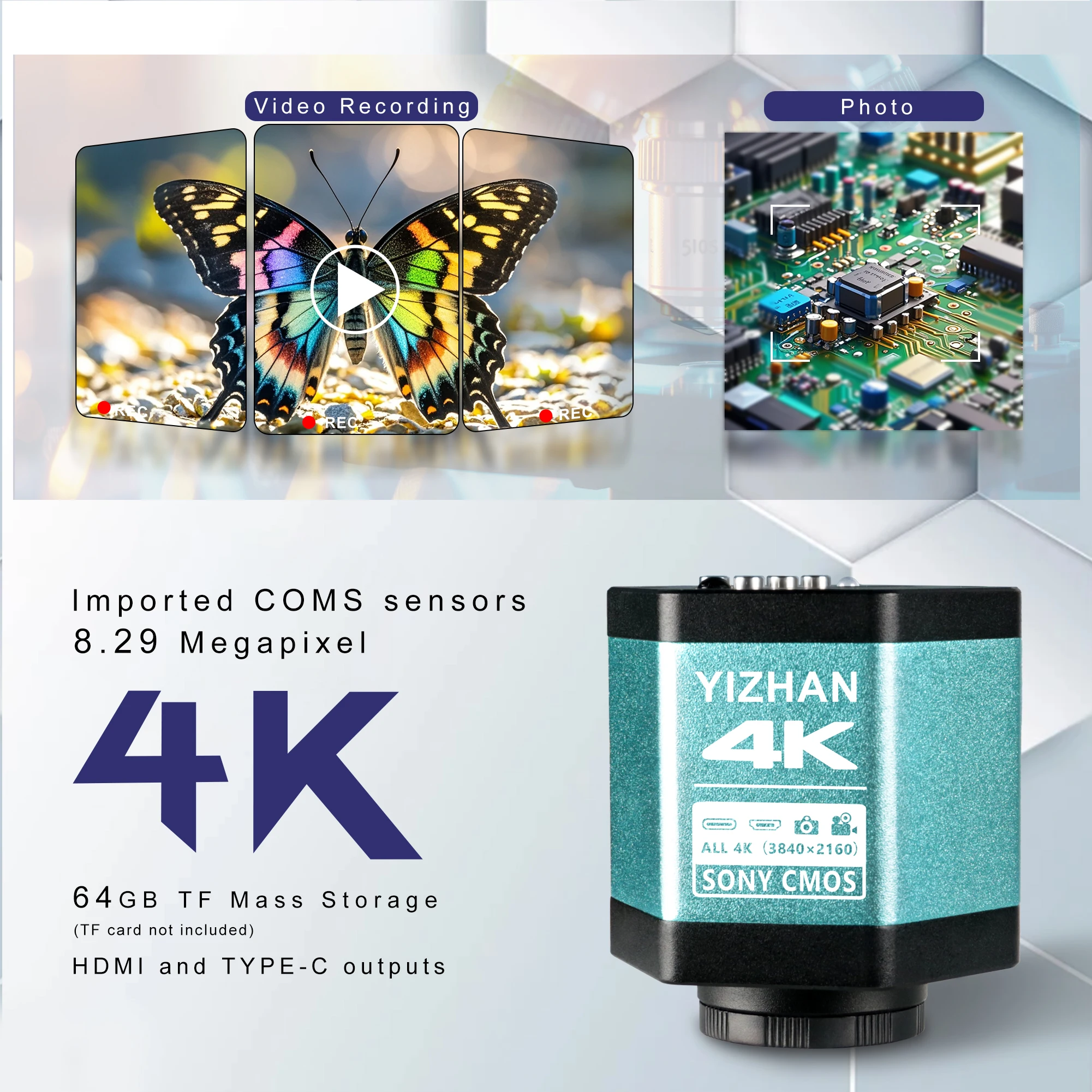

Ultra HD 4K Camera
◆Using Sony sensor;
◆Using a 1/2.8-inch image sensor, the viewing angle is wider than that of 1/3-inch;

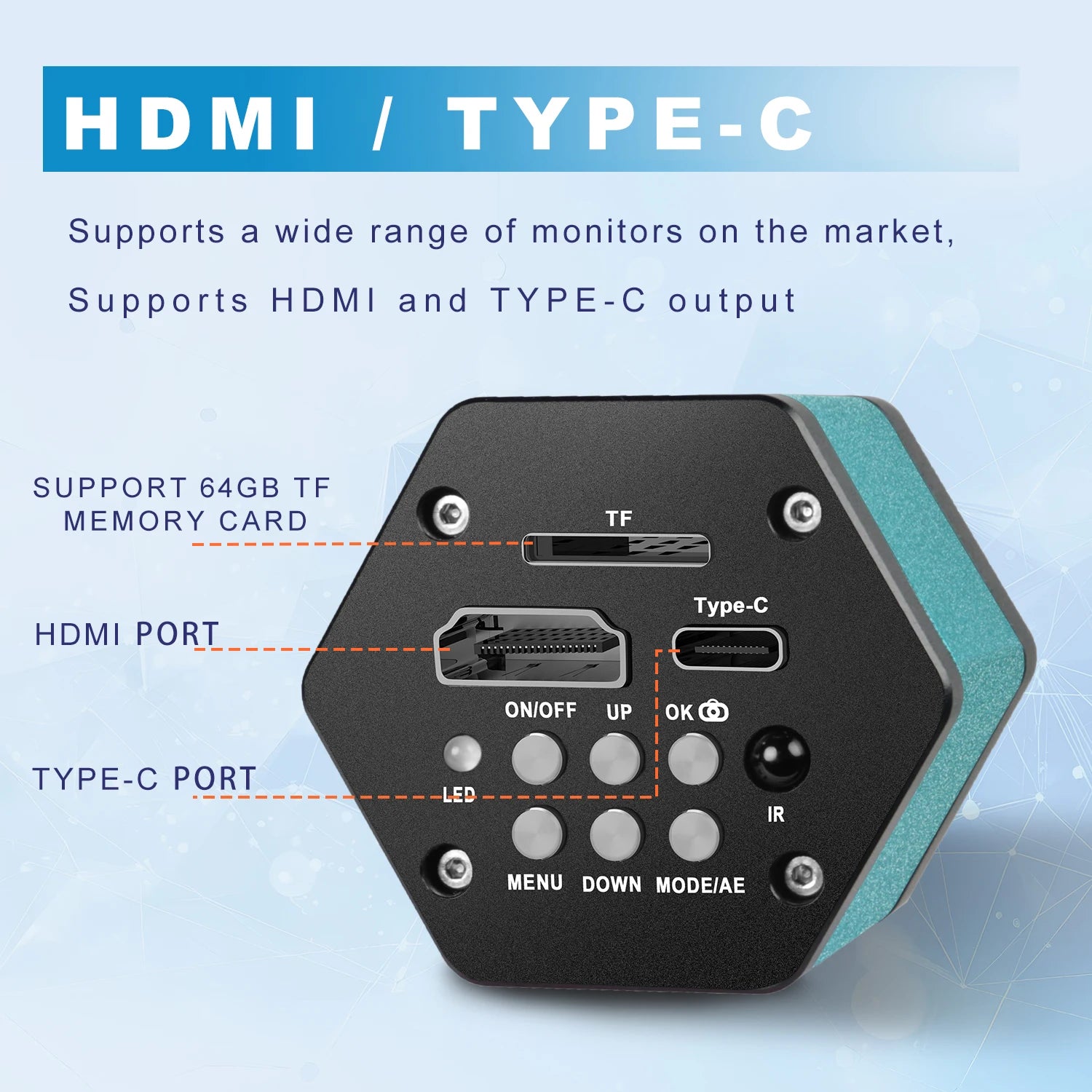

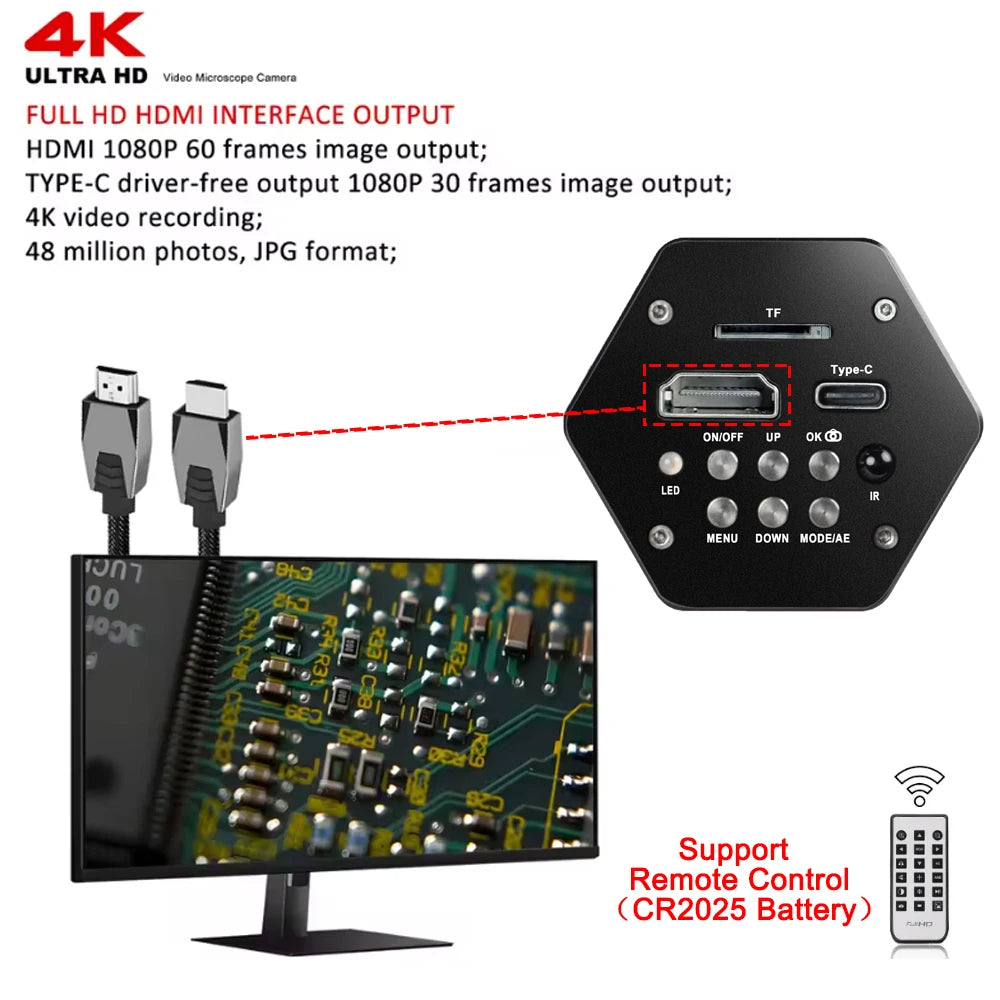

◆HDMI 1080P 60 frames image output;

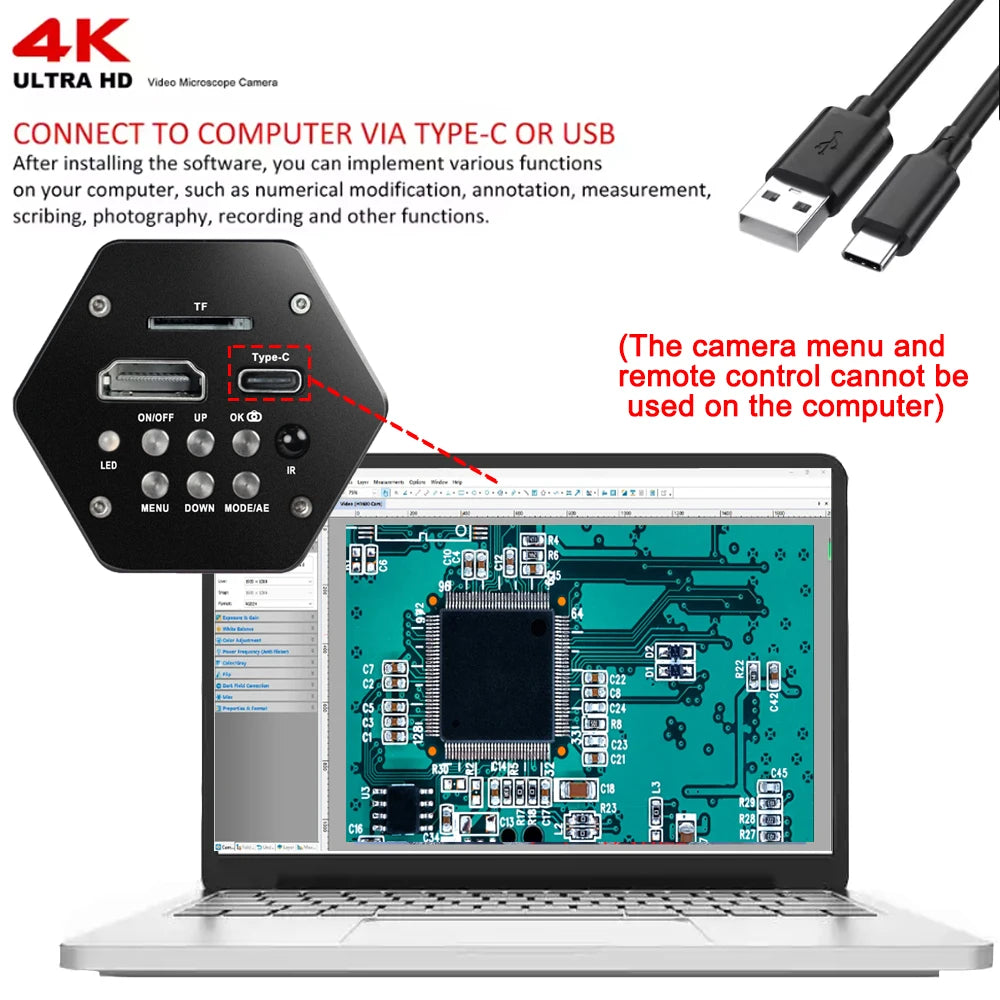

◆TYPE-C driver-free output 1080P 30 frames image output;
◆4K video recording;
◆48 million photos, JPG format;
◆One-click freeze/thaw function;
◆1080P video recording;
◆Electronic zoom function;
◆Supports manual/automatic exposure/one-click exposure, exposure compensation value adjustment;
◆Supports manual/automatic white balance/one-click white balance, red, green and blue are adjustable;
◆Provides 16 line functions, with adjustable line color, thickness and position;
◆Provide center crosshair display/off;
◆Support TF card storage, up to 64GB;

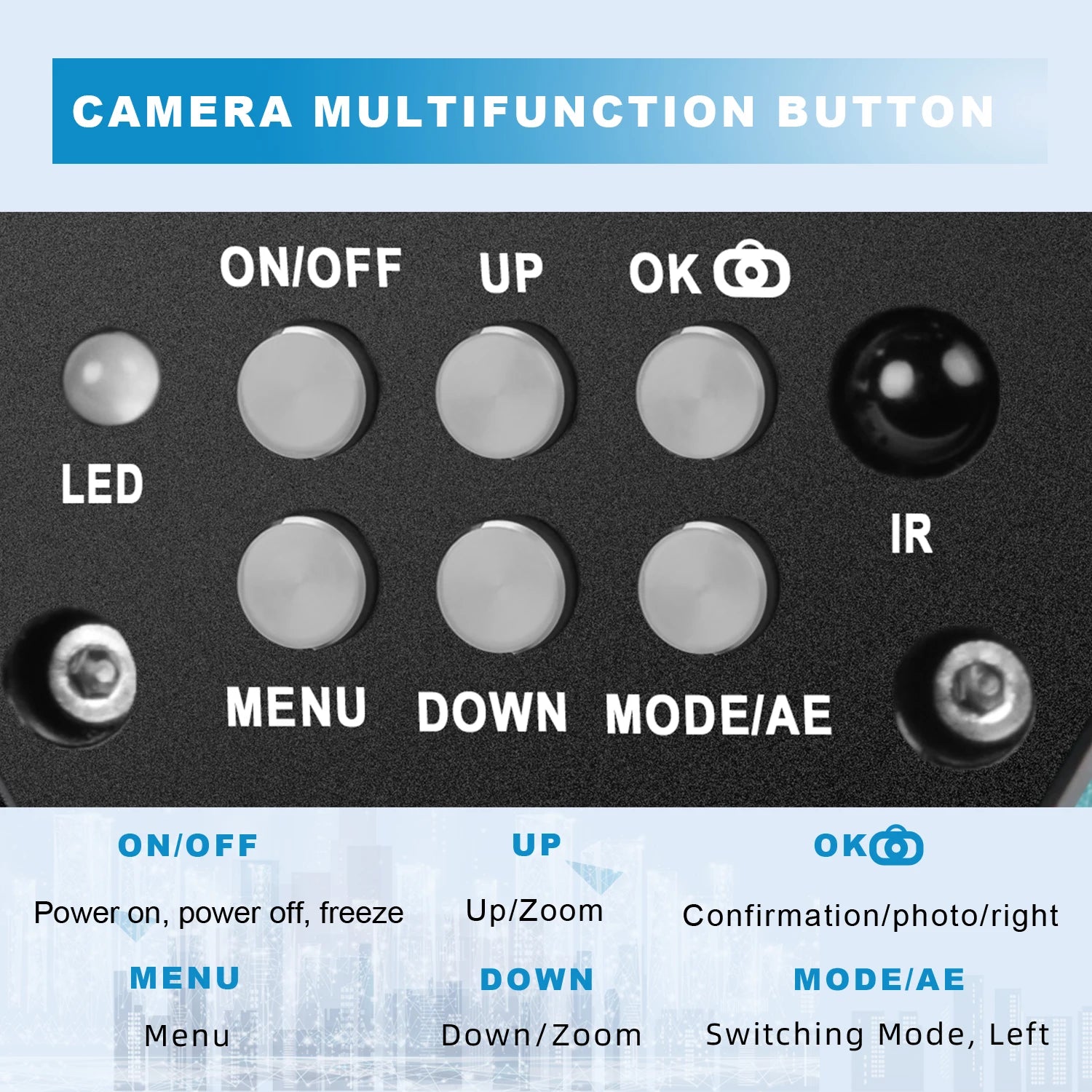

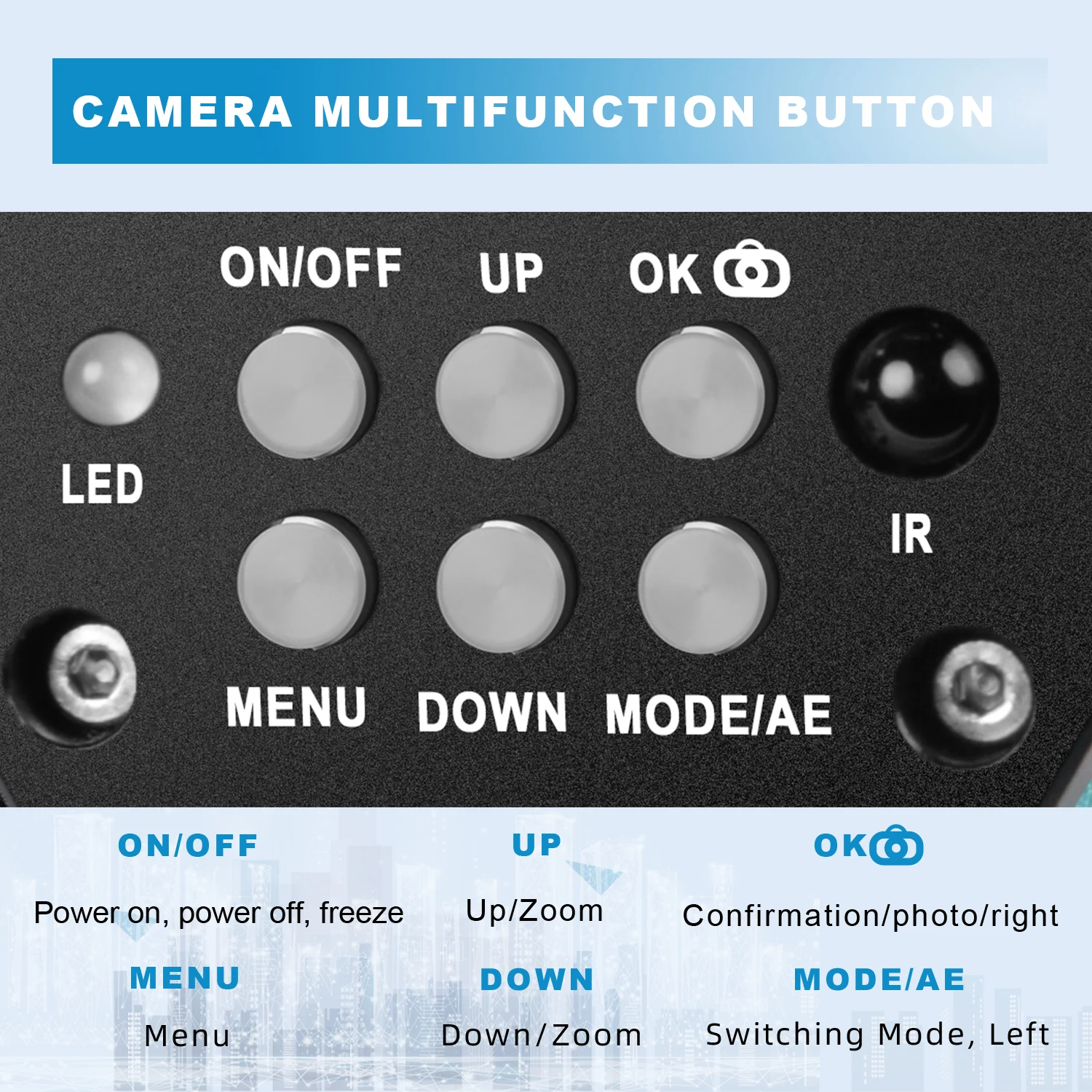

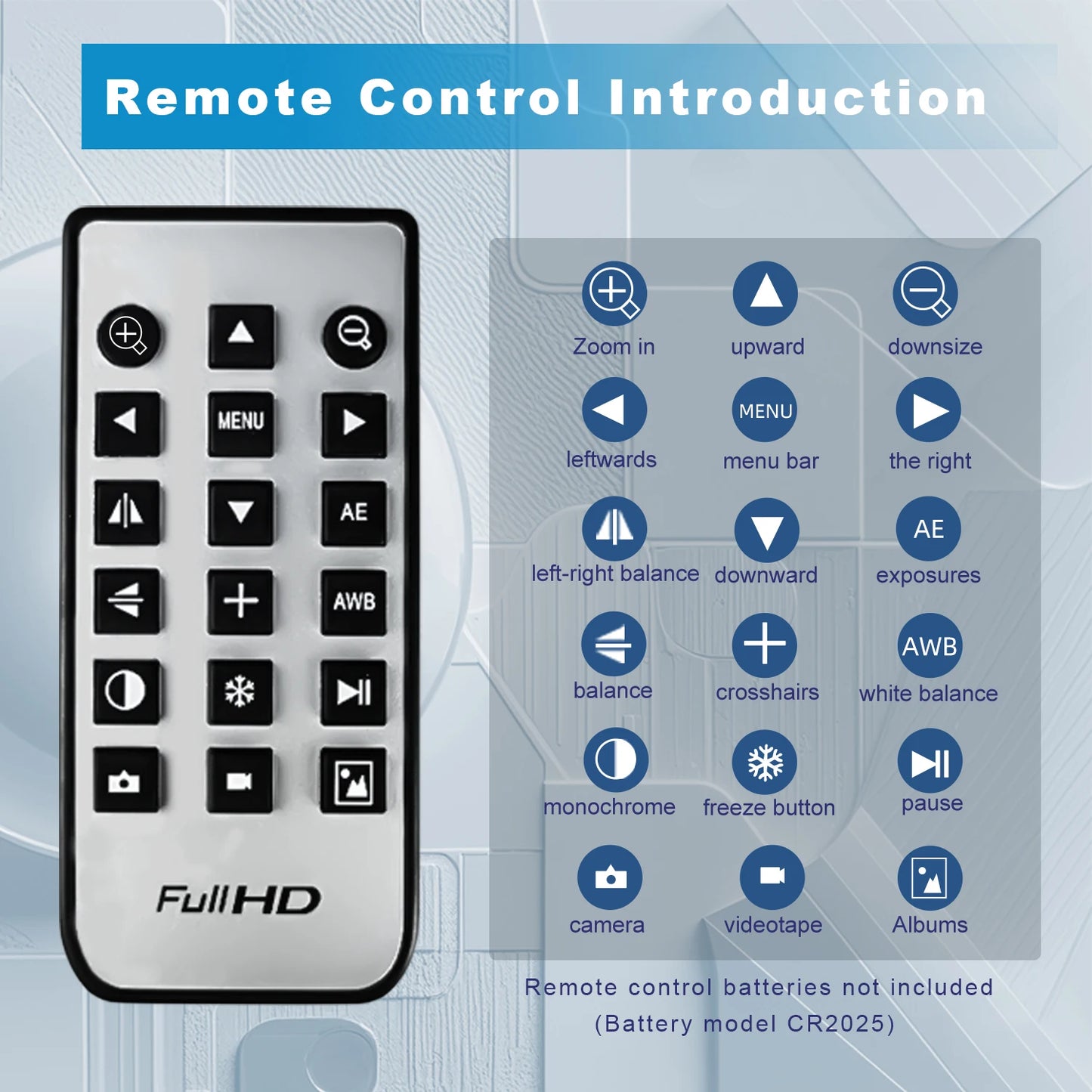

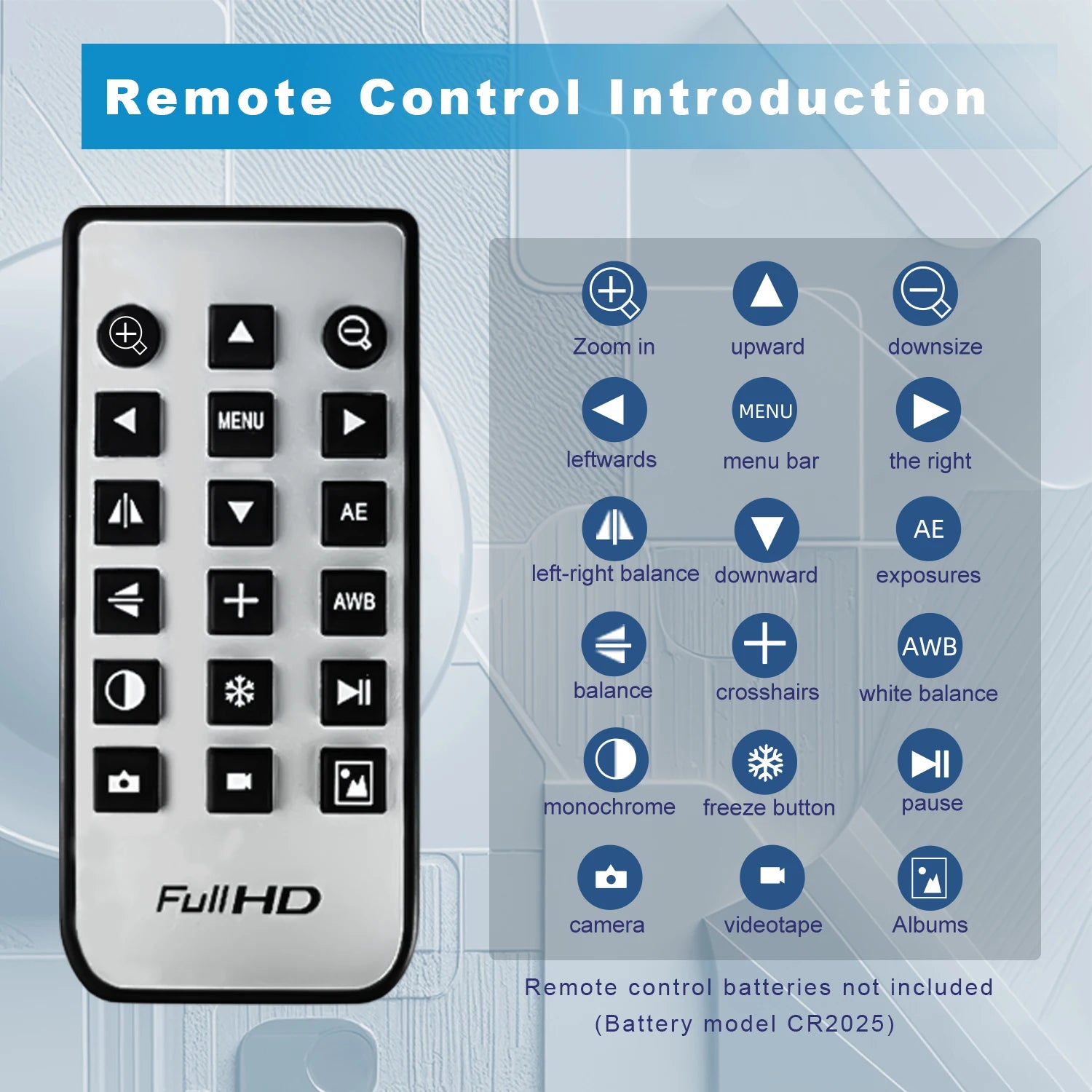

◆Support remote control operation, take pictures without shaking and the image will be clearer;
◆Support Chinese, Traditional Chinese, and English menu languages;
◆Supports saving shutdown setting parameters;
◆Aluminum alloy shell processed by CNC precision milling technology;

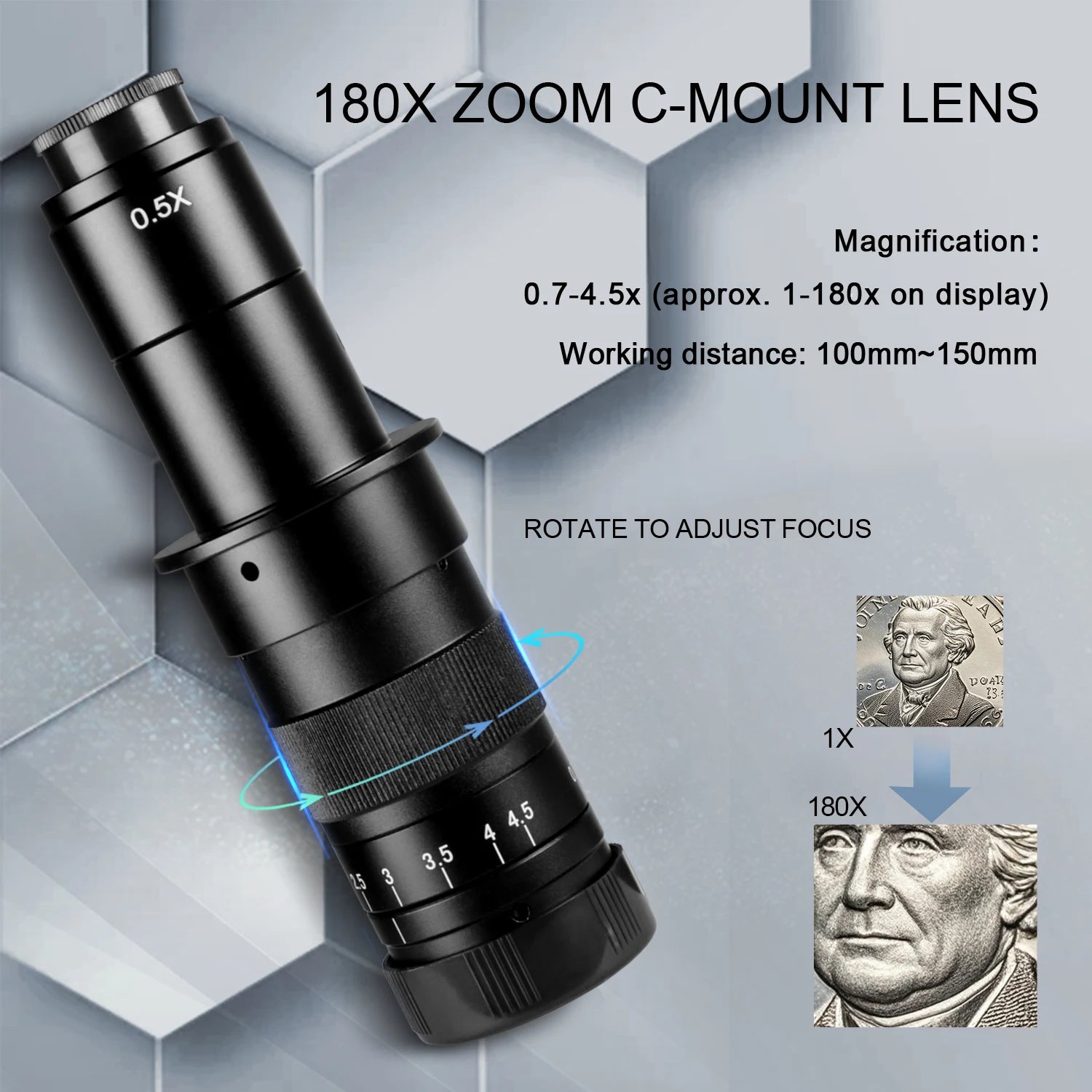

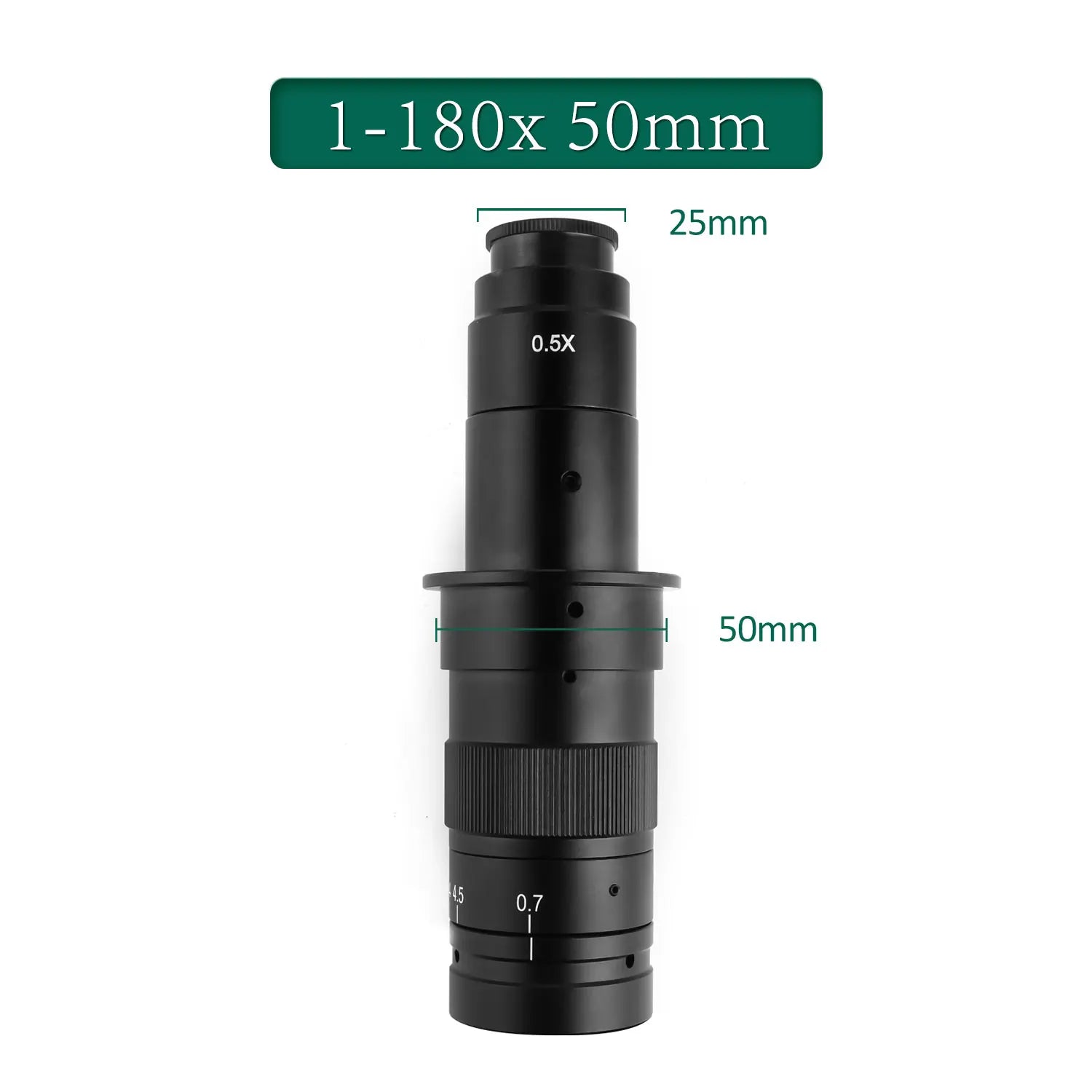

1X-180X Zoom C-mount Lens:
Working distance: 100-150mm
Zoom ratios: 1:6.5
Magnification Power by 0.7 - 4.5X(about 1 - 180X on the display)
view field of Max multiple : 2.8mm*1.5mm
view field of Min multiple : 25mm*14mm
Eyepiece lense : 0.5X
Size: 168mm(L) * 50mm(DIA)
Weight: 570g

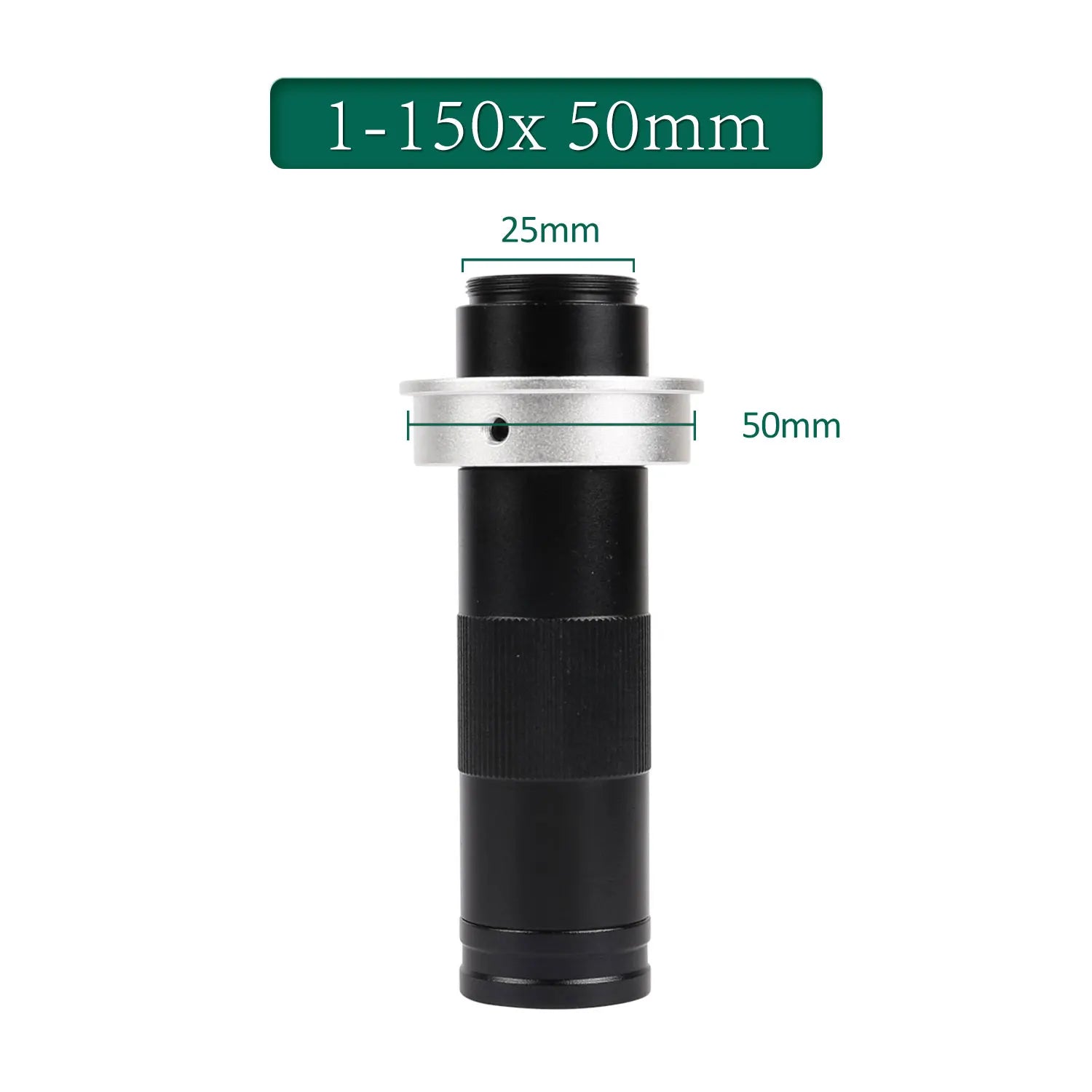

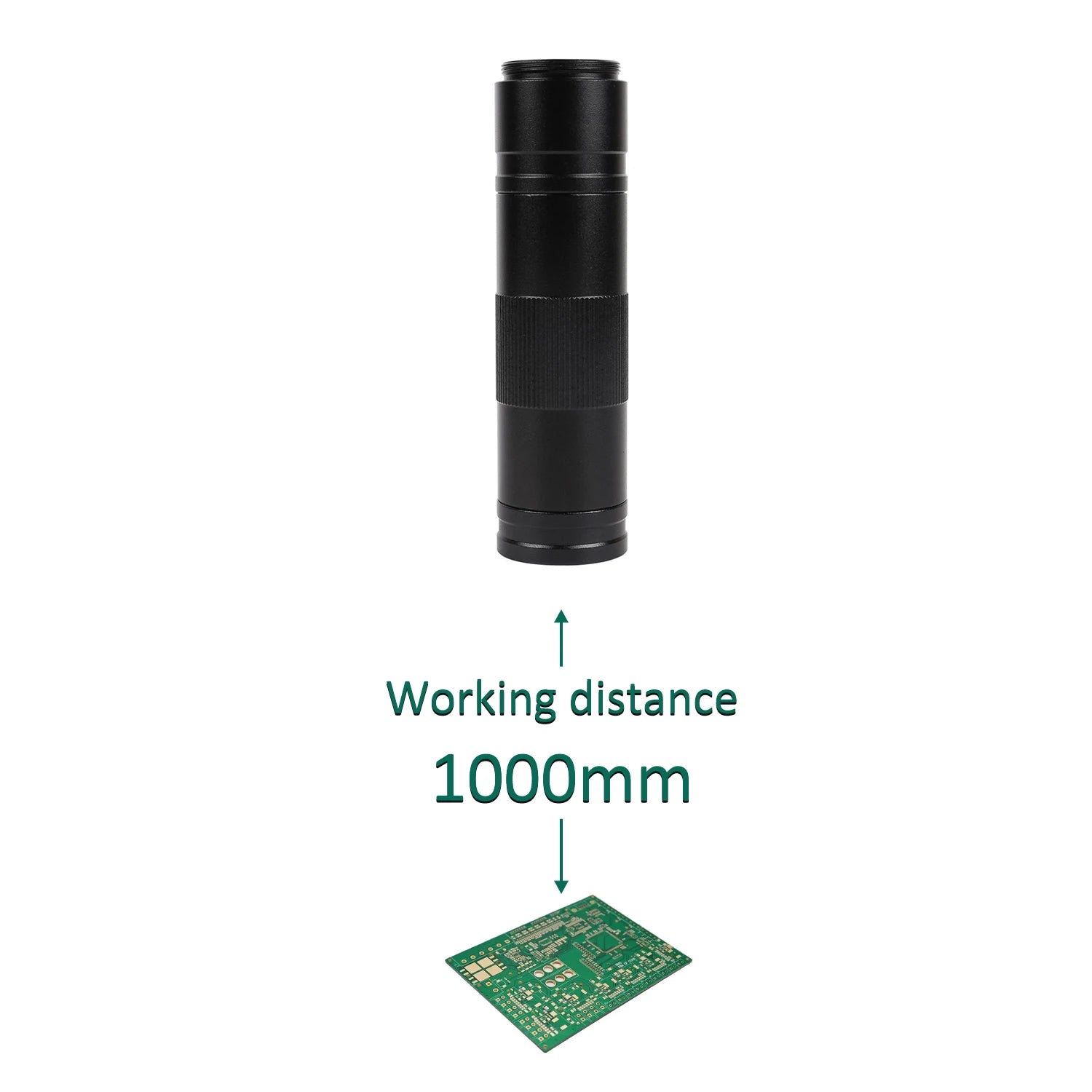

1X-150X Zoom C-mount Lens:
Working distance: 50mm-1000mm
zoom ratios: 1 : 15
Magnification Power by 0.15- 2X (about 1 - 150X on the display)
view field of Max multiple : 4.2mm*2.4mm
view field of Min multiple : 130mm*70mm
Size: 30mm(diameter) * 99mm(length)
Weight: 195g

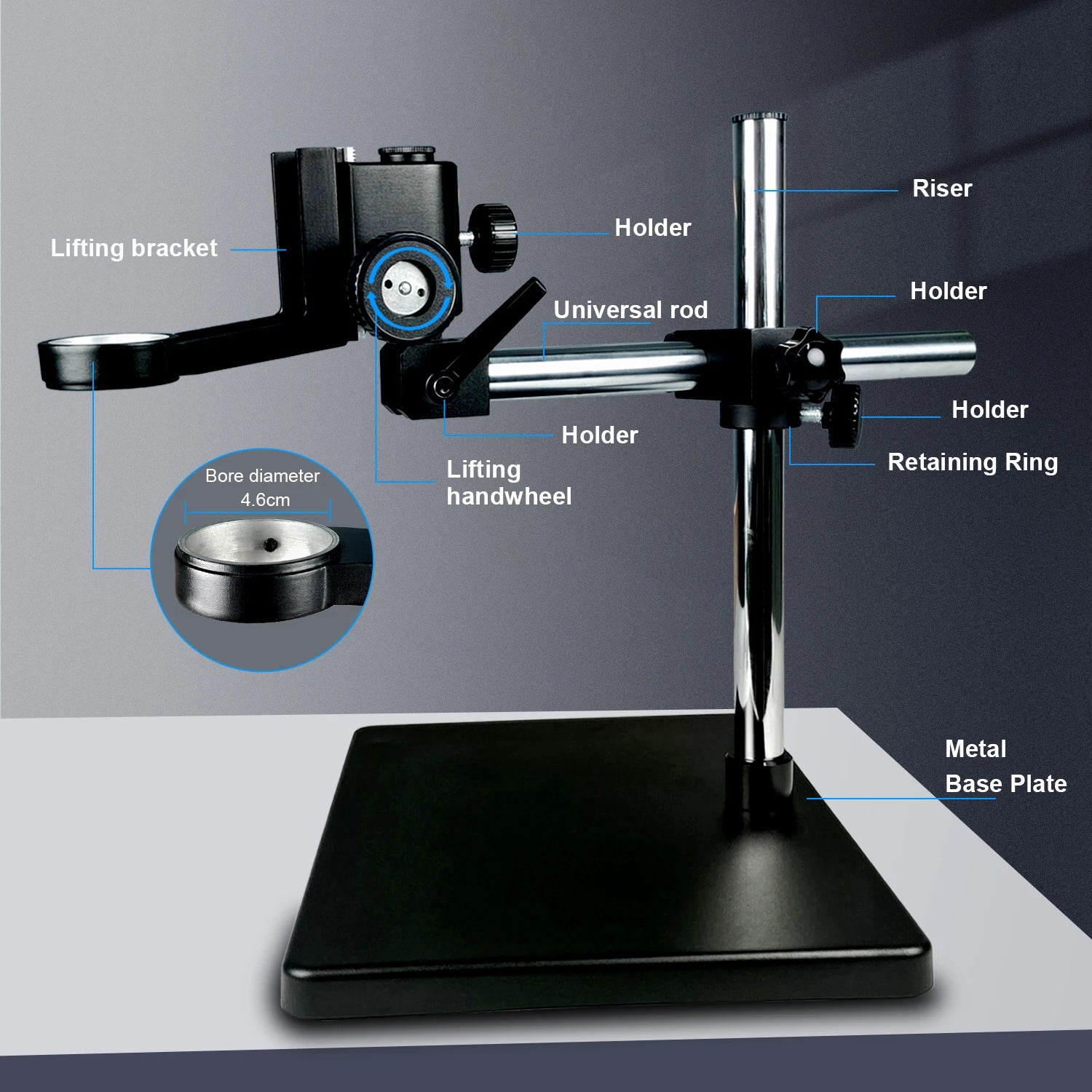

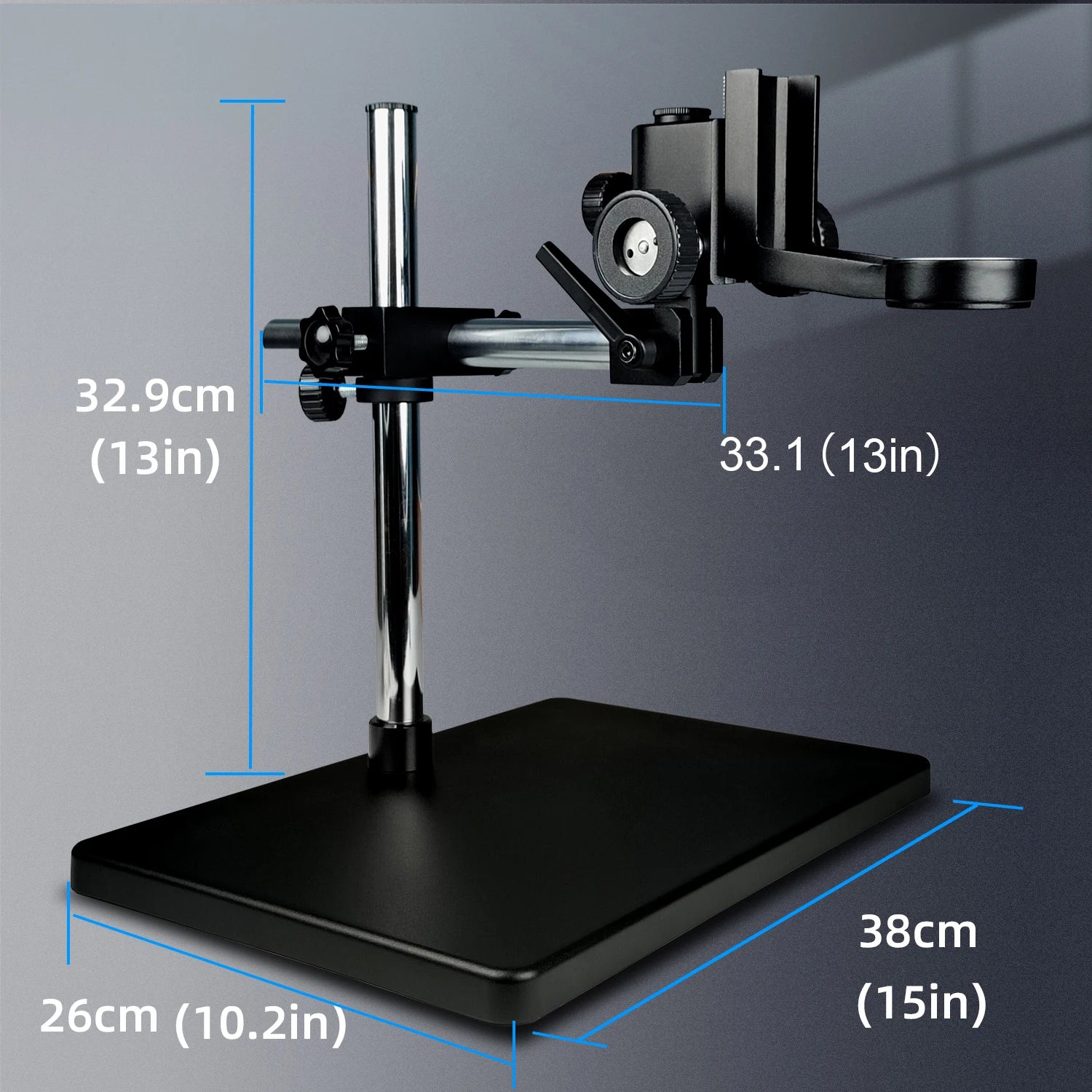

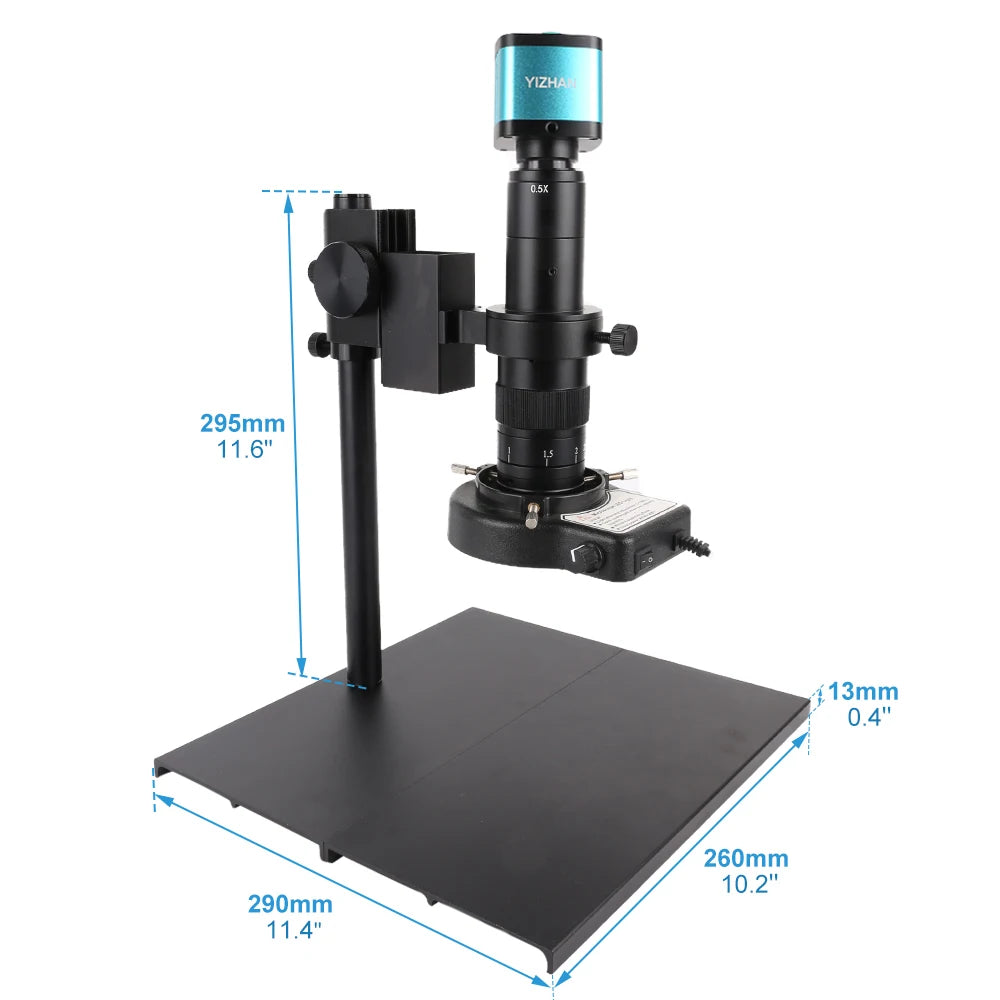

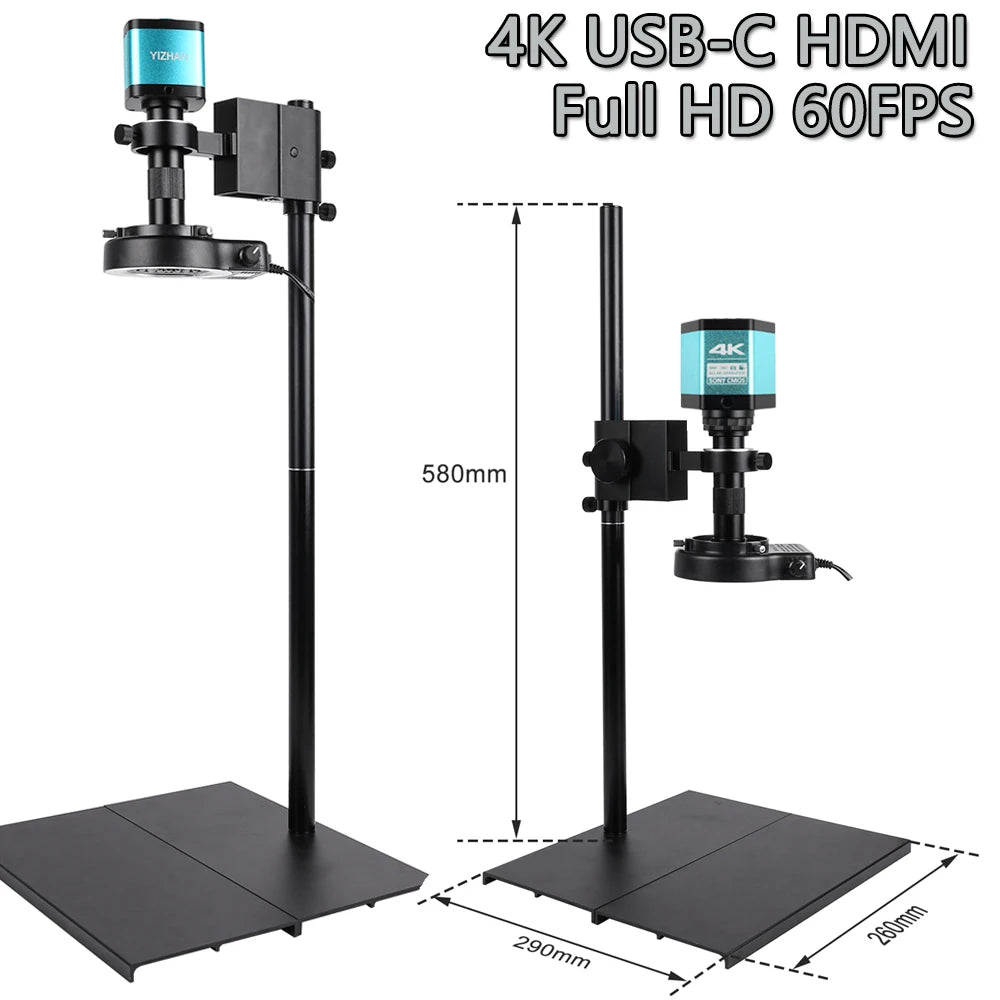

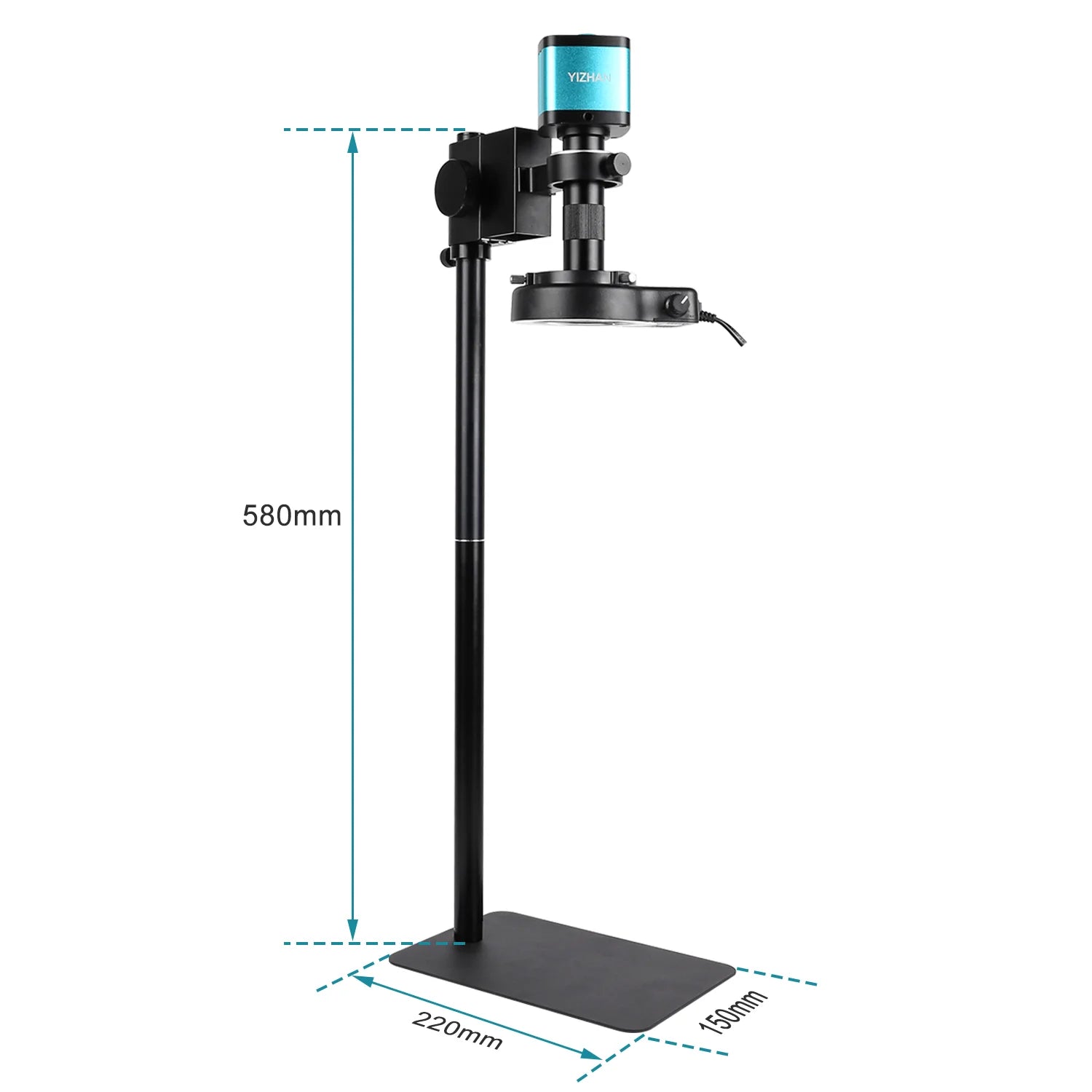

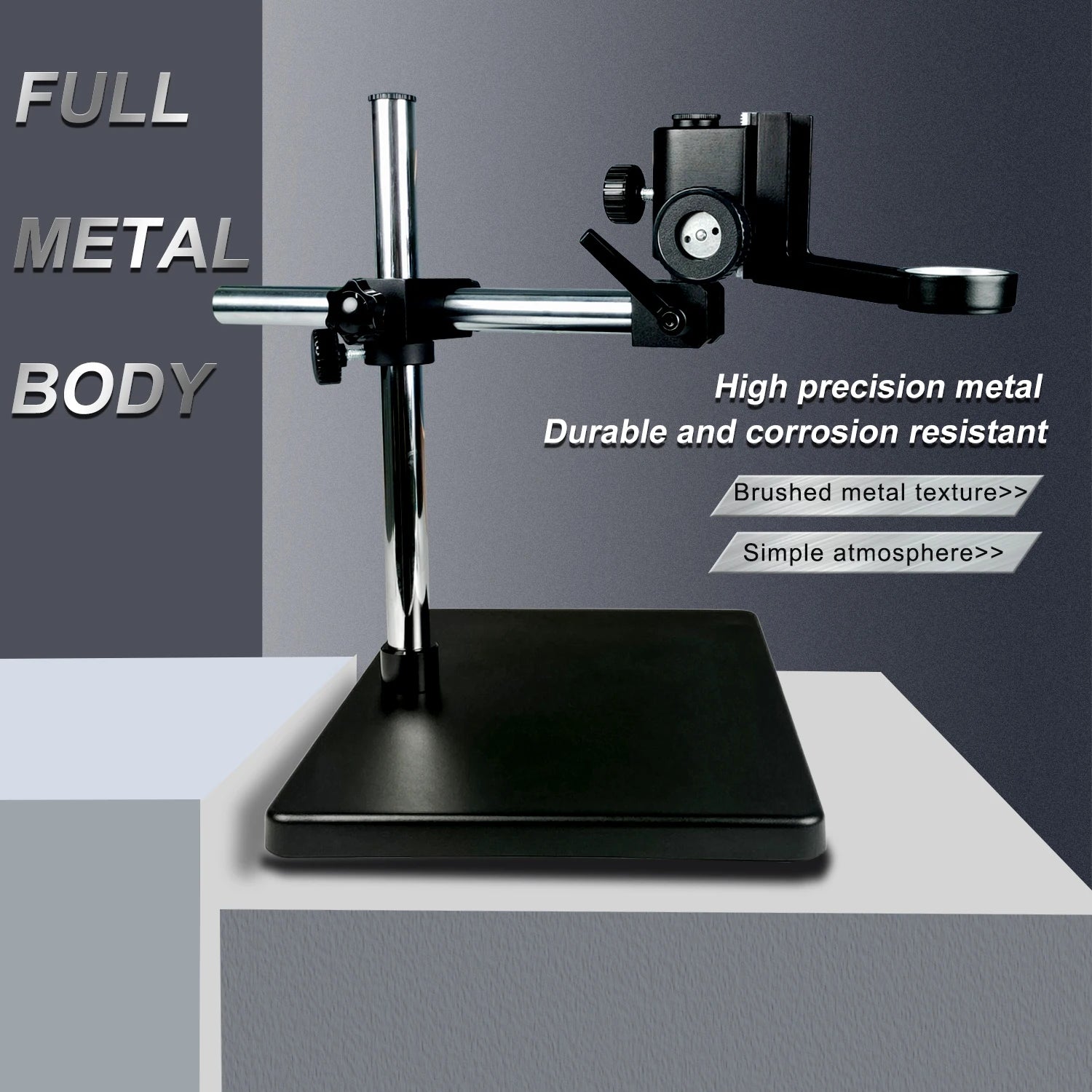

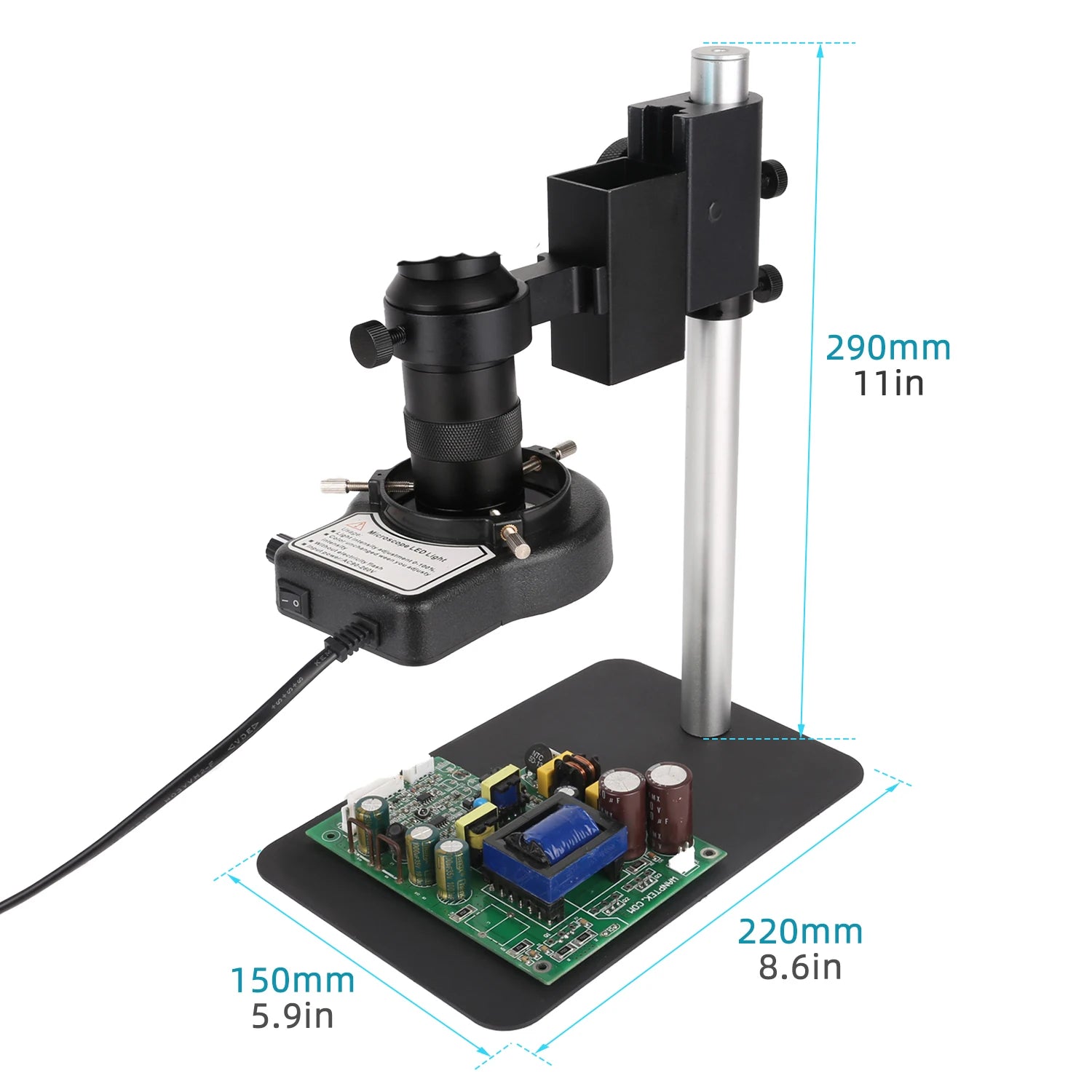

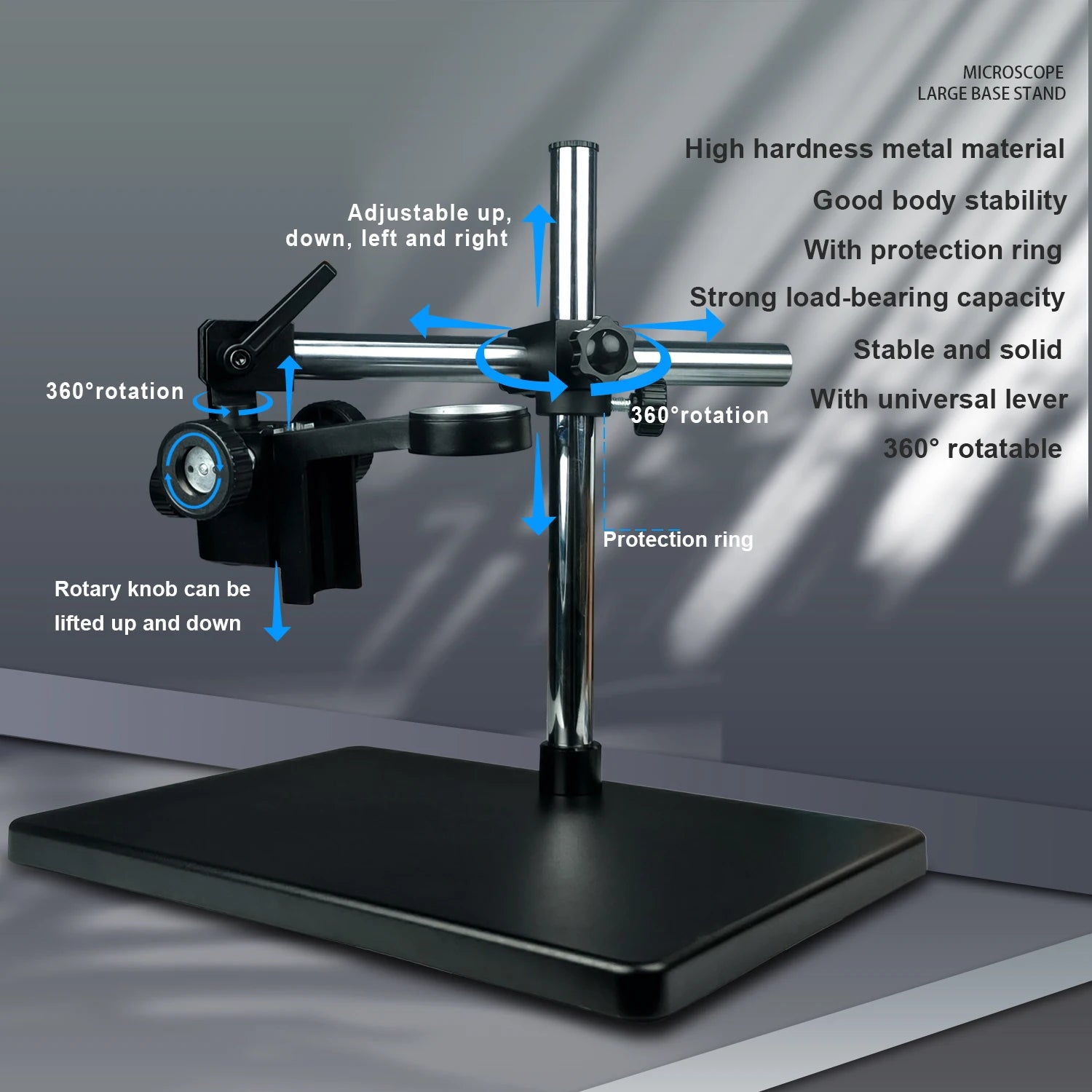

High Quality Base

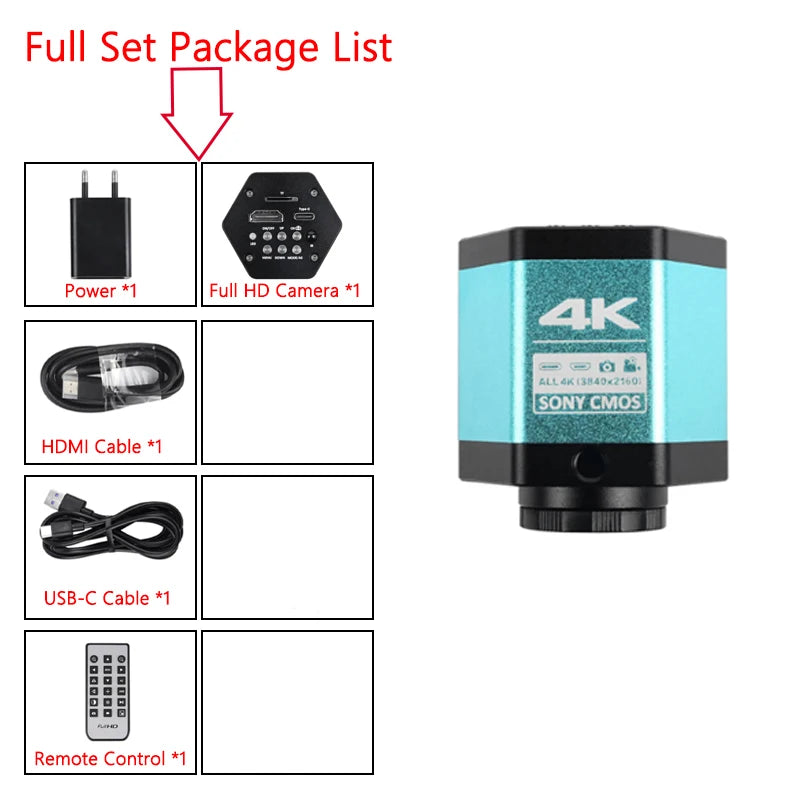

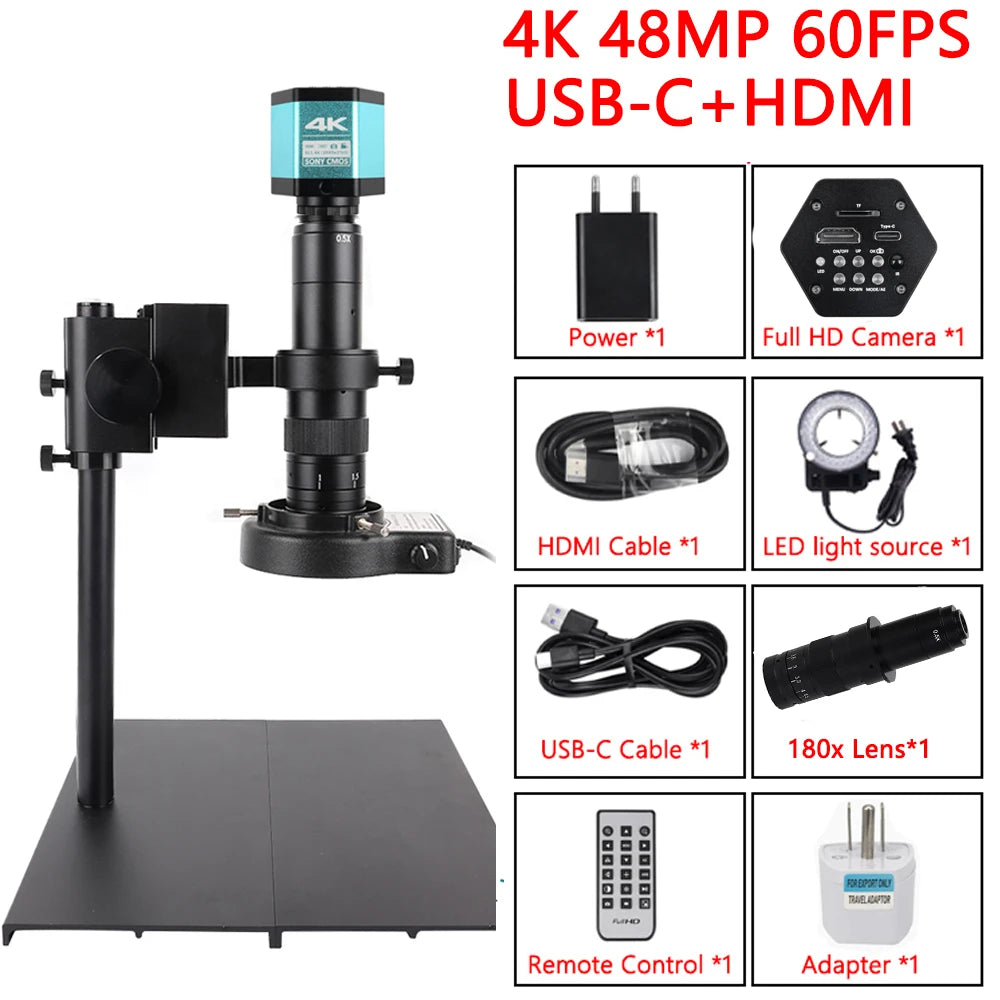

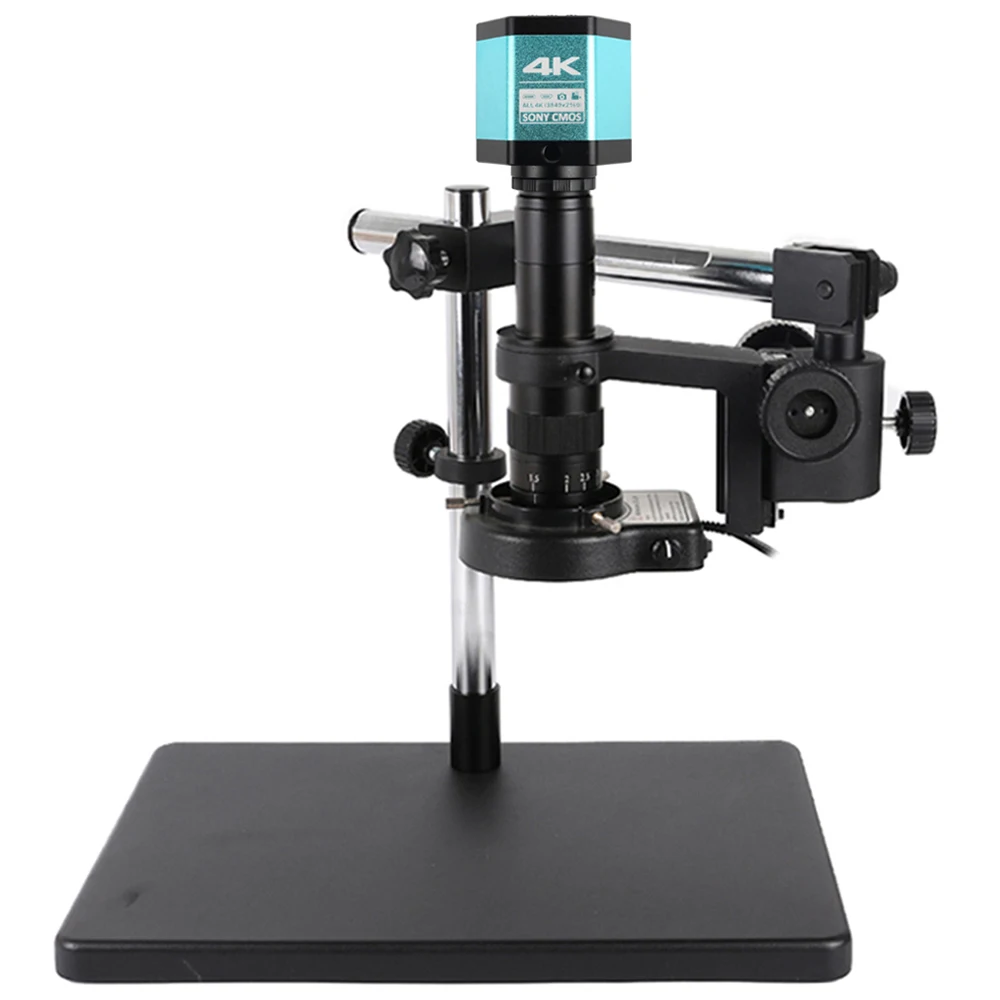

Product Shows
