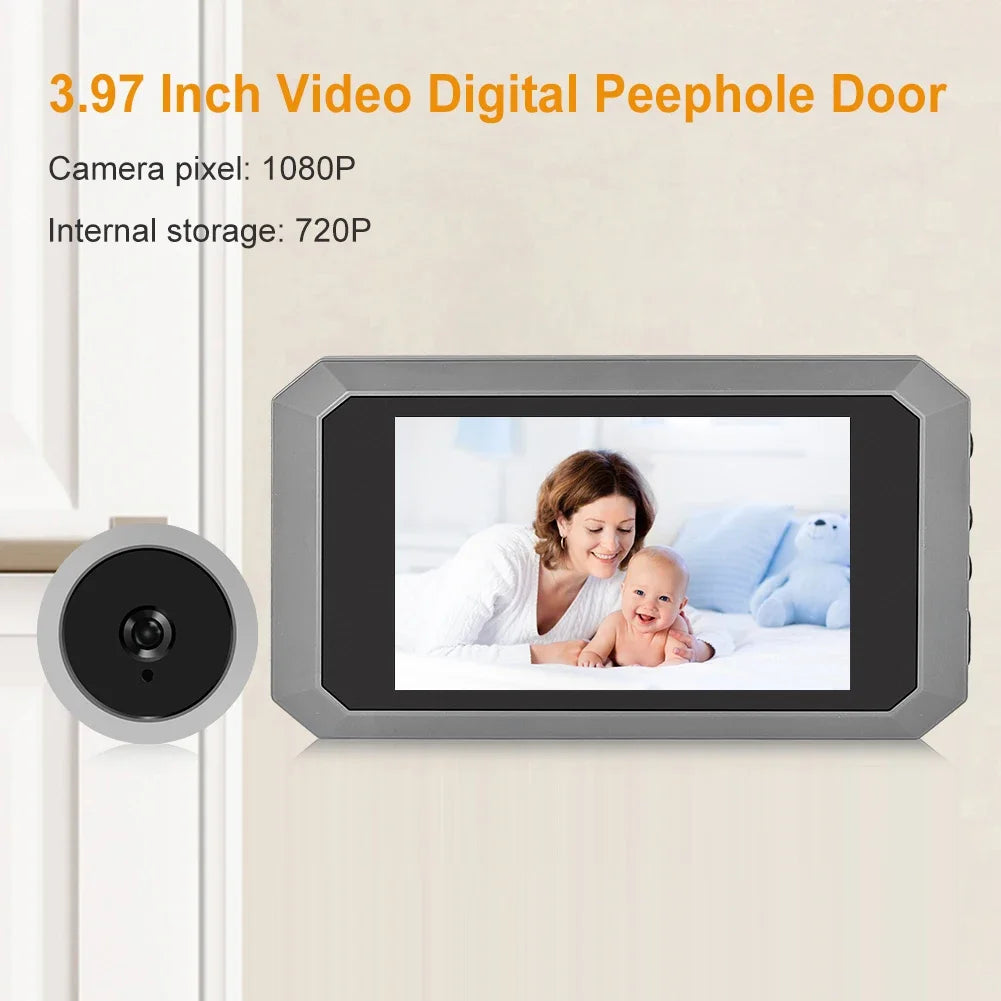

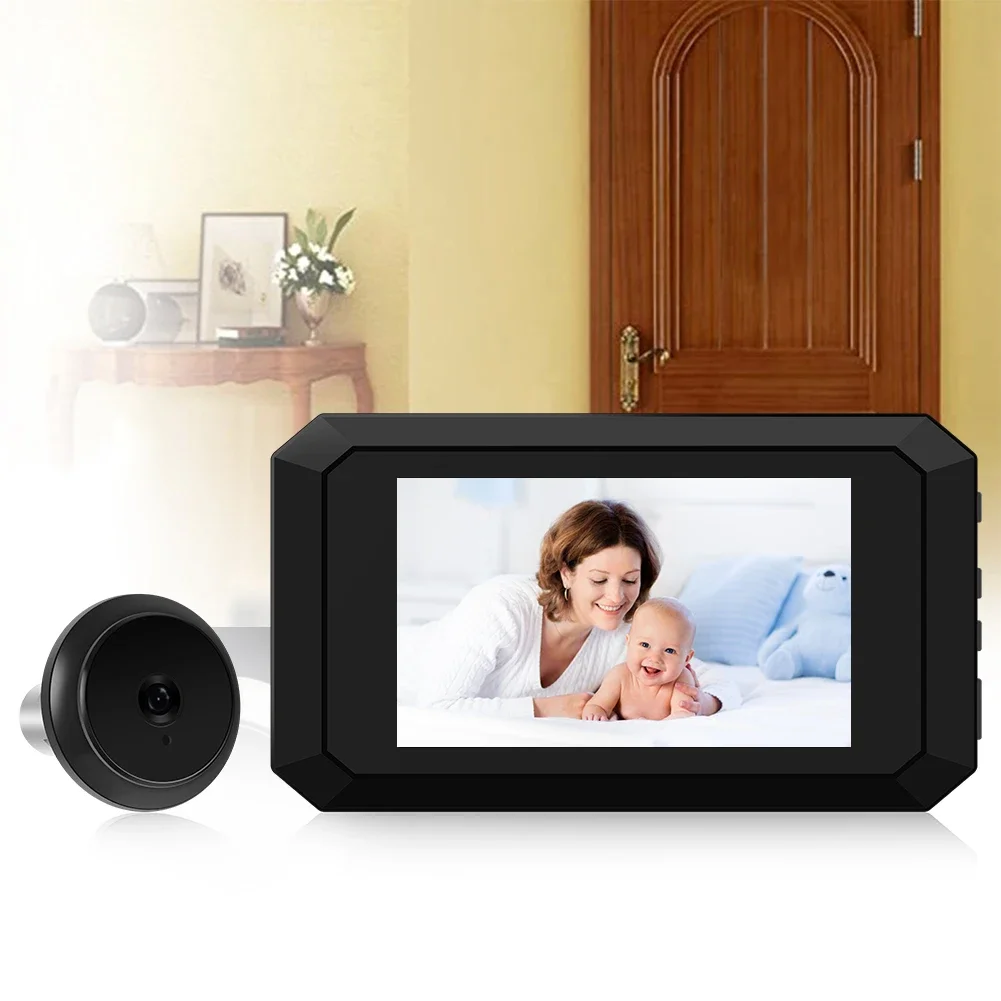

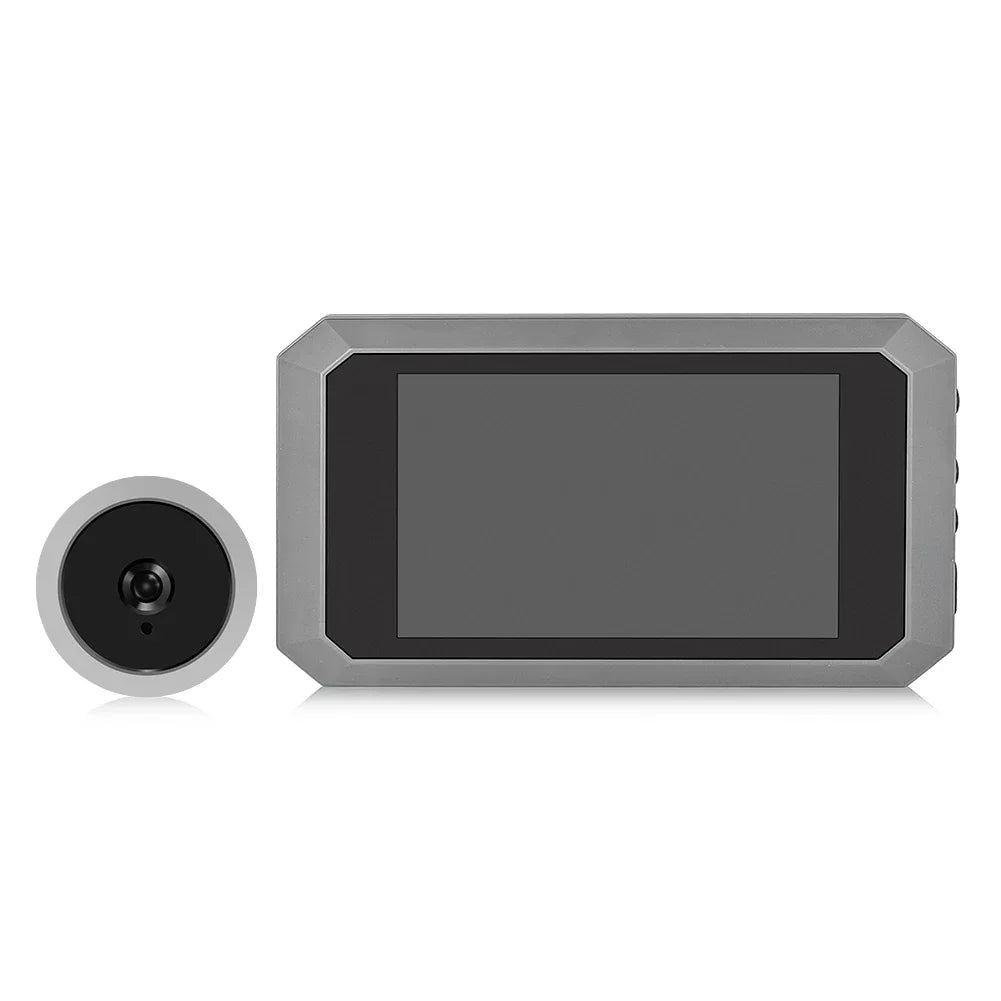

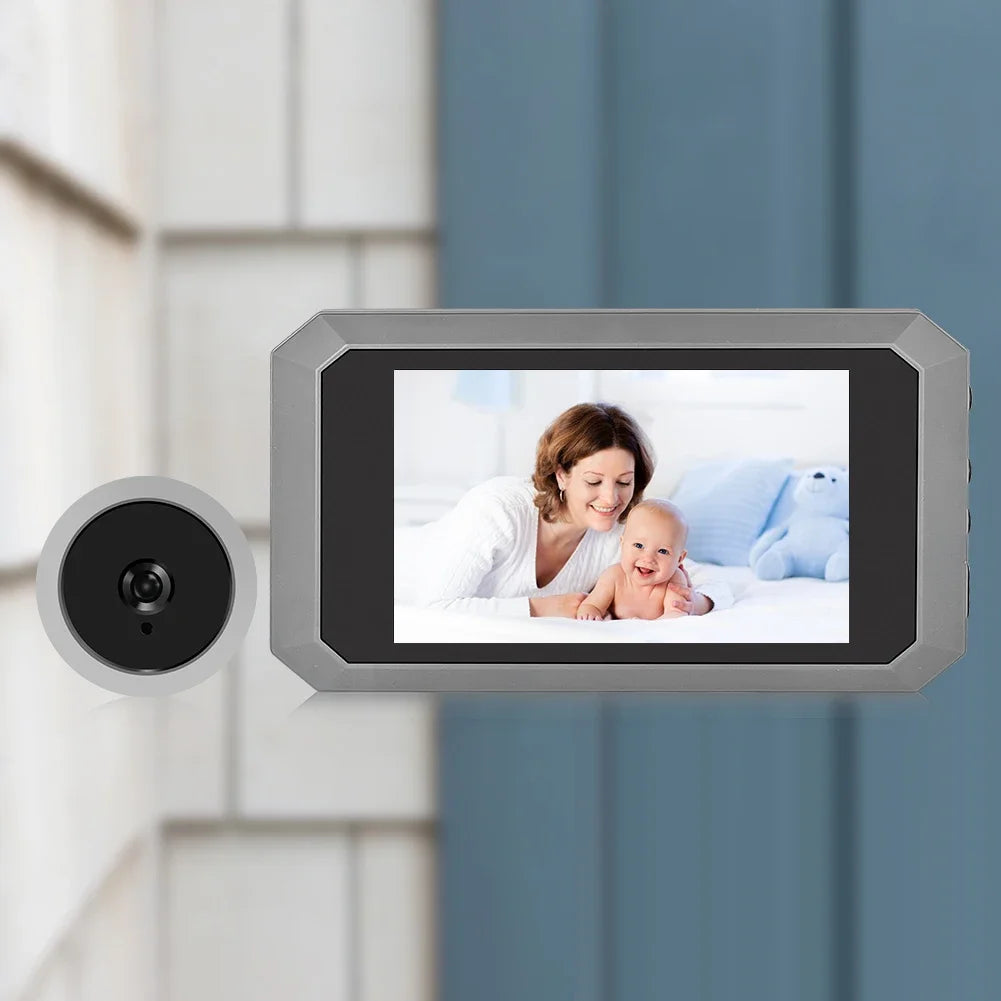

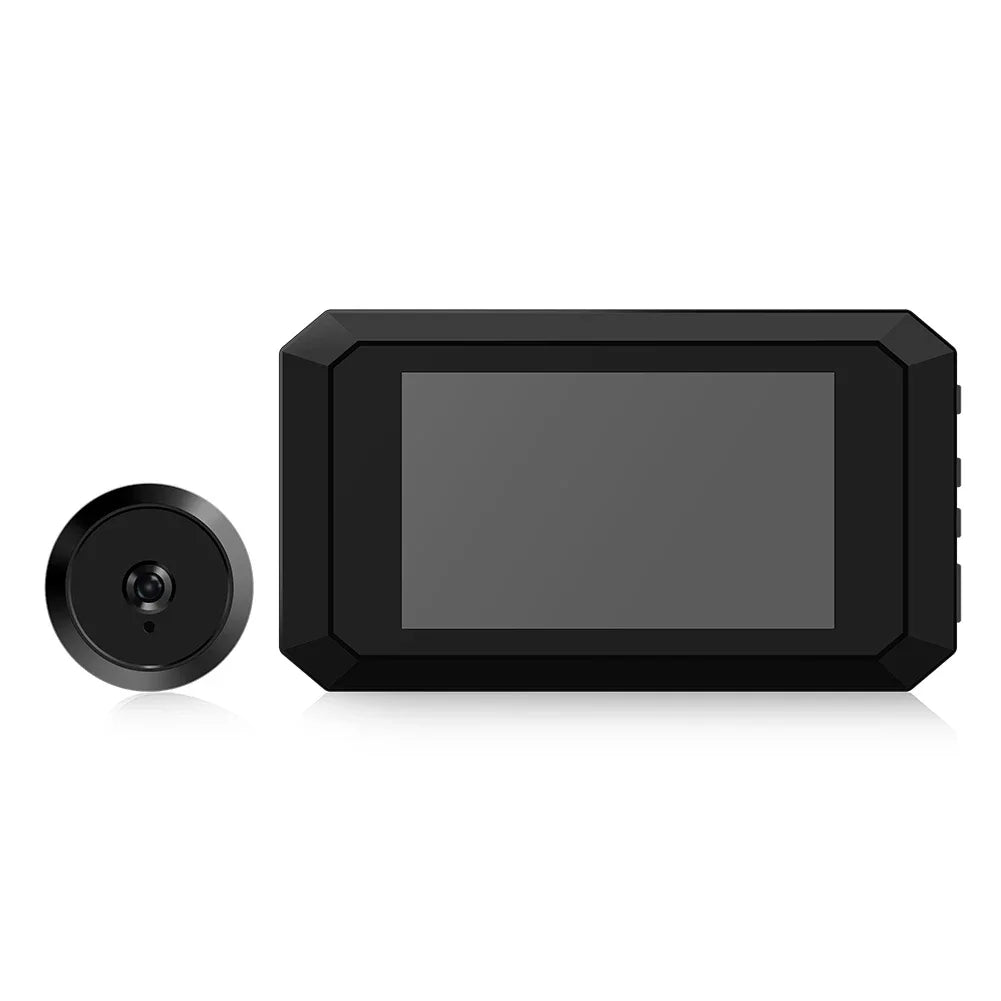

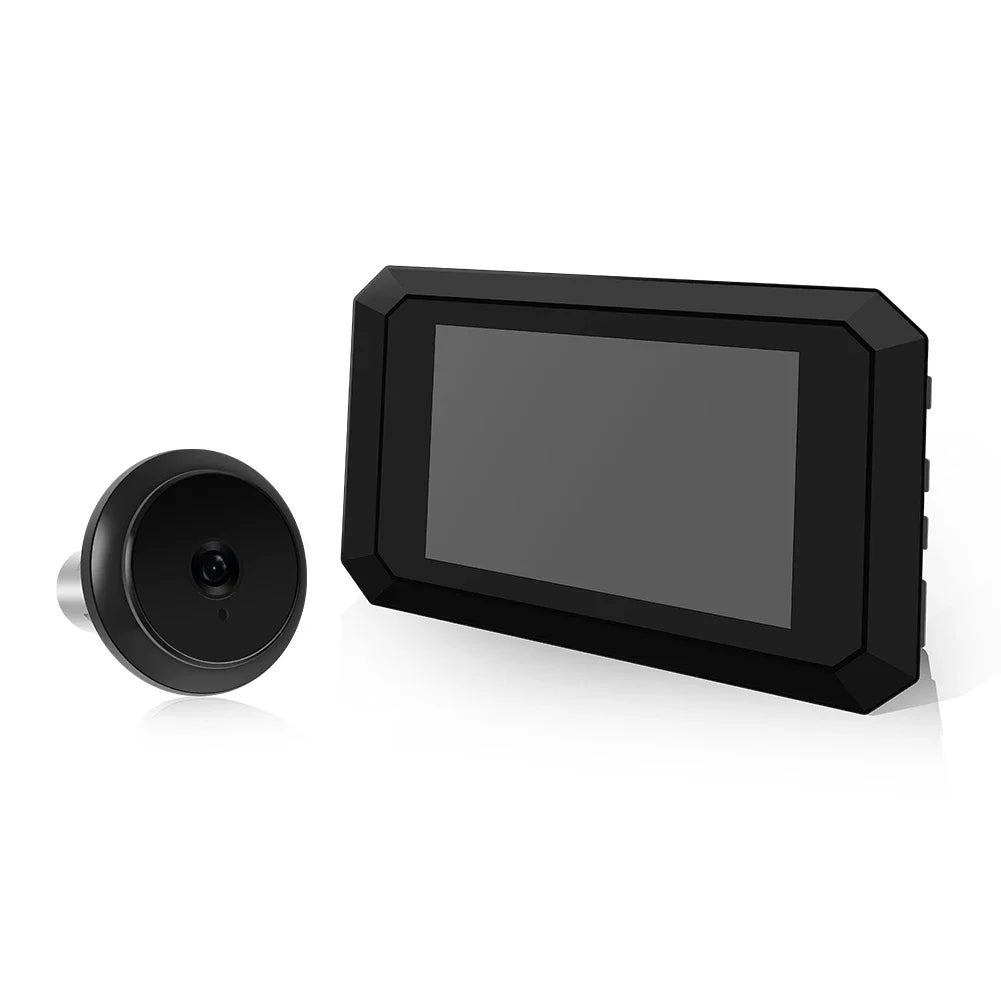

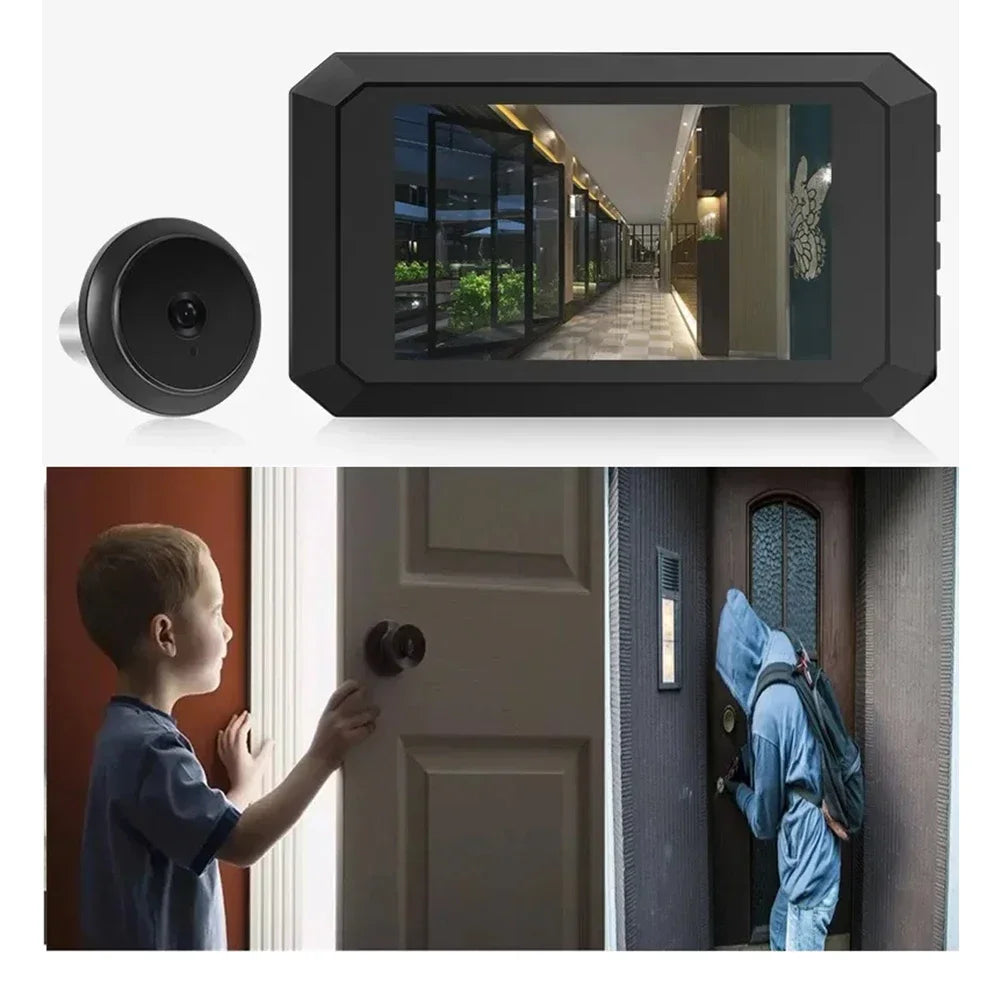

Digital Magic Eye Electronic Viewfinder Photo Recording Video Digital Door Viewer 3.97in LCD Screen Door Peephole Camera 1400mAh Build-in Lithium Battery
Feature:
1. High-Definition Display: Our video digital door viewer comes with a high-definition display, providing clear and crisp images that assure you of better security.
2. Multi-Language Support: Our digital magic eye electronic viewfinder supports 12 languages: English, Chinese, Russian, French, Italian, German, Japanese, Korean, Czech, Turkish, and Arabic, making it user-friendly for a diverse range of users.

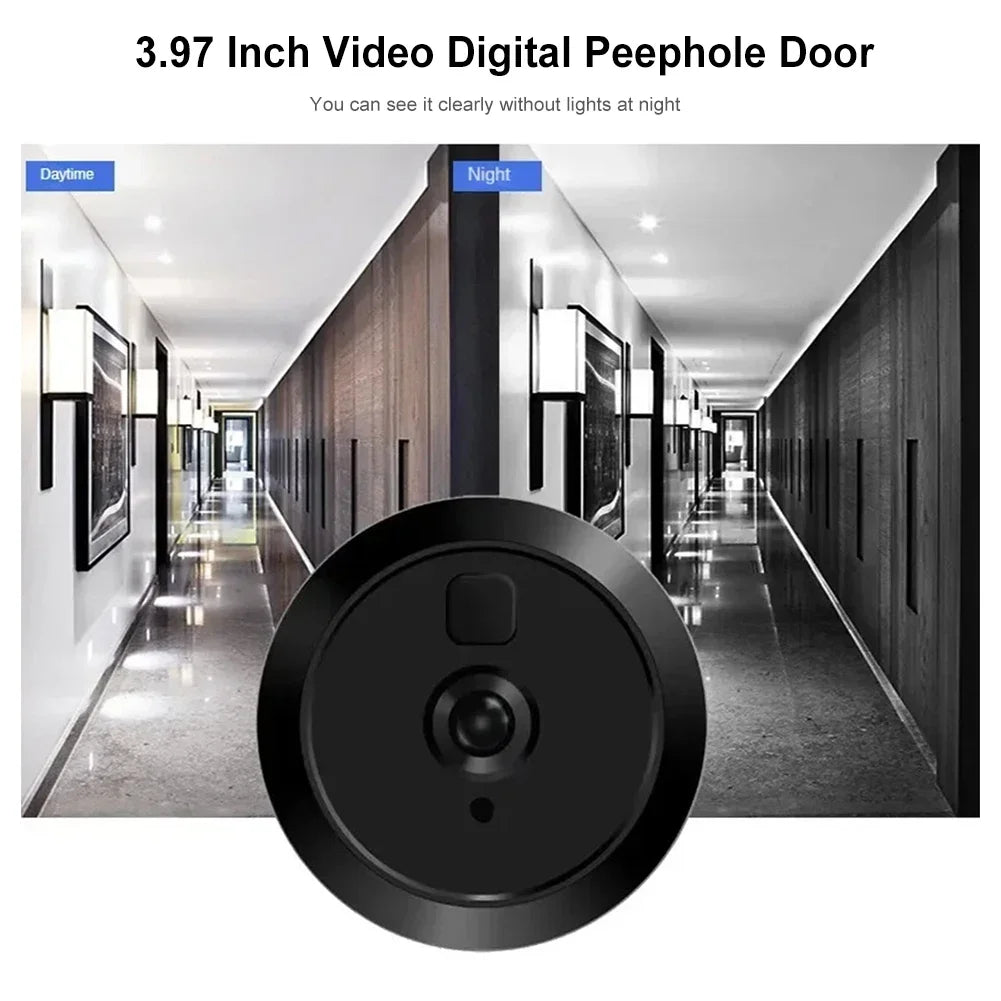

3. Advanced Night Vision: Equipped with ultra-low-light super night vision functionality, our safety door viewer captures clear images even in complete darkness, without any light, heat, or motion detection that could alert potential intruders.

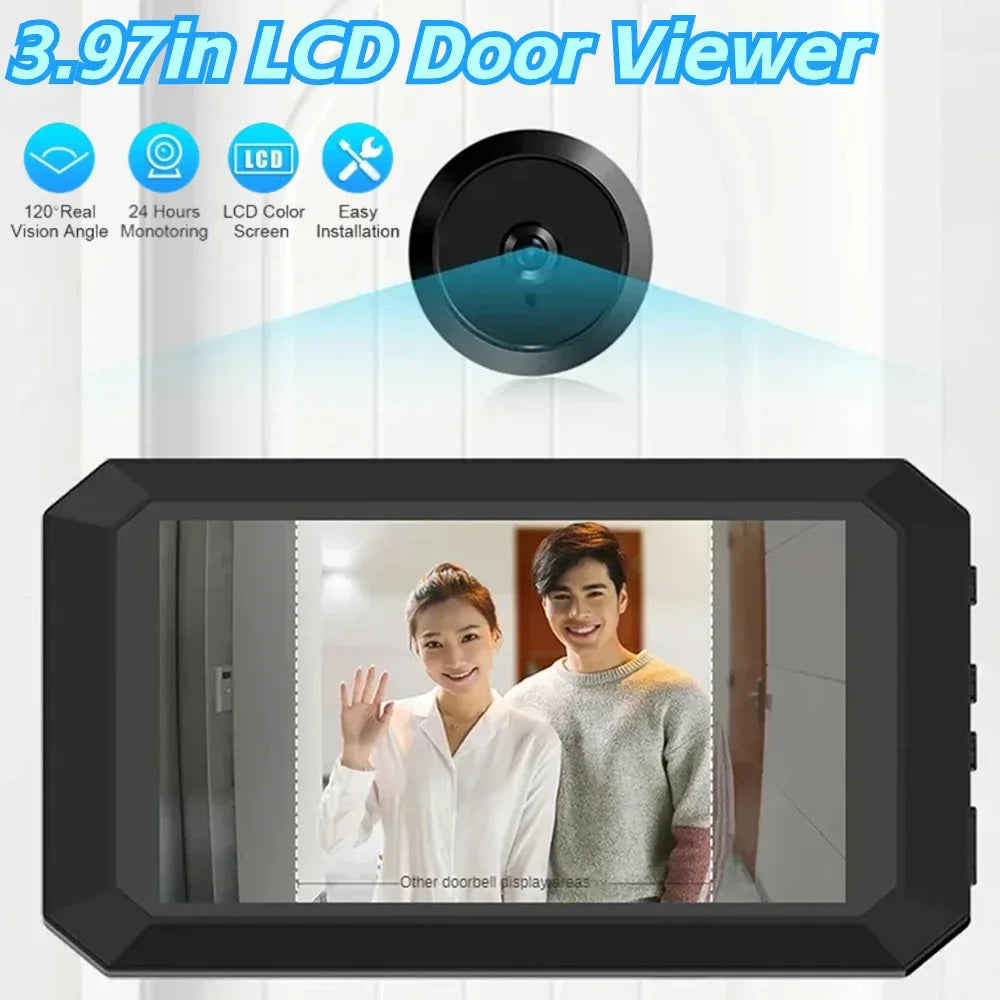

4. High-Resolution Wide-Angle Lens: The door viewer features a high-intensity alloy peephole head with a 2-megapixel camera that provides a door peephole camera is built to last with an ultra-large, ultra-thick 304 stainless steel hanging plate, offering added durability to withstand day-to-day usage and ensuring your investment stands the test of time.

Specification:

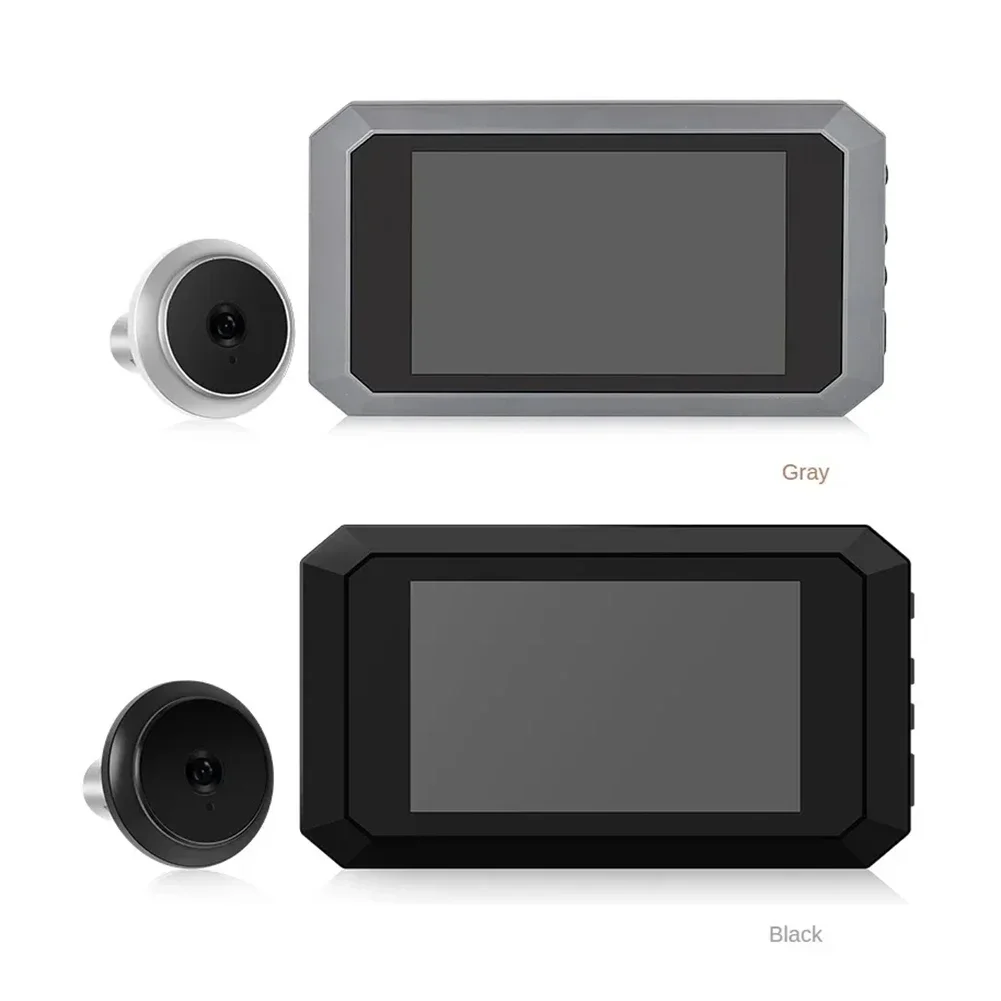

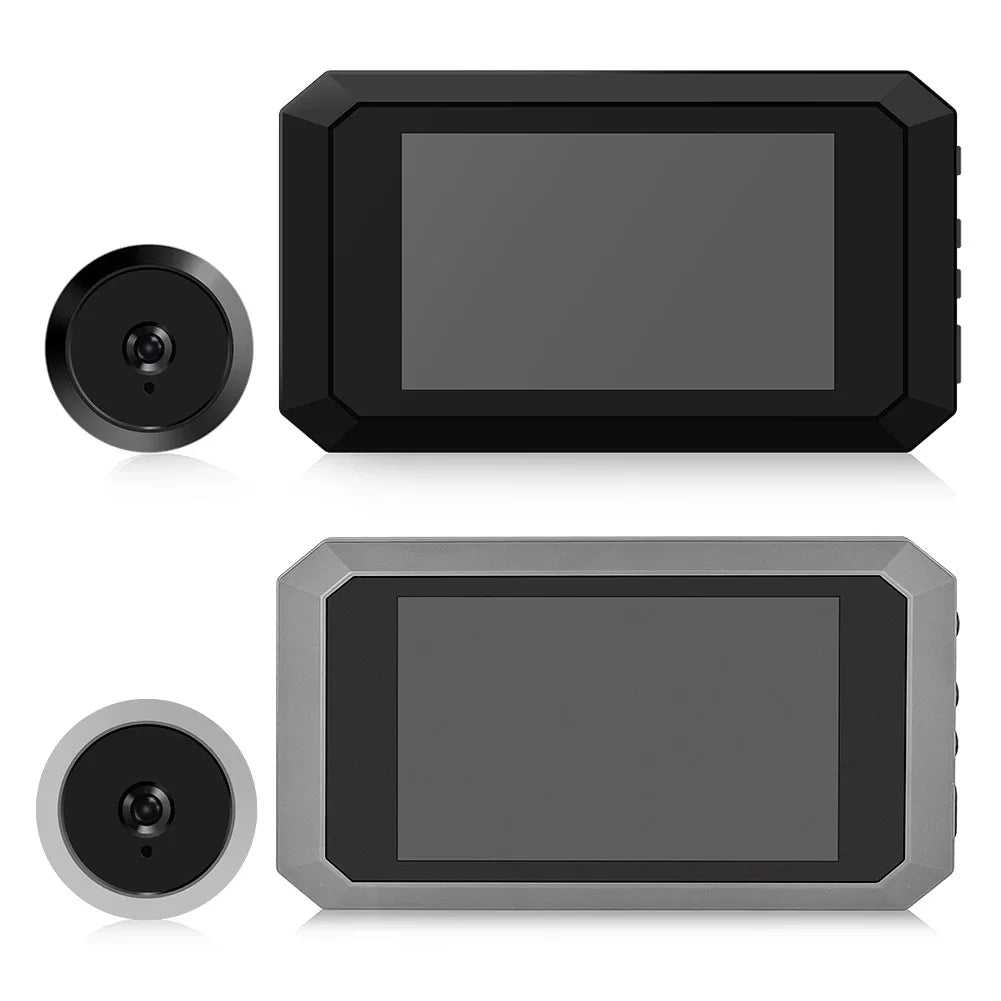

Color(Optional): Black, Grey

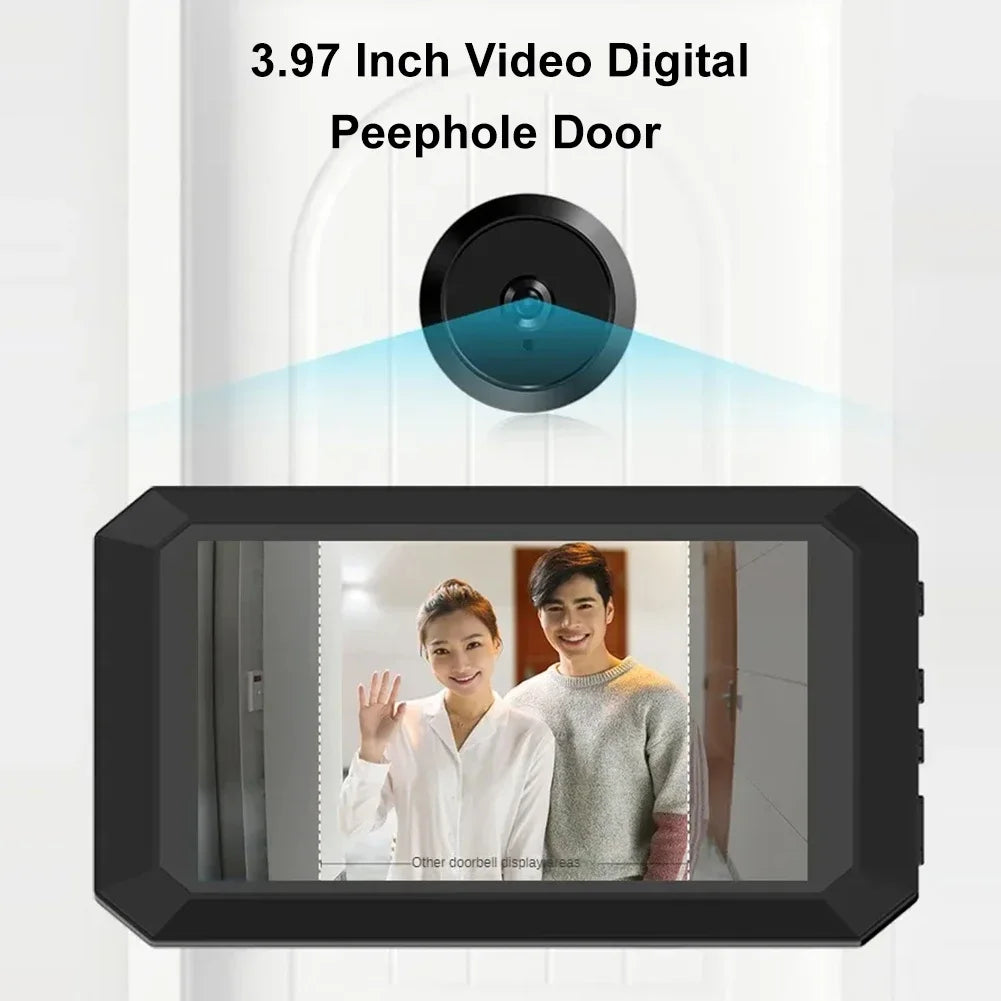

Screen Size: 3.97 "Hd Display
Charging Cable Interface: Type-C
Diameter Range Of Door Hole: 15-30 mm/0.59-1.18 in
Door Thickness Range: 5-80 mm/0.19-3.14 in
Door Hole Range: 15-30 mm/0.59-1.18 in
Resolution: 480 x 800
Camera Pixel: 200w Or Other Configuration

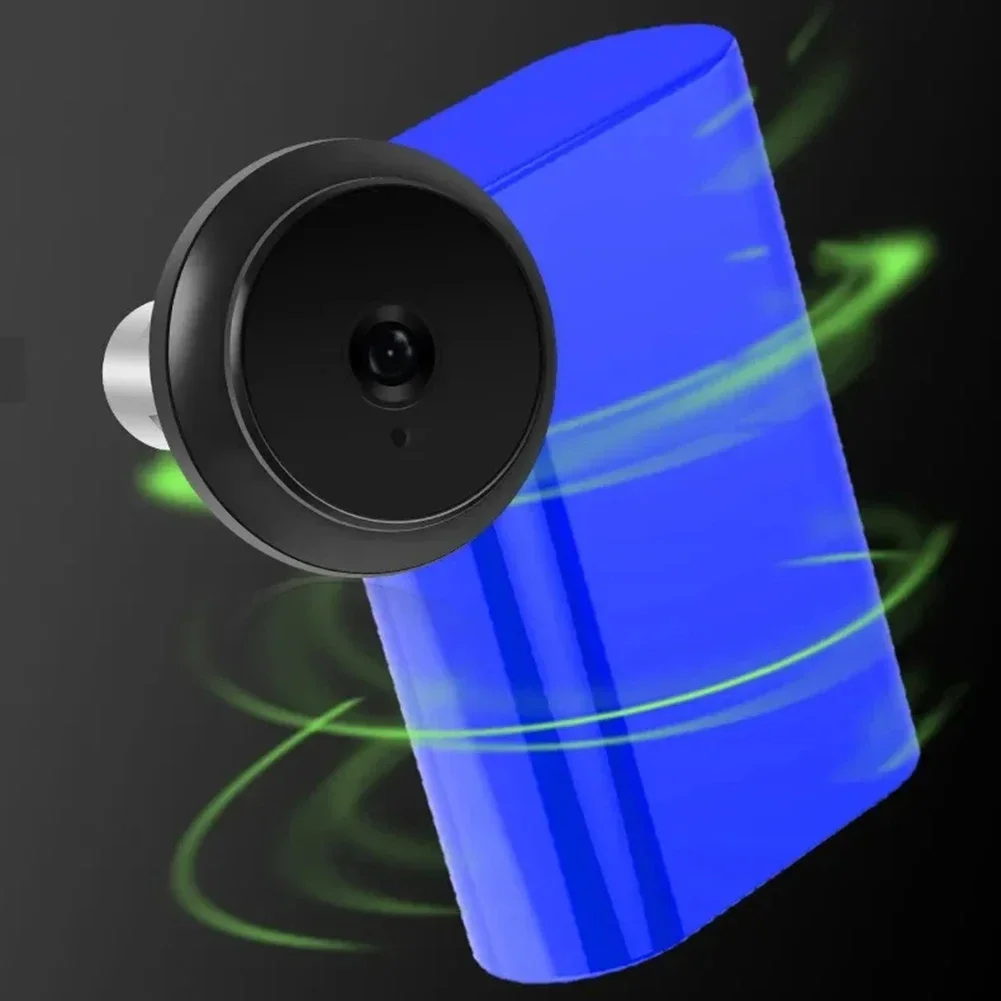

Lithium Battery: 1400mah 3.7-4.2v
Camera Pixel: 1080p
Internal Storage: 720p
Supports 12 Languages: English, Chinese, Russian, French, Italian, German, Japanese, Korean, Czech, Turkish, Arabic

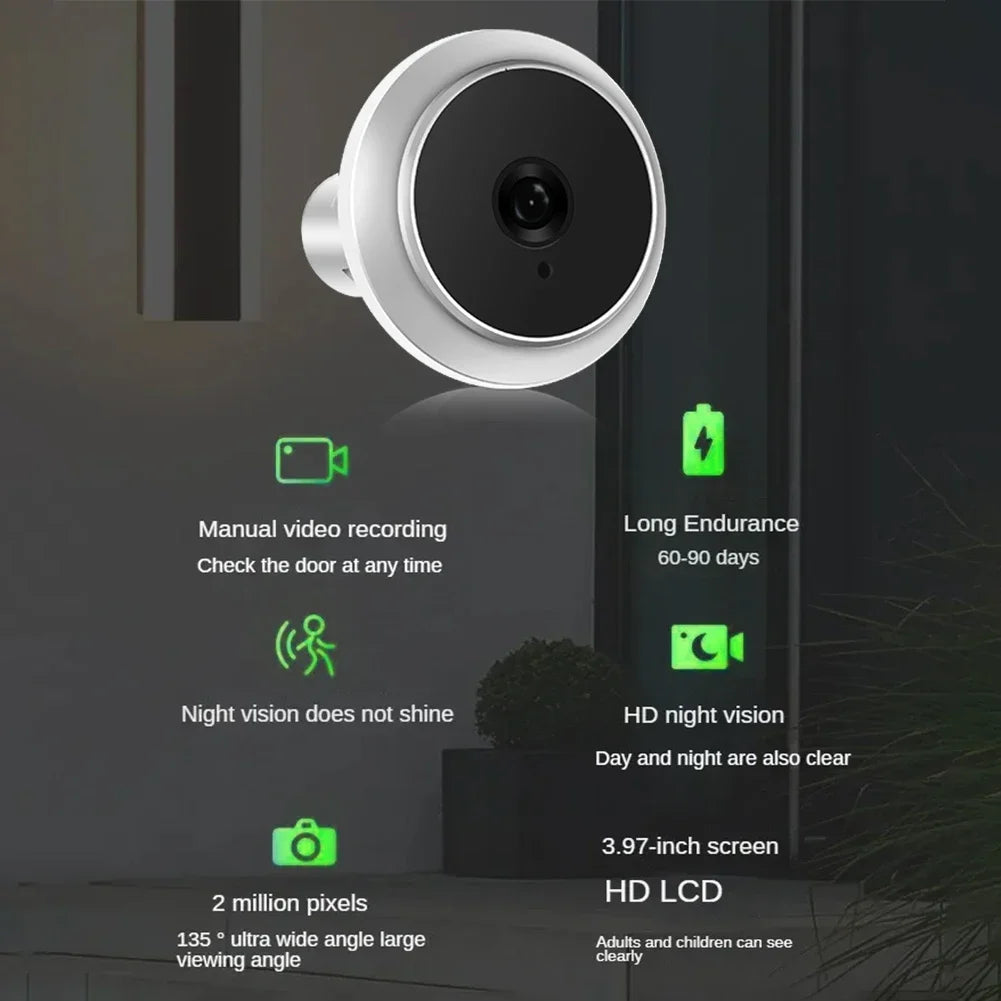

Features: Low Light Super Night Vision Function, No Light, No Sensation, No Heat, No Exposure At Night To Capture, High Strength Alloy Cat Eye Head 2 Million Pixels, Large Angle Of View Wide Angle, Super Thick 304 Stainless Steel Hanging Plate

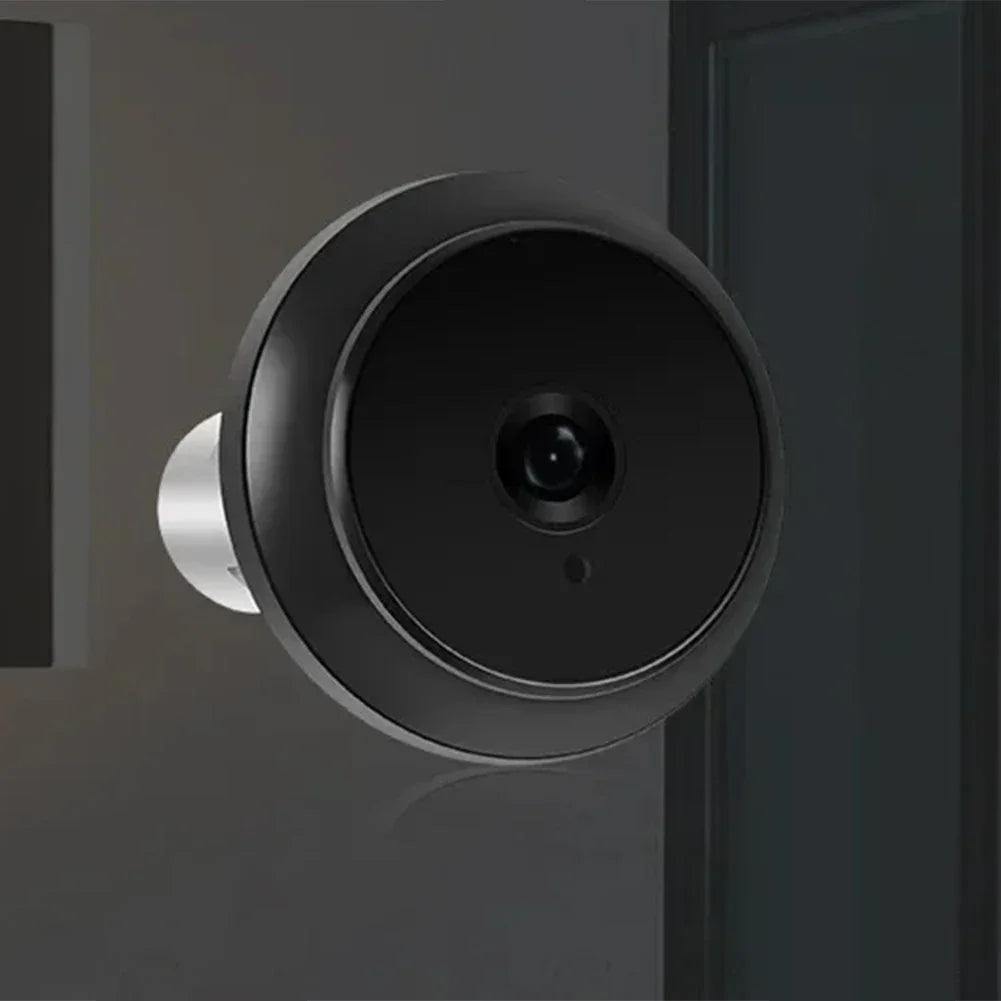

Outdoor Unit Dimensions: Diameter 40 mm, Thickness 10 mm
Indoor Unit Size: 135 x 76 x 13 mm/ 5.31 x 2.99 x 0.51 inch
Color Box Size: 190 x 100 x 70 mm/7.48 x 3.93 x 2.75 in
Gross Weight: 300 g

Attention:
1. Place The Product On A Stable Surface To Prevent Damage Caused By Falling. Do Not Touch The Sensor Of The Outdoor Unit
2. Do Not Press The Lcd Display Area. Otherwise, The Lcd And Panel May Be Damaged
3. Prevent Dust, Moisture, Moisture, And High Temperature
4. Please Insert An Sd Card (High-Speed Card Of More Than 8g) Before Installation. 16g Or 32g Is Recommended. The Storage And Read Speed Is Not Less Than C10, That Is, The Storage Speed Is Not Less Than 10m Per Second. (Arrival Does Not Include Memory Card)
5. When Installing The Flexible Cable For The Fuselage, Align The Cable Port And Gently Close The Cable Cover
6. Keep The Exterior Of The Outdoor Unit Lens Clean

Common Problems And Solutions
1. No Photos Or Videos:
A Press The Reset Key Once Every Time You Insert And Remove The Cable. Press The Reset Key Once When The Machine Freezes; Or Enter Settings And Return To Factory Settings
B Check Whether The Soft Cable (Fpc) Is Reversed, Whether The Rear Cover Is Tightly Covered, And Whether The Cable Interface Is Damaged
C Confirm That The Sd Card Has Been Inserted, And Is A Valid High-Speed Card, 16g, 32g Is Recommended, The Storage And Read Data Efficiency Is Not Less Than C10, That Is, The Storage Speed Is Not Less Than 10m Per Second
D It Is Recommended To Format The New Memory Card For The First Time And Go To Camera Settings - Format Memory Card
2. Do Not Turn On The Phone
A Memory Card Failure, Such As Taking Out The Memory Card Can Be Turned On, It Can Be Determined That The Memory Card Speed Does Not Meet The Requirements Of The Device, Or The Memory Card Is Damaged;
B The Cable Is Not Fastened
C The Battery Is Out Of Power, Need To Charge, If Necessary, Use The Computer To Format The Memory Card
3. Images Are Blurry
A Check Whether There Is Dirt On The Surface Of The Camera
B Try To Tear Off The Camera Protective Film
4. Fast Power Consumption
A Enter The Camera Settings - Record Mode - Change To Take Pictures, Taking Pictures Is More Power-Saving
B Plug Data Line Usually Power Supply
C Press The Reset Key To Restore The System
D Format Memory Card If Necessary, Use The Computer Format Memory Card

Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2 cm measuring deviation due to manual measurement.

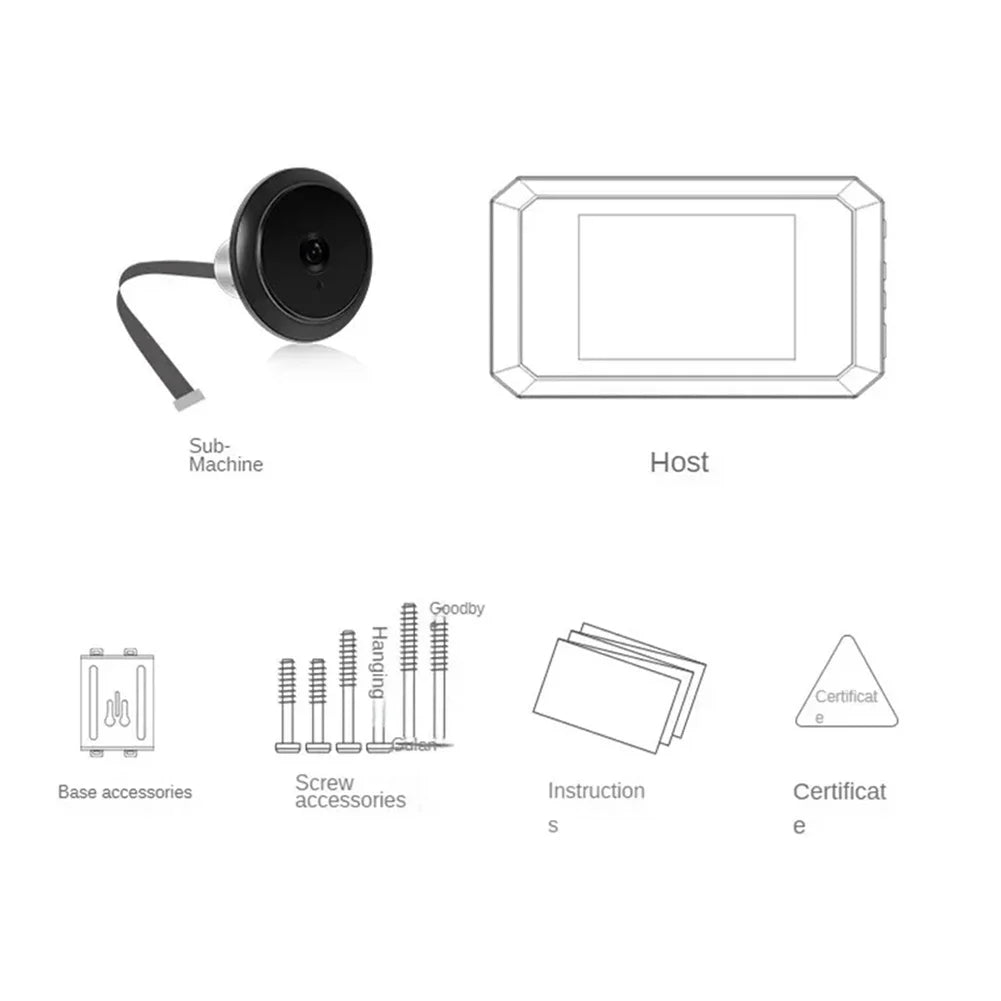

1 X Screen
1 X Safety Door Viewer
1 X Type-C Cable
1 X Metal Hanging Plate
1 X Screw
1 X English Operation Guide
