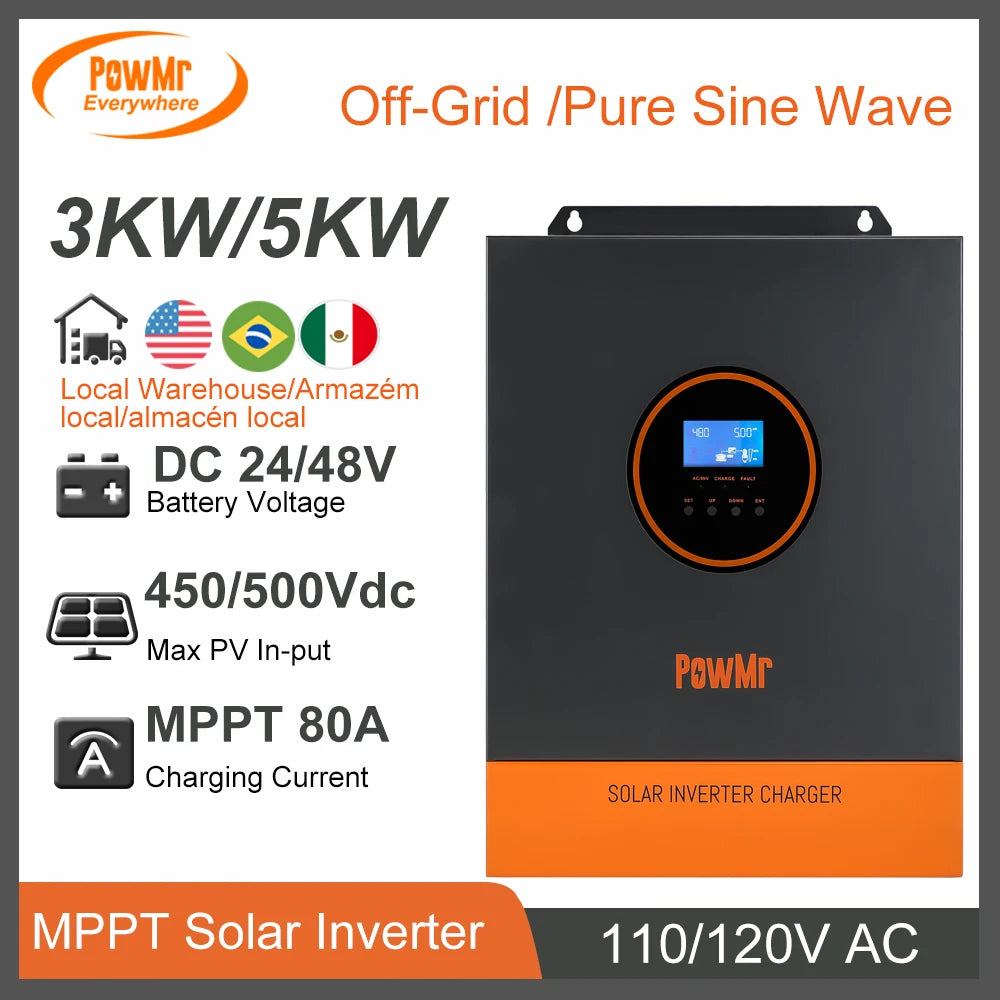

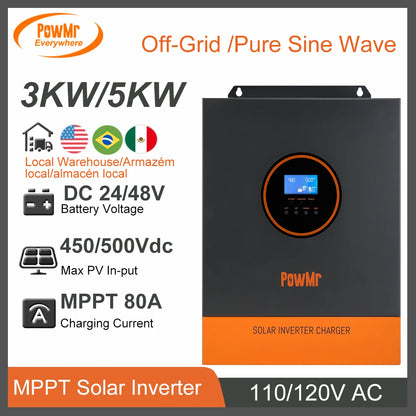

PowMr 5000W 3000W Hybrid Power Inverter DC 24V 48V To 110V/120V AC with 80A MPPT Solar Charger Pure Sine Wave Solar Home System

PowMr 5000W 3000W Hybrid Power Inverter DC 24V 48V To 110V/120V AC with 80A MPPT Solar Charger Pure Sine Wave Solar Home System

$1,110.06 USD
$0.00 USD $1,110.06 USD
Sale Sold out
Color
Output Voltage
Ships From

SPECIFICATIONS

Brand Name: PowMr

Certification: CE

Hign-concerned Chemical: None

Is Smart Device: Yes

Maximum input power: 4000W/5500W

Model Number: POW-LVM Series

Noise: ≤60dB

Origin: Mainland China

Output Current: MPPT 80A

Output Frequency: 50Hz/ 60Hz (auto-sensing)

Output Power: 3000W/5000W

Output Type: SINGLE

Output voltage waveform: Pure sine wave

PV operating voltage range: 120~450Vdc

Rated input voltage: 110/120Vac

Size: 42*32*12(cm)

Warranty: 2 Years

Weight: 8KG/12KG

is_customized: Yes




Recommend for you



PowMr 5000W 3000W Hybrid Power Inverter DC 24V 48V To 110V/120V AC with 80A MPPT Solar

Charger Pure Sine Wave Solar Home System











Product Features

1. Pure Sine Wave inverter.

2. Higher output power up to 3000W /5000W
3.120Vac AC output.
4.Supports single-phase devices.
5.Fast switching time of 10ms.
6.Compatible with 24V/48V lithium-ion and lead-acid battery, support user-define.
7.Max. PV charging current up to 80A.
8.Max. AC charging current up to 40A.
9.Max. hybrid charging current up to 80A.
10.90~140Vac AC input voltage range.
11.120~450Vdc wide voltage range for PV access.
12.1 MPP Tracker, with 99.9% efficiency.

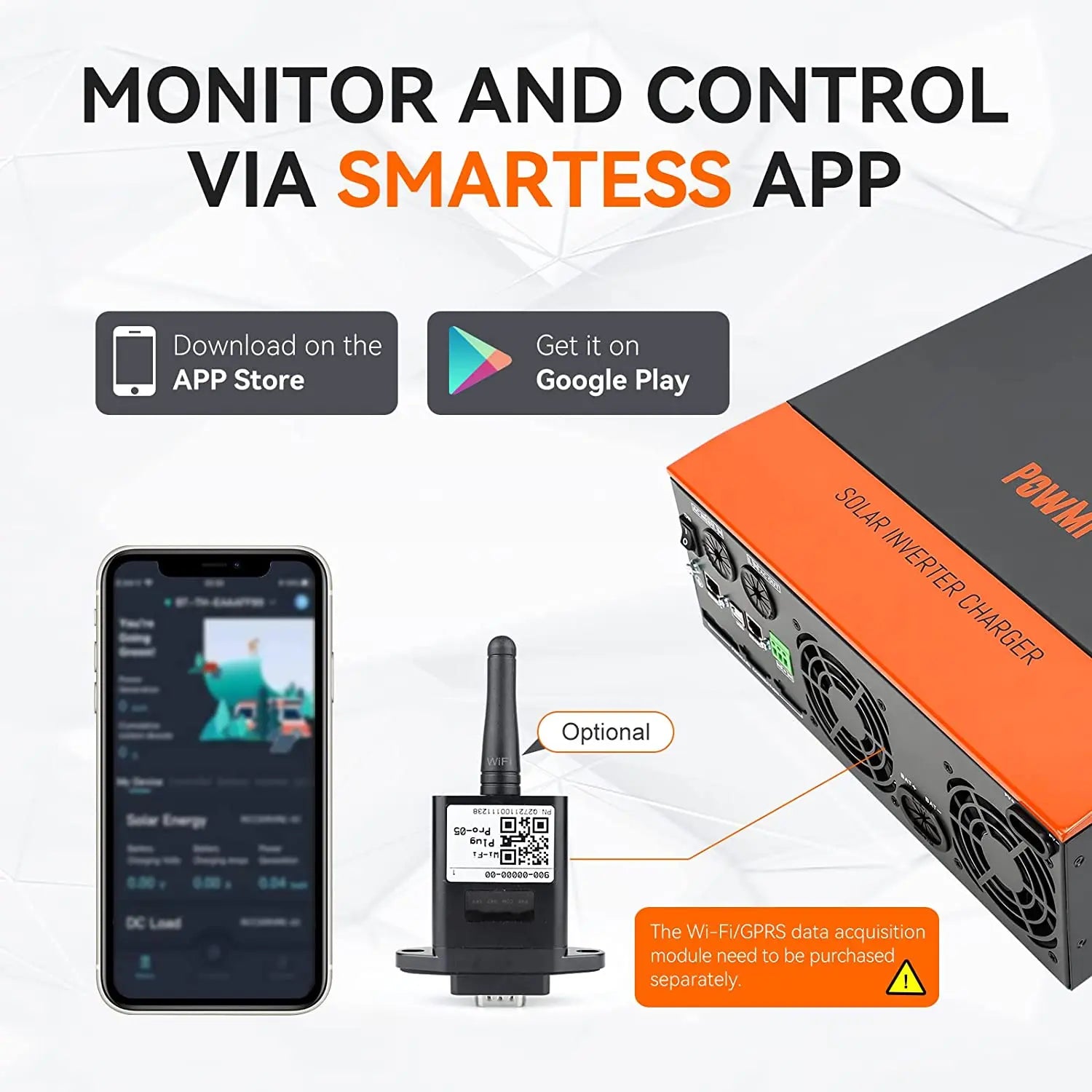

13.Configure multiple communication interfaces (USB/CAN/RS485(WiFi/GPRS)/Dry node control).
14.Durable finish with high anti-corrosion.
15.Effective forced air cooling to ensure that the equipment runs stably.


Inverter Specification

Models
POW-LVM3K-24V
POW-LVM5K-48V
AC Mode
Rated input voltage
110/120Vac
Input voltage range
(90Vac-140Vac)
Frequency
50Hz/ 60Hz (auto-sensing)

50Hz/ 60Hz (auto-sensing)
Overload/short-circuit protection
Circuit breaker
Efficiency
>95%
Maximum bypass overload current
40A
63A
Inverting Mode
Output voltage waveform
Pure sine wave
Rated output power (VA)
3000
5000
Rated output power (W)

3000

5000
Rated output voltage (Vac)
120Vac
120Vac
Maximum Efficiency
>92%
>90%
Peak power
6000VA
10000VA
Loaded motor capability
2HP
4HP
Rated battery input voltage
24V (Minimum starting voltage 22V)
48V (minimum start voltage 44V)
Power saving mode
Load ≤50W
AC Charging
Battery type
Lead acid or lithium battery
Maximum charge current
(can be set)
0-40A
Charge voltage range
20–33Vdc
40–60Vdc
Breaker specification
40A
63A
Solar Charging
Maximum PV open-circuit voltage
450Vdc

500Vdc
PV operating voltage range
120~450Vdc
120-500Vdc
Battery voltage range
20~33Vdc
40-60Vdc
Maximum input power
4000W
5500W
Charge current range of solar energy
(settable)
0-80A
Authentication Specification
EMC authentication grade
EN61000
Noise
≤60dB
Communication interface
USB/RS485 (WiFi/GPRS)/dry node control
Dimension (L*W*D)
378mm*280mm*103mm
426mm*322mm*126mm
Weight (kg)
8
11.5

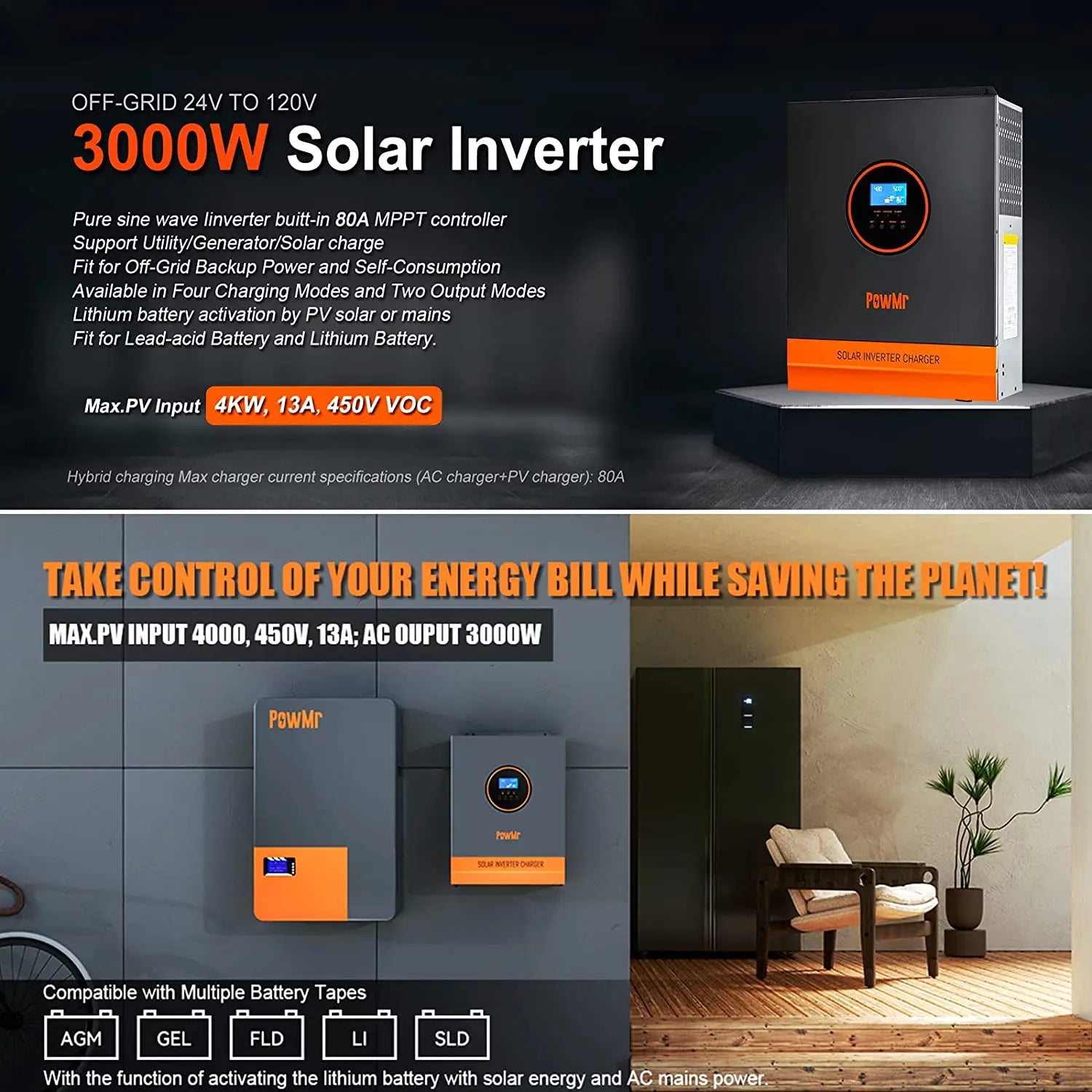

3000W Pure sine Wave Inverter 24V DC to 120V /110V AC, built in 80A Mppt charge controlle, is a new all-in-one hybrid solar charge inverter, Max 4000W 13A 450V Input , Starting voltage>150V. Fit for24V Lead-Acid(seal, AGM,Gel,Flooded) and Lithium battery. Support Utility/Generator/Solar Charge.

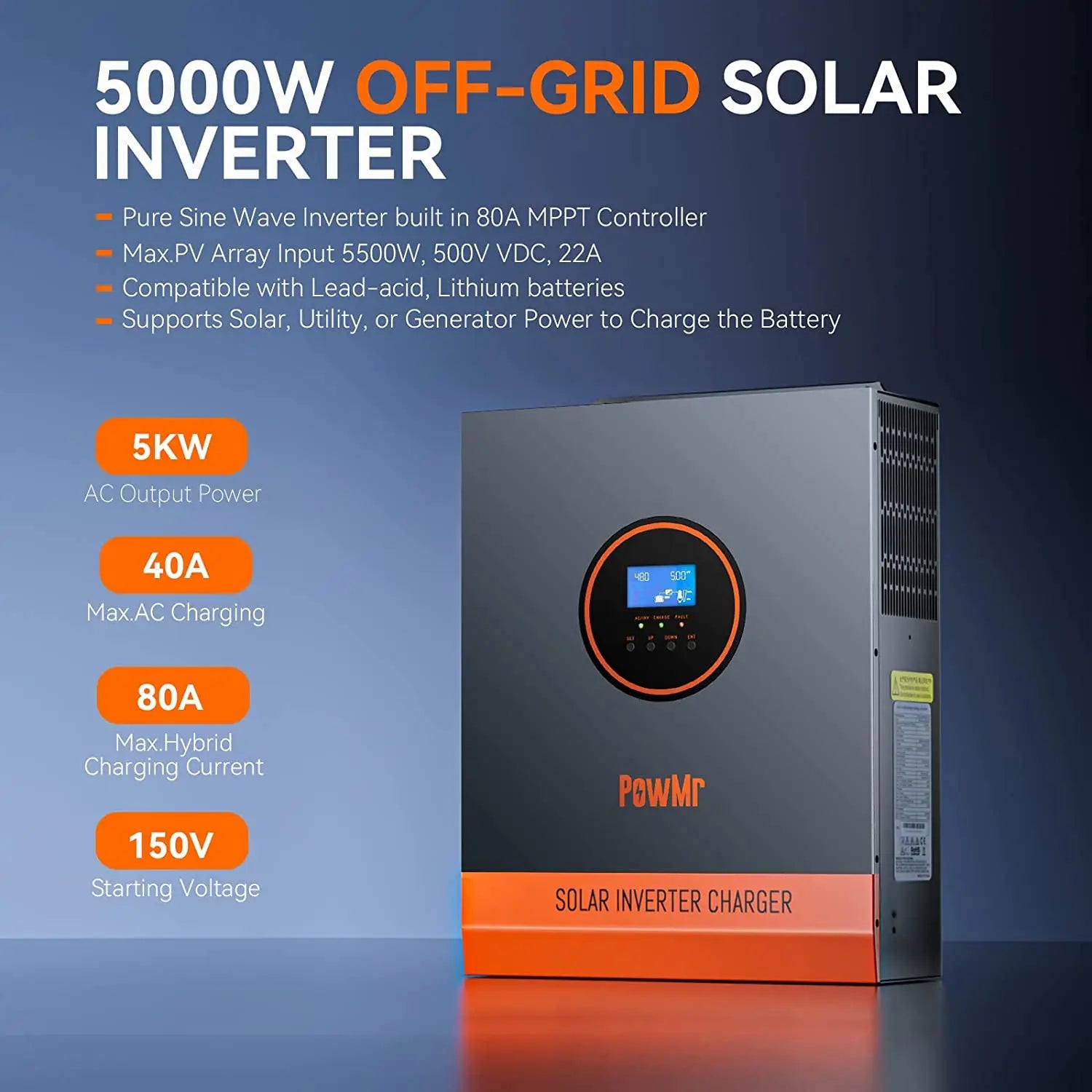

5000W Solar Inverter 48V DC to 110V/120V AC, built in 80A Mppt charge controller, is a new all-in-one hybrid solar inverter charger, fit for 48V Lead-Acid(seal, AGM,Gel,Flooded) and Lithium battery. Support Utility/Generator/Solar Charge.


Compatible with Lead-acid Battery and Lithium Battery


Hybrid Charging Max Charger Current (AC charger+PV charger): 80A


Wiring Diagram and Technical Specifications


3000W


5000W


Wide Range of Applications
