Goosky

Legend

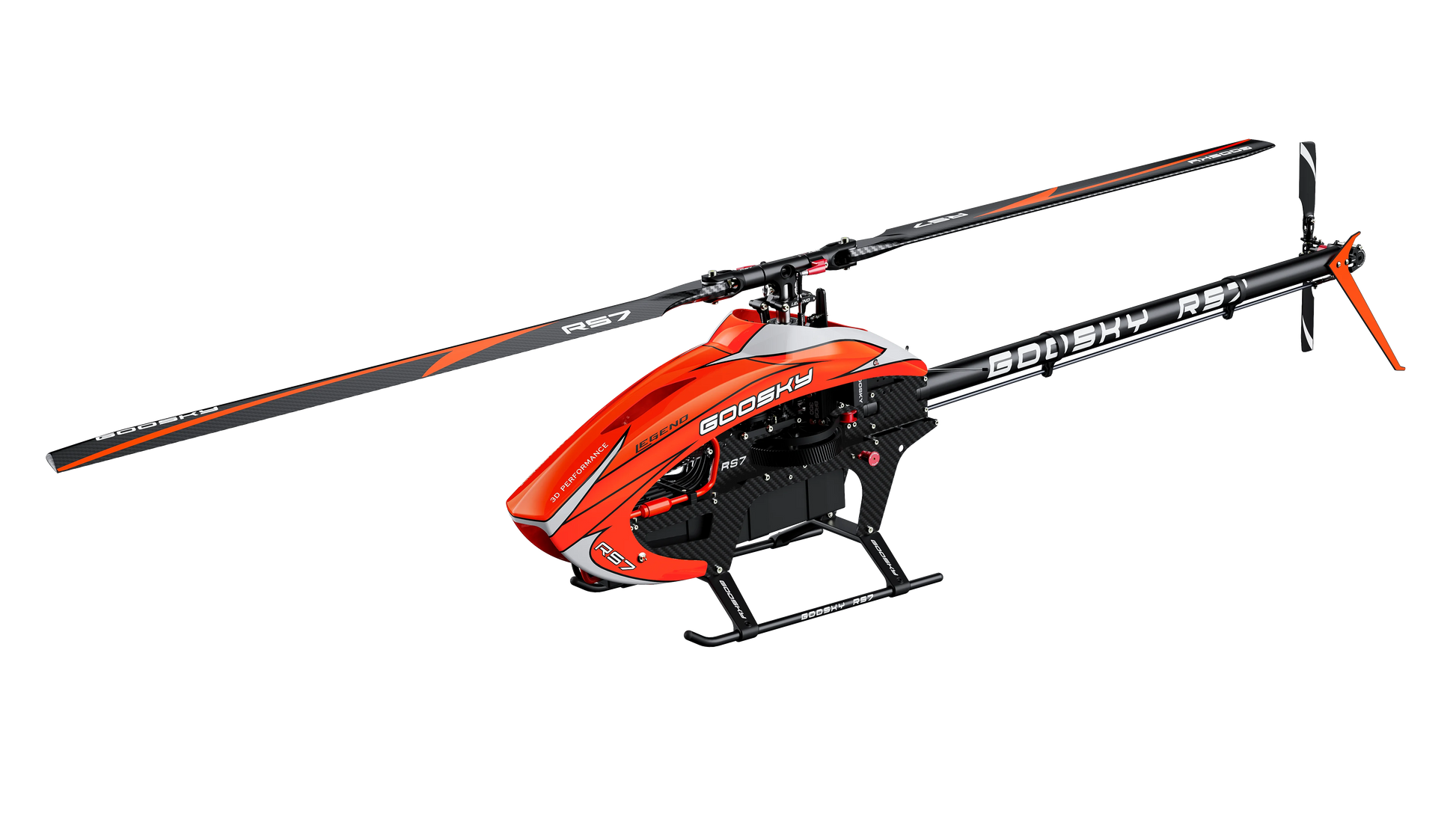

RS7

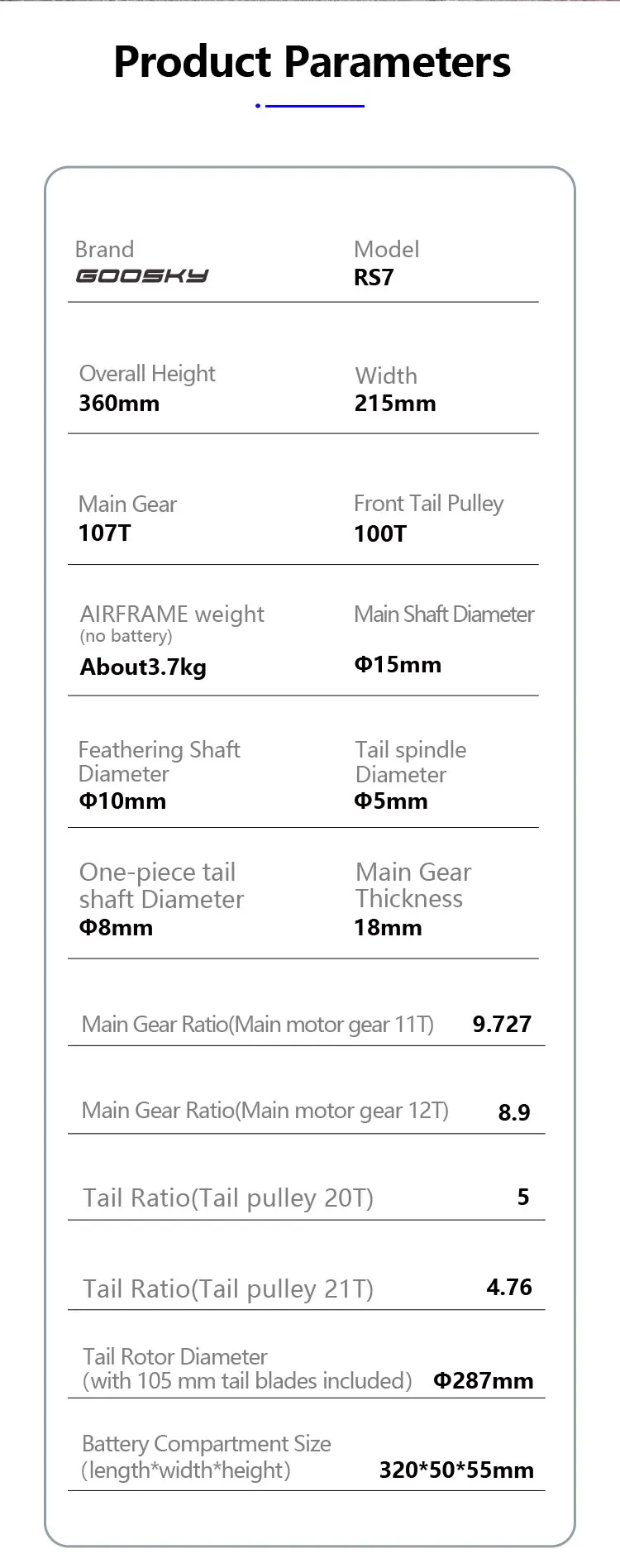

Product Parameters

Brand : Goosky
Model : RS7
Overall Height : 360mm
Width : 215mm
Main Gear : 107T
Front Tail Pulley : 100T
AIRFRAME weight (no battery) : About3.7kg
Main Shaft Diameter ：φ15mm
Feathering Shaft Diameter ： φ10mm
Tail spindle Diameter ： φ5mm
One-piece tail shaft Diameter ：φ8mm
Main Gear Thickness ：18mm
Main GearRatio(Main motorgear 11T) ：9.727
Main Gear Ratio(Main motor gear 12T) ：8.9
Tail Ratio(Tail pulley 20T) ：5
Tail Ratio(Tail pulley 21T) ：4.76
Tail Rotor Diameter(with 105 mm tail blades included) ：φ287mm
Battery Compartment Size(length*width*height) ：320*50*55mm

Introduction

Since its establishment,GOOSKY has been con-templating how to provide truly user-friendly products for global users,with simple controland maintenance,meet the needs of different customers.In addition to the entry-level practice models already on the market,we are also dedicated to developing professional competition-level products.Now,GOOSKY RS7 come out!A professional aviation model monster without standing performance,powerful dynamics,exquisite craftsmanship,easy maintenance,leading a new era of flying trends!
The GOOSKY RS7 showcases the pinnacle of aviation model helicopters,making flying exceptionally professional and awe-inspiring!

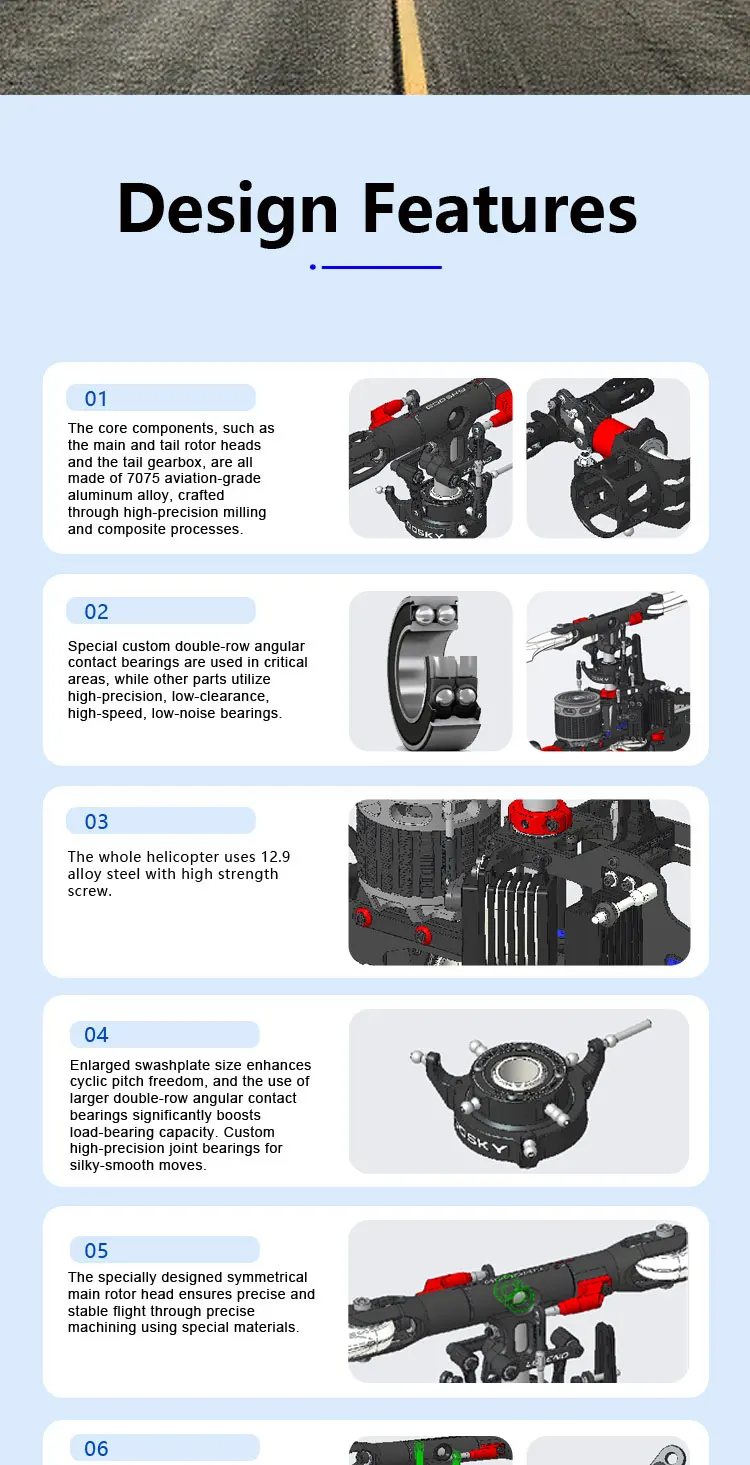

Design Features

1.The core components,such asthe main and tail rotor heads and the tail gearbox,are all made of 7075 aviation-grade aluminum alloy,crafted through high-precision milling and composite processes.
2.Special custom double-row angular contact bearings are used in critical areas,while other parts utilize high-precision,low-clearance,high-speed,Iow-noise bearings.
3.The whole helicopter uses 12.9 alloy steel with high strength screw.
4.Enlarged swashplate size enhances cyclic pitch freedom,and the use of larger double-row angular contact bearings significantly boosts load-bearing capacity.Custom high-precision joint bearings for silky-smooth moves.
5.The specially designed symmetrical main rotor head ensures precise and stable flight through precise machining using special materials.

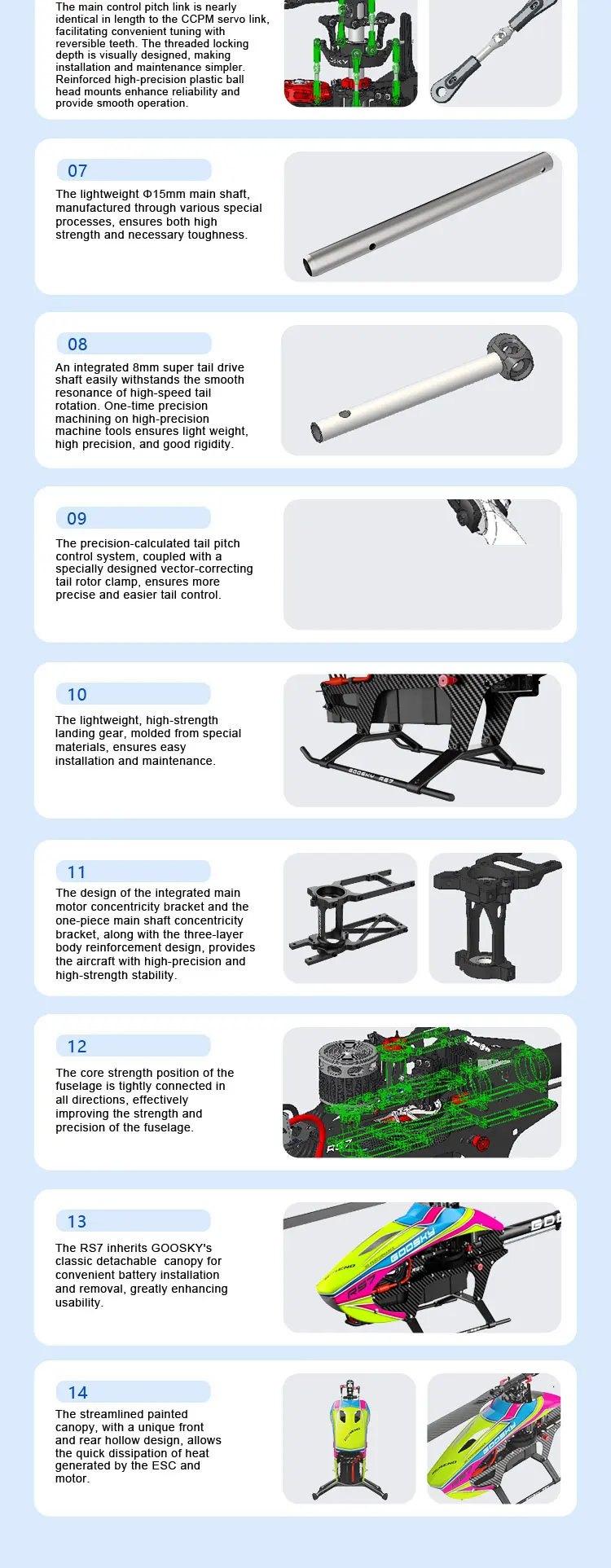

6.The main control pitch link is nearly identical in length to the CCPM servo link,facilitating convenient tuning with reversible teeth.The threaded locking depth is visually designed,making installation and maintenance simpler.Reinforced high-precision plastic ball head mounts enhance reliability and provide smooth operation
7.The lightweight φ15mm main shaft,manufactured through various special processes,ensures both high strength and necessary toughness.
8.An integrated 8mm super tail drive shaft easily withstands the smooth resonance of high-speed tail rotation.One-time precision machining on high-precision machine tools ensures light weight , high precision,and good rigidity.
9.The precision-calculated tail pitch control system,coupled with a specially designed vector-correcting tail rotor clamp,ensures more precise and easier tail control
10.The lightweight,high-strength landing gear,molded from special materials,ensures easy installation and maintenance.
11.The design of the integrated main motor concentricity bracket and the one-piece main shaft concentricity bracket,along with the three-layer body reinforcement design,provides the aircraft with high-precision and high-strength stability.
12.The core strength position of the fuselage is tightly connected in all directions,effectively improving the strength and precision of the fuselage.
13.The RS7 inherits GOOSKY's classic detachable canopy for convenient battery installation and removal,greatly enhancing usability.
14.The streamlined painted canopy,with a unique front and rear hollow design,allows the quick dissipation of heat generated by the ESC and motor

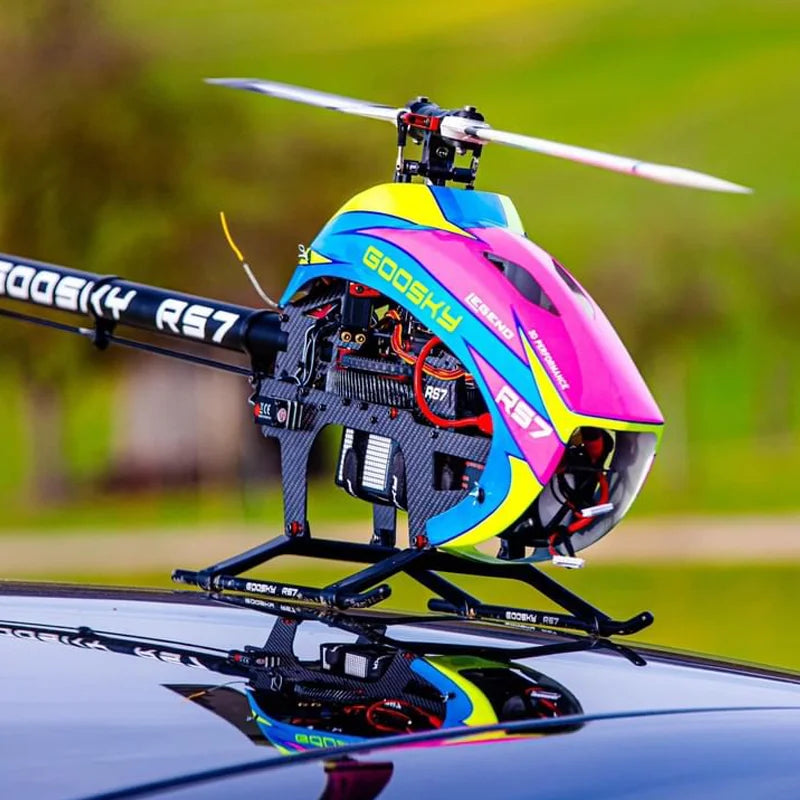

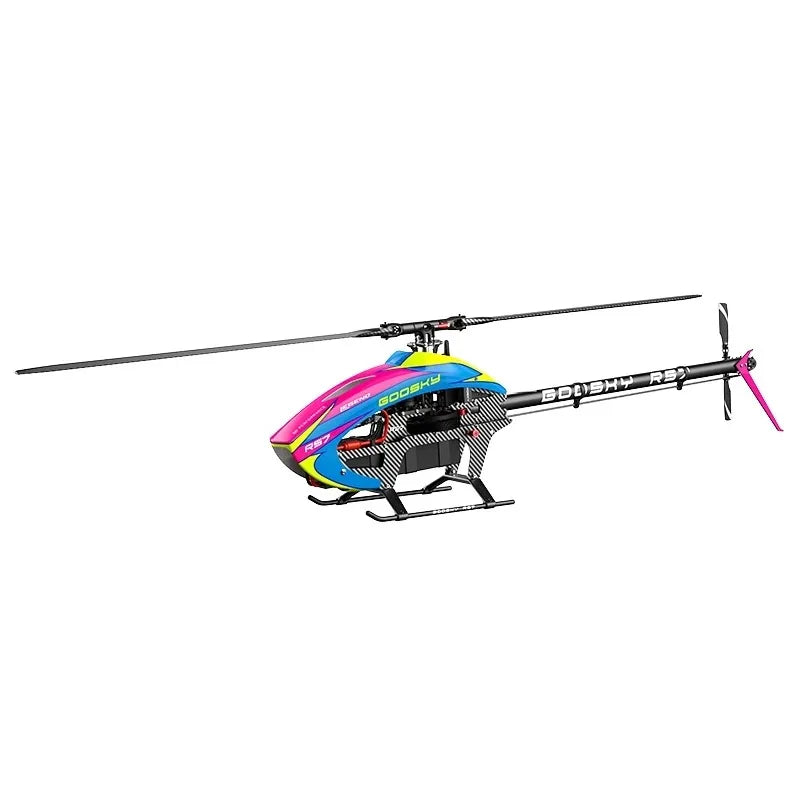

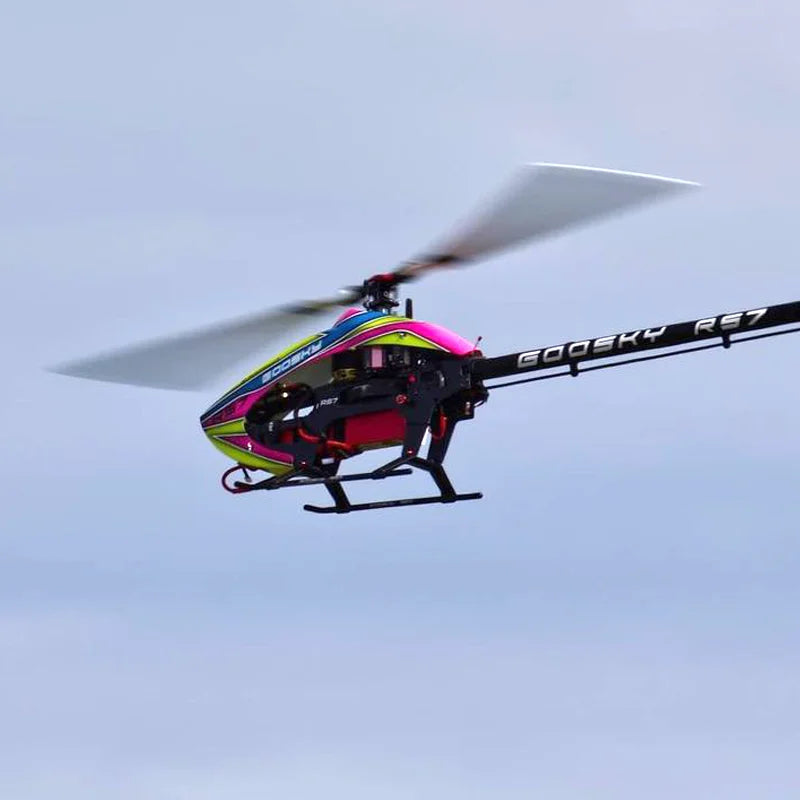

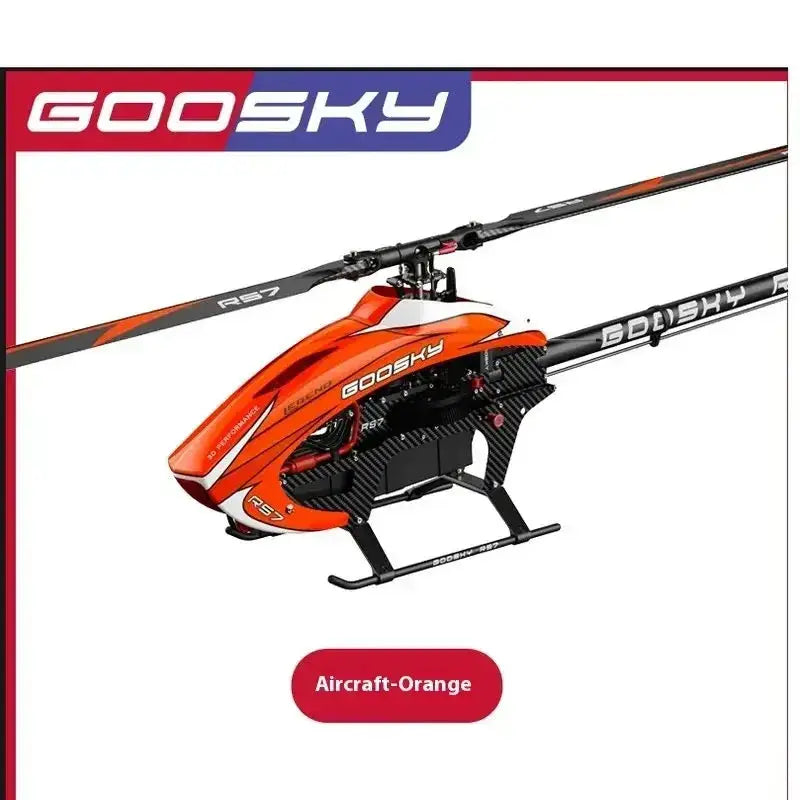

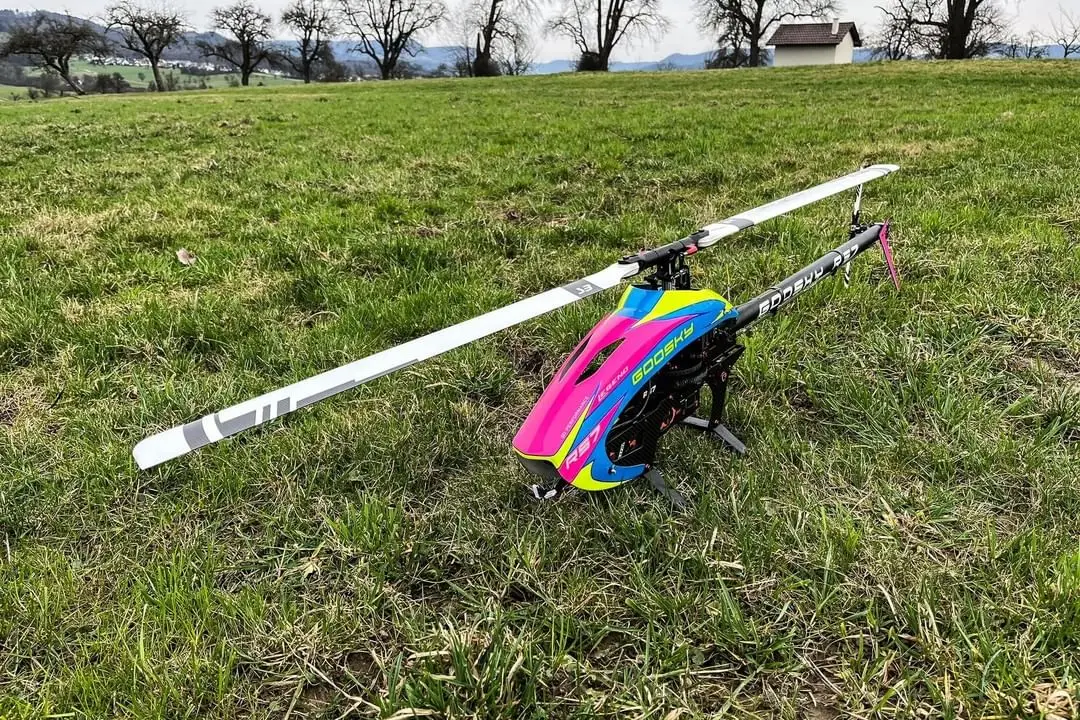

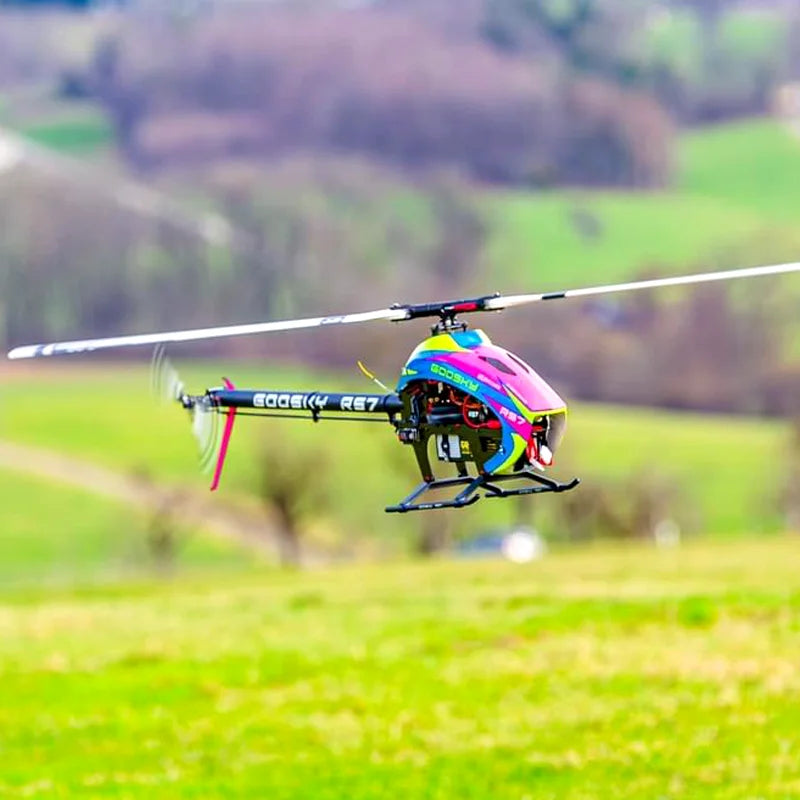

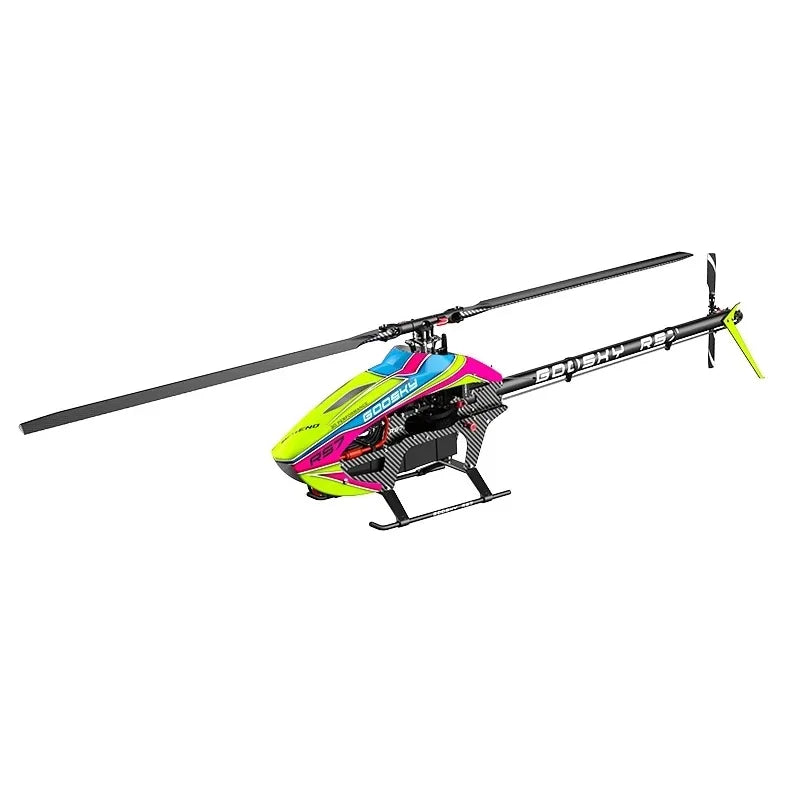

Product Display

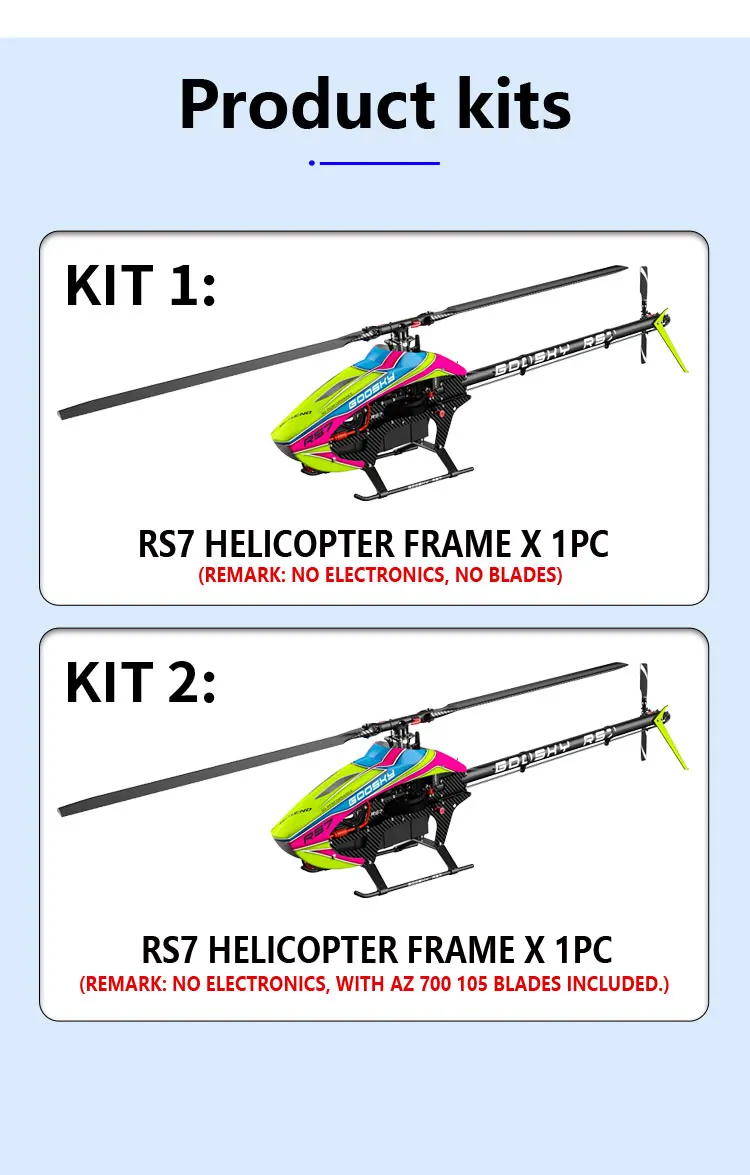

Product Kits

Kit 1:
rs7 helicopter frame x1pc
(remark: no electronics,no blades)

Kit 2:
rs7 helicopter frame x1pc
(remark: no electronics,with az 700105 blades included.)
