What makes SenseCAP T1000 stand out?

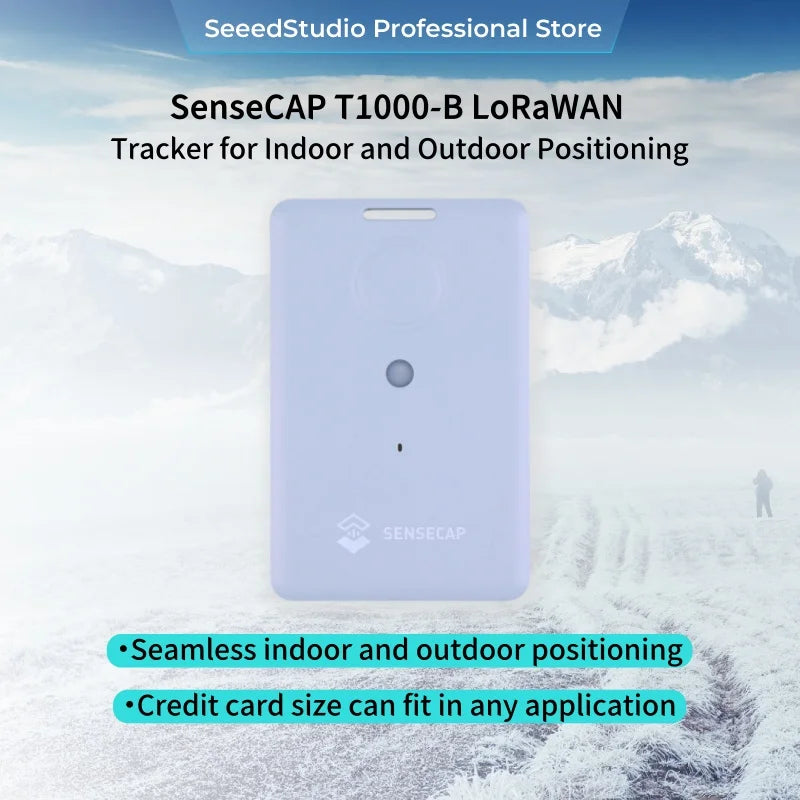

🌱Feature 1: Seamless indoor and outdoor positioning

T1000 effectively employs BLE and Wi-Fi for pinpoint indoor positioning and utilizes GNSS technologies, including GPS, Beidou, Galileo, and GLONASS for precise outdoor tracking.🌱Feature 2: Credit card size can fit in any application

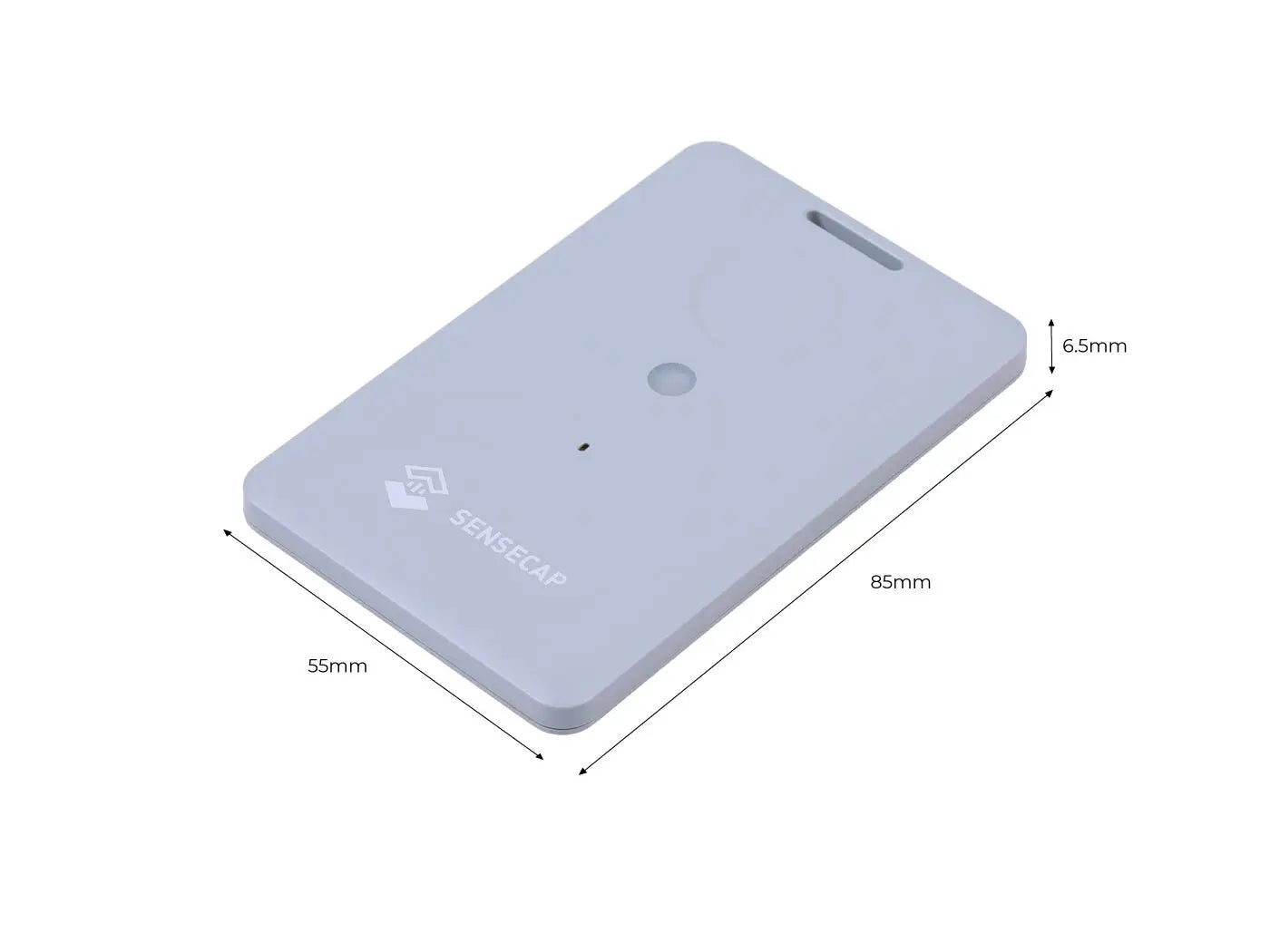

At a mere 6.5mm thick, this small and slim tracker can easily slip into envelope-like spaces.T1000 fits in wide range of scenarios:🌱Feature 3: Monitoring Beyond Location

T1000 is equipped with essential features, including a temperature sensor, light sensor, motion sensor, panic button, and buzzer.

The temperature sensor is ideal for monitoring temperature-sensitive goods like food, and the light sensor detects unpacking activities. This data can be utilized for compliance verification.

The motion sensor is useful in identifying if goods are in transit and monitoring potential physical damages. It can report statuses including shock, the start of the movement, the end of the movement, and motionless timeout. Such data can serve as a reference for insurance claims and logistics optimization.

The panic button switches the tracker to SOS mode, which sends data frequently to your platform and triggers the built-in buzzer to alert people nearby that an emergency has occurred.🌱Feature 4: Cheaper in data transmission fee

Using LoRaWAN, the communication costs are significantly lower compared to cellular networks like 4G, LTE Cat-M, and LTE Cat-1. This greatly lowers the barrier to entry for mass commercial use. For instance, with the same amount of data, using a SIM card on other networks could cost up to $3 while with LoRaWAN it is only $0.05.🌱Feature 5: Months of battery after a single magnetic charge

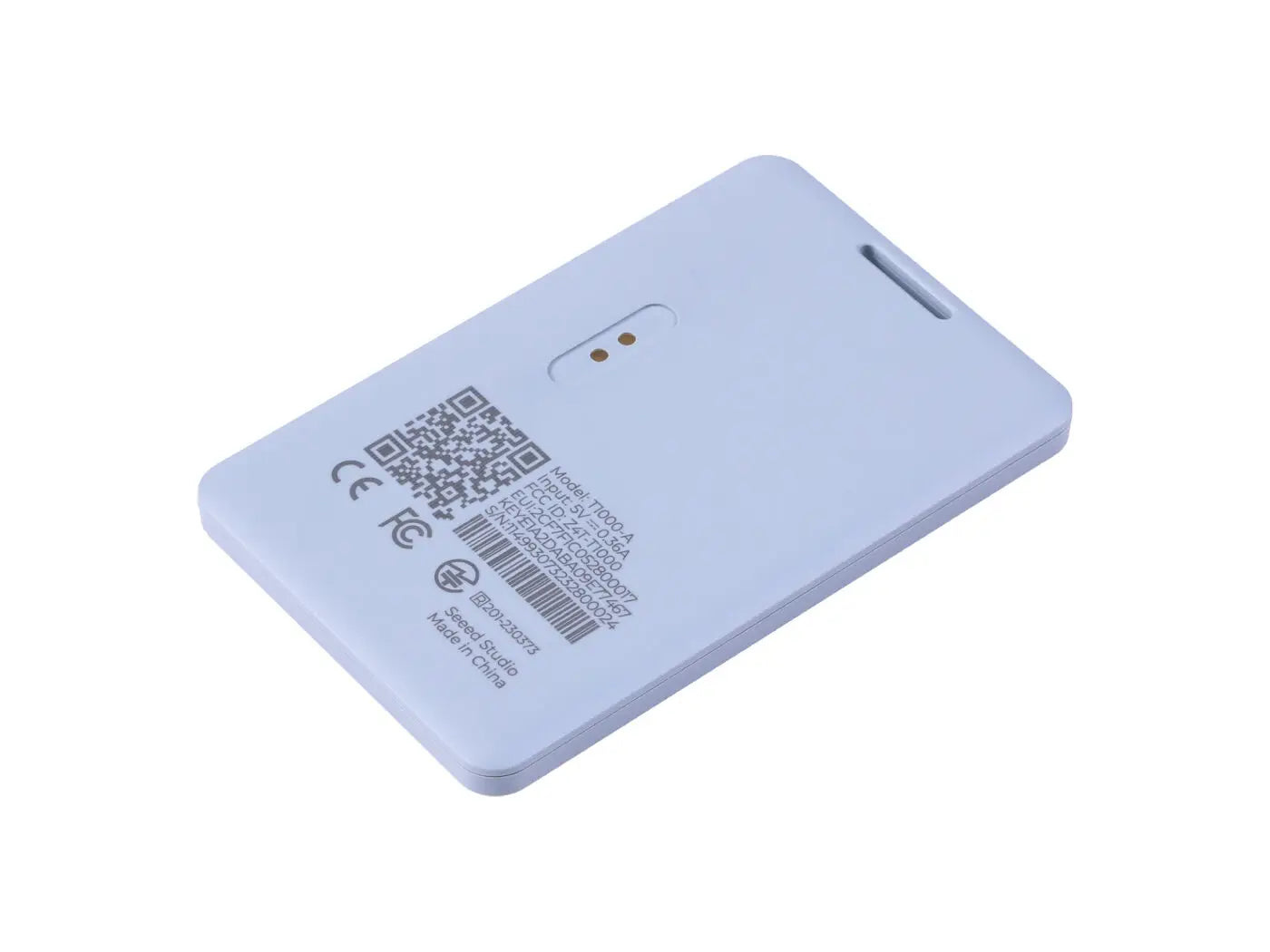

With magnetic charge design to enhance water resistance. (PS: Battery life depends on upload interval, work mode, etc., please refer to datasheet)🌱Feature 6: Never lose track of what was happening - Store data offline when out of connection🌱Feature 7: Built to endure harsh environments

T1000 is with industrial-grade design, equipped with IP65 waterproof protection. It's built to endure harsh environments, with a working temperature ranging from -20℃ to 60℃ (-4 ℉ to 140℉).Thus, if you're on the hunt for a simple, cost-effective tracking solution, SenseCAP T1000 is an optimal choice, especially in routine areas where activities or movements occur on a regular, predictable basis. This could include a designated route for delivery vehicles to follow, a university campus where students move between classes or a resort where guests visit certain attractions regularly.Specification

🌱The SenseCAP T1000 Tracker, as compact as a credit card, effortlessly fits into your pocket or attaches to your assets

🌱It's equipped with GPS, Bluetooth, and Wi-Fi for seamless indoor and outdoor positioning. Beyond just location tracking, it observes parameters like temperature, brightness, and movement. With an emergency button and buzzer, and a battery life that stretches for months on a single charge, it assures reliable tracking across various applications.Application

T1000 is truly a locator that keeps you connected to the people and things most important to you. Whether they're in a building, spread across a campus, dotted around a city, or placed in the wild, the T1000 has got you covered!

Your bag, motorbike, personal belongings? Sure!How it works?

Used in LoRaWAN network. T1000 tracker is a LoRaWAN device, which means it operates under the LoRaWAN network. LoRaWAN network is available worldwide, with services provided in over 160 countries, making LoRaWAN networks widely accessible.There are over 150 LoRaWAN network operators globally. Some of the notable ones include: Actility, Everynet, Helium, SenRa, and The Things Network.Facing poor signal in your area?

If your area suffers from poor signal, just simply install a LoRaWAN gateway - it's as simple as setting up a Wi-Fi router. The beauty of LoRa lies in its flexibility and ease of network expansion. This reliable solution is also cost-effective. For instance, the SenseCAP Multi-Platform LoRaWAN Indoor Gateway(SX1302) - EU868 - Seeed Studio priced at just $99, can extend your coverage up to 10km!
SenseCAP Mate App provides an easy hands-on experience with T1000, you can set up and configure the tracker's parameters, like enabling built-in sensors, changing data uplink interval, and viewing the latest and historical locations.SenseCAP Mate App offers a 3-month free plan for all newly added trackers, and after the trial period ends, the cost is only 0.99 USD per month.

If you choose not to onboard the Tracker into the SenseCAP Mate App, you are entirely free to use your own LoRaWAN network provider and cloud services.

Already have your own tracking platform and system?

Not a problem! Openness is the thing we always keep in mind. You can access our open API to streamline data to your platform, or you can easily integrate the T1000 into your existing system.

Here is our partner ecosystem from chip providers, network providers, and platforms.Accessories used with SenseCAP Tracker T1000

Leather Keychain for SenseCAP T1000 Tracker -Seeed Studio and Nylon Lanyard for SenseCAP T1000 Tracker-Seeed Studio are prepared for quick use.Want a new design? Sure! We are open for customization.

Seeed provides one-stop R&D services for fast development from concept to production, contact iot@seeed.cc for custom LoRaWAN tracker/badge/tag design.The tracker reference design is open too!

We deeply value the developer community and believe that open source can lower barriers to innovation and accelerate ideas to prototypes. For those passionate about building your own trackers, we have prepared an open-source development kit - the Wio Tracker 1110 Dev Kit.Documents
