Product parameters

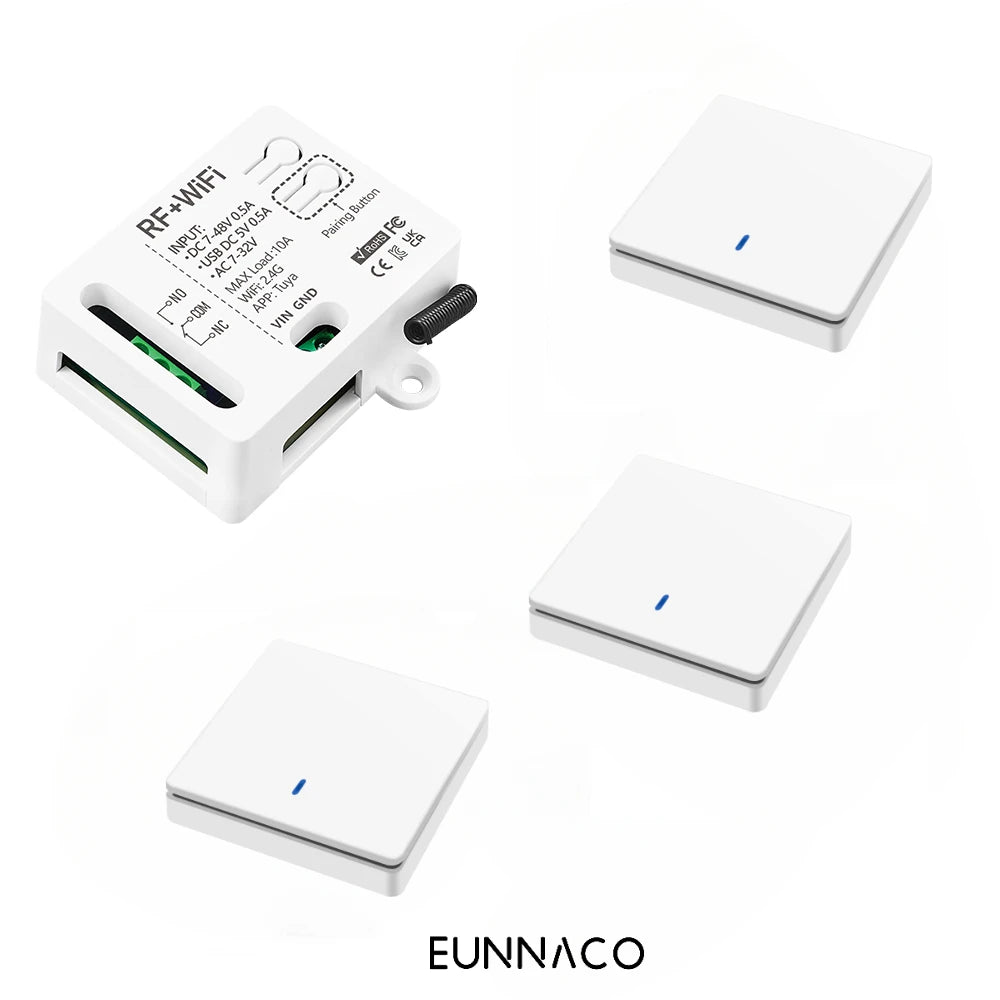

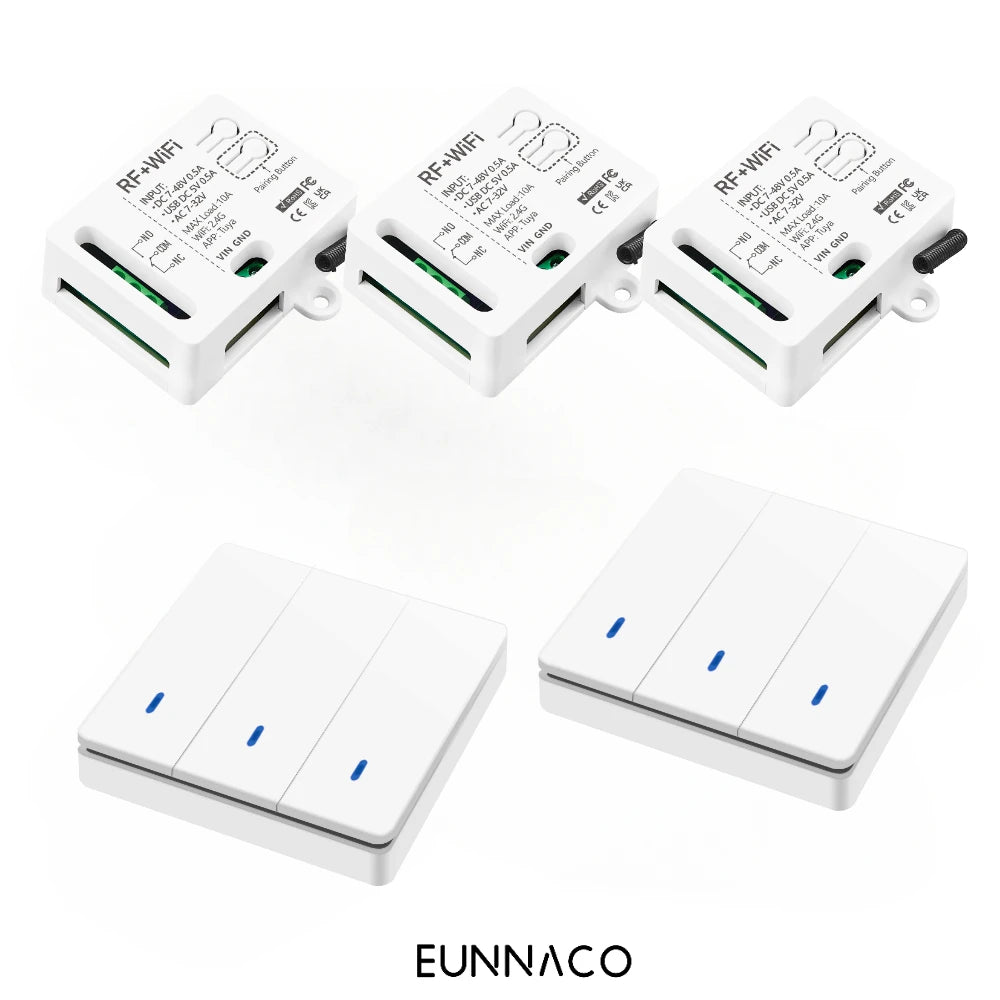

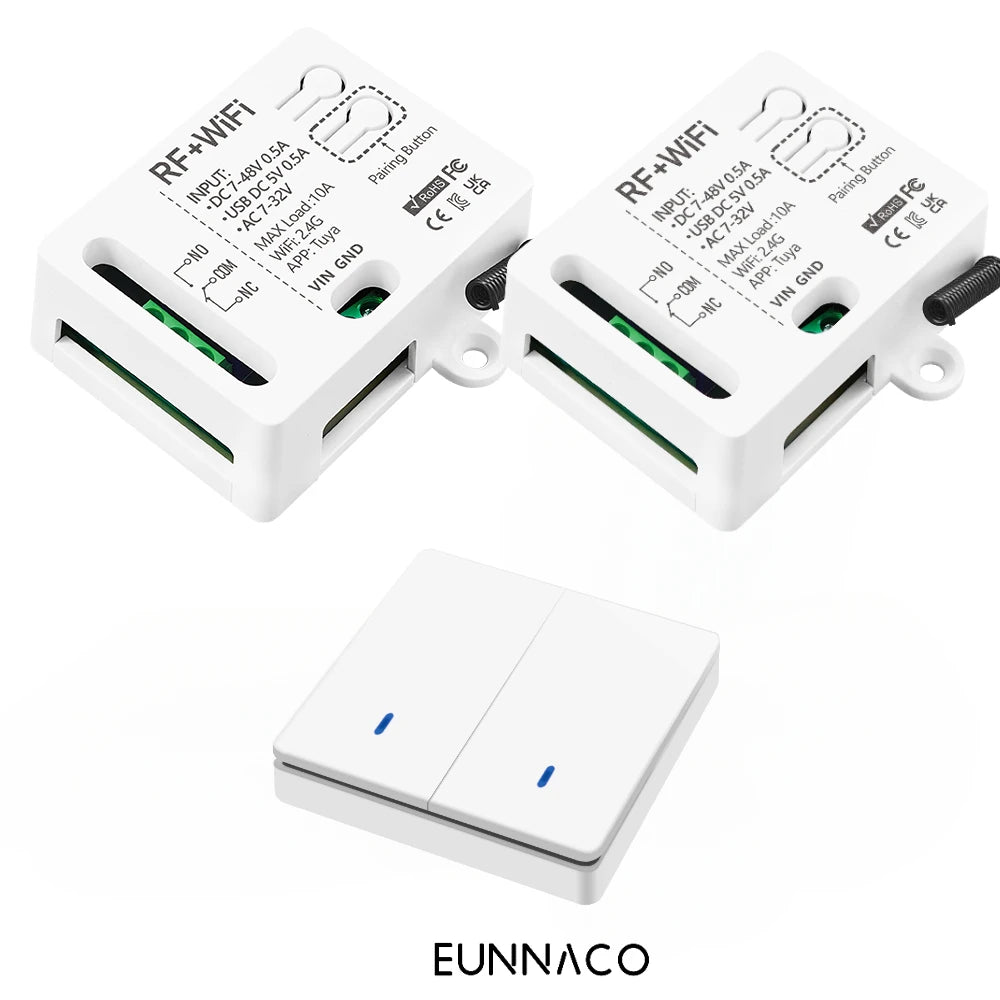

▶WiFi+RF receiver:
Channle: 1 channel

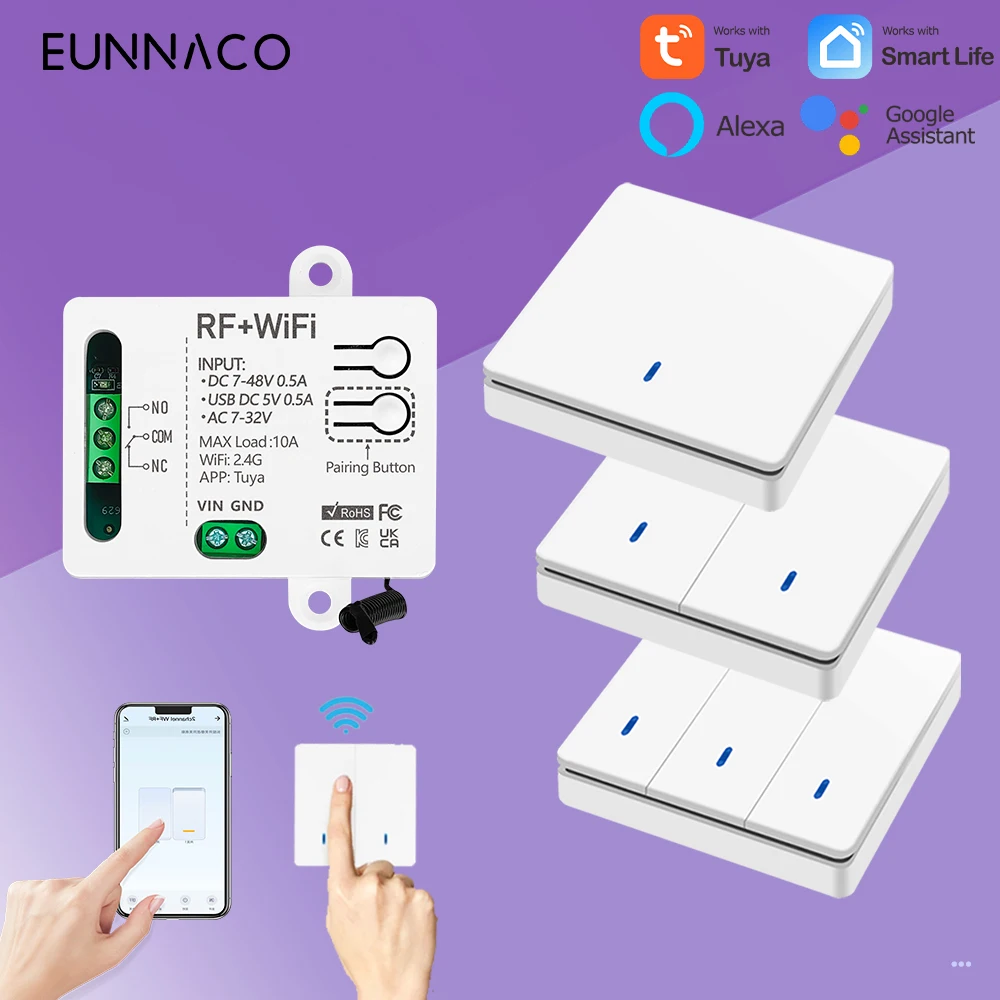

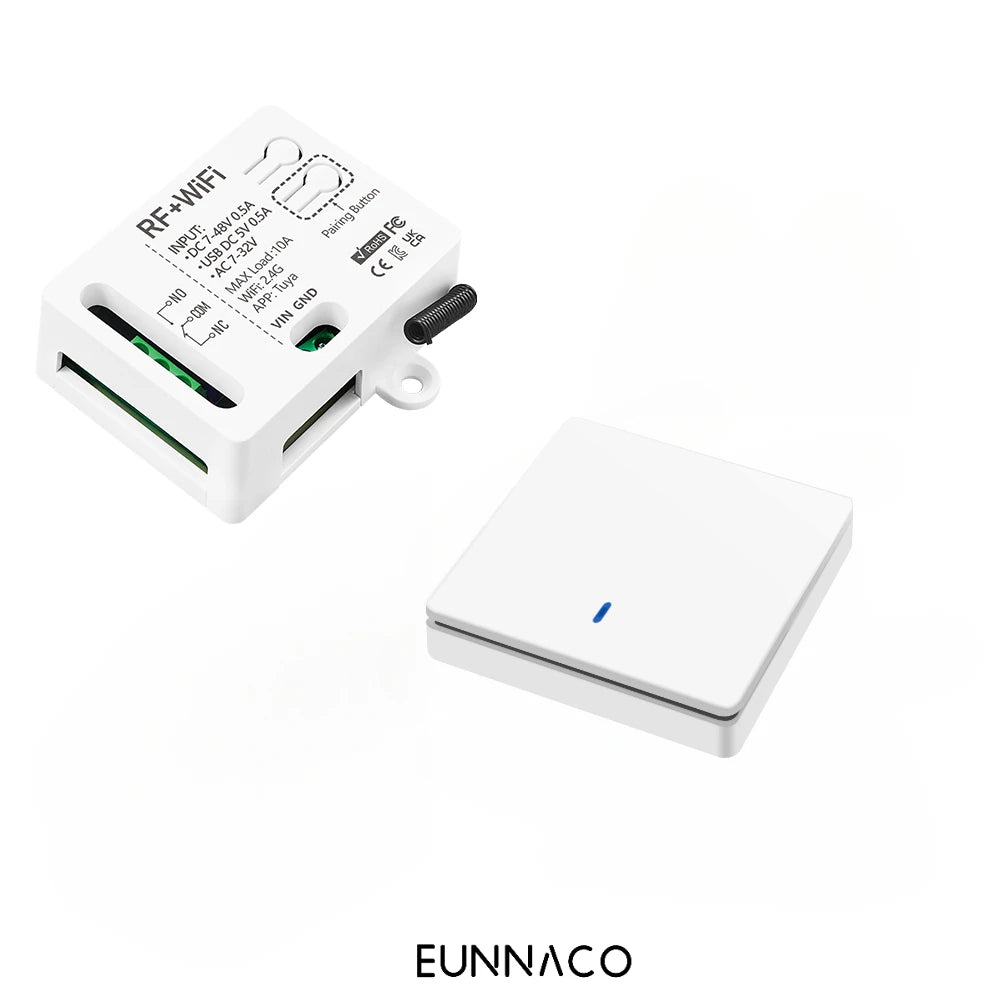

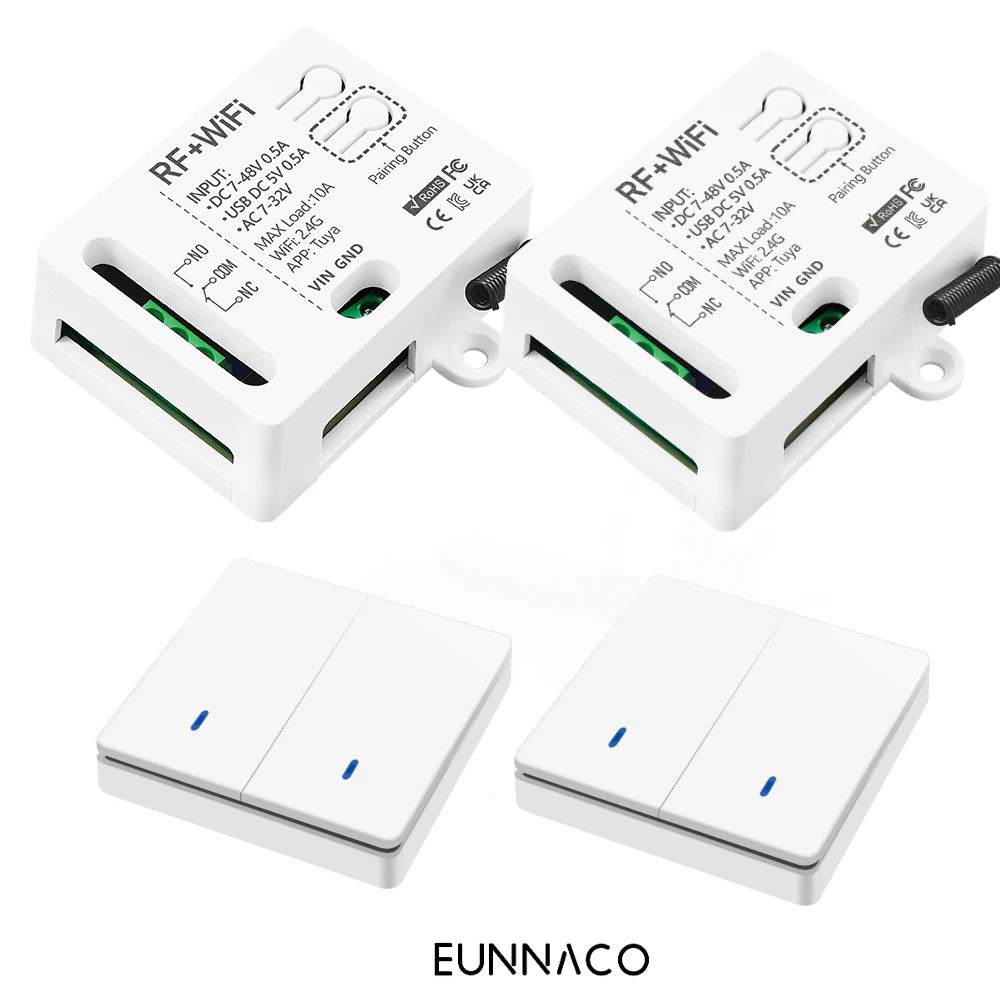

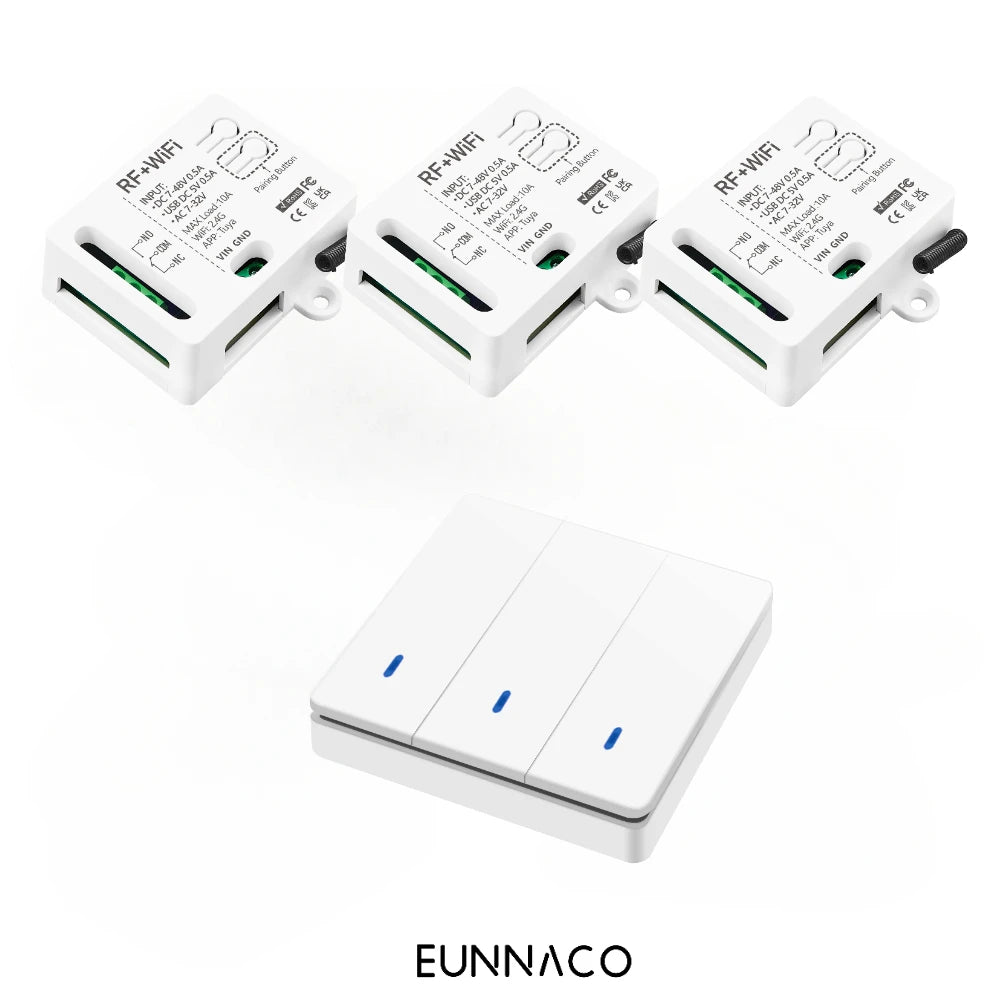

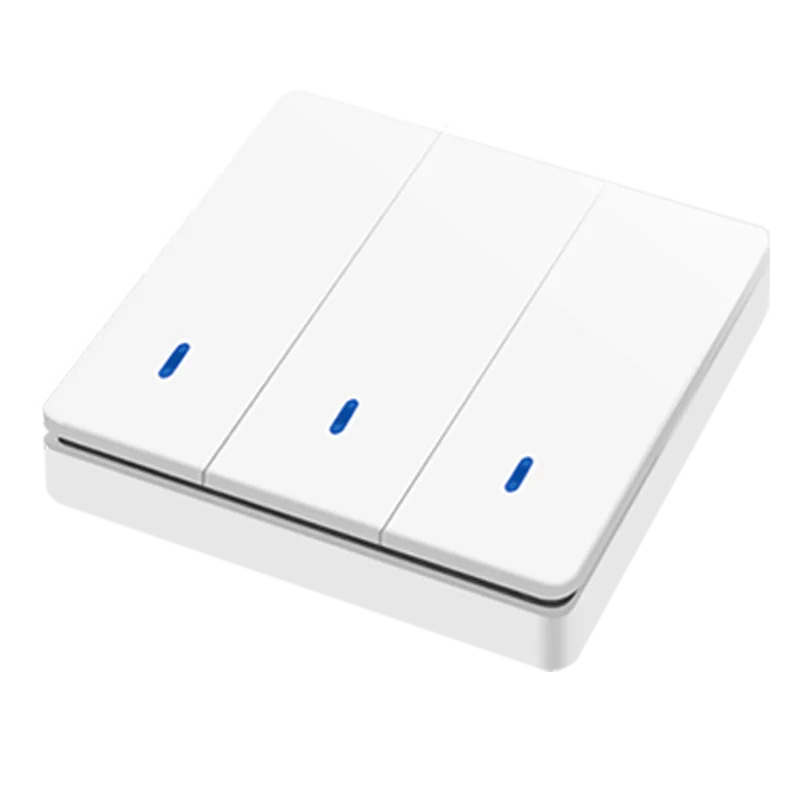

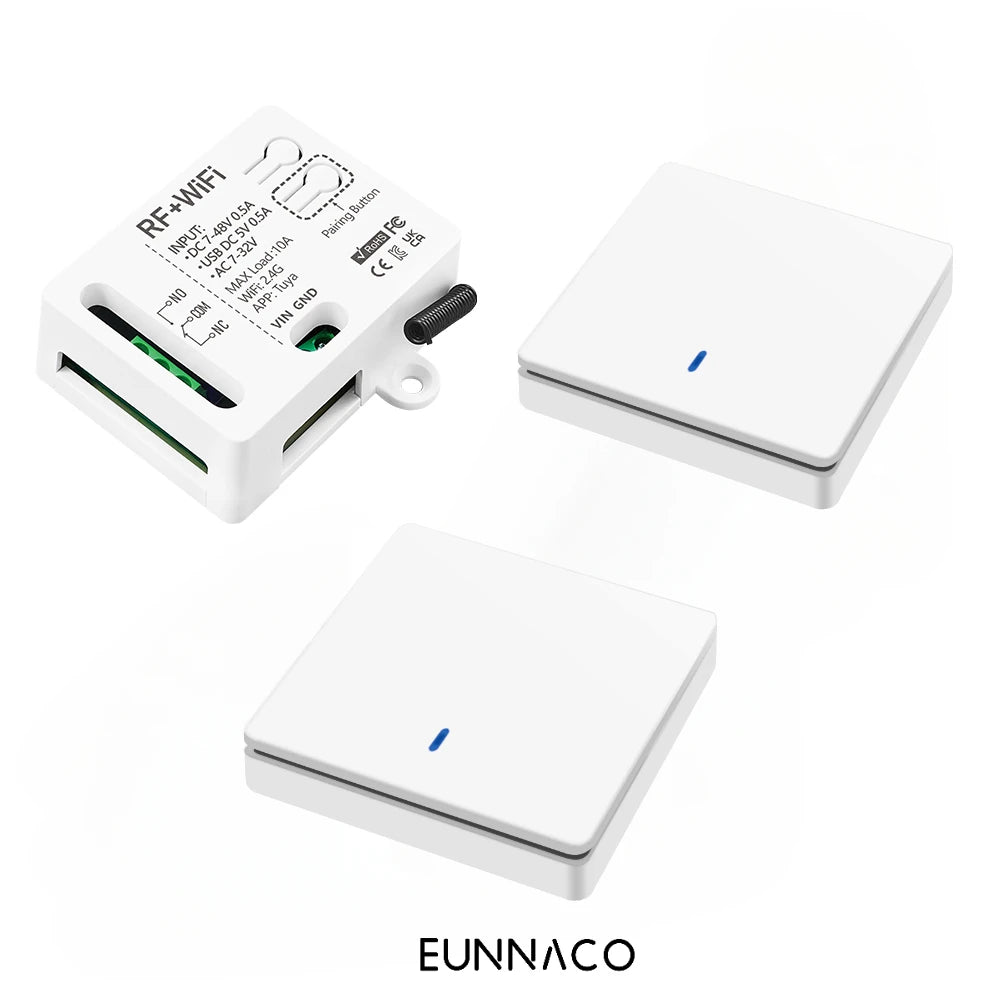

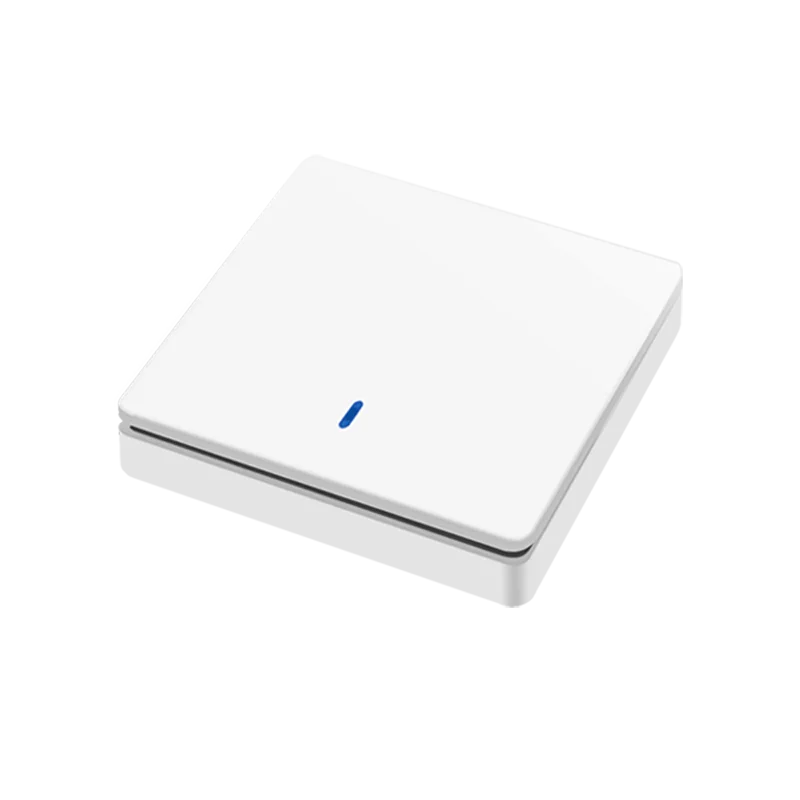

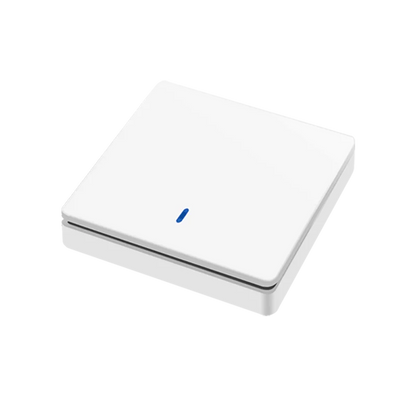

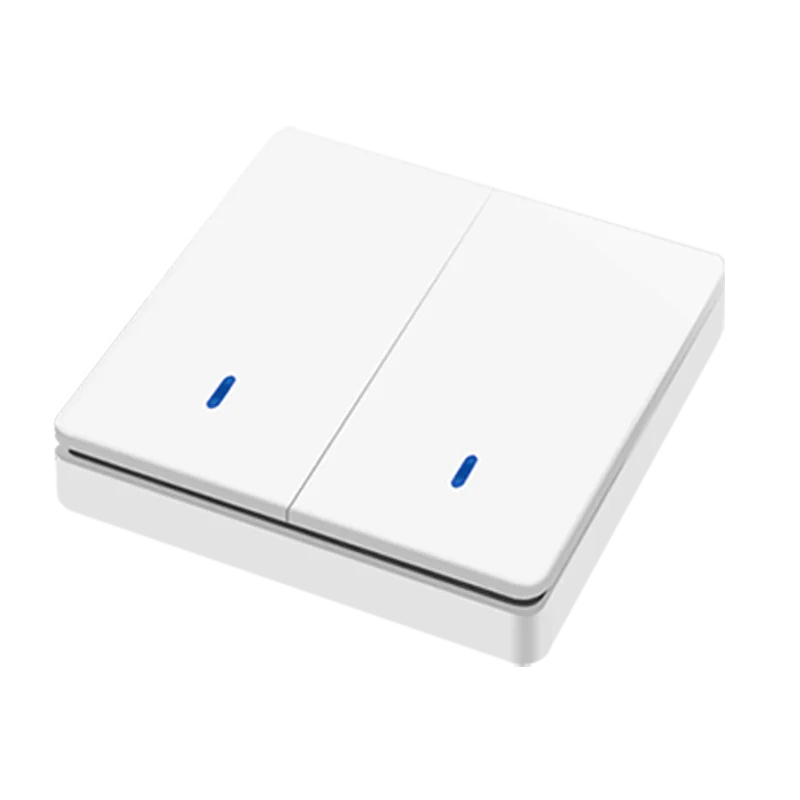

▶ Wall panel Transmitter Parameter
--Feature:it has screw hole and is stickable easy for using in anywhere
--Support encoding : 1527 Leaning code
--RF frequency : 433MHz
--Transmitting range : Open space is more than 50 meters
--Battery  :   Battery include

Features

3 input methods:

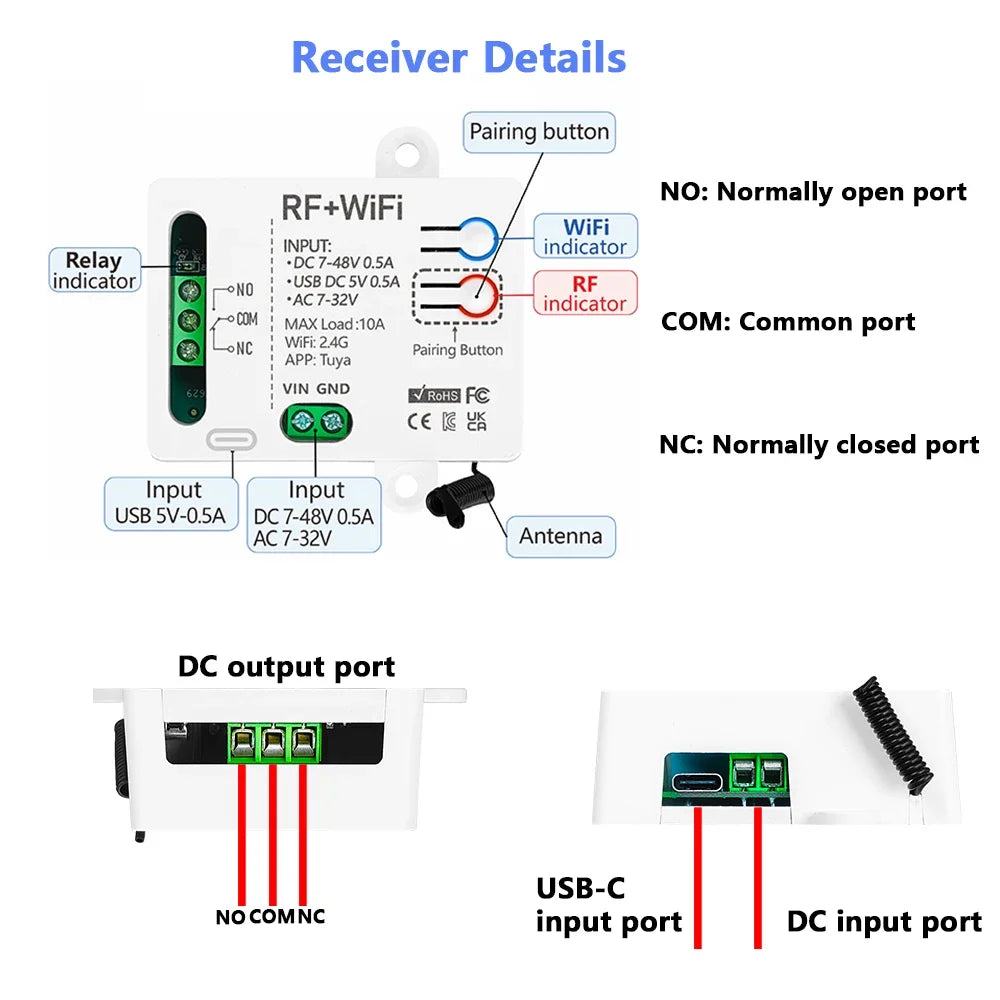

• You can use USB-C 5V or DC 7-48V or AC 7-48V to connect to the input end of the receiver.

Dry contact receiver:

• The input terminal of the receiver is separated from the voltage of the relay, so the input voltage and the output voltage do not have to be the same.

Three control methods:

• mobile app, voice, RF remote control.

Mobile app control:

• The device can be controlled at any time and anywhere through the Tuya app or smart life app.

Voice control:

• The device can be controlled by voice recognition through Alexa and Google Assistant.

RF remote control:

• The store has a variety of RF remote controls, which can remotely control the equipment through RF remote controls.

Group control:

• Connect multiple devices through the mobile APP, and control multiple devices on the mobile phone to achieve the effect of multiple controls on one machine.

Timing function:

• You can create a timer/countdown/time stamp or create a smart scene, such as opening the curtains at 8 o'clock in the morning and closing them at 6 o'clock in the evening.

Independent control:

• The receiver can independently control 1 light or 1-way device.

Describe

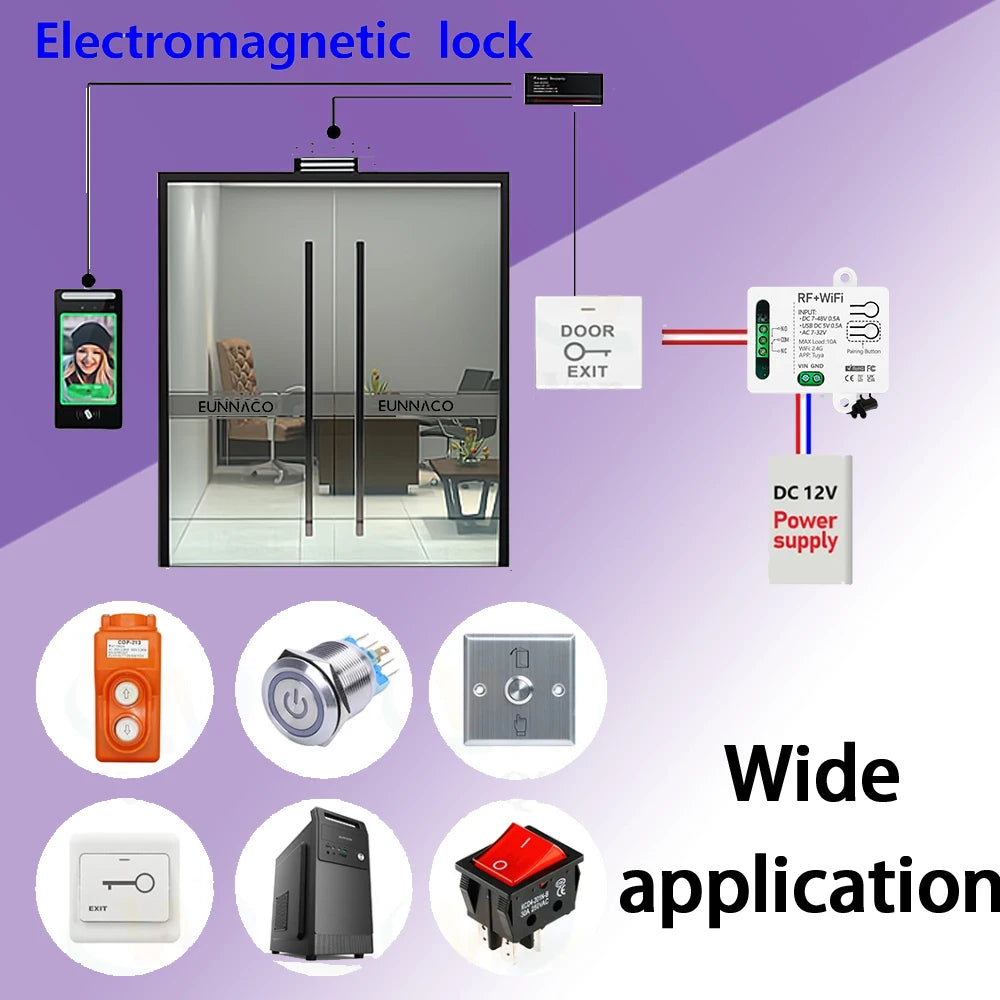

Wide range of application scenarios, can be applied to AC lamp/DC lamp/LED Light Strip/Electric Fan/DIY Switch, etc.

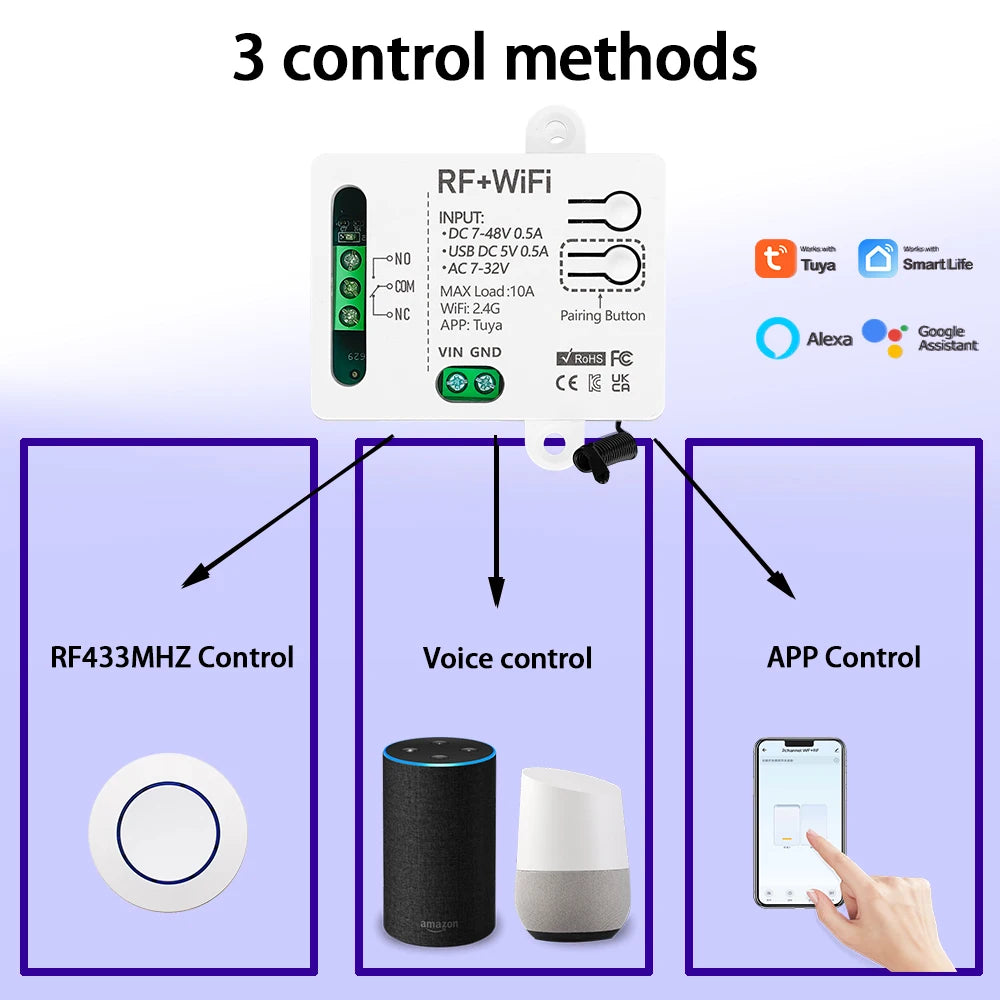

Use APP, RF, voice control

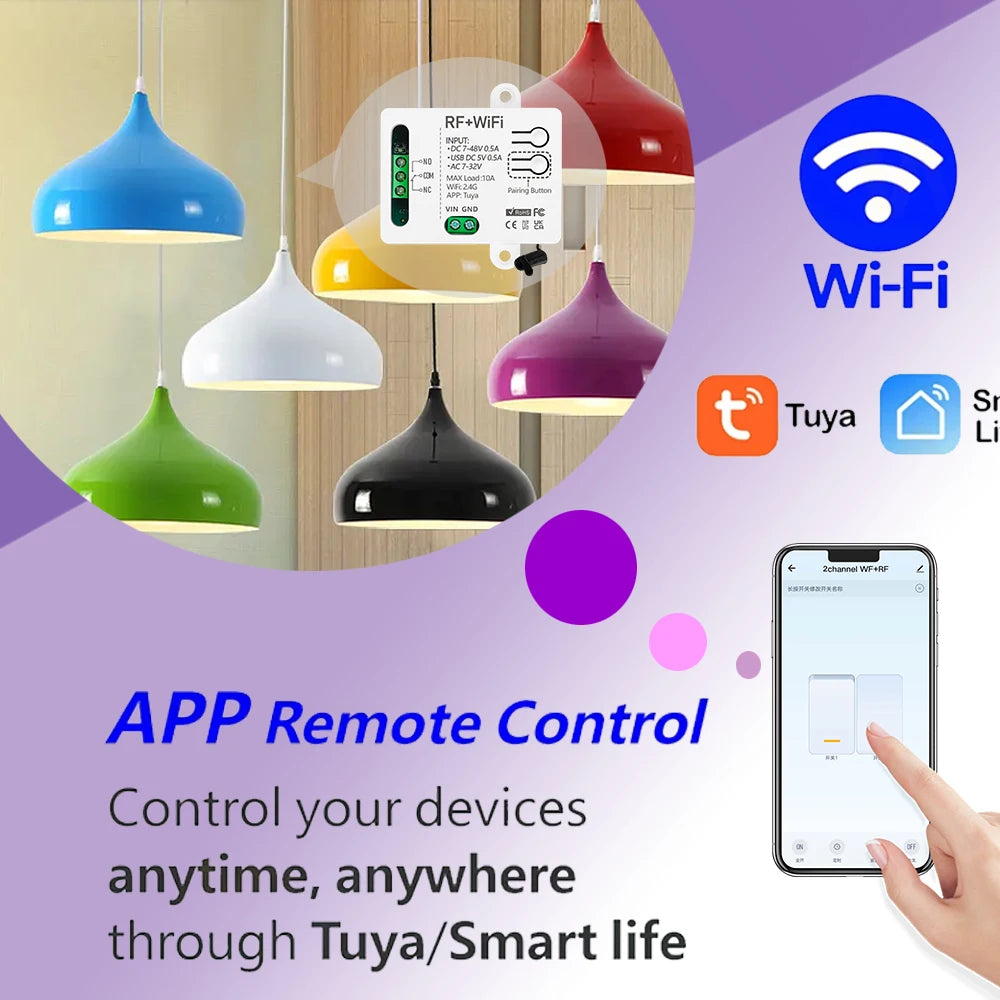

APP control:

1. Add the receiver device to Tuya or Smart Life by connecting to WIFi, and you can control the device anytime, anywhere.

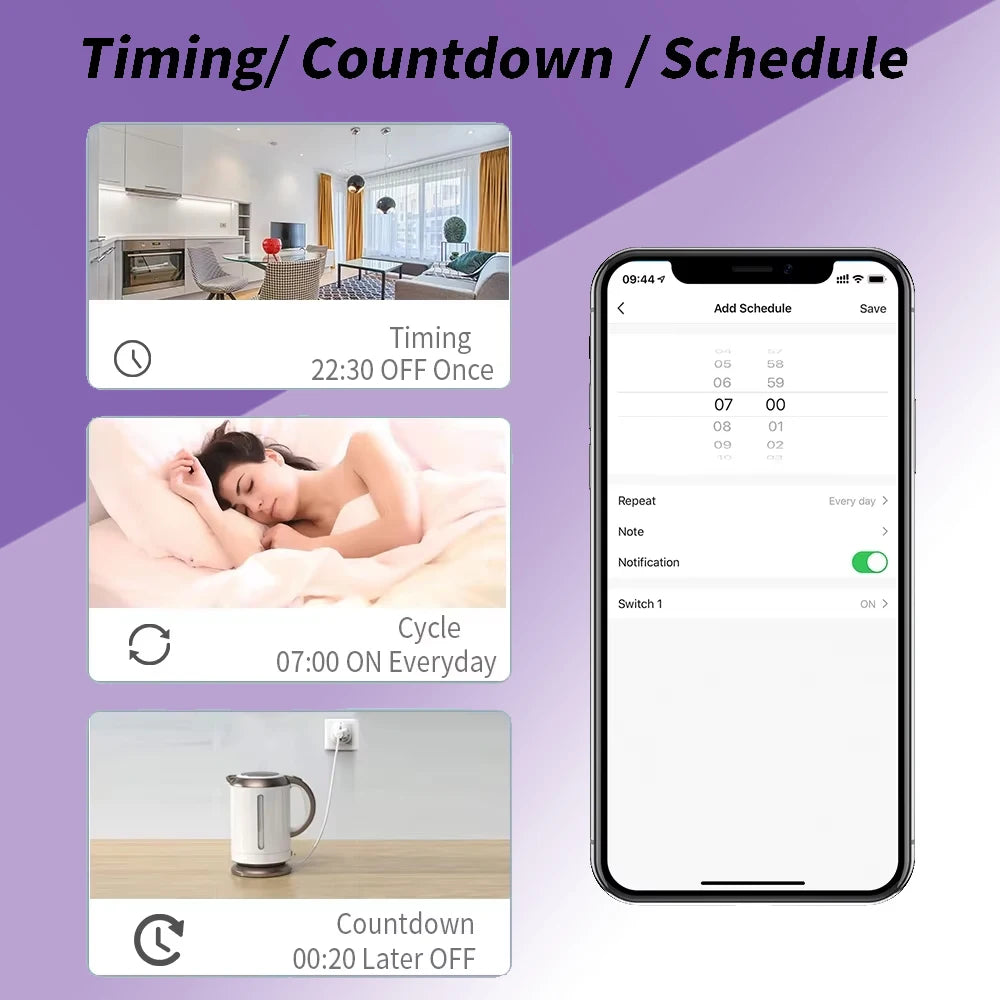

Timing function:

1. You can create a timer/countdown/timestamp or create a smart scene, such as opening the curtains at 7 o'clock in the morning and closing the curtains at 6 o'clock in the evening.

Group control:

1. Connect multiple devices through the mobile APP, and control multiple devices on the mobile phone to achieve the effect of multiple controls on one machine.
2. You can also share the device to achieve the effect that other mobile phones can control the same receiver.

RF control:

1. The receiver supports 433mhz, 1527 learning code remote control, and the remote control can transmit signals up to 30-50m in an open area (without penetrating walls)

Voice Control:

1. Works with Alexa, Google home, etc. and can be controlled by voice.

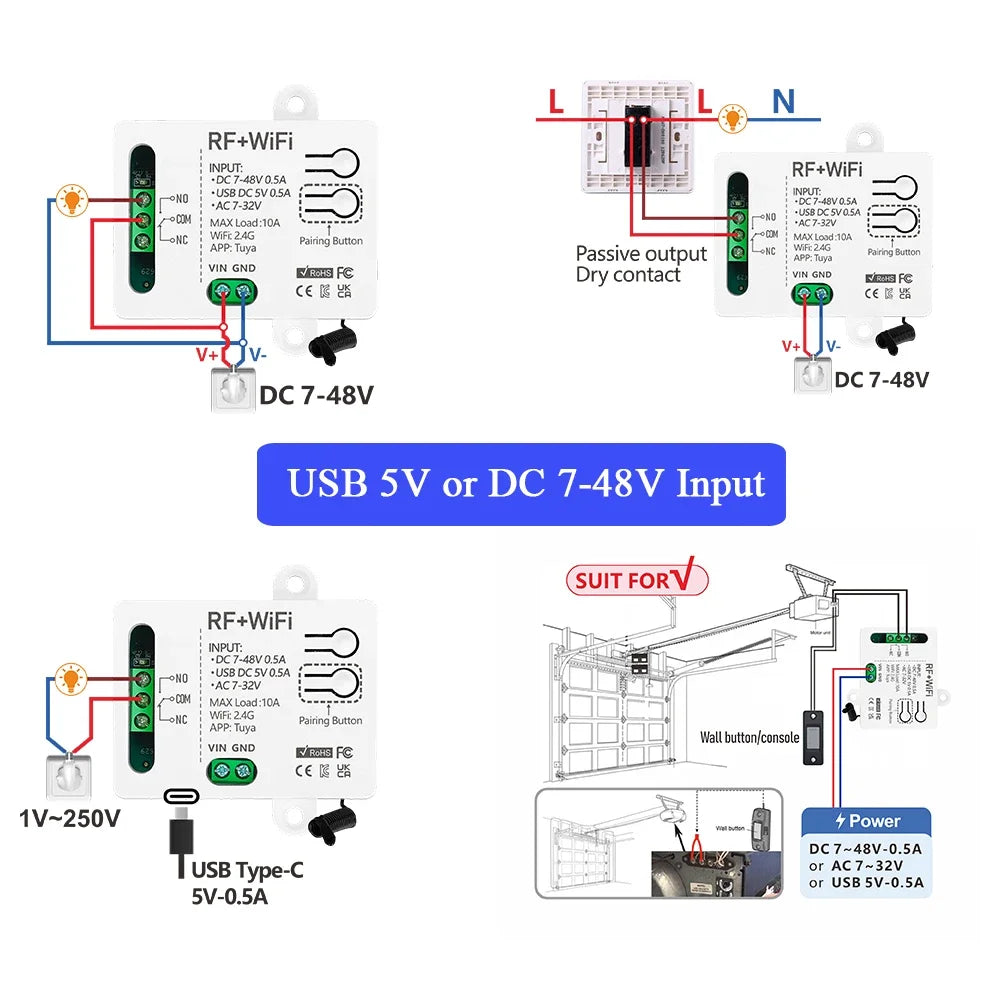

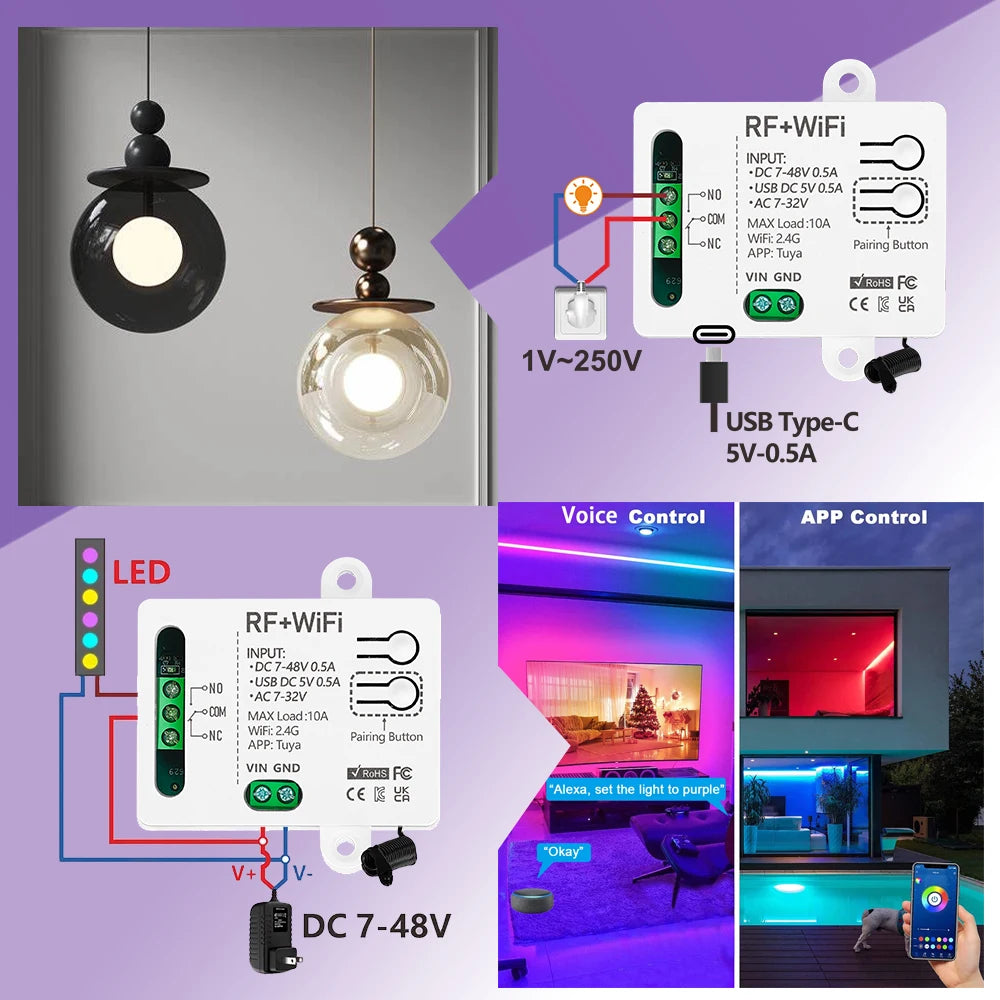

Wiring method

---

If you don't have the app, you can scan the code to download the Tuya app or Smart Life app.

●Pairing with RF remote control

1. Step 1. Quickly click the pairing button 2 times, and the red indicator light will light up.
2. Step 2. Press the  button on the remote control, and the red indicator light will flash several times and then go out.
3. Note: The operation of the second channel is the same as above.

●How to delete the RF signal:

1. Press the pairing button 8 times. After deleting the signal, all relays will no longer be controlled by the remote control.
2. You need to pair the receiver with the remote control again before putting it into use.

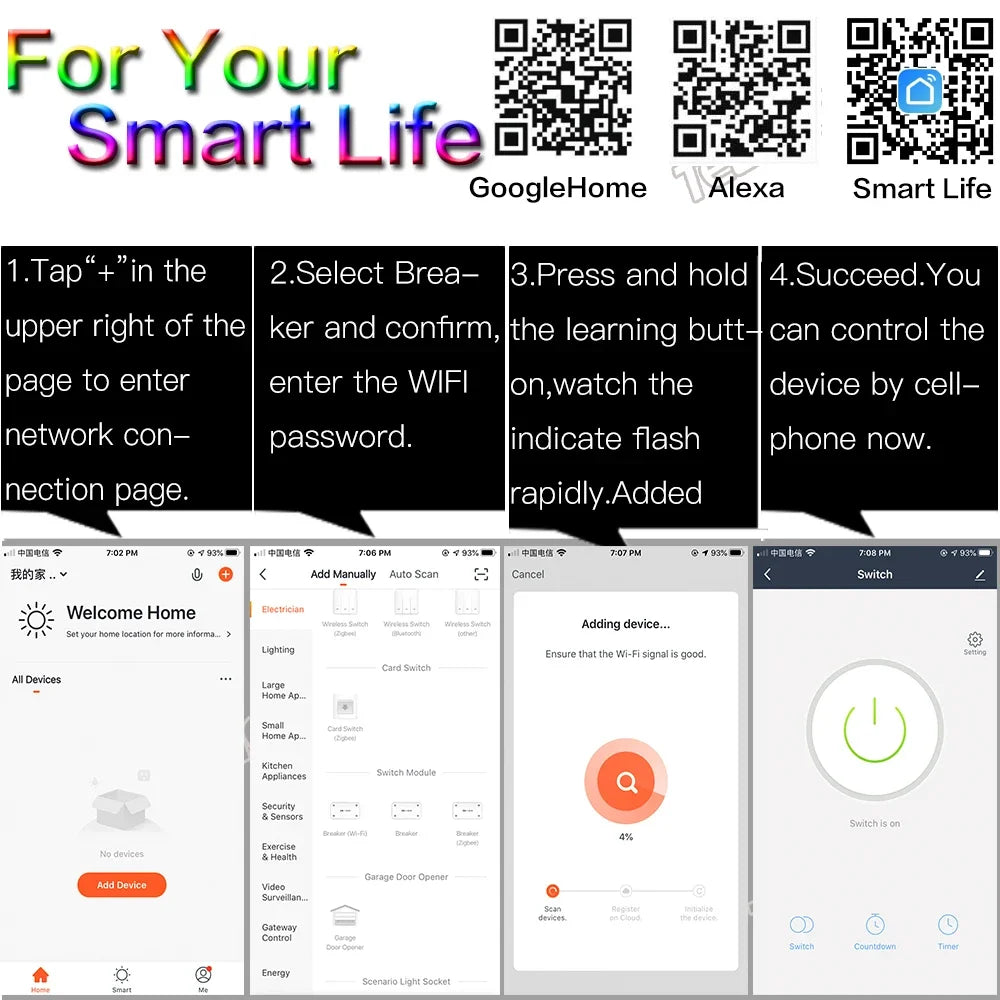

√ How to connect to wifi (tuya or smart life)

① Turn on Bluetooth, open the APP, and click Add Device

② Select the device automatically searched by Bluetooth

③ Mobile phone connects to 2.4GWIFI and enters the WIFI password

④ Click Next and wait for the device to connect successfully

⑤ Device added successfully

---
